HUAWEI LTE 4G 3G AF23 USB Sharing Dock Router Ethernet WiFi Hotspot Access Point




Product Description


22





HUAWEI AF23 LTE sharing Dock is a latest USB base dock. It has numerous functions: as Ethernet router, Wi-Fi repeater and mobile hotspot. With 4G LTE USB Dongle, it could work as 4G Router.


FEATURES:

Support LTE and 3G dongle
Wi-Fi 802.11n 2*2 Better WiFi signal
Up to 300Mps transmission
Compact pocket size
Easy to connect
Easy to share information
Several working modes

Ethernet Router Mode: AF23 connects to the modem through network cable and shares wireless network. Your smart phone, tablet, laptop and other portable wireless devices can access internet

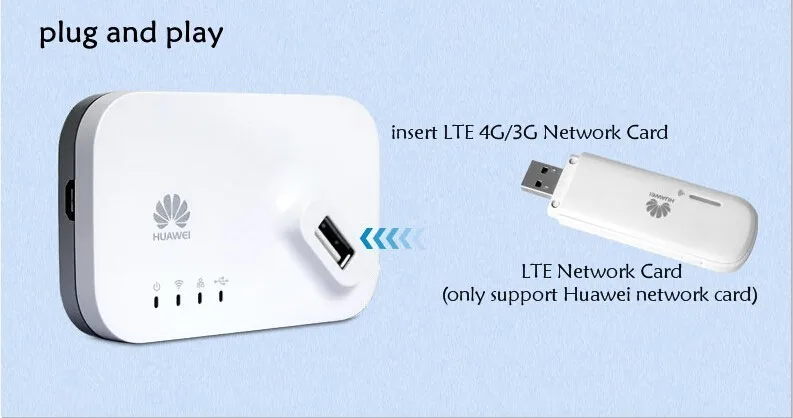

LTE/3G Sharing Mode: AF23 could be used as a LTE/3G wireless router. After plugging the LTE/3G USB Dongle, your wireless device can access the internet. It is easy to setup

USB Storage Sharing Mode: USB Flash memory can be plugged into AF23 that your mobile devices can access the data in the USB Flash memory


SPECIFICATIONS:

Interface: 1 x RJ45 for 10/100
Antenna: 2 x internal antennas
WPS Button
Dimension: 80 x 50 x 18 mm
Operating Frequency: 2.4GHz
Power: 5 V with max. 2.0 A

Huawei AF23, 3G/ 4G USB Modem support list.

E3131s-1, E353u-1, E392u-92, E173s-2, E303Cs-6, E3231Ws-1, E303s-1
E3131s-2, E353u-2, E397Bu-501, ,E173s-3, E303s-1, E3256s-2(V2R2)
E3131s-3, E353u-2, E398u-1, E173s-6, E303s-,2 E3276s-150
E3131s-6, E353u-6, E398u-15, E173s-65, E303s-3 , E353Au-2
E3131s-65, E367u-1 , K5005, E173u-1, E303s-6, E353Tu-6
E353s-1, E367u-2, E173Bu-1, E173u-2, E303s-63, E353Ws-1
E353s-1, E367u-8, E173Cu-2, E173u-3, E303s-65, E353Ws-2
E353s-2, E392u-12, E173Du-1, E173u-6, E303u-1, E353Wu-1
E353s-6, E392u-21, E173Eu-1, E173u-63, E303u-2, E397Bu-502
E353s-81, E392u-511, E173s-1, E173u-81, E303u-6, EC156

Huawei E397 / E392 / E3276 / E398 / E372 / E3251 / E368 / E3131 / E369 / E182E/ 173 / E303
Vodafone K5005 / K4605 / K4505 / K4511 / K3806 / K5006  E3131s-1/ E353u-1/ E392u-92



 Notice: The Manual and box in chinese

( This device very easy to operate, So its will not affect the normal use)

  pls tell me what Plug you want before order .
we will send the US Plug of the original ! If you don't have requirements. thank you .


Promotion price:(if you want to buy AF23 router with MODEM,please Click  )

AF23 + E3131

AF23 + E3372

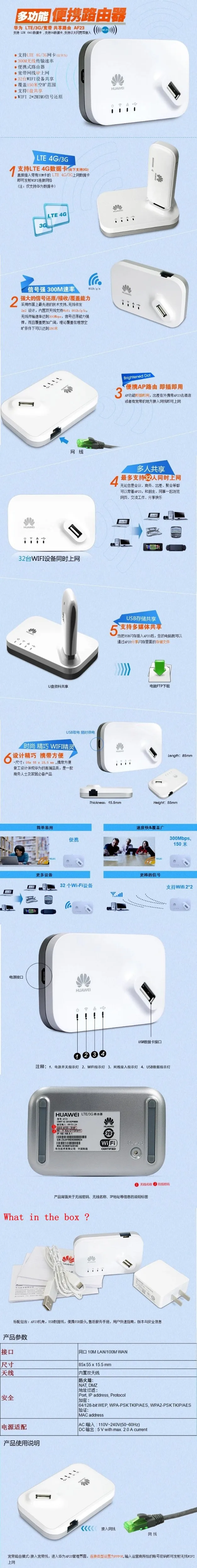

Item Pictures .jpg



3



2

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.35kg (0.77lb.)
  • Package Size: 30cm x 20cm x 5cm (11.81in x 7.87in x 1.97in)
