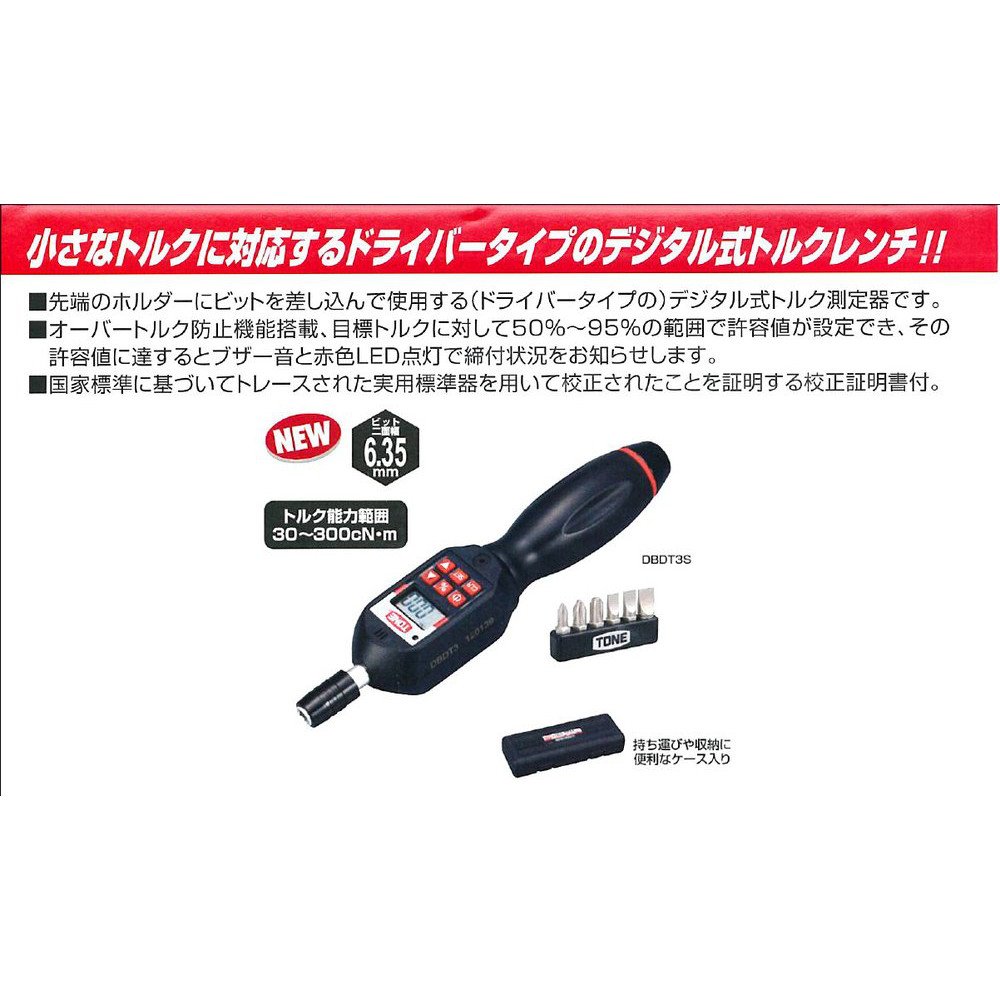

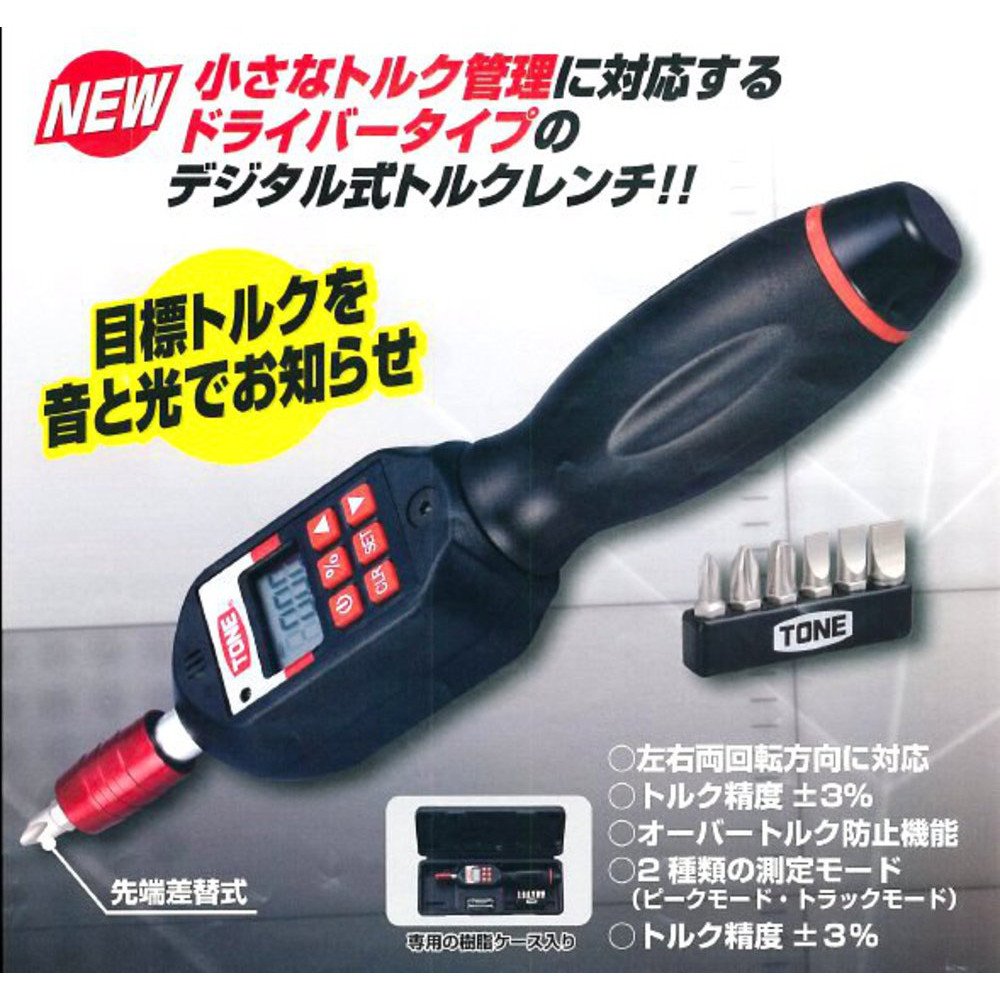

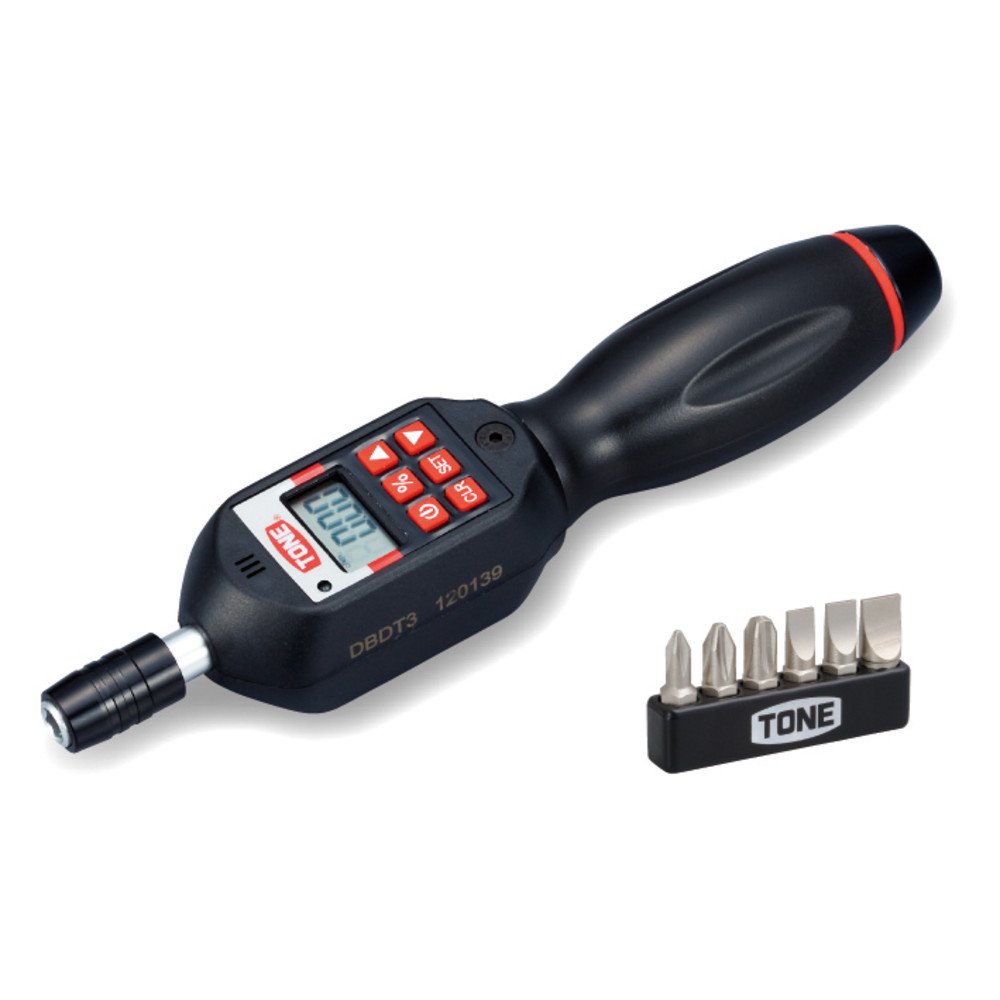

TONE Driver Digital Torque Set Bit 6.35 mm 300 cN · m DBDT 3 S

Item Descriptions:

Driver type digital torque wrench corresponding to small torque management.

Please inform the target torque with sound and light.

It is a digital type torque measuring device (driver type) that uses a bit inserted in the tip holder.

With the over torque prevention function, the allowable value can be set within the range of 50% to 95% of the target torque. When the allowable value is reached, the buzzer sound and the red LED will light up to inform you of the tightening condition.

With calibration certificate certifying that it was proofread using a practical standard instrument traced based on national standards.

Corresponds to left and right direction of rotation.

Torque accuracy ± 3%.

With over torque prevention function.

Two types of measurement mode.

Peak mode and track mode.

Replaceable tip, with special plastic case.

Features:

  • Uses: tightening work, inspection work, precision tightening work etc.

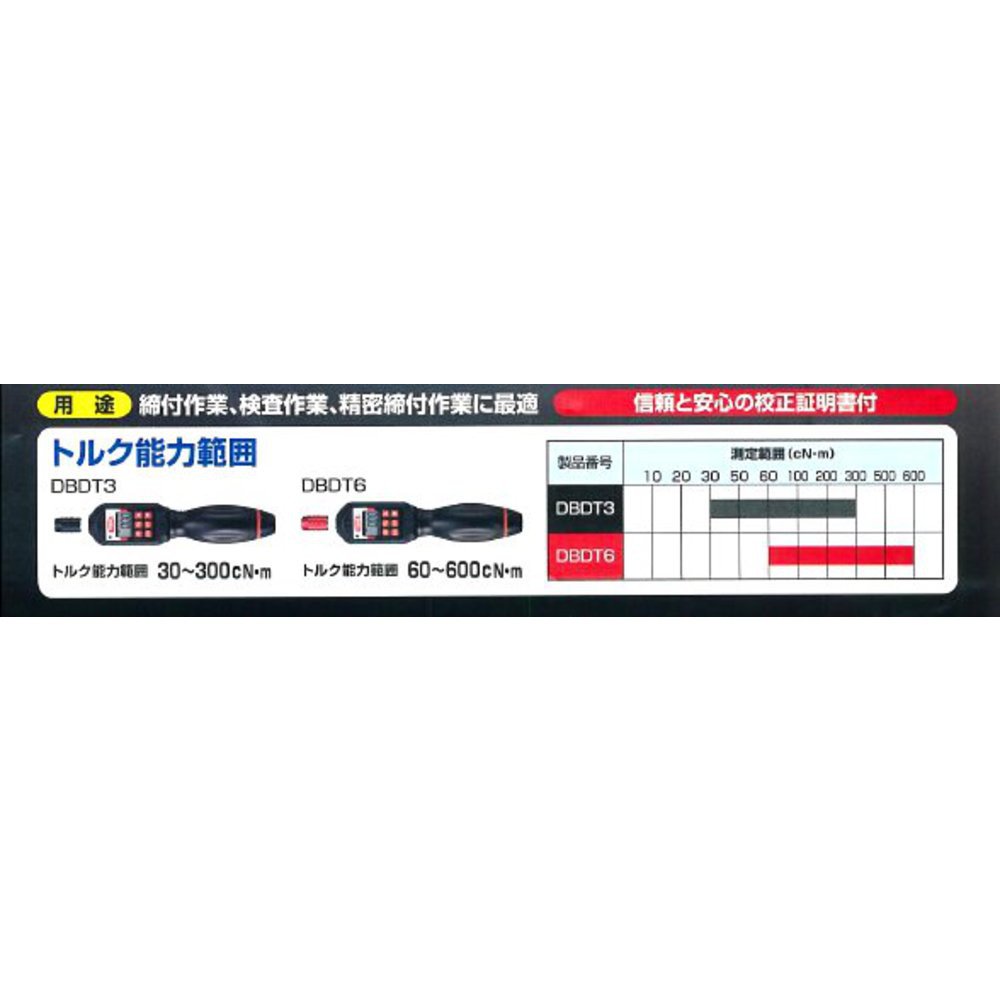

  • Torque capability range Minimum to maximum (cN · m): 30 to 300 Torque accuracy: ± 3%
  • Bit width of two sides: 6.35 mm Battery used: AAA size × 2 pieces Alkaline dry battery
  • Operating temperature range: 5 to 42 ° C Storage temperature range: -20 to 50 ° C

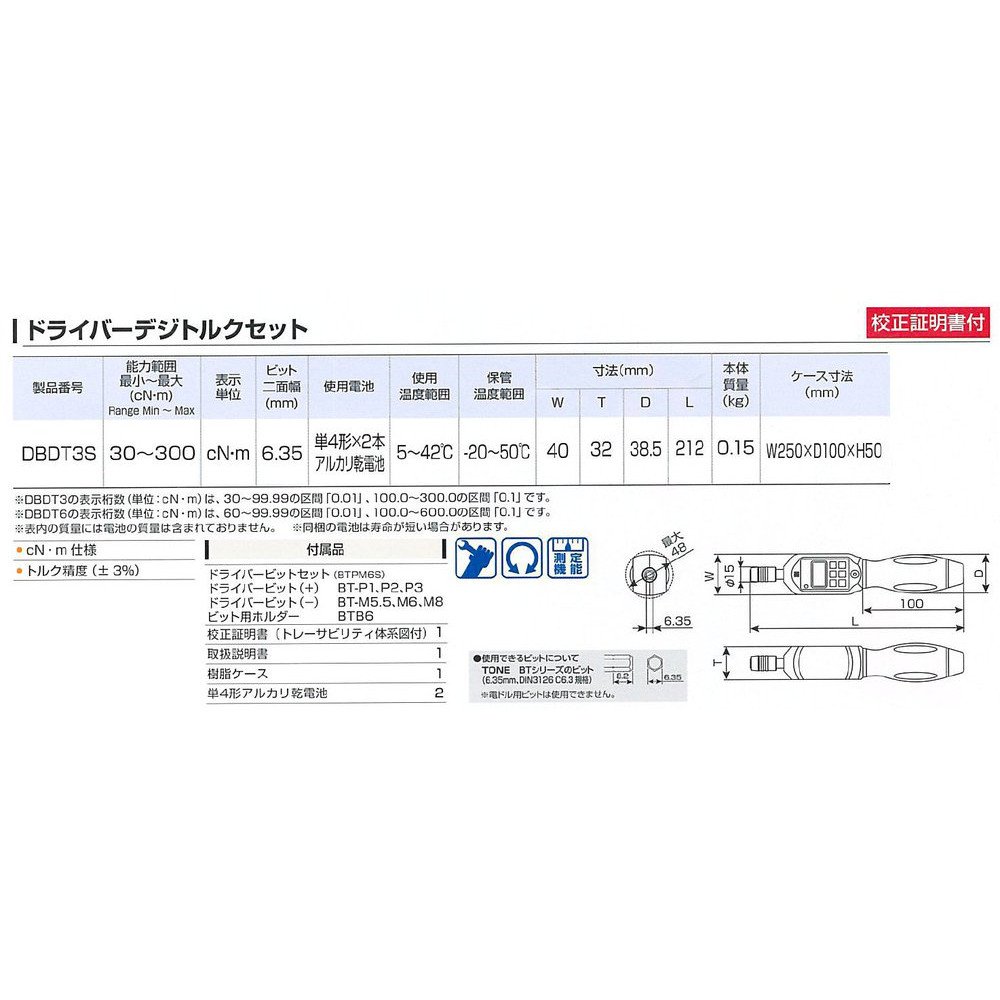

  • Dimensions: total length 212 mm × width 40 mm × height 38.5 mm Body weight: 150 g
  • Driver bit (-) [BT - M 5.5, M 6, M 8] · Bit holder [BTB 6] · Calibration certificate
  • (With traceability system chart) × 1 · Instruction manual × 1 · Resin case × 1 · AAA alkaline battery × 2
  • With calibration certificate · Over torque prevention function · Two types of measurement mode
  • When the validity period / calibration of the calibration certificate is not used: It shall be one year from the calibration date of the calibration certificate.
  • When starting to use within 1 year from the calibration date of the calibration certificate: 1 year from the start of use or 10,000 times of tightening number.
  • Repair / Inspection: There are times when the accuracy is out of order due to rough handling, neglect for a long time, frequent use, etc.
  • If accuracy is required, please periodically request inspection (for charge).
  • Periodic inspection is required for torque equipment.
  • As a rule of thumb, please check regularly once a year, or once every 10,000 uses (charge).

Product information:

Shipping Weight: 489 g

Package Dimensions: 5.31 x 10.39 x 25.70 cm
