Product Description

A Breeze to Build. A Pleasure to Fly.

Designed for 30-35 cc gasoline and electric power, the Escapade MX is a sport pilot's dream come true. Not only does it handle low-speed maneuvers and high-speed aerobatics with equal authority, its low parts count and self-aligning tail surfaces help keep assembly time to a minimum.

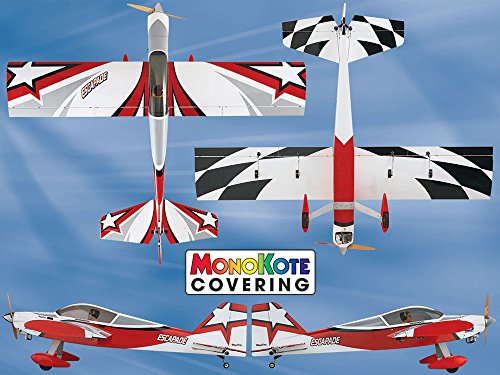

Compatible with 63-62-250kV brushless motors like the RimFire 1.60, the Escapade MX executes snap rolls, stall turns, inverted flight and every move in between. A high-visibility MonoKote trim scheme, painted fiberglass parts and prehinged control surfaces maximize convenience - while minimizing work!

Features:

• Low parts count for fast, straightforward assembly
• Exciting aerobatics with gasoline or brushless electric power
• Aluminum spinner and pilot figure included
• Tail surfaces automatically self-align
• Control surfaces come prehinged
• Battery hatch attaches easily with thumbscrews for added security - no tools necessary
• Two-piece wing simplifies construction and transport

Requirements:

• Radio system (with a minimum of 4 channels)
• Servos (5-9)
• 30-35 cc gasoline engine OR 63-62-250kV outrunner brushless motor
• 80A brushless ESC
• 18.5V 5000mAh LiPo batteries (2)
• Battery charger
• 18x8 prop

Specifications:

• Wingspan: 80 inches (2030 millimeters)
• Wing Area: 1184 square inches (76.4 square decimeters)
• Wing Loading: 25-27 ounces/square foot (76-82 grams/square decimeter)
• Length: 67 inches (1700 millimeters)
• Weight: 12.75 - 13.75 pounds (5780-6230 grams)
• Center of Gravity (CG): 4-7/16 inches (113 millimeters) - 5-1/8 inches (130 millimeters) back from the leading edge of the wing measured at the fuselage
• Control Throws: High Rate Low Rate
• Elevator up/down: 7/8 inches (22 millimeters) 13° 5/8 inches (16 millimeters) 9°
• Rudder right/left: 2 inches (51 millimeters) 19° 1-3/4 inches (44 millimeters) 17°
• Ailerons up/down: 3/4 inches (19 millimeters) 17° 1/2 inches (13 millimeters) 12°
• Flaps down: 7/8 inches (22 millimeters) 20°
