名称：游泳池水质检测仪

型号：PC-101

氯气测试– 调节点：
第一次使用之前，请按以下次序为待测游泳池水或温泉水对测试仪进行调节：
1. 用传统的液体测试工具对游泳池水或温泉水进行测试；
2. 记录氯气读数以备用（1.5PPM）；
3. 对PH 无需进行调节。
寻找测试仪的调节点：
A. 在手柄的电池槽中放入一个AA 1.5 V 电池(正极朝上)。
B. 一只手拿着测试仪，另一只手拿测试棒。
C. 将清洁后的金属棒插入水中至黑色位置。
D. 用金属棒将水轻轻搅动。
E. 金属棒保持在水中时，将表正面的旋钮往CL 方向调至不能再移动为止。然后慢慢往右调回直到指针指到传统
的液体测试工具所测到的结果的位置（如1.5）。
F. 将测试棒从水中取出，注意不要移动旋钮。指针将向右滑动，在Ａ与Ｅ间一个字母停下。这个字母即是调节点。
注意: 每次测试氯气前，必须先将表调至“调节点”。

测试 pH 值:
游泳池水或温泉水的建议氯气含量为7.2 至 7.8
A) 让测试棒停留在水中，将旋钮往 pH 方向调至发出嘀嘀声(读pH 值时必须将电池取出)。
B) 等到指针停止摆动后进行pH 读数。
C) 轻轻擦干测试棒，插入到测试仪旁边的插槽后存放好。

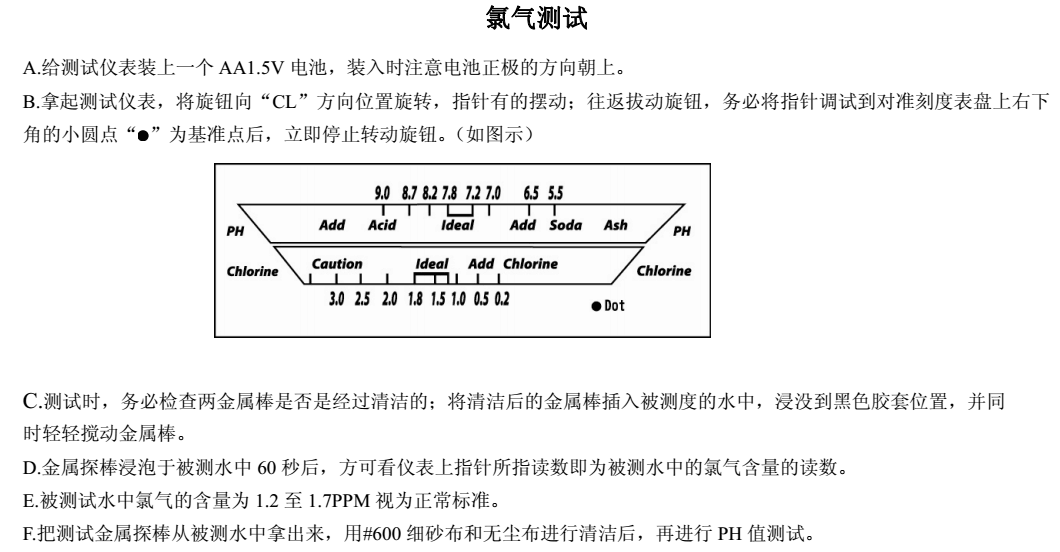

测试氯气含量：
游泳池水或温泉水的建议氯气含量为 1.2 至 1.7ppm
A) 将指针调至“调节点”位置。
B) 一只手拿着测试仪，另一只手拿测试棒，将金属棒插入水中至黑色位置。等到指针停止摆动后进行读数。
C) 让测试棒停留在水中，继续按说明书进行pH 值测试。

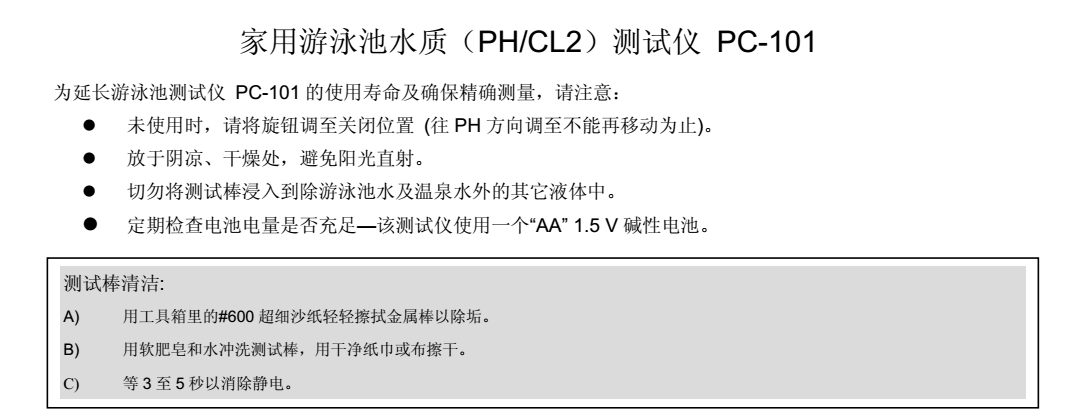

保管方法：

为延长游泳池测试仪 PC-101 的使用寿命及确保精确测量，

请注意：
1、未使用时，请将旋钮调至关闭位置 (往PH 方向调至不能再移动为止)。
2、放于阴凉、干燥处，避免阳光直射。
3、切勿将测试棒浸入到除游泳池水及温泉水外的其它液体中。
4、定期检查电池电量是否充足—该测试仪使用一个“AA” 1.5 V 碱性电池

5、不支持7天无理由退货

Swimming pool electronic water quality tester PH value chlorine tester

Residual chlorine detector water detector

Name: Swimming pool water detector

Model: PC-101

Chlorine test - Adjustment point:
Before first use, adjust the tester for the pool or hot water to be tested in the following order:
1. Use traditional liquid testing tools to test swimming pool water or hot spring water;
2. Record the chlorine reading for standby (1.5PPM);
3. Do not need to adjust PH.
Finding the point of adjustment for the tester:
A. Insert a AA 1.5 V battery into the battery compartment of the handle (positive side up).
B. Hold tester with one hand and test stick with one hand.
C. Insert the cleaned metal rod into the water to a black position.
D. Gently stir the water with a metal rod.
E. While holding the metal rod in the water, turn the knob on the front of the watch toward the CL direction until it stops moving. Then slowly right back until the pointer points to tradition
The location of the measured result of the liquid test tool (eg 1.5).
F. Remove the test rod from the water, taking care not to move the knob. The pointer will slide to the right, stopping between letters A and E. This letter is the adjustment point.
Note: You must adjust the meter to "Adjustment Point" before each test of chlorine gas.

Test pH:
The recommended chlorine content for swimming pool or hot spring water is 7.2 to 7.8
A) Leave the test stick in water and turn the knob to the pH direction to make a beep (you must remove the battery when reading pH).
B) Wait until the cursor stops swinging for pH readings.
C) Gently wipe the test stick and insert it into the socket next to the tester and store it.

Test chlorine content:
The recommended chlorine content for pool or hot spring water is 1.2 to 1.7 ppm
A) Adjust the pointer to the "adjustment point" position.
B) Hold the tester in one hand and the test stick in one hand and insert the metal stick into the water to a black position. Wait until the pointer stops swinging after the reading.
C) Leave the test rod in the water and proceed with the pH measurement as instructed.

specification
1. Swimming pool, sauna and spa essential tools
2. The ideal tool for simply measuring the pH and C12 values of water
3. No chemical composition, no longer need to guess to measure
4. Chloride content within safety measurement range: 1.2-1.7ppm
5. PH value within the safety measurement range: 7.2-7.8
6. Battery: Use 1 AA battery

Storage method:
To extend the life of the pool tester PC-101 and ensure accurate measurements,
Please note:
1, when not in use, please turn the knob to the closed position (to the PH direction can not be moved so far).
2, put in a cool, dry place, avoid direct sunlight.
3, do not dip into the test rod in addition to the pool water and other liquids outside the hot spring water.
4, regularly check the battery is sufficient - the tester uses an "AA" 1.5 V alkaline batteries
5, does not support 7 days no reason to return
