Item Descriptions:

how to use

Insert TF card:

Since it can not be used unless the TF card enters the product, first prepare the TF card,

【MicroSD (TF) card】

Please insert it in the card entry part.

Please check the status of TF card.

Recording:

After entering the card, the camera's

Power supply

ON / OFF button】

And turn on the power, when the DC 5 V (external power supply) mobile battery and the AC adapter are connected, the blue light flashes 3 times.

The video camera initializes and then enters the standby state.

The device detects motion and starts recording automatically.

(If you do not do this, the recording progresses all the time and saves every 5 minutes.) Next, the red light turns on to return to the recording mode.

After recording completion

"ON / OFF"

You can stop recording by turning OFF.

The file is automatically saved.

If you do not turn off the power, recording can not be stopped.

Overwriting will be deleted from the old file even if the memory card is full, overwrite recording will continue.

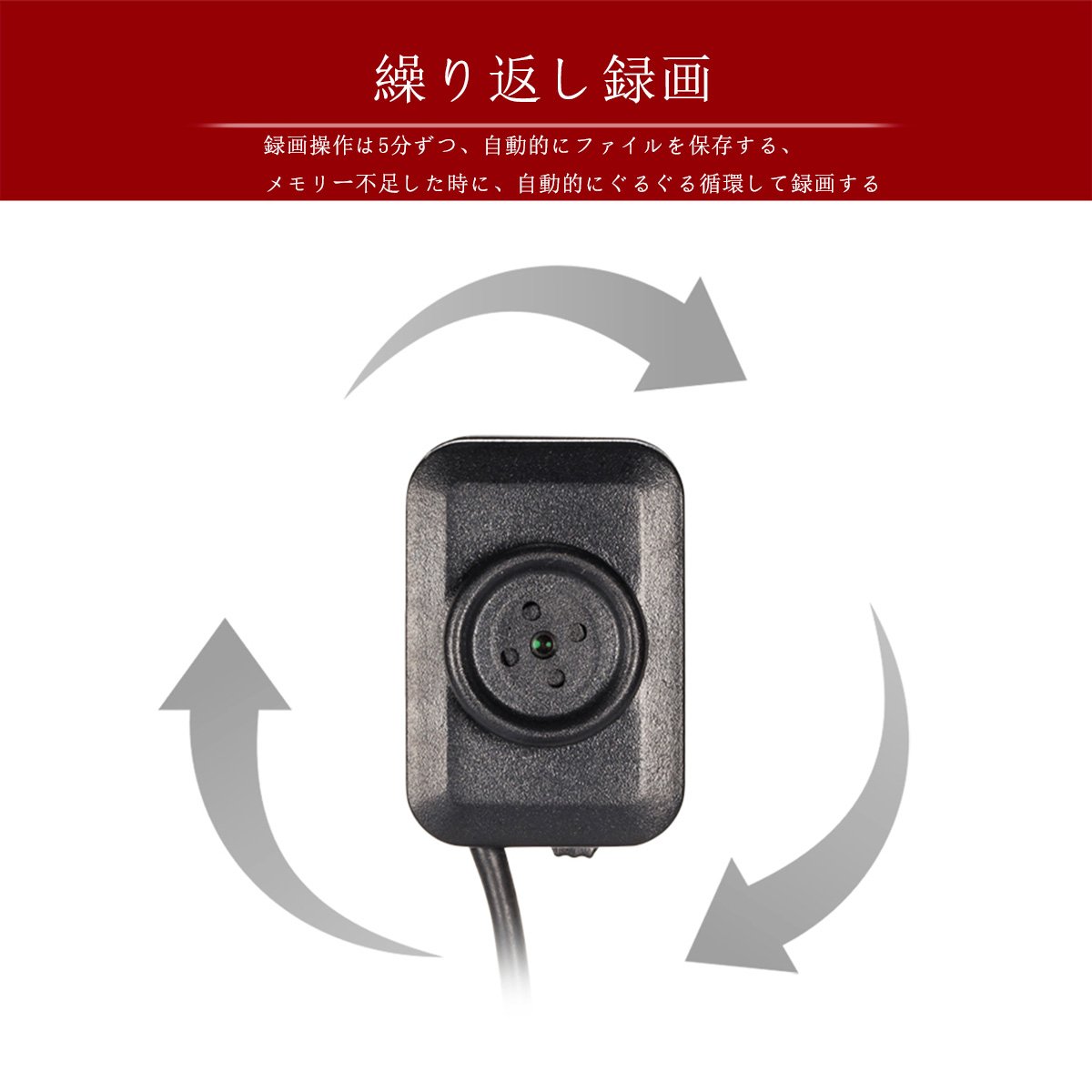

Repeat recording function

When the memory card is full, the device will save the latest video file, which also removes the original video file.

Date setting method

Connect with a PC with a USB cable, "Device and Drive" with

"Time.txt"

Please open the file, please set the original time of the document time "2017.07.10 00: 00: 00" for example, please set up and start the camera.

Charging method:

Insert the TF card, connect (external power supply) mobile battery and AC adapter, you can record.

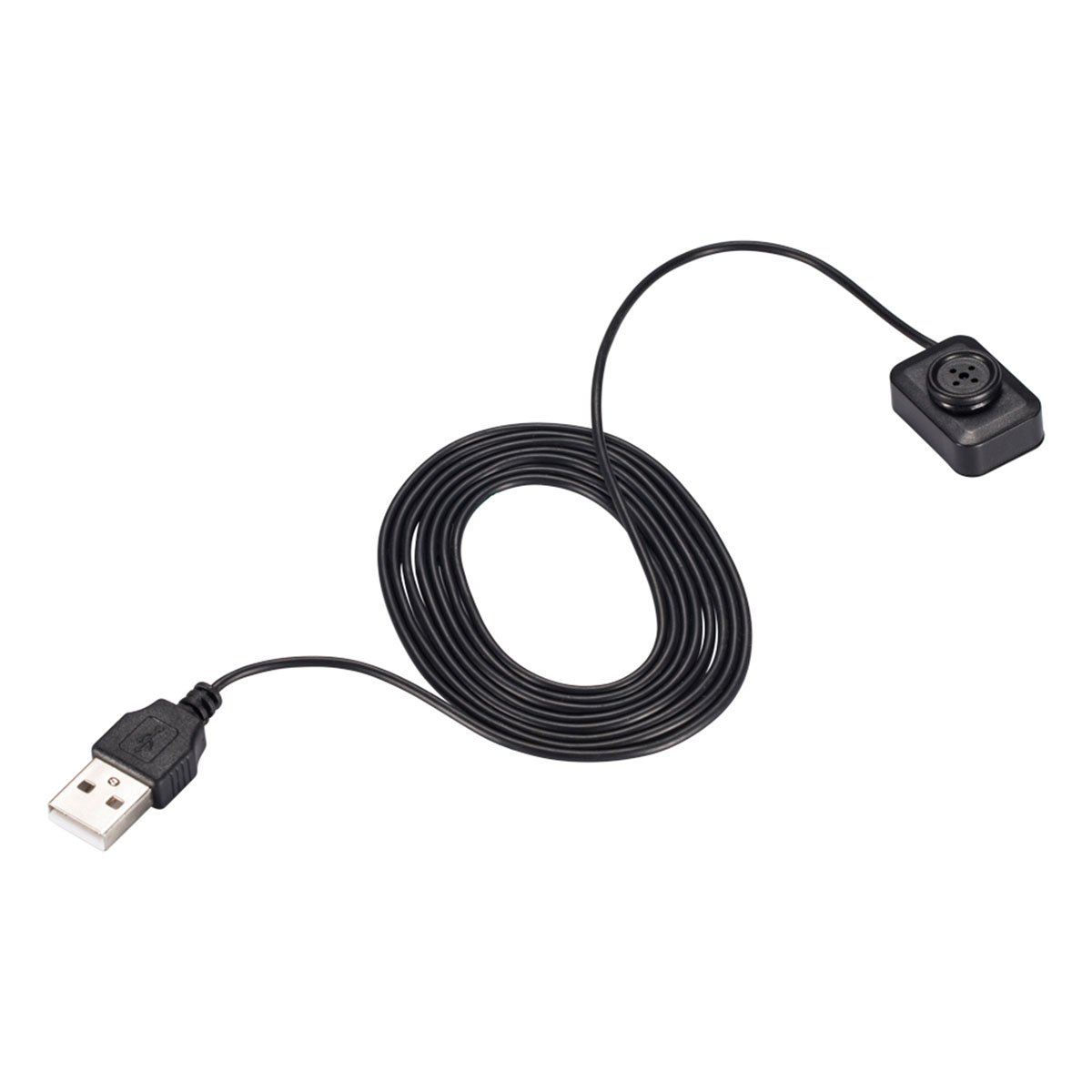

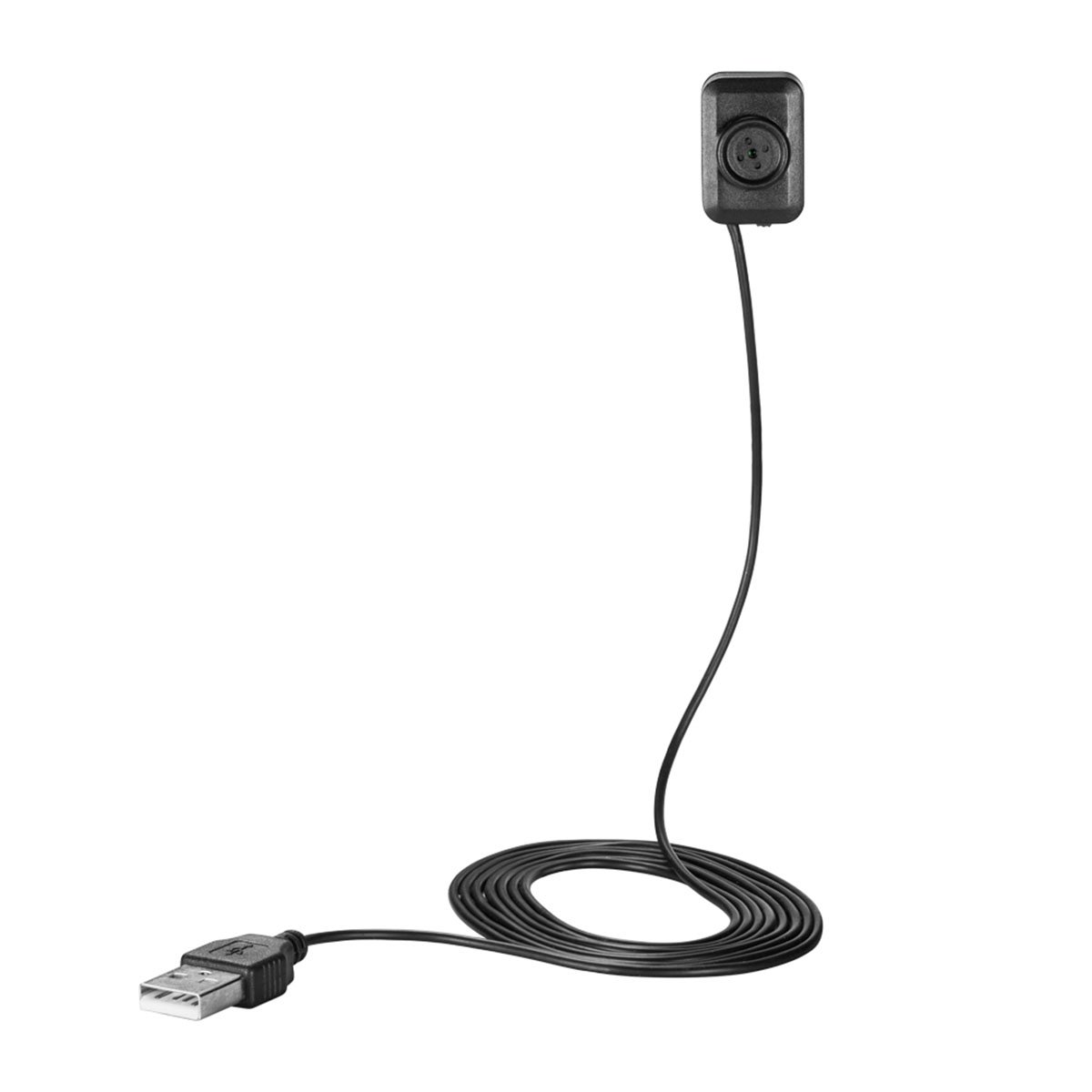

Transmission line about 1.45 m, installation is convenient.

Compact design, you can learn.

【Product Specification】:

High image / high resolution: Movie is "HD 1920 * 1080P"

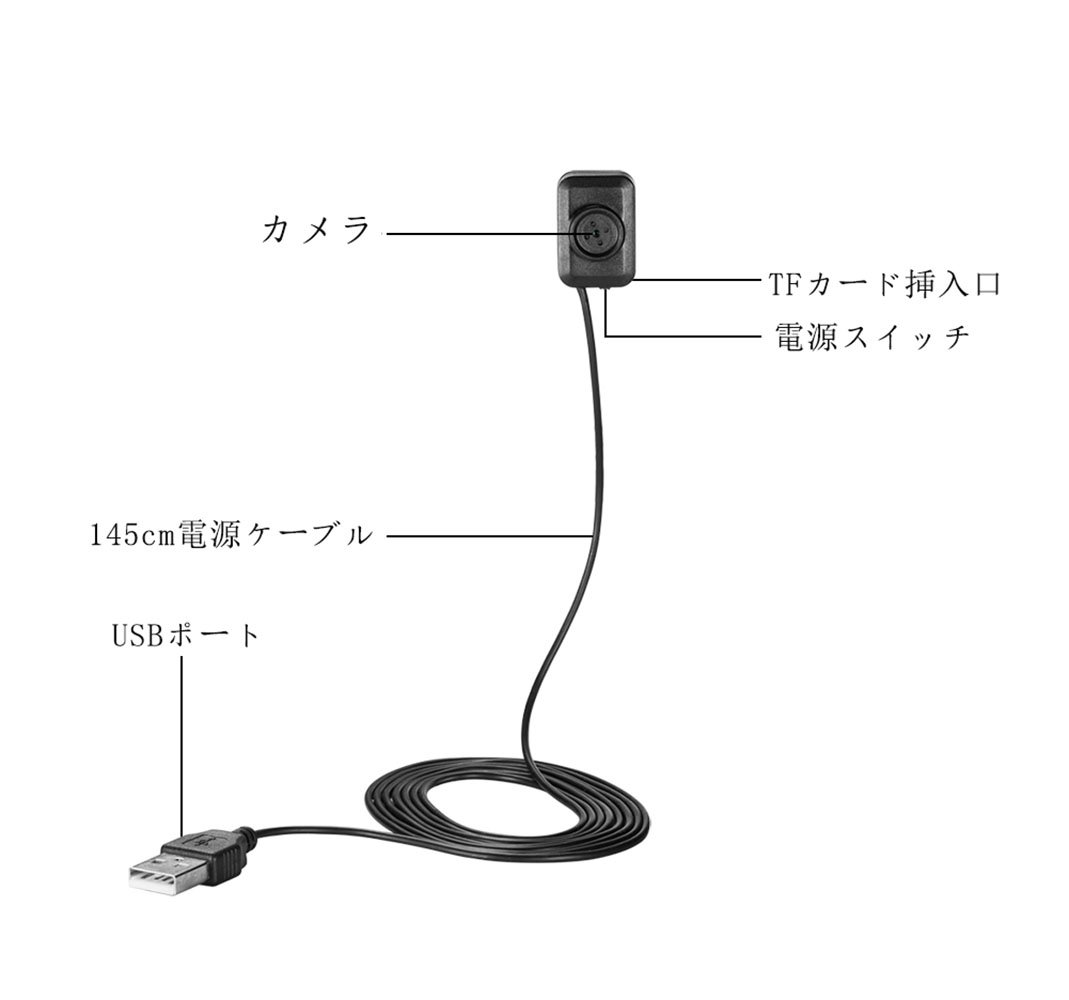

Cable length: about 145 cm

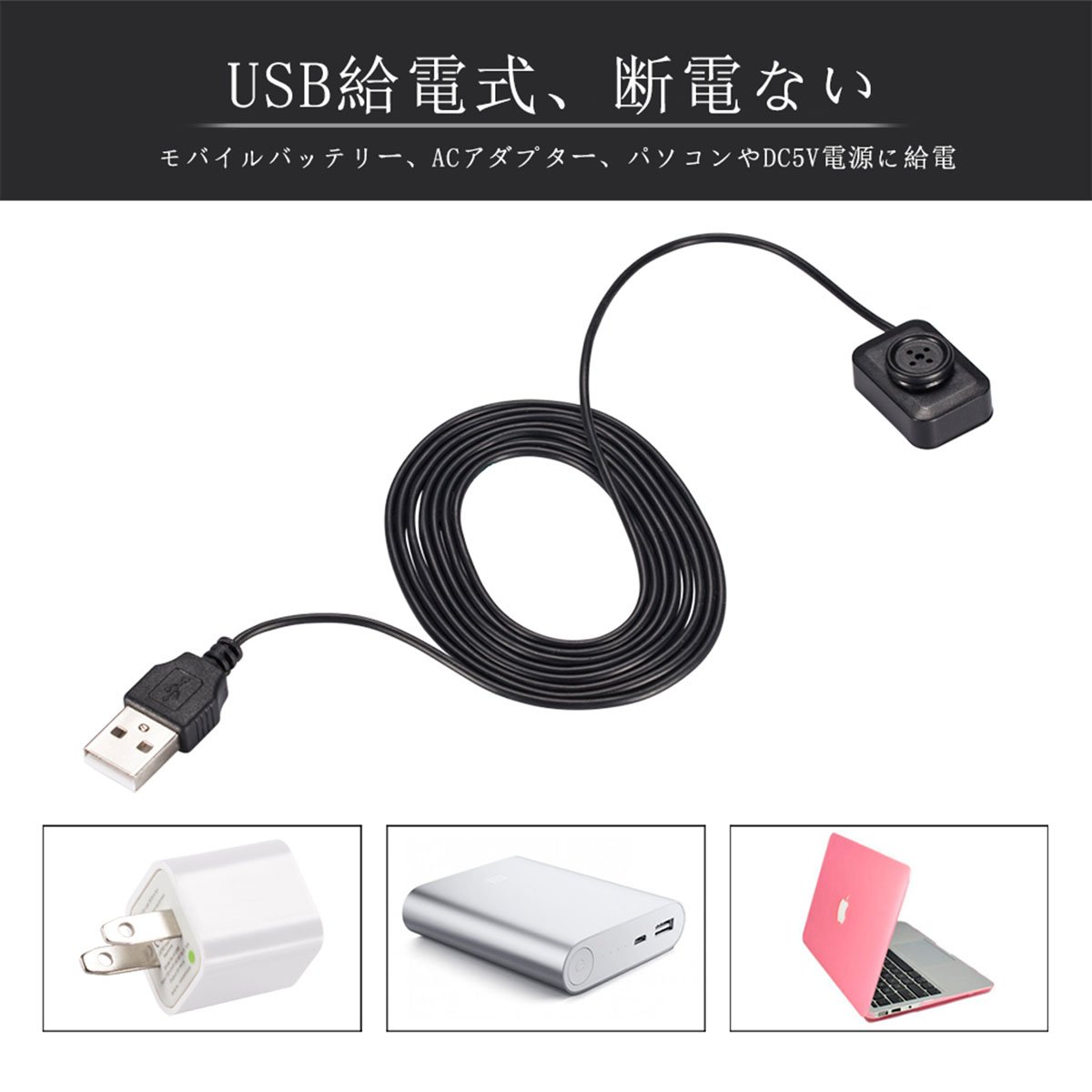

Power supply system: mobile battery, AC adapter, PC

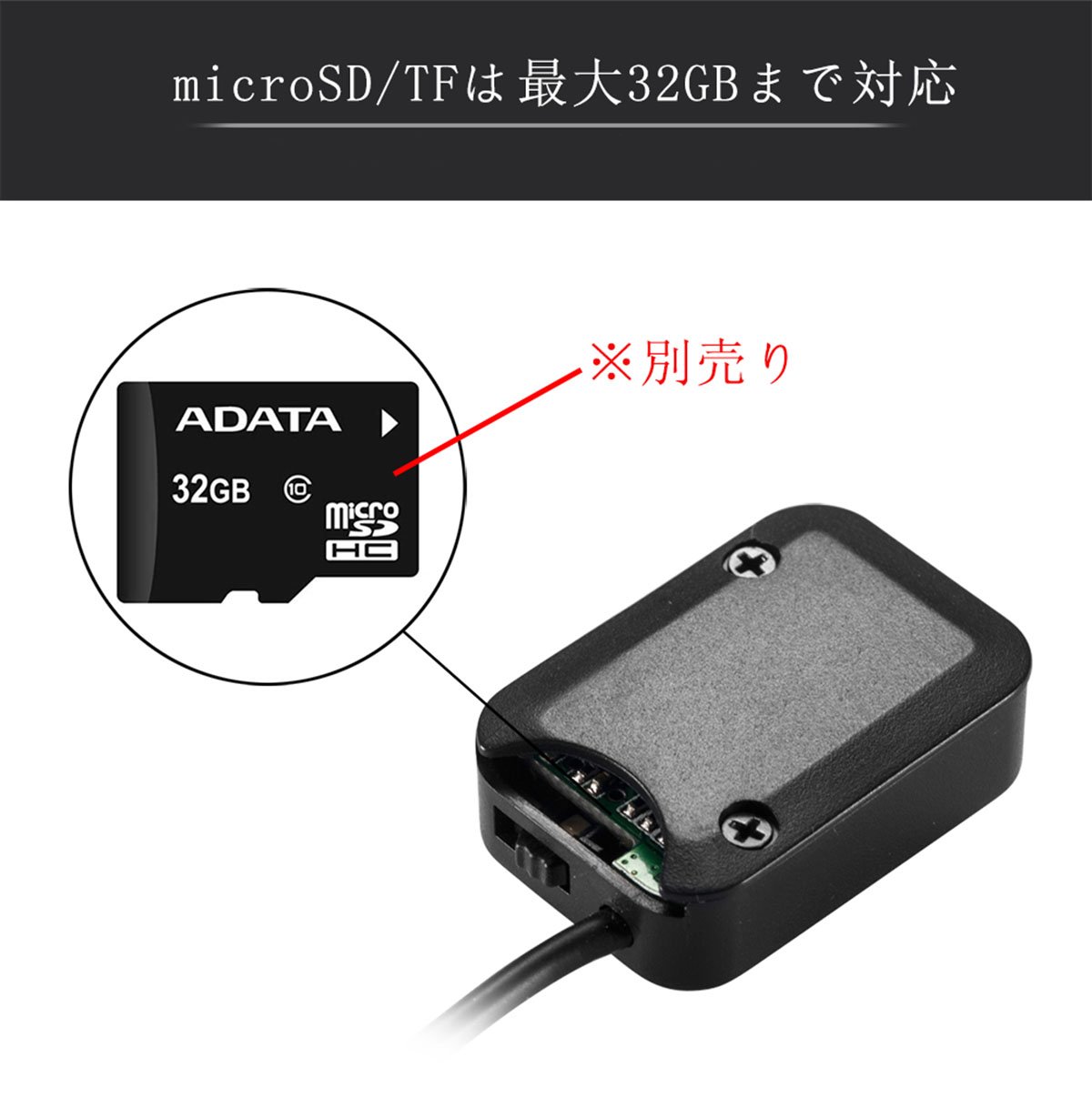

Video recording: Micro SD / TF supports up to 32 GB

※ Optional

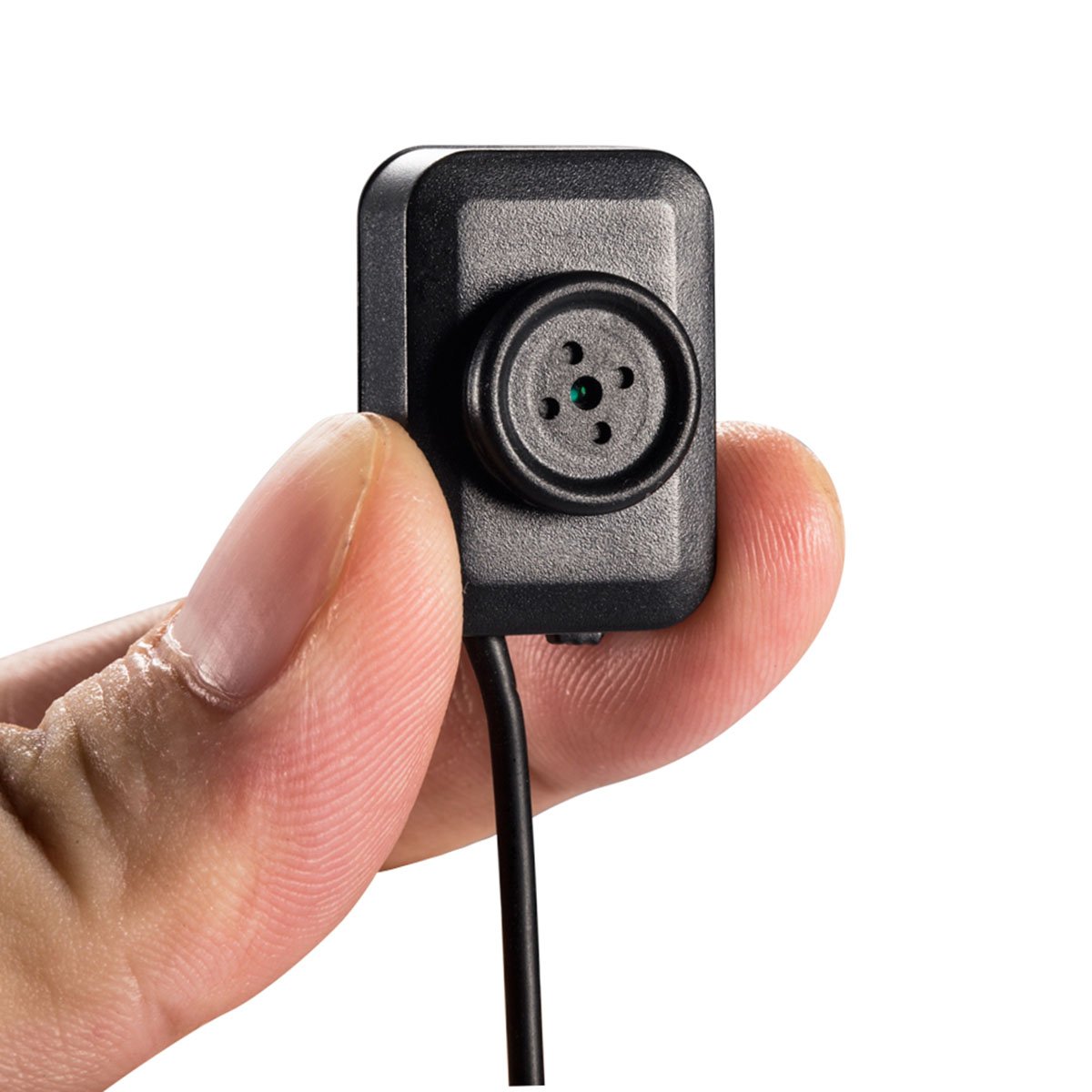

Product size: about 1.8 * 2.6 * 0.8 cm (L * W * H)

Interface type: USB 2.0

Frame rate: Up to 30 fps

Charging voltage: DC-5V

Movie format: AVI

Waterproof function: Non waterproof

Continuous recording time: (external power supply) If you connect the mobile battery and the AC adapter, it will not break.

Accessory: Camera body, USB cable, instructions (simple Japanese, English · Chinese)

If you have any questions or uncertain circumstances, I would be pleased if you could contact us by e-mail.

Features:

• Please enter model number Confirm this is compatible:
• Insert the TF card, connect (external power supply) mobile battery and AC adapter, you can record.
• You can record evidence of bursts and conference records, crime prevention, home abuse and outdoor DV.
• Transmission line about 1.45 m, installation is convenient.
• Compact design, you can learn.
• Automatic Loop Recording: Even if the memory card is full, it will be overwritten from the old file, overwriting recording will continue.
• Operation is only short press.
• It is also easy to save data by connecting with the attached USB cable to the USB terminal of the personal computer.
• (External power supply) If you connect the mobile battery and the AC adapter, it will not break.
• [MicroSD model] microSD / TF supports up to 32GB!
• ※ Optional
• Motion detection function that automatically starts and stops recording in response to surrounding movement is installed!
• From the workplace to the store, car, home ... Watch your safety from the walls of various scenes!
• Potan type small spy camera security camera small camera auto loop automatic recording spy mini spy camera hidden camera monitoring camera small video camera

Product information:

Shipping Weight: 58 g

Package Dimensions: 6.40 x 7.19 x 9.70 cm
