Item Descriptions:

■ Compact Camera Board Completed Unit is a board on which a compact camera can be built.

The board completion unit is a dream product that you can make your own ultra-compact camera!

Modification is also possible if there is knowledge!

What?

The finished camouflage camera is also attractive, but it is also good to produce your own original camera with a board completion unit.

I would like to have such a camera, but must-see if you were looking for!

It is based on the board of the ultra-small camera unit for business sales that is actually developing at the request of major companies and detective companies.

Especially the lens adopts a special lens type customized ultra long type flexible lens!

The use of a lens extended to about 2 mm in diameter and 18 cm in maximum is up to the idea!

In addition, all models can be replaced with wide-angle lenses only with Spider X's original!

One spy camera is born in the world just like a spy movie.

Also, if you have knowledge of electronic circuits, you will be able to make your own camera with more original originality by remodeling.

Function introduction

Hi-Vision camera:

1920 x 1080 P, 1920 x 720 P has high resolution.

"Dynamic shooting" and "Static shooting"

Both are possible

Motion detection:

In motion detection mode, once movement is detected, recording can be done immediately.

You can save memory.

Longer uptime:

It is finished in a compact camera of the unit type which can be photographed for a very long time while being compact.

During shooting, the LED lamp goes off:

The LED lamp for operation confirmation is turned off completely during shooting.

Please inform the operation with the LED lamp during operation!

Unnecessary lamp does not shine when operation starts!

Button type lens cap

By attaching a button type lens cap to the lens part, it protects the lens and suppresses exposure.

The lens diameter is the same size as the button hole Φ 2 mm!

Easy installation with a special cap!

With remote control, remote control is possible.

It is possible to perform all operations, such as starting and stopping recording, with the supplied remote control.

By this specification, you can operate from a remote place without touching the main body.

* Main switch ON / OFF is done from the main unit.

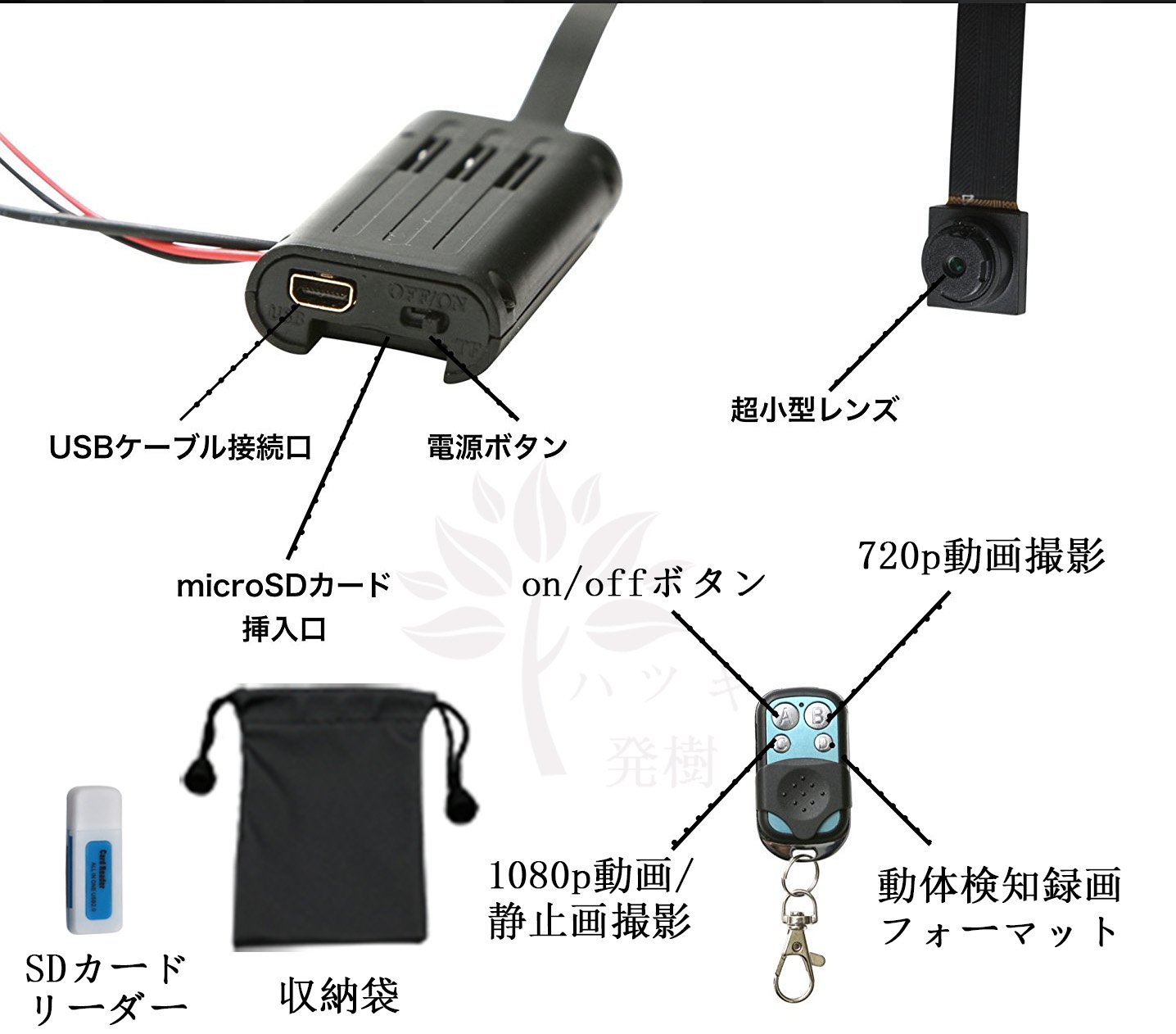

Wireless control:

A.

ON / OFF

B.

HD recording (720P)

C.

take a picture

1080P recording (pressing the button for 3 seconds starts 1080P recording)

Motion detection recording (HD 720 P)

Press 5 seconds to format the TF card.

Body:

turn on:

(Insert the card) Press A button - Motor length shock - Red light turns on - Enter standby mode.

(Do not insert the card) Press A button - Motor shocks * 5 - Flashing after 5 flash * 5 - Shut out.

Turn off:

Press A button, motor shock * 1, red light flashes - shut out.

(Automatically shut out after 1 minute without doing anything in the standby mode with the memory card inserted, please be sure to turn off the switch at this time)

(Note: Please press control for 4 seconds to turn off after 1 minute after entering imaging state.)

HD720P

Recording:

In the on state, press the B button - Motor shock * 2 (red flash * 2) - 1280 * 720 Recording starts.

The file is saved every 5 minutes.

After completion of recording, press B button - Motor shock * 1 - Continuous red light - Return to standby mode.

take a picture:

In the standby mode, press the C button - the motor shock * 1 - flash * 1 - the picture is taken and it is automatically saved and returns to the standby mode.

full

1080P

Recording:

In standby mode, press the C button for 3 seconds and change to 1080P recording mode (motor shock * 1).

1920 * 1080P Motor shock * 2, red flash * 2 after recording starts.

The file is saved every 5 minutes.

After completing the recording, press the C button - the motor shock * 1, return to the standby mode.

Motion detection Recording:

In the standby mode, press the D button, the motor shock * 3 - red flash * 3, 1280 * 720 HD Start moving picture detection recording.

The file is saved every 5 minutes.

When the D button is pushed again, the motor returns to shock * 1, standby mode.

TF

Format cards:

In the standby mode, press the D button for 5 seconds - the motor lightly shocks after shock * 3, shock * 1, all contents are deleted, it changes to sustained red light and returns to the standby mode.

Simultaneous charging and recording:

Turn on the switch, connect to the USB 5 V - 1A charger, the motor is long shock * 1, recording starts.

Time set:

Please establish a file named 【TIMERSET.txt】 and write "20160901 122315 Y" like this and save it.

Then put the file on the removable disk, press the A button on the control, the time watermark appears when recording.

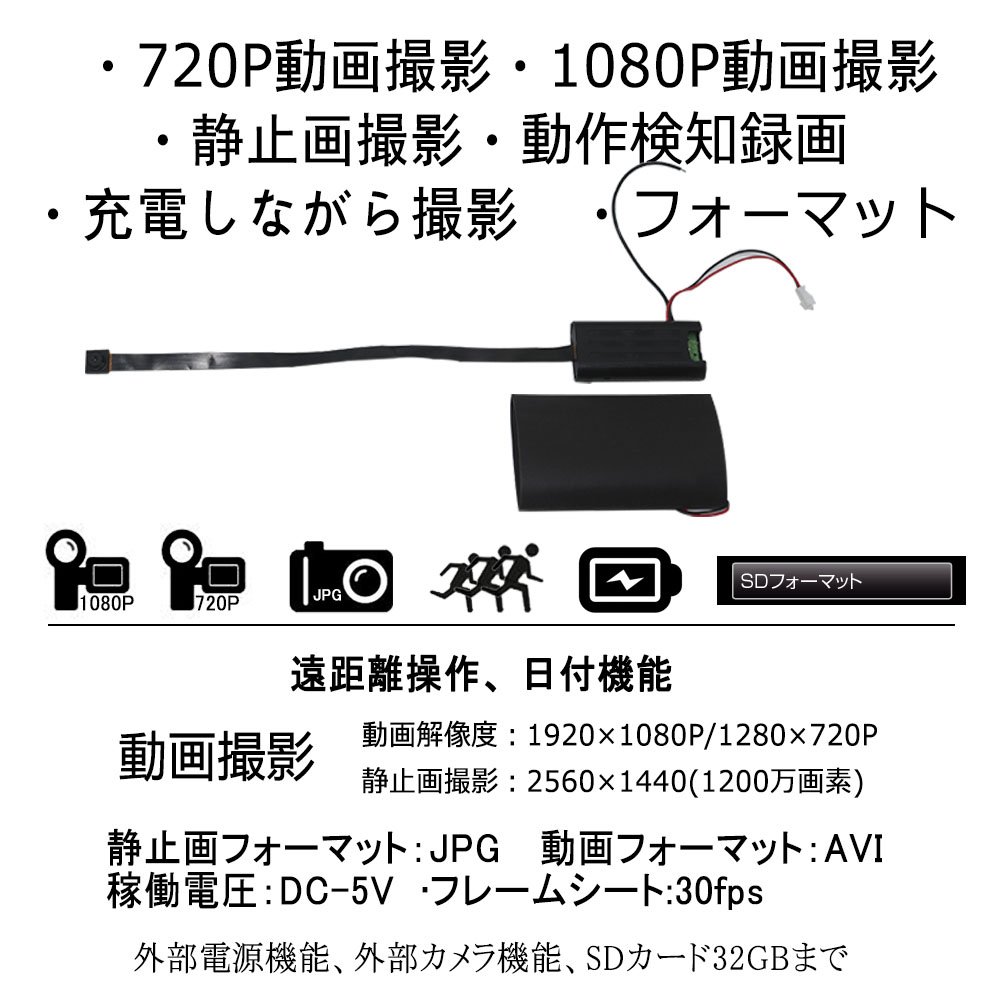

Product specification:

Video format: MJPG

Video coding: AVI

Video Resolution: 1280 * 720P HD / 1920 * 1080 Full

Video frame rate: 30 fps

Player software: Operating system or mainstream video player software

Image format: JPG

Image scale: 4: 3

Supported OS: WINDOWS ME / 2000 / XP / 2003 / VISTA; MAC OS; LINUX

Battery capacity: 2500 mA

Working hours: about 17 hours

Charging voltage: DC-5V

Interface type: Mini 5 pin USB

Storage support: TF card

Battery Type: High Capacity Polymer Lithium Electric

Features:

• High performance lens of 8 mm × 8 mm.
• The ultra-compact camera and flexible cable body can install cameras anywhere, such as clothing buttons, stuffed toys, empty boxes, ceilings and so on.
• In the moving body detection mode, motion is detected and recording starts.
• You can record the evidence of bursts and stalkers, domestic abuse and DV etc.
• It can be used for a long time with about 7 hours of charging.
• You can record full HD recording of 1920 × 1080p, 12 million pixel photography, and motion detection.
• The movie is saved as AVI, the picture as JPEG, and the sound as WAV file format.

Product information:

Shipping Weight: 117 g

Package Dimensions: 5.79 x 7.90 x 10.11 cm
