• mNylon 66
  • mNylon 66 Co Polymer
  • mNylon 12
  • mNylon ELA
  • PC Series

  • mPC-T
  • mPC-S
  • PC-ABS
  • Carbon Fiber

  • Nylon-CF
  • PETG-CF
  • ABS-CF
  • PLA-CF
  • Special Series

  • IGUS i180
  • FR-ABS
  • ESD ABS
  • General Series

  • mABS
  • ASA
  • PETG
  • PLA
  • TPU
  • Available Characteristics

  • 130℃/266℉ heat-resistant
  • High mechanical strength
  • Impact strength
  • High tenacity
  • Fatigue resistance
  • Oil resistance
  • Chemical resistance
  • Abrasion resistance
  • Steam sterilization
  • Mechanical polishing
  • ESD safe
  • Flame retardant
  • Self-lubricating
  • Isotropy
  • Uvioresistant
  • Light Weight
  • Powerful System
  • Smart, Easy and Efficient
  • On-board Camera
  • Together with cluster management and ethernet/Wi-Fi, enabling you to remote monitor your printer and enjoy your creation only.
  • LightCal calibration technology gives auto and semi-auto calibration functions which offer precise and efficient calibration experience.
  • On-board+Camera.jpg

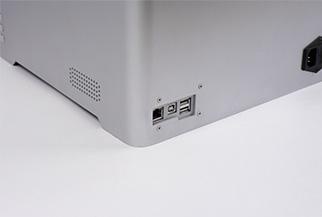

  • Ethernet and Wi-Fi
  • Forget about SD card now, you can start your print job just sitting by the computer, via your local network wirelessly.
  • Wi-Fi+and+Ethernet+Interface+of+Mankati+E180.jpeg
  • Auto Calibration
  • LightCal calibration technology gives auto and semi-auto calibration functions which offer precise and efficient calibration experience.
  • LightCal.jpg

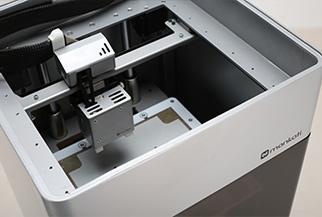

  • Linear Rails

  • To ensure the durability and precision, Mankati E180 adopts the industrial-grade motion system.
  • Linear+guide.jpg
  • Air Filter

  • To bring your office in fresh air even work with the odorous materials, like ABS/HIPS.
  • Air+Filter.jpg

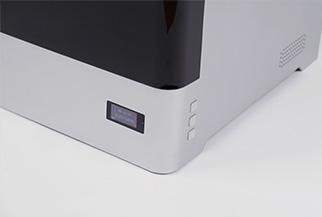

  • Shortcut Buttons

  • Shortcut+key.jpg
  • With the three buttons, you can preheat nozzle, feed/withdraw or move the plate with just one step, it is even more efficient than a touch screen.

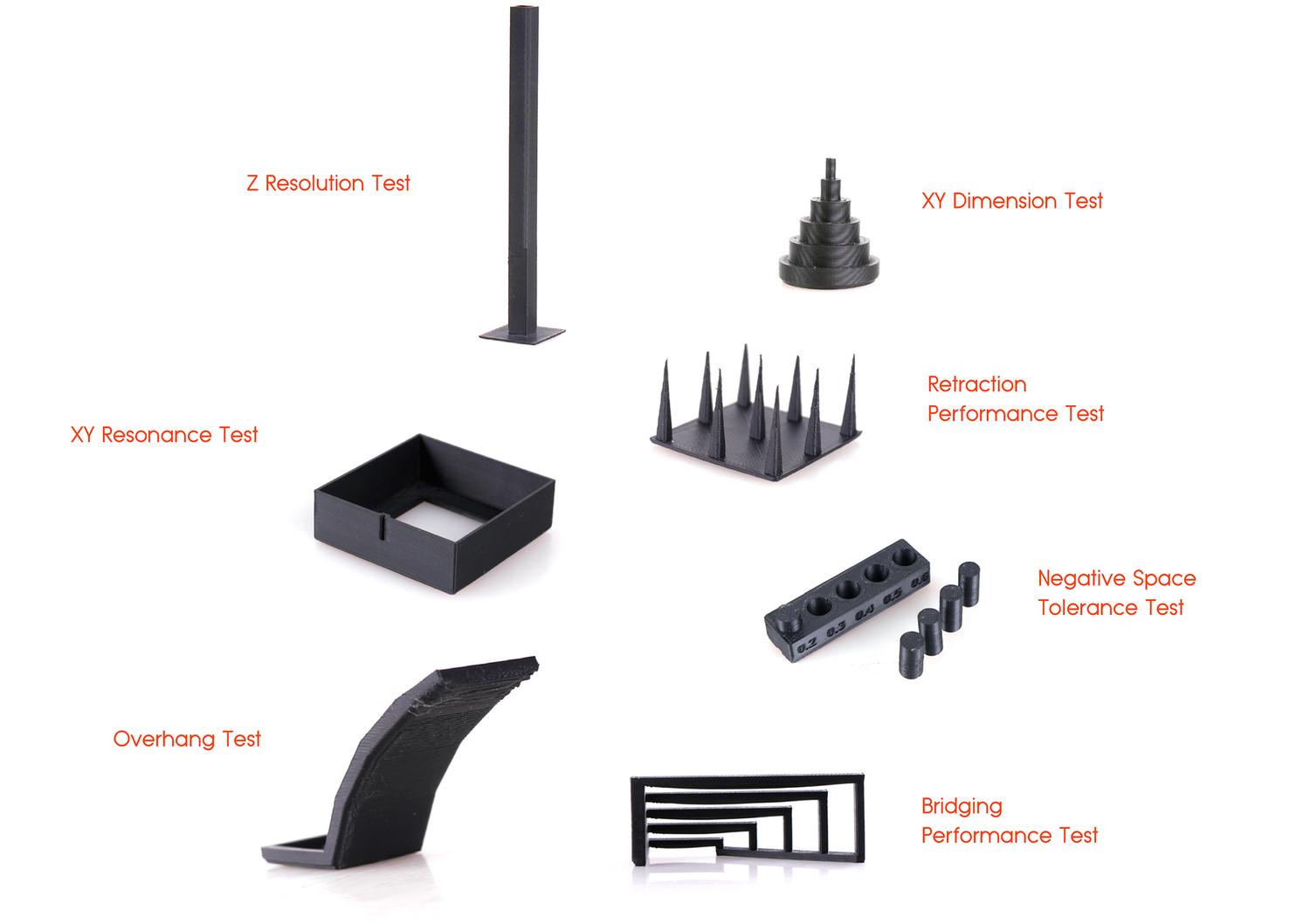

  • Marvelous Printing Quality
  • Optimize your 3D prints, and actualize what you think.
  • MARVELOUS PRINTNG QUALITY.png
  • Mankati mRemote
  • Just sitting by your computer, everything is under your control.
  • Wireless Control, Print and Monitor
  • With mRemote, you can achieve the basic operation of Mankati E180 and monitor the whole printing process just sitting by your computer. No need to shuttle between your printer and computer.

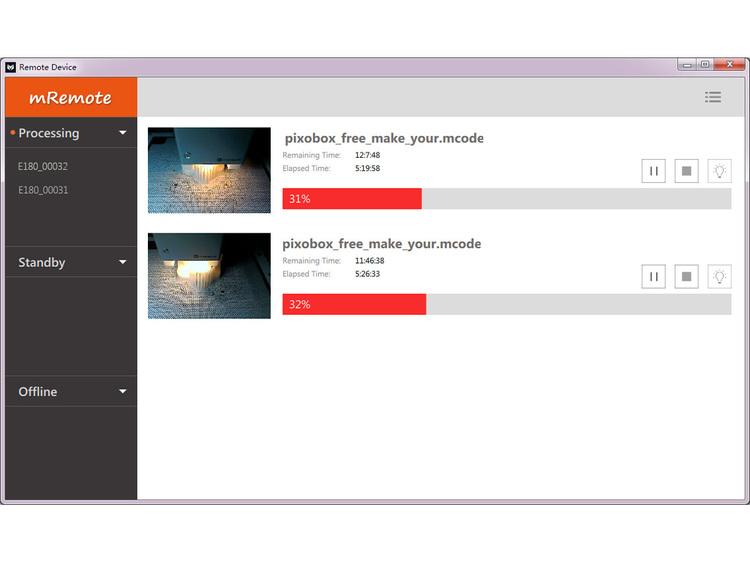

  • Cluster Management
  • It is a good news for the printing service providers, or the users who has multi Mankati E180 3D printers in hand. With mRemote, you can manage all your E180 3D printers and multi-task simultaneously, which will help you to improve your production efficiency extremely.
  • Software+-+Cluster+Manage.jpg

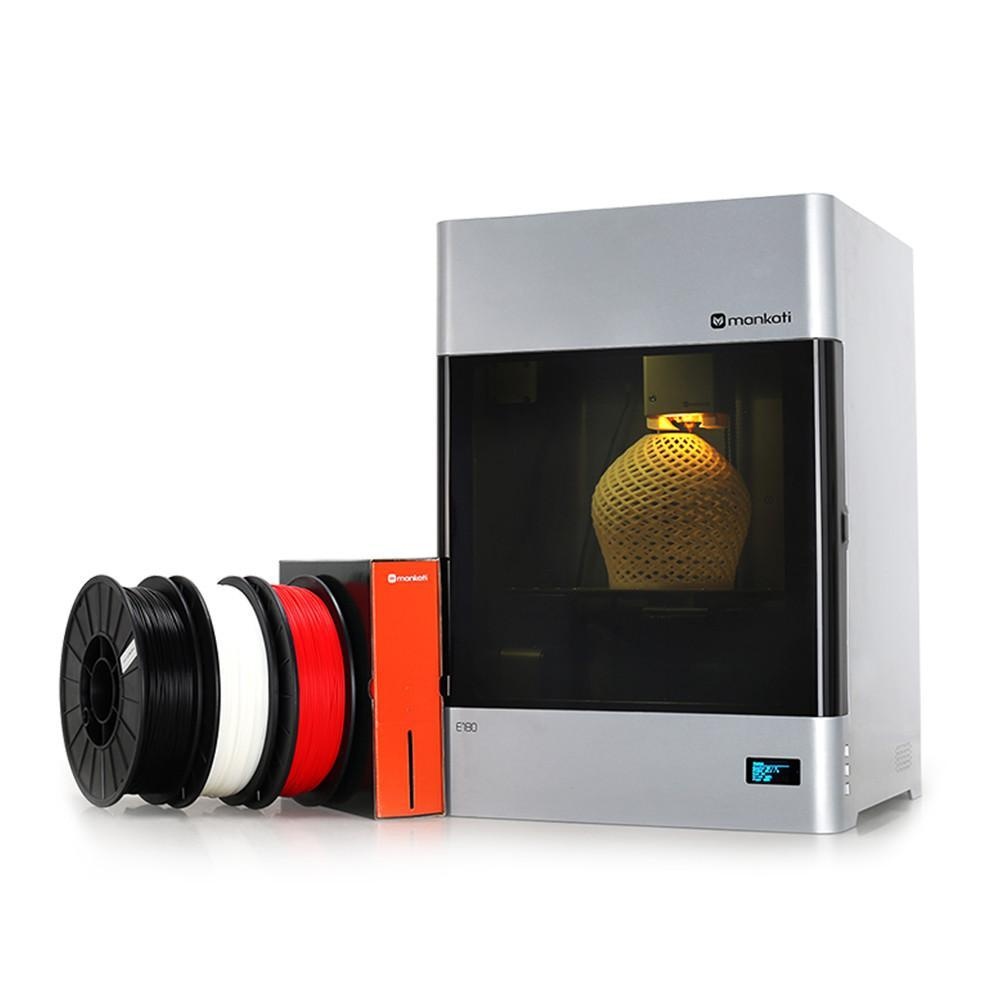

    • Mankati E180

    • Technology:  MPM (Melted Plastic Modeling)
    • Build Volume: 180 × 180 × 200 mm (7 × 7 × 7.8 in)
    • Layer Height: 0.06-0.26 mm (0.002-0.01 in)
    • PerfBoard

    • Build Surface: Perforated Plate
    • Build Plate Maximum Temperature: 110 ℃ (230 ℉)
    • Removable Surface: Yes
    • mExtruder

    • Nozzle Diameter: 0.4 mm (0.016 in)
    • Extruder Maximum Temperature: 350 ℃ (662℉)
    • Materials Detection: Automatically pause printing when out of material
    • Cooling: Two direction air blowing printing area
    • Extruder Structure: full metal extruder for easy maintenance and repair
    • Software

    • Operating System: Windows 7/8/10
    • File Format: STL, OBJ, mcode, gcode
    • Slice and Print Software: Mankati mWare
    • Cluster Manage Software: Mankati mRemote
    • Software Language: English, Chinese
    • Hardware

    • Main Control Processor: STM32 ARM 32bits Chip
    • Embedded Processor: Dual Core 1.2 GHz ARM Cortex Chip
    • On-board Storage: 4 GB
    • Positioning Precision (X/Y): 1.5 Microns
    • Positioning Precision (Z): 1 Micron
    • Interface: Wi-Fi, Ethernet, U-Disk
    • Air Purification: Yes
    • On-boarad Camera: Yes
    • Material

    • Available Materials: mNylon 12, mNylon 66, mNylon 66 Co Polymer, mNylon ELA, mABS, mPC-T, mPC-S, mPLA, etc. 3rd party materials.
    • Material Diameter: 1.75mm(0.096in)
    • Desktop Direct Manufacturing
    • A device that meets a variety of
    • material performance requirements



  • Mankati E180

  • Technology:  MPM (Melted Plastic Modeling)
  • Build Volume: 180 × 180 × 200 mm (7 × 7 × 7.8 in)
  • Layer Height: 0.06-0.26 mm (0.002-0.01 in)
  • PerfBoard

  • Build Surface: Perforated Plate
  • Build Plate Maximum Temperature: 110 ℃ (230 ℉)
  • Removable Surface: Yes
  • mExtruder

  • Nozzle Diameter: 0.4 mm (0.016 in)
  • Extruder Maximum Temperature: 350 ℃ (662℉)
  • Materials Detection: Automatically pause printing when out of material
  • Cooling: Two direction air blowing printing area
  • Extruder Structure: full metal extruder for easy maintenance and repair
  • Software

  • Operating System: Windows 7/8/10
  • File Format: STL, OBJ, mcode, gcode
  • Slice and Print Software: Mankati mWare
  • Cluster Manage Software: Mankati mRemote
  • Software Language: English, Chinese
  • Hardware

  • Main Control Processor: STM32 ARM 32bits Chip
  • Embedded Processor: Dual Core 1.2 GHz ARM Cortex Chip
  • On-board Storage: 4 GB
  • Positioning Precision (X/Y): 1.5 Microns
  • Positioning Precision (Z): 1 Micron
  • Interface: Wi-Fi, Ethernet, U-Disk
  • Air Purification: Yes
  • On-boarad Camera: Yes
  • Material

  • Available Materials: mNylon 12, mNylon 66, mNylon 66 Co Polymer, mNylon ELA, mABS, mPC-T, mPC-S, mPLA, etc. 3rd party materials.
  • Material Diameter: 1.75mm(0.096in)
  • Desktop Direct Manufacturing
  • A device that meets a variety of
  • material performance requirements
