Item Descriptions:

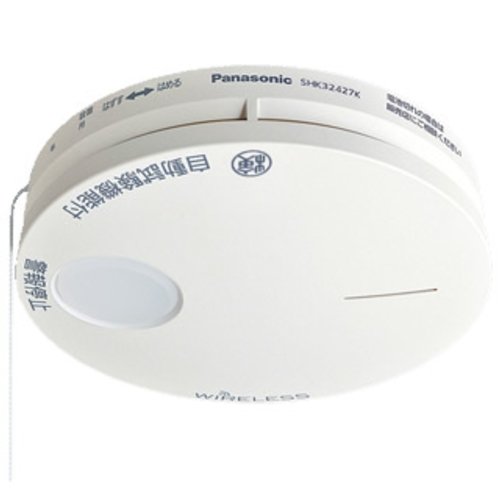

● Manufacturer: Panasonic

● Model number: SHK32427K

● Product name: Residential Fire Alarm Barely dressed

● Battery type wireless interlock device

● Shape: Exposed thin type 2 types

● With alarm sound / voice alarm function

● Color: cool white

● Inspection model number: Sumitomo Mitsui Trust 26-35

● Operation method: Smoke type (photoelectric type 2 types)

● Alarm sound · Voice warning peak value (dB): Approximately 90 (1 pounds per minute, firepower, fire is a fire)

* Based on Panasonic measurement based on the certification criteria

● Interlock warning start time: About 10 seconds from the alarm start of the alarm source (It may take up to 20 seconds depending on the surrounding environment)

● Power supply: exclusive lithium battery (included)

Battery life (years): About 10

※ When you perform the operation test twice a year.

Battery life may be shortened depending on usage conditions.

● Battery exhaust alarm period: about 1 week

● Alarm stop function: Pull the pull cord or press the alarm stop button, the alarm stops for about 5 minutes

● Number of units that can be interlocked: 1 System parent unit is always one unit, slave units up to 14 units (including living support unit, relay contact adapter)

● Automatic restoration function: Alarm stops automatically when smoke and heat runs out

● Operating temperature range (° C): 0 to + 40

● Recommended installation location: bedroom · living room · stairs · corridor etc.

● Installation position: ceiling surface / wall surface

● Weight (g): About 120 (including batteries)

● Outgoing output (mW): 10

● Operating frequency: CH1 fixed One wave of 426.6625 MHz (low power security)

● Number of IDs: about 1 trillion street

● Distance of radio waves (between parent unit and sub unit): Horizontal line of sight at a place without obstruction Approximately 100m (It will be shorter depending on surrounding environment)

Features:

• Battery type, wireless interlocking type realizes industry thinnest 26 mm.
• It is a further evolved wireless interlocking housing fire alarm.
• ● Refresh housing the antenna and smoke detection part inside the main body.
• Because the surface material also adopts high-quality matte tones, the ceiling on which the cloth is affixed, well adapts to the wall.
• ● Reduced the number of batteries by saving power.
• In addition, the volume of the battery has been compacted to about 3/8 of the conventional one.
• The interlocking party is loud all at once with loud voices.
• We will inform you all at once by arranging the voices in other rooms in about 0.5 to 10 seconds after detecting at the fire source.
• ● We will notify you by altering the warning message that "Fire is a fire" at the fire source, and "Another room is a fire in the other room that is linked".
• Stopping the alarm device in the interlocking room stops the alarm devices other than the fire source, which makes it easier to identify the fire source.
• If you stop alarm stop at the source of fire, all alarm sounds will stop.
• Even after installation, confirm that the radio waves arrive automatically between the parent unit and the child unit once about once a day, and ensure the reliability of radio waves.
• ● The master unit has a relay function of radio waves.
• When radio waves are difficult to reach between child units and child units, the parent device relays the radio waves.
• Transmission radio waves are transmitted up to 10 times to prevent linkage leakage. ● Easy registration with one push.
• It became "Easy registration" just by pressing the registration button at the same time bringing the master unit and the child unit closer together.
• "Easy installation" which does not need positioning of the main body and mounting base is adopted.
• ● Operating one unit out of the master unit or slave unit, all the alarm devices can be operated in conjunction with each other.
• At the time of the test, it is not a loud sound fire alarm sound, it keeps ringing for about 1 minute with a volume that is not inconvenient for your neighbor, "Pitch is normal," so you can watch and watch alone.
• Also, since the button is in the shape of a mortar, even if there is no string, it can be inspected easily with a stick or the like.
• Easy-to-see operating light from any position, clearly shows abnormalities such as fire.
• The alarm stop button has also evolved to facilitate large pushing.
• ● Battery exhaustion during nighttime In order to prevent sleeping with alarm sounds, we remember the previous inspection time, and we are careful that an alarm sounds during that time period.
• ● It is possible to connect with the living support "E type" · "W type".
• Audio alarm sounds even at a living support during fire detection.
• Tsurumi (Natsu) We can stop alarm stops and motion tests other than duty duty from the support team.

Product information:

Shipping Weight: 181 g

Package Dimensions: 5.99 x 11.00 x 11.00 cm
