Item Descriptions:
color:
white
3 types of output compatible with one unit

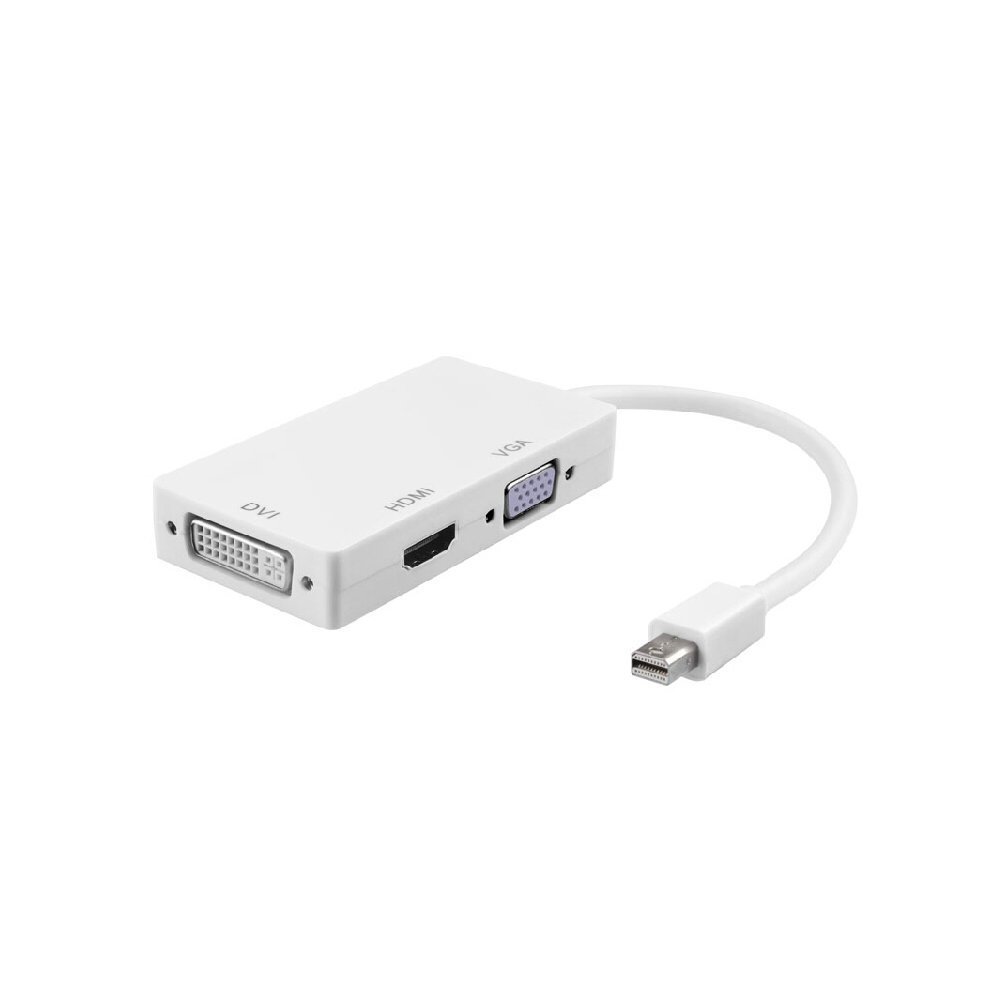

3 in 1 Multi Adapter
It can correspond to three kinds of output with one unit.
Convenient video terminal conversion adapter.
The DVI / HDMI / VGA terminal is installed, and Mini DisplayPort (MiniDP) signal can be converted to DVI / HDMI / VGA signal.

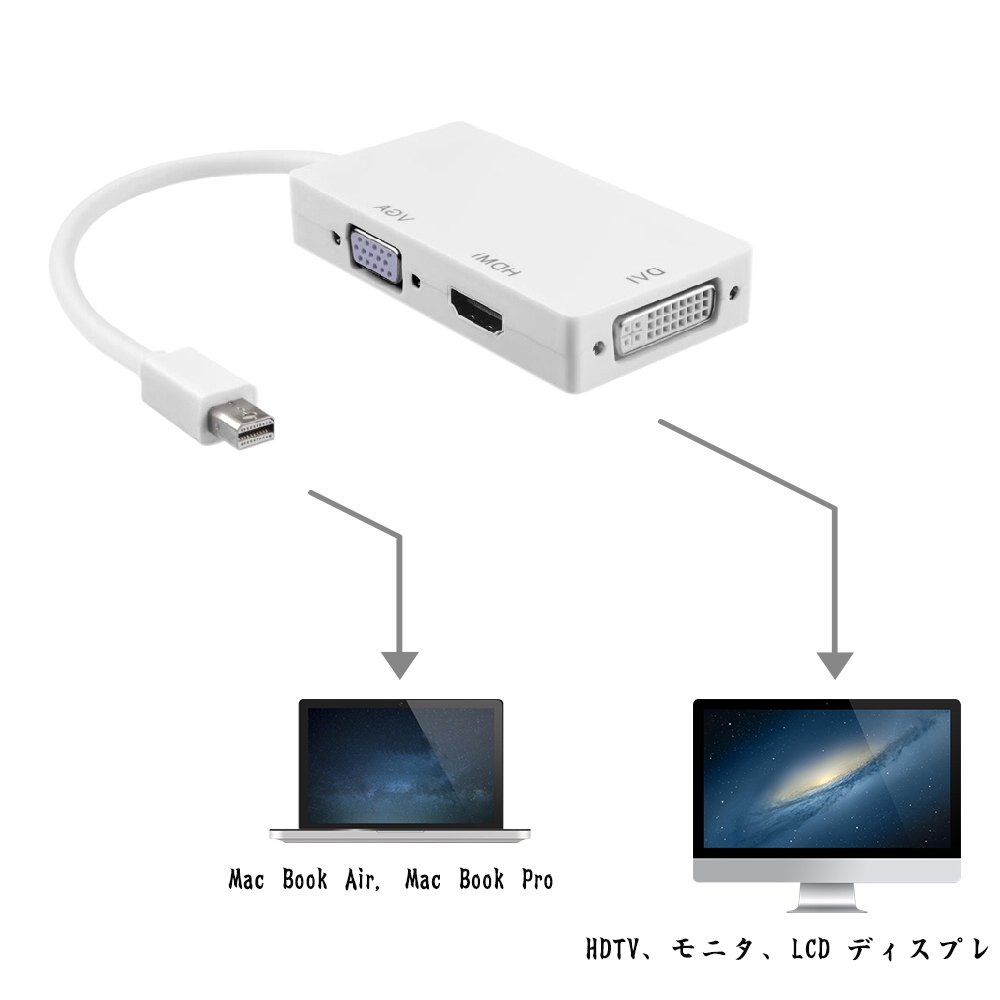

You can play the screen of Mac Book Air, Mac Book Pro, iMac with Mini Displayport port on high resolution large screen TV, large projector, or computer monitor screen.
Easy to use
Easy to use
It supports Plug and Play and no external power supply is required.
Because it is excellent portability, it is used by schools and companies as well.
We will use the external display to expand the work area, use the projector, and also work for the business scenes such as presentation use.
High resolution
We will support the maximum resolution 1920 x 1080 p @ 60 Hz (1080 p).
The transfer rate reaches 225 MHz / 2.25 Gbps.
Continue to iMac (Late 2009), Mac Book Pro (Mid 2010) and HDMI display and set "Audio" in the "System Preferences" dialog box to support audio output.
Ideal for presentation and dual display environment construction
Compatible models

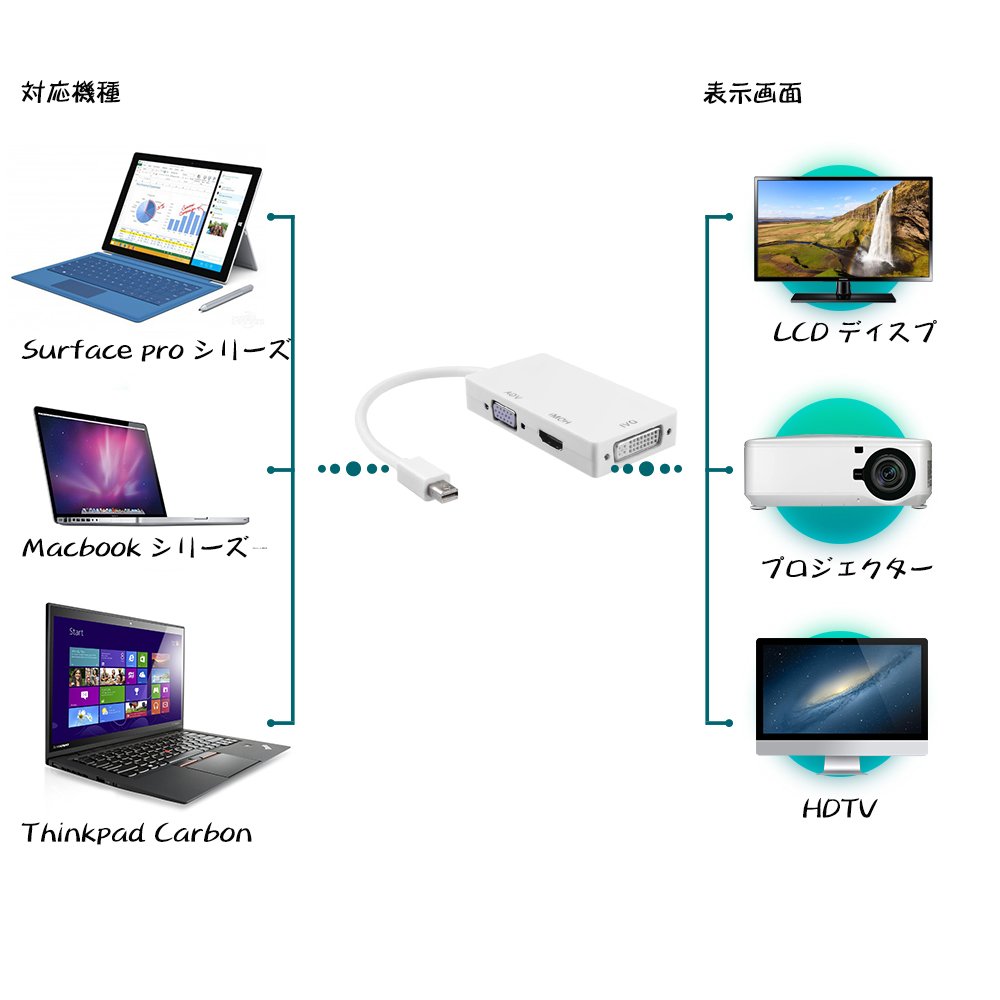

We can support Apple MacBook, MacBook Pro, MacBook Air, iMac, Mac mini, Mac Pro, Microsoft Surface Pro / Pro 2 / Pro 3 for Windows 8 Pro, Lenovo ThinkPad X1 Carbon etc
We also support PC with mini display port / Thunderbolt Port.
It can be connected to an external display with HDMI / VGA / DVI terminal, analog monitor, projector, liquid crystal display and so on.
It makes it easy to make a notebook PC dual display, and it is ideal for presentations at conferences and so on.
specification
Input signal: Mini display port 1.1A
Output video: HDMI / DVI / VGA
Input: Mini display port male 20 pin
Output: HDMI female A type 19 pin
Connector: DVI female (24 + 1), VGA female 15 pin
Frequency range: 50 / 60Hz
Video amplifier bandwidth: 2.25 Gbps / 225 MHz
HDMI / DVI / VGA: 480i / 480p, 576P, 720P, 1080i / 1080p

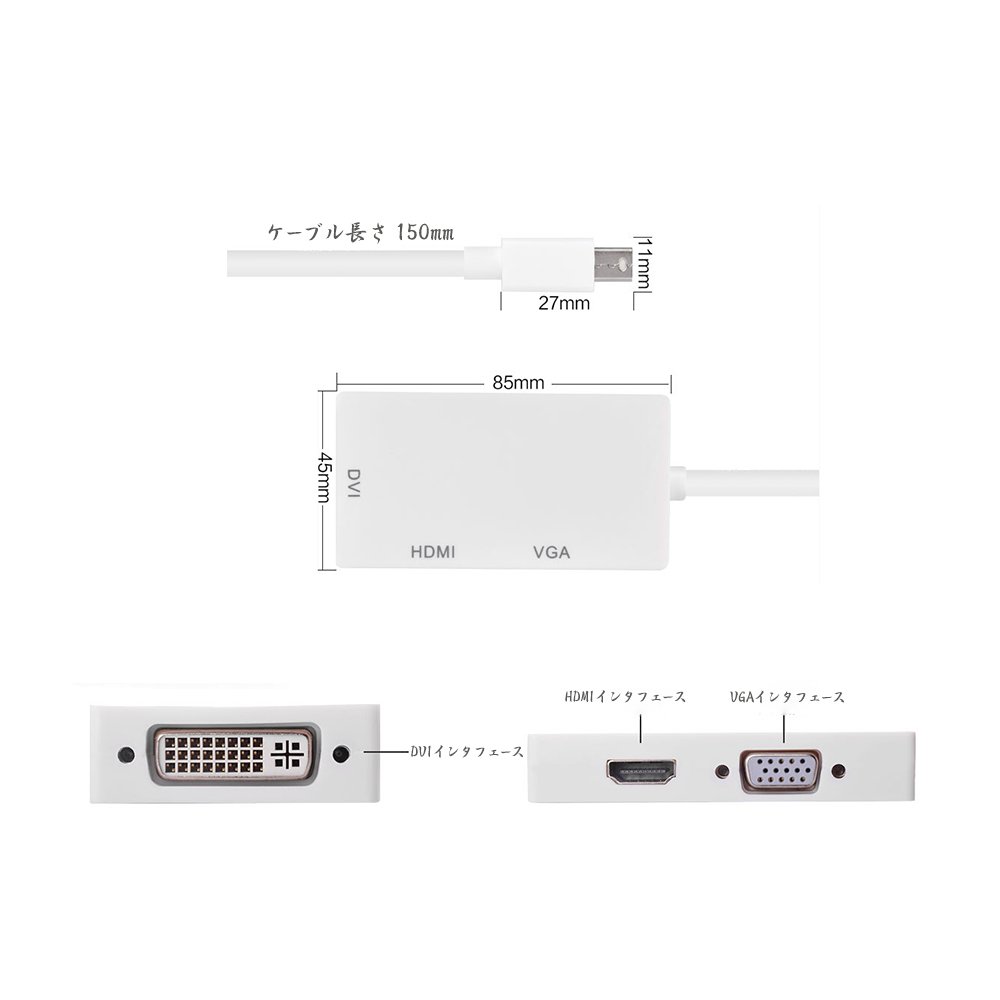

Cable length: 15 cm
Color: White
Notes
It only converts Mini DisplayPort (MiniDP) signal to DVI / HDMI / VGA signal.
Reverse direction conversion is not possible.

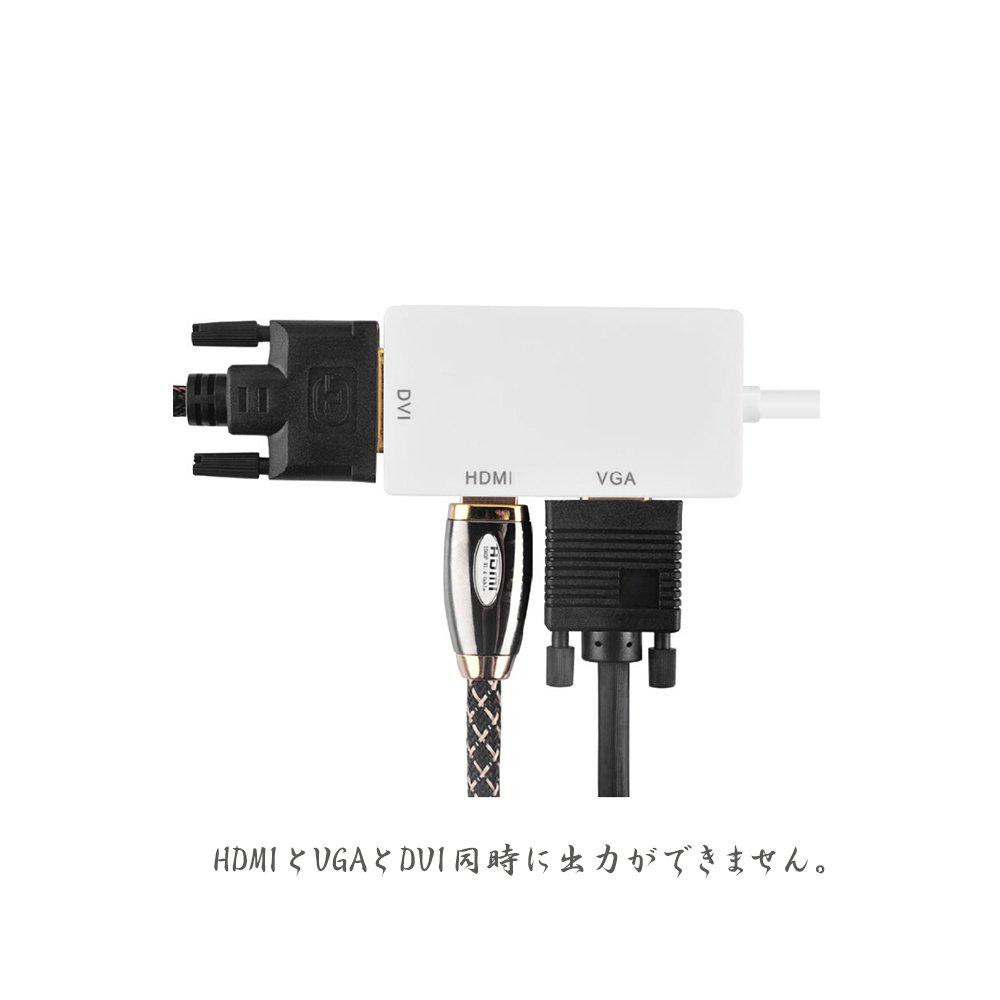

HDMI, VGA and DVI can not output at the same time.
Audio can not be output from VGA and DVI.
The Mac before 2010 will not support audio output.
Features:
- Please enter model number Confirm this is compatible:
- [Multi Adapter] The DVI / HDMI / VGA terminal is installed, and Mini DisplayPort (MiniDP) signal can be converted to DVI / HDMI / VGA signal.
- You can play the screen of Mac Book Air, Mac Book Pro, iMac with Mini Displayport port on high resolution large screen TV, large projector, or computer monitor screen.
- 【Playback on large screen】 If you insert the Mini Displayport terminal of the product into PC equipped with MiniDisplayPort, if there is HDMI cable (optional), you can enjoy reliable performance and best video playback.
- 【High Resolution】 We will support the maximum resolution 1920 x 1080 p @ 60 Hz (1080 p).
- The transfer rate reaches 225 MHz / 2.25 Gbps.
- 【Easy to use】 Lightweight and portable design makes storage and storage very convenient.
- Because it is excellent portability, it is used by schools and companies as well.
- It also works for business scenes, such as extending the work area using an external display, or for presentation using a projector.
- 【Applicable models】 We will support Mac mini (2011) with Mac Book Air, Mac Book Pro, iMac, thunderbolt port, Surface pro 1 2 3.
- Note: HDMI, VGA and DVI can not be output at the same time.
Product information:
Shipping Weight: 58 g
Package Dimensions: 1.80 x 12.90 x 23.01 cm
