Product Description

Digital Wireless Receive Monitor(Model:SP-766M2)

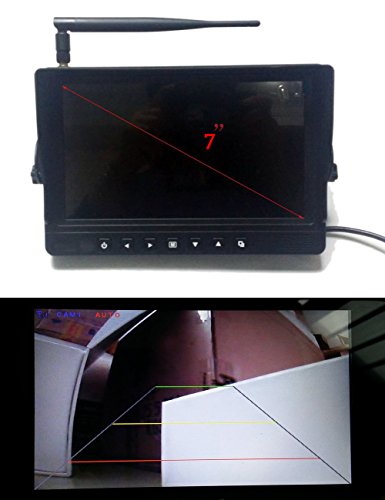

7" Digital Screen TFT LCD Monitor with Removable Sun Visor
Built in 2 CH 2.4GHz Digital Wireless Receiver Operation Frequency:2400 ~ 2483.5MHz
Receiving Sensitivity：≤-86dBm(1MHZ QPSK MD300RE)
Overlapping Hopping Channel:80
Color System:NTSC
Display Resolution: 800RGB(H) X 480(V)
Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65
Brightness (cd/m2): 450
Contrast ratio: 500:1
Operating temperature: -20¡æ to +70¡æ
Storage temperature: -30 Degree to +80 Degree
Free Operating Voltage: DC10~32V
External dimensions:(L x W x T) (199 x 128 x 28mm)
without mounting Sun Visor
Weight Approx: 400g

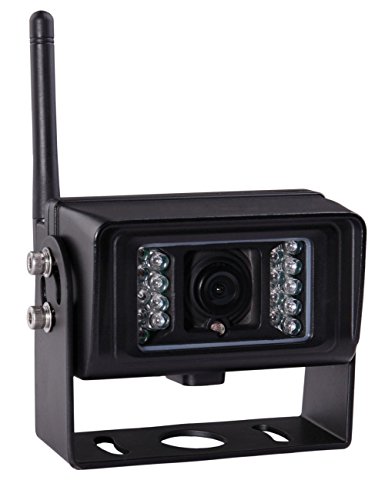

Digital Wireless Waterproof IR Camera
Image Type: 1/4 inch Color CMOS
Built in 2.4GHz Digital wireless transmitter
Transmission Power£º18dBm with Power control
Line of Sight Range:<100M Effective
pixel:NTSC:640(H)X480(V);PAL:640(H)X480(V)
Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark)
Free viewing angle: 120°
Waterproof: IP69K
Shockproof: 10G
Free Operating Voltage: DC10-32 Volts
Dimensions: 106(W) x 75(H) x 70.4(D) mm (without mounting)
Weight : 450g
Packing:
1PCS* 7" Wireless DIGITAL SCREEN TFT LCD Monitor
1PCS* pcs Wireless Waterproof IR CCD Cameras + Accessories
User's English Manual

Feature

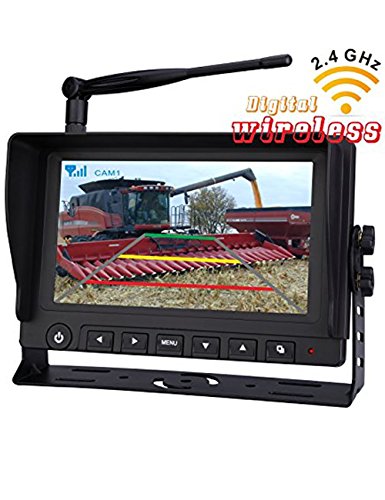

7" Wireless full-color LCD TFT Screen Monitor Provides Clear, Sharp Display in Day or Night conditions.
Digital Wireless Waterproof IR Camera System Eliminate Blind Spots on Port Harbor Crane, Tower Crane, Container Stacker Crane Equipment
120° Digital Wireless Waterproof IR Camera with 18 Infra-red LEDs to Illuminate the Camera's View for Crisp(15m night view distance maximum) Night Vision
Packing one camera,but it can support 2 channel Camera
Camera Waterproof: IP69K,Weather, Shock and Vibration Resistant
Brand : Veise
