Item Descriptions:

Product specification

Language: Japanese can be set

Power supply: 4 AA alkaline batteries or 8 AA batteries

Waterproof specification: IP 56 waterproof dustproof

Power consumption: 6 V 1.5 A

Standby time: Up to 8 months

Operating environment Humidity: 5% to 90%

Operating environment Temperature: -25 to 60 degrees

PIR detection angle: 100 degrees

PIR maximum detection range: 3 m to 20 m

Infrared LED: 46 pieces

Infrared irradiation range: maximum 25 m

LCD monitor: 2.4 "TFT color monitor

Video recording time: 1 to 60 sec / 1 to 10 minutes can be set

Time lapse function (interval shooting): It can be set from 5 to 60 seconds / 1 to 60 minutes

Video format: AVI

Still image format: JPEG

Image sensor: 5 million pixel CMOS sensor

Still image shooting resolution: 12 M (4000 × 3000) / 8 M (3264 × 2448) / 5 M (2592 × 1944) / 3 M (2048 × 1536) / 1 M (1280 × 960)

Video resolution: 1920 * 1080 p / 1280 * 720 p / 720 * 480 p / 640 * 480 p / 320 * 240 p

Supported SD card: Micro SD card up to 32GB ※ Optional

Day / Night Mode: Support

External dimensions: width 9 cm x height 13 cm x thickness 7.5 cm

Weight: 354

Long-term driving with AA batteries

In case

Since it is driven by batteries, it can be installed anywhere lightly without the need for power supply construction.

It is also recommended for rental apartments etc which can not be easily constructed.

* Batteries are not attached to the product.

Night Vision

Monochrome shooting is possible even at night.

It can illuminate ahead at a wavelength of 850 nm and up to about 20 m (theoretical distance 3 to 25 m).

The daytime and nighttime modes are switched automatically by the built-in sensor.

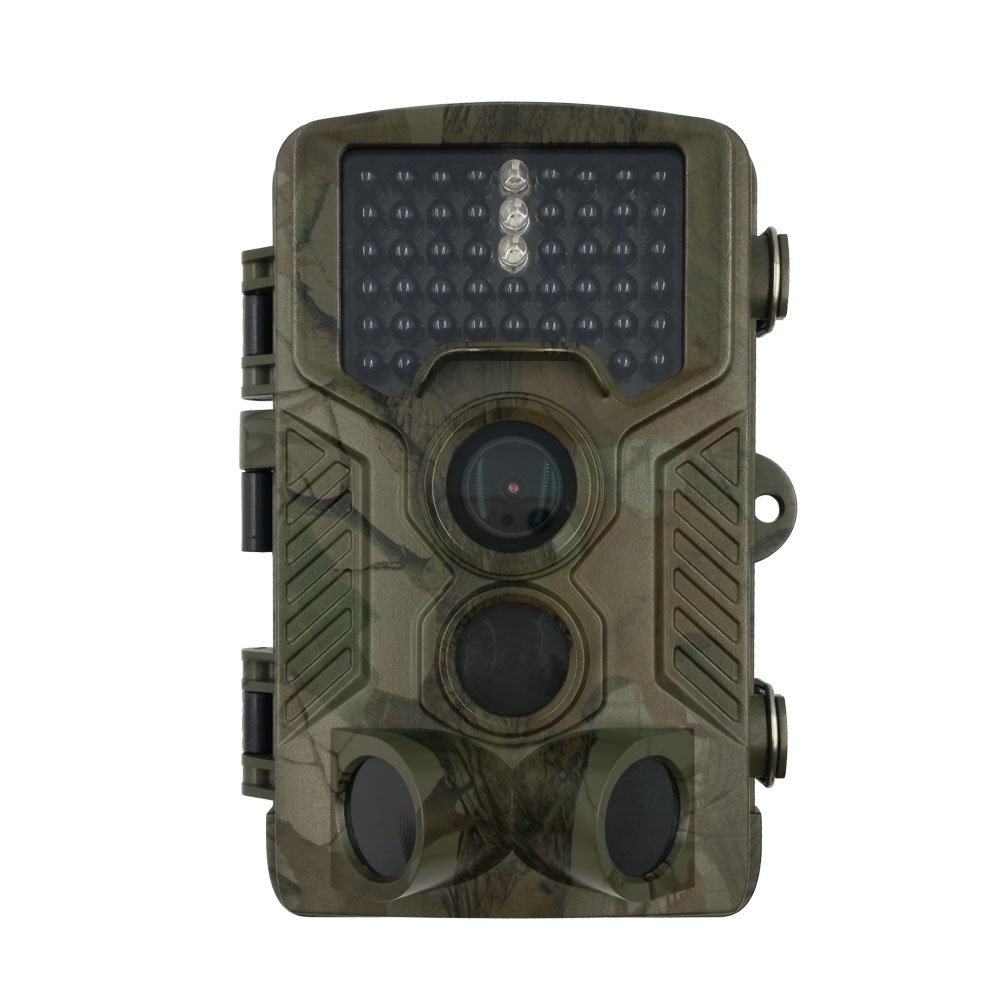

Black LED adoption

Instead of a white LED that creates a bright flash and scares animals,

46

We adopt individual black LEDs.

It is ideally suited for outdoor applications such as monitoring of wildlife hiding and monitoring of houses.

Human body detection

There are a number of sensors, maximum

120 °

And can detect a wide range of movement.

Automatic shooting only when motion is detected, so you can suppress battery drain.

IP 56 waterproof dust

Waterproof and dustproof standard that can be used even in the rain

IP 56

You can use it safely outdoors because we have acquired.

Since it can be installed easily in the warehouse and front door, temporary security measures at home can be taken.

Easy installation

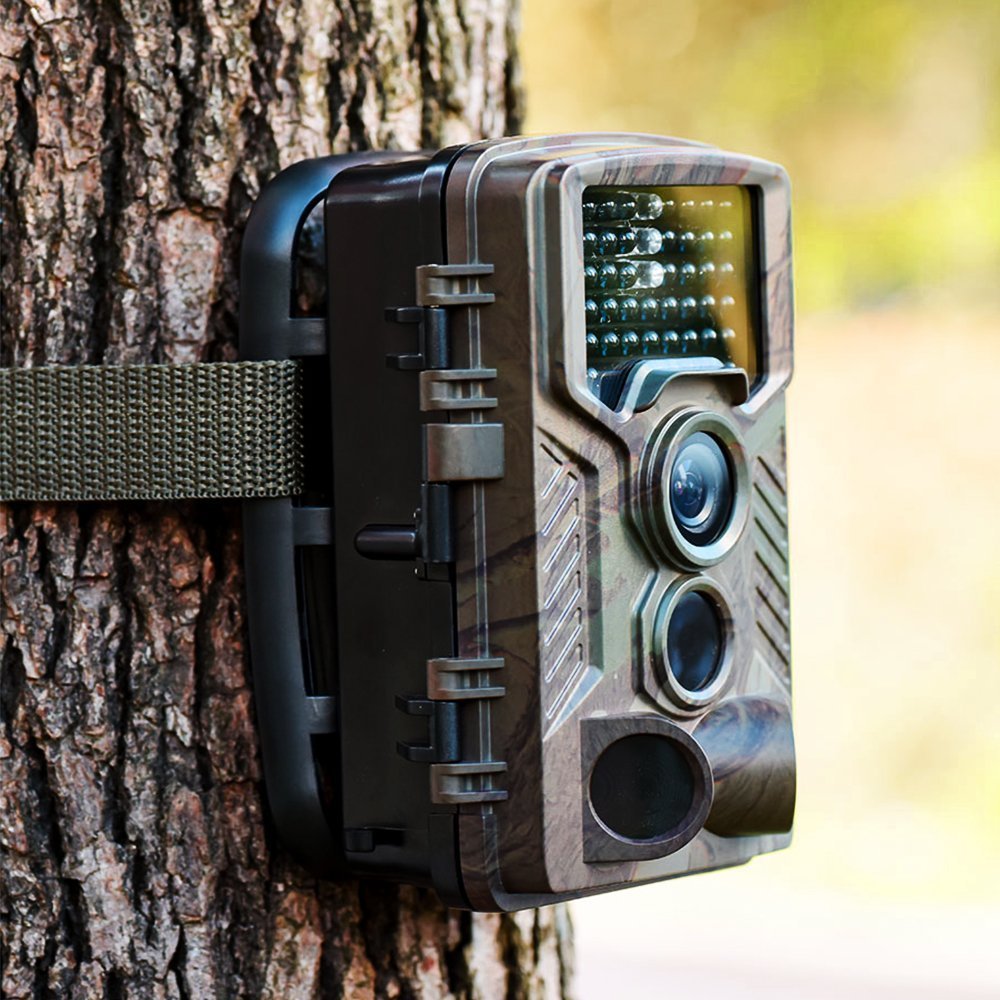

This product comes with a special fixing belt.

You can fix this to the entrance hall or street lamp pole with this belt.

Just tighten with a belt,

Easy installation is possible by anyone.

Application example

Monitoring where people's eyes are hard to reach,

Crime prevention

Countermeasures against wildlife damage

Observation of the ecology of animals.

Monitoring of private property (parking lot, forestry) factory, material storage place, vast site (golf course, field, orchard)

Management effect, evidence photo

Such.

please note

The drip proof standard of this product is IP 56, it is not completely waterproof.

If water is directly applied, it may cause malfunction.

Please note that recording the video is infringement such as the right of portrait in some cases.

Infrared detection may be difficult if installed near the outdoor unit of the air conditioner or in a place where there is no temperature difference between the person's surface temperature and the surroundings such as in the summer.

Please note the installation location.

set content

Body

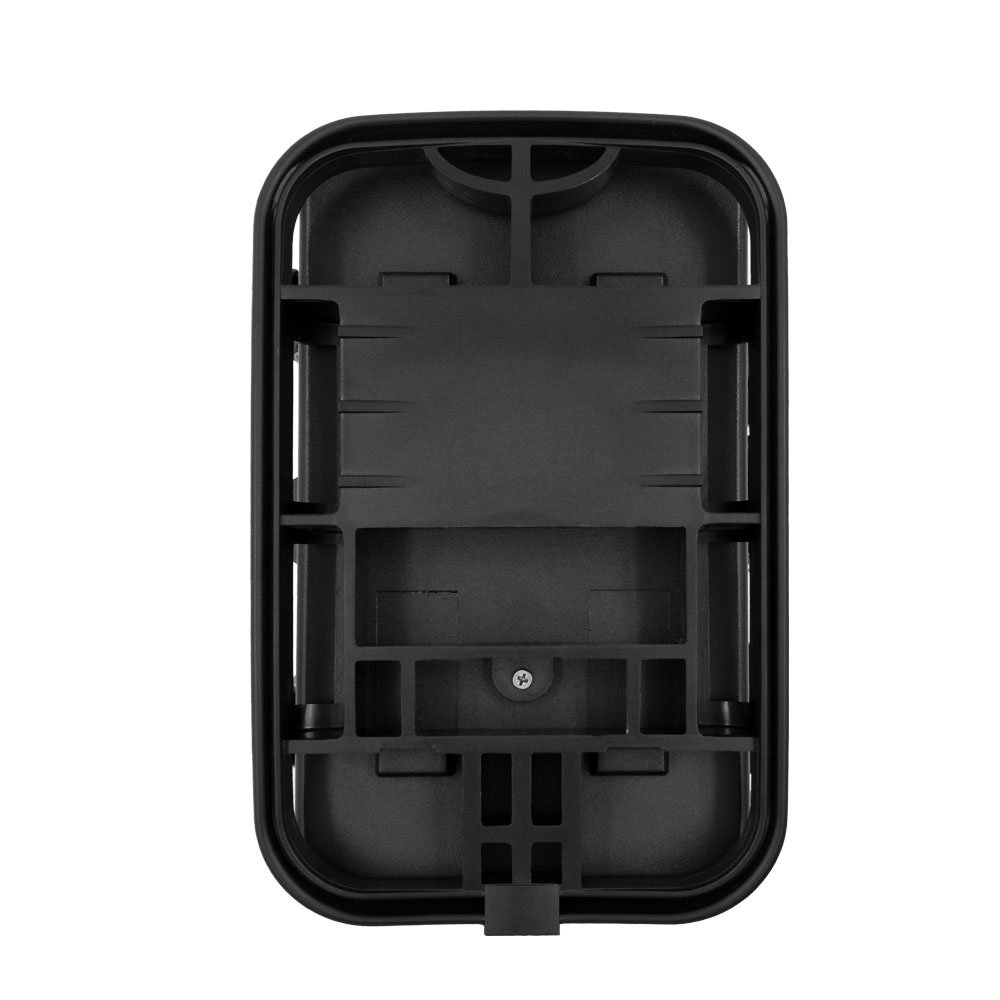

stand

AV cable

USB cable

Fastening strap

Simple Instruction Manual (Japanese)

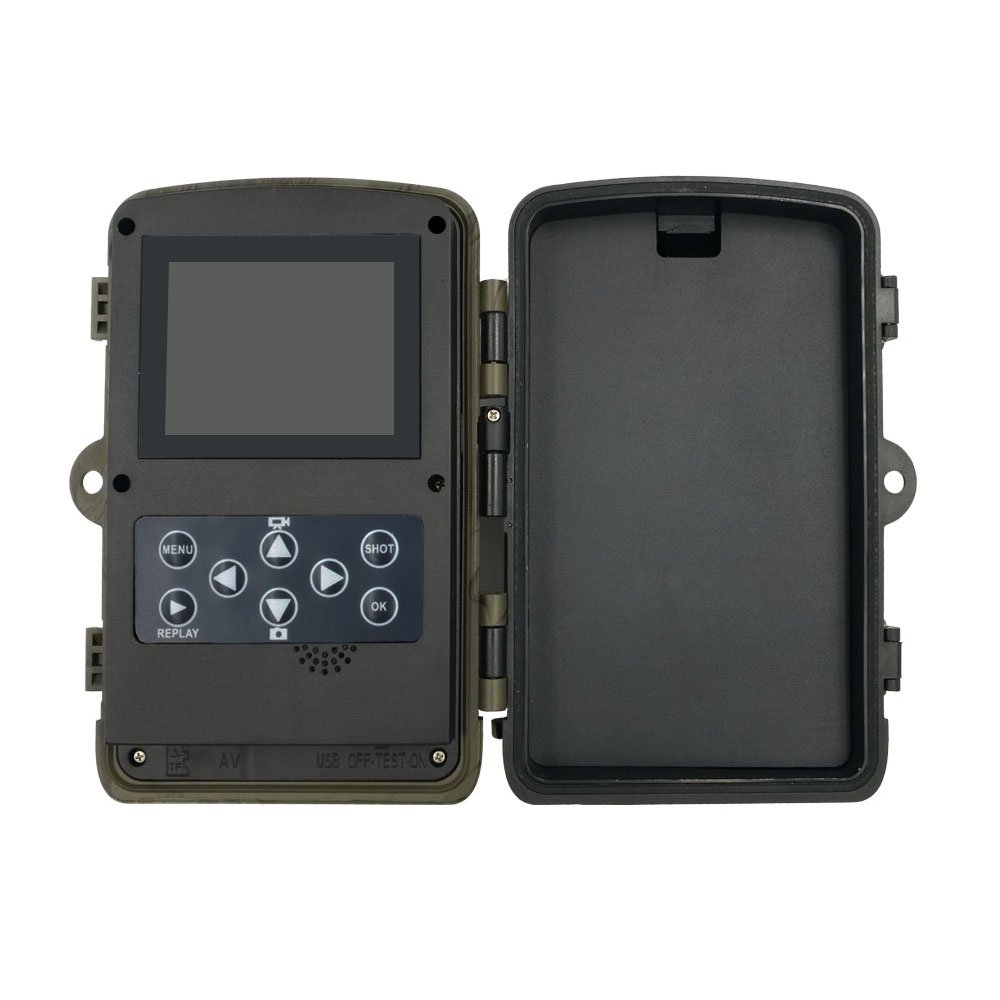

Operation explanation

① operation mode (MODE): shooting mode / photography mode / photography & photography mode (PHOTO / VIDEO / PHOTO & VIDEO) Three kinds can be selected.

(The shooting & photo mode is the mode that starts recording moving pictures after taking pictures.)

② Photo resolution (Photo Resolution):

You can select 12 MP (4000 * 3000 P) / 8 MP (3264 * 2448 P) / 5 MP (2592 * 1944 P) / 3 MP (2048 * 1536 P) / 1 MP (1280 * 960 P).

(The default resolution of the system is 5 MP)

※ The larger the picture size, the clearer the screen, the fewer the number of photos the TF card can save.

③ Continuous shooting (Photo series): 1 sheet / 2 sheets / 3 sheets (1 photo / 2 photo in series / 3 photo in series) can be set.

④ Video Resolution (Video Resolution):

1920 * 1080 P (25 FPS) / 1280 * 720 P / 720 * 480 P / 640 * 480 P / 320 * 240 P configurable.

※ The larger the video size, the clearer the screen, the shorter the film time that the TF card can be saved.

⑤ Video length (Video Length): It can be set from 1 to 60 seconds / 1 to 10 minutes by using the ▲ ▼ button.

⑥ Recording (Audio recording): You can select ON / OFF (ON / OFF).

⑦ Movement detection delay (Shot lag): It can be installed for 5 to 60 seconds / 1 to 10 minutes using the ▲ ▼ button.

Record only when necessary to reduce battery drain.

* When not sensing the heat source, it automatically enters the standby state and suppresses the consumption of the battery.

⑧ Supplemental heat sensor (Side motion sensors): ON / OFF (ON / OFF) can be selected.

⑨ Sensitivity motion sensors: low / general / high

(Low / Middle / High) to set the sensitivity of the mine sensor.

※ "High sensitivity" is better in indoor rooms with less environmental impact, but in outdoor cases, we generally recommend choosing "general sensitivity".

It is necessary to select "low sensitivity" in the outdoor environment where the environmental influence is large.

Also, since temperature also affects sensor sensitivity, "high sensitivity" responds to a mild environment, but "low sensitivity" meets cold environment.

⑩ Monitoring Period (Target recording time): You can select ON / OFF (ON / OFF).

If you select On (ON), you can set the start time and end time of camera recording, so the camera will start up only during that period.

In another period, it enters a standby state.

⑪ Timed shooting (Time lapse): Select ON / OFF (ON / OFF) and set shooting interval time.

For example, when you want to record the flowers of plants, just set the interval period for taking pictures, the camera can automatically record each flower blossom process.

Features:

• Please enter model number Confirm this is compatible:
• 【Motion Detection · High Image Quality】 With 8 million CMOS sensor, Movie resolution of 1920 × 1080P (25 fps), 12 million pixels, Trigger speed of 0.2 seconds, so it clearly appears on 2.4 inch confirmation monitor.
• [Night vision function] With an infrared sensor, you can detect infrared rays emitted by people and animals, sharp and clear color images during the day and clear black and white images at night.
• Data is stored in the internal SD card (maximum 32 GB).
• [Waiting time] Provides very low consumption voltage and long operation time in standby operation.
• Using 8 AA batteries will reach up to 8 months.
• 【PIR Detection Angle】 Since the PIR detection angle is 100 degrees, it provides a wider detection angle and improves camera response time.
• It can be used at extreme temperatures between -20 ° C and 60 ° C
• [IP 56 waterproof / dustproof] IP 56 Waterproof / dustproof specifications allow installation outdoors.
• It is also popular crime prevention goods with wide range of use for optimum use as crime prevention measures installed in places without power such as illegal dumping of garbage as well as being able to be used for crime prevention measures such as parking lot and car vandalism and countermeasures against birds and beasts.

Product information:

Shipping Weight: 680 g

Package Dimensions: 9.91 x 13.46 x 20.07 cm
