Product Description
Features

-3D Printer Parts General Add-on Heated Bed Power Expansion Module High Power Module for 3D Printer

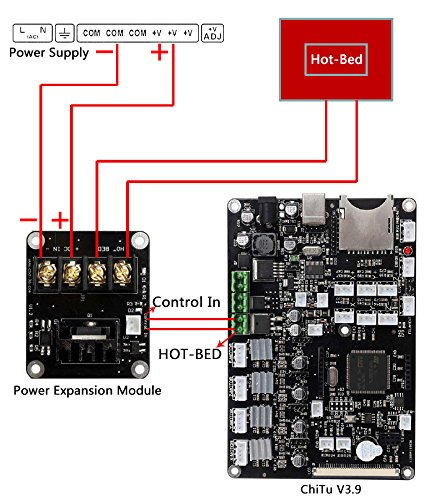

-be used in both Chitu motherboard, and other open 3D Printer motherboards.
-helps 3D printer equipped with the Chitu controller board (capable of max 15A) become more powerful.
-With this addon module to ChiTu board lead the maximum current up to 25A.
-If you intend to use heated bed with your 3D printer that uses a 12V power supply,
then this module is recommended,
else it may cause excessive current during times which may burn the connectors on the controller board.
-For example, if your total power usage is 240W and you have 12V power supply,
then it means at least 20A is needed (20X12=240W).
As ChiTu controller board is only capable of 15A this setting will not work.
To make it work, you need this extra power module.

One Set Included

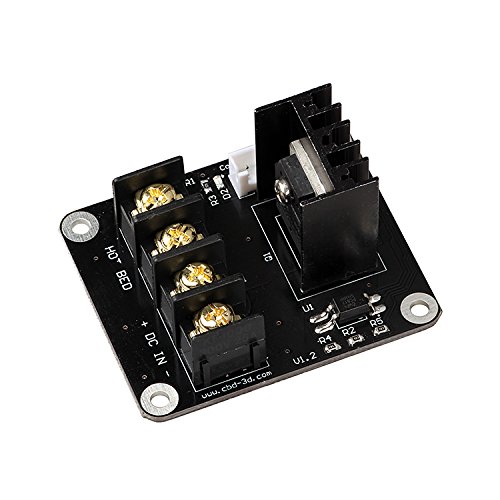

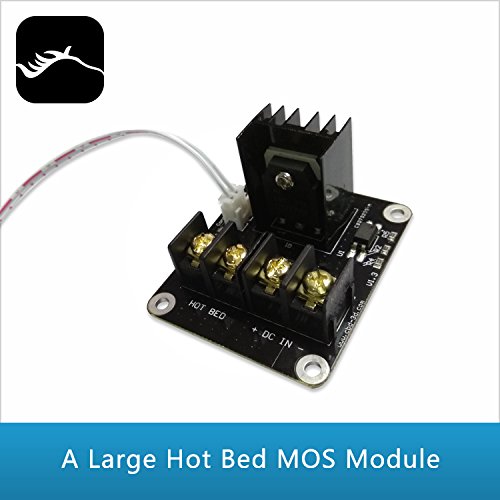

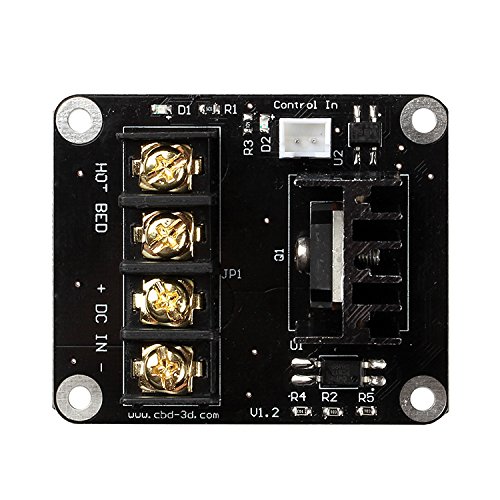

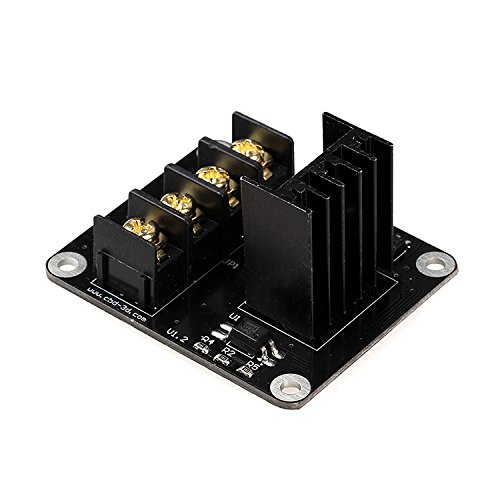

-1 x Heated Bed Power Expansion Module
-Standard Factory Package
