Product Name

DFRobot GPS/GPRS/GSM Module V3.0 [병행수입품]

Product Code: PROD400026553

Product Information

원본상품명: GPS/GPRS/GSM Module V3.0 [行輸入品]
신품,병행수입품입니다.Brand new parallel imports from the US.
This is an SIM908 Arduino GPS/GPRS/GSM shield from DFRobot
This shield with a Quad-band GSM/GPRS engine works on frequencies EGSM 900MHz/DCS 1800MHz and GSM850 MHz/PCS 1900MHz
It also supports GPS technology for satellite navigation


Technical Details

Width : 0.75 cm
Height : 0.52 cm

Product Details


ASIN : B01KBQSQGM


Product Description

INTRODUCTION
This is a GPS/GPRS/GSM shield from DFRobot. This shield with a Quad-band GSM/GPRS engine works on frequencies EGSM 900MHz/DCS 1800MHz and GSM850 MHz/PCS 1900MHz. It also supports GPS technology for satellite navigation. It''s possible for your robot and control system to send messages and use the GSM network.
It is controlled via AT commands(GSM07.07 ,07.05 and SIMCOM enhanced AT Commands). And the design of this shield allows you to drive the GSM & GPS function directly with the computer and the Arduino Board. It includes a high-gain SMD antenna for GPS & GSM.

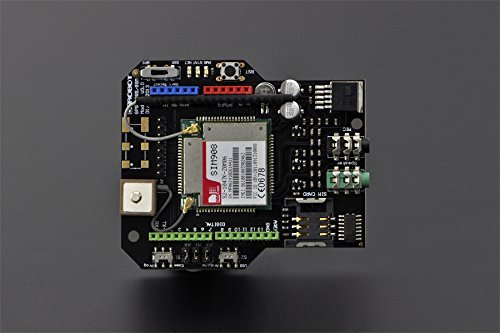

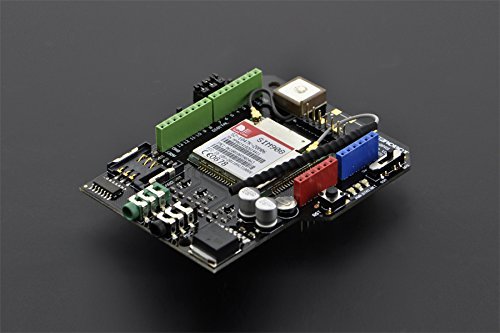

This GPS/GPRS/GSM shield uses an embedded SIM908 chip from SIMCom.Featuring an industry-standard interface and GPS function, the combination of both technologies allows goods, vehicles and people to be tracked seamlessly at any location and anytime with signal coverage.
SPECIFICATION
Power supply: 6-12v
Low power consumption (100mA@7v - GSM mode) Quad-Band 850/900/18001900MHz
GPRS multi-slot class 10
GPRS mobile station class B
Compliant to GSM phase 2/2+
Class 4 (2 W @ 850/900 MHz)
Class 1 (1 W @ 1800/1900MHz)
Control via AT commands(GSM07.07 ,07.05 and SIMCOM enhanced AT Commands)

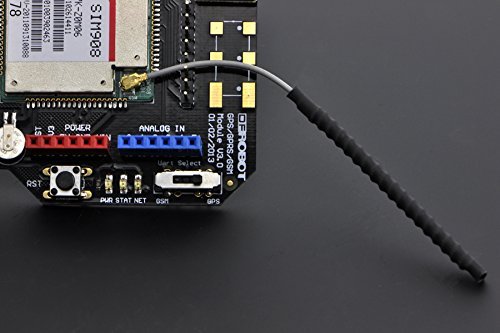

Support GPS technology for satellite navigation Embeded high-gain SMD antennas for GPS & GSM
Directly support 4*4 button pad
USB/Arduino control switch
Programmable switch for Arduino
LED indicators for power supply, network
states and working status
Board Surface:Immersion Gold
Switches:
S1 -- Programming mode / Communication mode
S2 -- Controlling interface: USB / Arduino
Interfaces:
Embedded SIM card holder
Speaker & Mic Jack socket
Size: 81x70mm
SHIPPING LIST
GPS/GPRS/GSM Module V3.0 x1
