Product Description
Technical Data:
Compatible Cameras: Nikon cameras (I-TTL II autoflash)
Guide No. (1/1 output @200mm): 60(m ISO 100); 190 (feet ISO 100)
Flash Coverage:·20 to 200mm (14mm with wide panel)
·Auto zoom (flash coverage set automatically to match the lens focal length and image size)
·Manual zoom
·Swinging / tilting flash head (bounce flash): 0° to 360° horizontally and -7° to 90° vertically
Flash Duration: 1/300 to 1/20000 seconds
Exposure control system: I-TTL II autoflash and manual flash
Flash exposure compensation (FEC): Manual FEB: ±3 stops in 1/3 stop increments (Manual FEC and FEB can be combined)
FE lock: With 〈FEL〉button or 〈*〉button
Sync Mode: High-speed sync (up to 1/8000 seconds), first-curtain system, and second-curtain sync
Multi Flash: Provided (up to 100 times, 199Hz)
Wireless flash function: Master, Slave, Off
Controllable slave groups: 3(A, B, and C)
Transmission range:·Optic: Indoors: 12 to 15m /39.4 to 49.2 ft.; Outdoors: 8 to 10m /26.2 to 32.8 ft.; Master unit reception angle: ±40° horizontally±30° vertically, ·2.4G: 100m
Channels: Optic: 4 (1, 2, 3, and 4)
2.4G: 32（1-32）
Auto Focus Assist Beam: Effect range: Center: 0.6-10m /2.0-32.8 feet/ Periphery: 0.6-5m / 2.0-16.4 feet
Power Supply: Ni-NH batteries (recommended) or 4*LR6 alkaline batteries
Recycle Time: Approx. 0.1-2.6s (eneloop Ni-NH batteries of Panasonics).
Full power flashes: Approx.230 (2500mA Ni-MH batteries)
Power Saving: Power off automatically after approx.90 seconds of idle operation.(60 minutes if set as slave)
Sync Triggering Mode: Hotshoe, 3.5mm sync line, Wireless control port
Color Temperature: 5600 ± 200K
Dimension: 64*76*190mm (W x H x D)
Weight: 410g (without battery)
Package Contents:
1x TT685N camera flash
1x Protection bag
1x User Manual
Feature

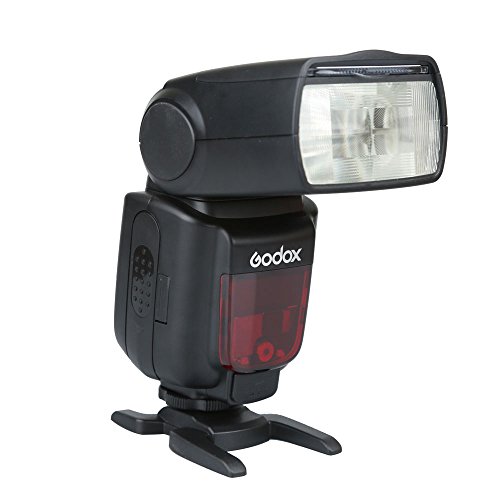

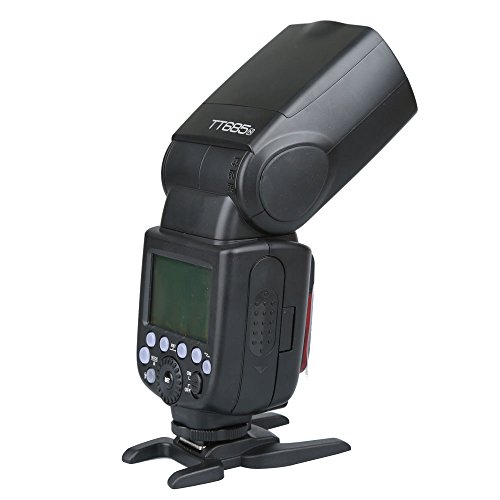

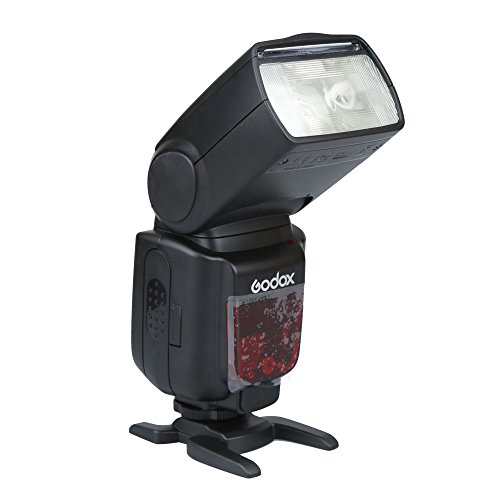

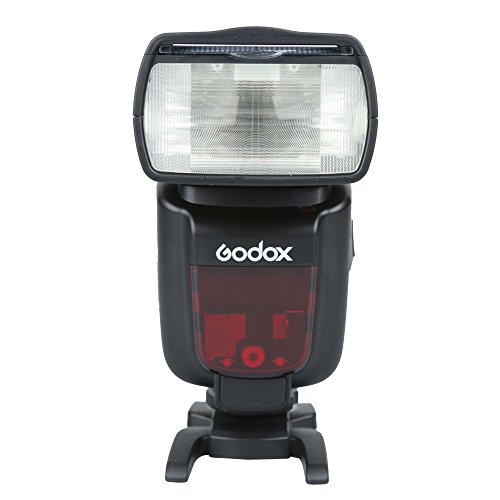

This TT685N camera flash applies to Nikon cameras and is compatible with I-TTL II autoflash. With this I-TTL II compatible flash, your shooting will become simpler.
With 2.4G wireless transmission, X1N (for Canon) can be used to trigger camera flash, studio flash and camera shutter over 100 meters' distance
Support for I-TTL II autoflash, 1/8000 high-speed sync, flash exposure compensation, flash exposure lock, modeling flash, etc.
Two Transmitting Styles to Offer Creative Light Effect,Optic transmission with even illumination and stable output,2.4G wireless transmission with all-in-one functions and 100 meters further transmission.

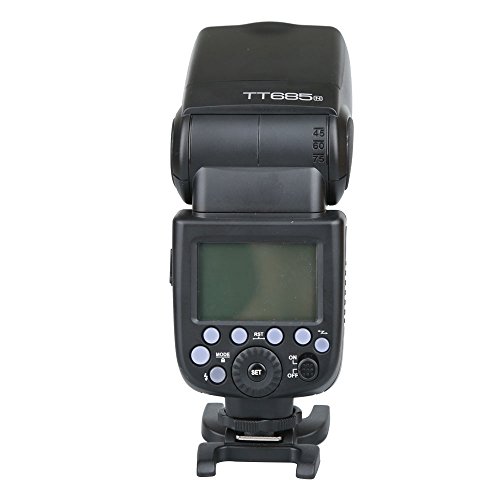

Convenient Dot-matrix LCD panel,With dot-matrix LCD panel to offer clear and easy operation.
Brand : Godox
Item model num : TT685N
MPN(PartNumber) : TT685N
EAN : 0711811937699
Product Dimensions(LxWxH) :
