Product Description

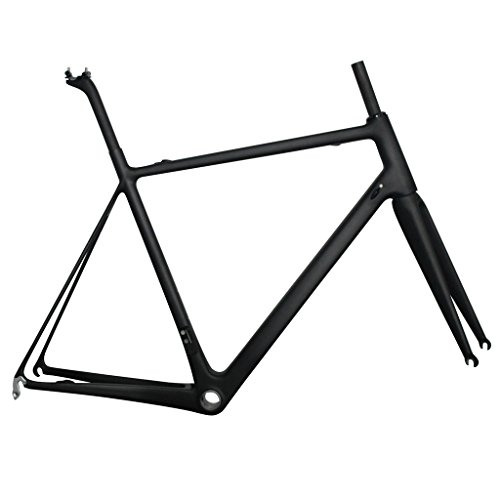

ICAN carbon lightweight road bike frame

Material: full carbon fiber T800
Finish: UD matte
Frame size: 48/50/52/54/56/58cm
Wheel size: 700C
Seat post size: 27.2mm
Seat post Clamp: 31.8mm
Bottom bracket: BB86/DI2
Headset : Top: 1-1/8" , Down:1-1/2"
Frame weight: 45cm-818g;48cm-830g;50cm-840g;52cm-868g;54cm-885g;56cm-905g;58cm-930g;60cm-955g
Fork weight: 360 -20g

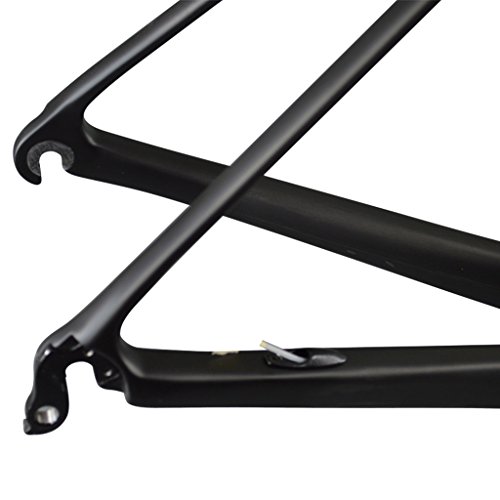

Rear dropout: 130X9mm
Guarantee: 2 years

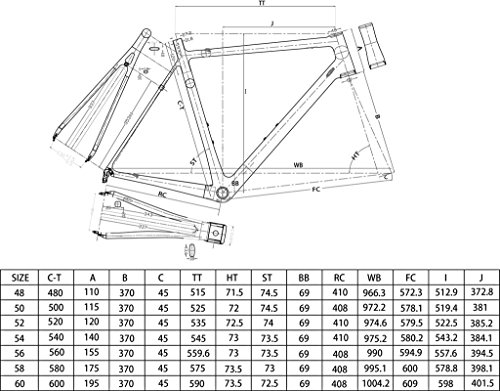

Geometry
Size 48cm you can see other size geometry on the photo)
Top Tube (effective): 515mm
Seat Tube (BB Center to Top): 480mm
Chain Stay (actual): 410mm
Front center: 572.3mm
Seat Tube Angle: 74.5°
Bottom Bracket Drop: 69mm
Head Tube Length: 110mm
Head Tube Angle: 71.5°
Fork offset: 45mm
Wheelbase: 966.3mm
Stack: 512.9mm
Reach: 372.8mm

Package included: Frame fork seat post seat post clamp headset
