Product Description

FEATURE

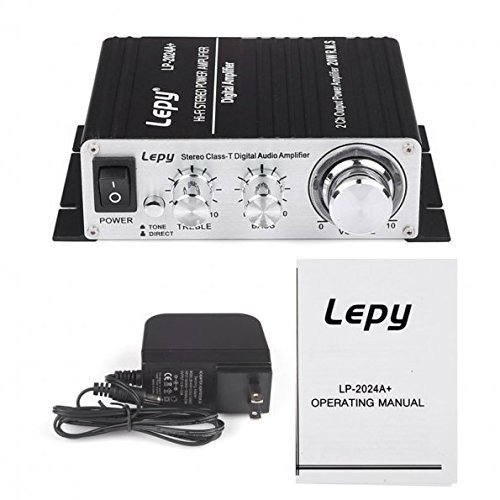

* The Lepy LP-2024A+ uses the Class-T Tripath TA2024 Audio Amplifier IC for low distortion, acoustically accurate reproduction of music. Ideal for both home and car audio applications.
* Tone/Direct switching allows for customized listening via separate Bass and Treble adjustment or original audio source signal can be passed through without enhancement.
* Built-in loudspeaker protection circuit triggers when the amplifier is turned on to protect speakers from high volume bursts of audio.
* Over-voltage protection circuit shuts down amplifier should input voltage exceed 14.4 Volts DC.
* State of the art design using surface mount components and advanced engineering for proven performance, reduced signal interference, and long operational life.
* Mini size easy to installation by DIY without manual, especially good fit for car, motorcycle, bike, boat, every where!

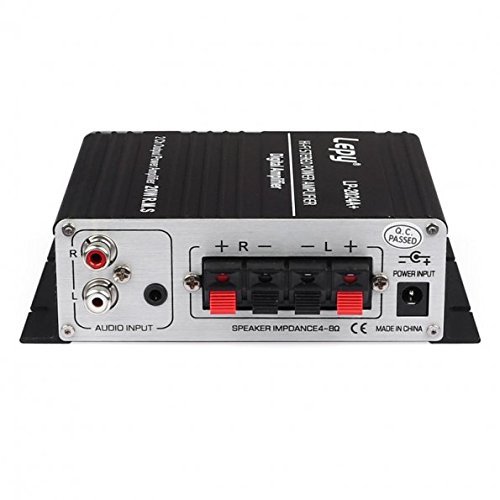

* Support AUX stereo audio Input, Can be plug in with CD, DVD, PC, MP3 / MP4, digital music player.

SPECIFICATION

* Output power: 20W x 2 RMS
* Input power: DC12-13.5V>3A
* Impedance: 4-8 ohm
* Frequency response: 20 Hz - 20 KHz
* Minimum THD: <0.4%
* SNR: >80dB
* Input Sensitivity: 200mV
* Input impedance: 47k ohm
* Surround Sound Channel Configuration: 2
* Color: Black & silver
* Product Dimensions: 14 x 11.8 x 3.1 cm
* Weight: 0.55Kg


Feature

LP-2024A+Using T-type digital technology£¬output power£º20Wx2 RMS.
Tone/Direct switching allows for customized listening via separate Bass and Treble adjustment or original audio source signal can be passed through without enhancement.
With power supply supervisory circuit£¬When voltage is higher than DC14.4 V it van be protected by itself.
Compact size makes this amplifier great for projects and DIY audio applications
Brand : Lepy
Item model num : LP-2024A+
MPN(PartNumber) : LP-2024A+
EAN : 0710228135636
