Item Descriptions:

Product Summary

Merit X series has basic functions necessary for power supply environment

It is a reasonable power conditioner.

In case

Main function

Protect equipment

Equipped with high pressure varistor (MOV), excessive signal cutoff device, spike & surge protection.

Protect equipment from sudden high pressure with shutoff circuit with super high speed response.

Also equipped with Protection OK LED.

Supplies clean power

The filter prevents certain fluorescent lamp noise, lighting dimmer noise, radio radio wave mixing, etc.

This will increase the cleanliness of audio & video systems and computers.

(EMI / RFI)

outlet

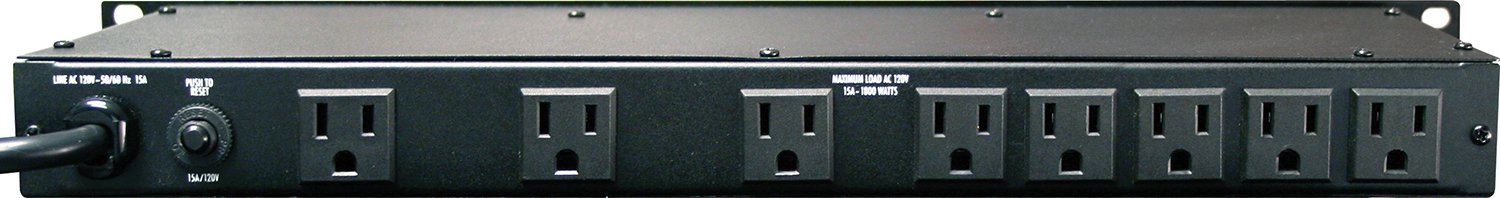

It has 8 3-pin AC outlets on the rear and 1 on the front.

In the Merit X series, we adopted a wide-space outlet with a large distance to the next

It is also compatible with large AC adapters.

Circuit breaker

For safety, a safety breaker is provided on the back panel.

The safety breaker will fall when the total used capacity exceeds the limit (15 ampere).

In that case, resetting is simply by pressing the button.

There is no need to carry a fuse around.

Switch

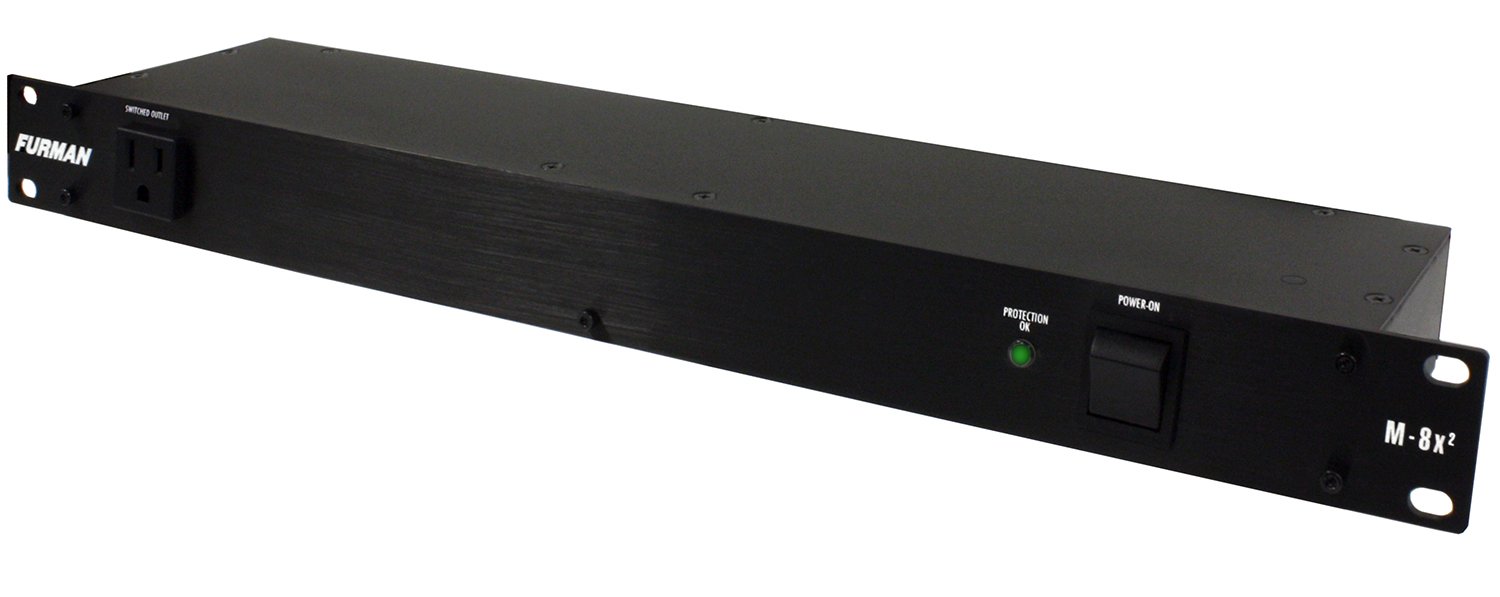

Master switch for power ON / OFF is equipped on the front panel.

Use applications

Instrument

If you connect equipment such as instruments effectors, tuners, preamps and so on to the stage power supply as they are,

There is a case where all the equipment blows smoke just after a big spike has occurred.

Furman standard · surge spike protection is stage and

Protect equipment from spikes and surges frequently occurring in the studio.

Furthermore, the built-in EMI / RFI filter cleans the power supply,

Prevents radio waves and other contamination and makes it cleaner tone.

Recording

Tracking down can not be done if recording noise is mixed in.

Furman EMI / RFI filter removes dirt and noise from the original power supply,

Supplies power to the console and DAW.

Moreover, Furman standard · surge · spike protection is spike and

It prevents malfunction of equipment due to surge and malfunction of digital equipment.

DJ Equipment

DJ equipment allowance is 15 A, there are nine outlets,

Ideal for clubs, bars and event spaces.

The place where the DJ plays, such as clubs and bars, depends on air conditioner and lighting etc.

Power supply environment is often bad,

There are many cases that it has an adverse effect on the function of DJ equipment.

Furman's standard protection and filter

Improve power supply environment and bring out excellent performance.

Pro audio

Pro audio tour, the power status of the venue is not always good on the field.

Furman's standard protection and EMI / RFI filter

It brings a safe and clean sound to the equipment.

In case

spec

Maximum Output Current: 15 Amps

Line Cords: 6 ft. Captive, 14 AWG, with 3 - conductor Edison Plug

Operating Voltage: 100 VAC 50/60 Hz

Spike Protection Mode: Line to neutral

Energy Dissipation: 170 Joules

Peak Impulse Current: 12,000 Amps

Maximum Continuous Operating Voltage: 130 VAC RMS

Let Through Voltage (@ 125 Amps, 8/20 uS waveform): 400 Volts

Noise Attenuation (Transverse Mode): + 23 dB 200 KHz to 10 MHz

Dimensions: 44 H × 483 W × 95 D mm

Weight: 1.8 kg

Features:

• Please enter model number Confirm this is compatible:
• Reasonable power conditioner with basic functions necessary for power supply environment
• Equipped with high pressure varistor (MOV), excessive signal cutoff device, spike & surge protection
• Filter prevents certain fluorescent lamp noise, lighting dimmer noise, radio radio wave mixing, etc.
• The number of outlets is 9 in total, 8 rear and 8 front
• Maximum supply current is 15 amperes

Product information:

Shipping Weight: 2177 g

Package Dimensions: 7.90 x 16.79 x 55.60 cm
