Product Description

Description:
The Flight Controller (FC) is a critical part of your drone and the faster the FC goes the better the response to your stick inputs. The Betaflight F4 Flight Controller comes with a 32bit processor for excellent performance and a built-in On Screen Display (OSD) .
The STM32F405 processor is the workhorse behind the FC which has ample memory and CPU power for even the most impressive fliers. Included with this is the MPU600 sensor which combines a 3-axis gyroscope and a 3-axis accelerometer which will help keep you in the right place. When FPV flying it helps to have easy access to flight data and the built-in OSD provides all the flight information straight to your video feed and onto your goggles or monitor screen.

Features:
? STM32 F405 MCU for quick processing power
? SPI Sensor MPU6000 for gyro and accelerometer, with Barometer BMP280
? SBUS/PPM input (Pinheaders)
? Built-in Betaflight OSD: Support ground station Betaflight OSD parameter configuring; support tunning PID with OSD by using remote controller.(Support FPV transmitter like Wolfwhoop Q1/Q3/Q1-Pro)

Specification:
Weight: 7.5gram
Size: 36x36mm
PCB Thickness: 1.2MM
Mounting hole: 30.5x30.5mm
Firmware: betaflight_3.1.7_OMNIBUSF4SD
SCM: STM32 F405 RGT6
Sensor: SPI Sensor MPU6000
Barometer: BMP280
Slot: standard SD card slot
BEC: 5V/3A
With LC filter
Built-in OSD
Receiver configuration: SBUS/PPM
Galvanometer: Integrated Gal, power current consumption real time monitoring available
Power supply: Built-in power module BEC
SD card slot: standard SD card slot

More information, please refer to:
https://github.com/betaflight/betaflight/releases
http://dronin.org/

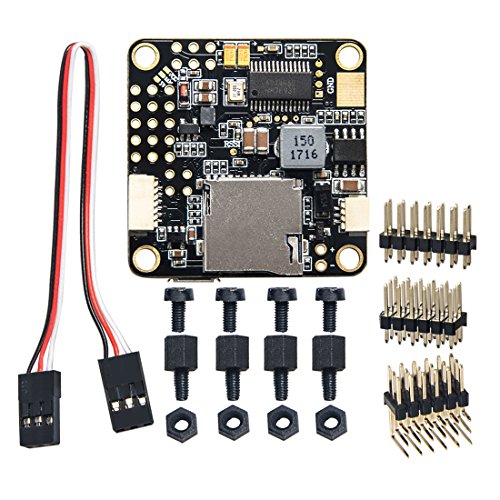

Package included:
1 x F4 Flight Controller
1 x Cable
3 x Pin
N x screw
