Item Descriptions:

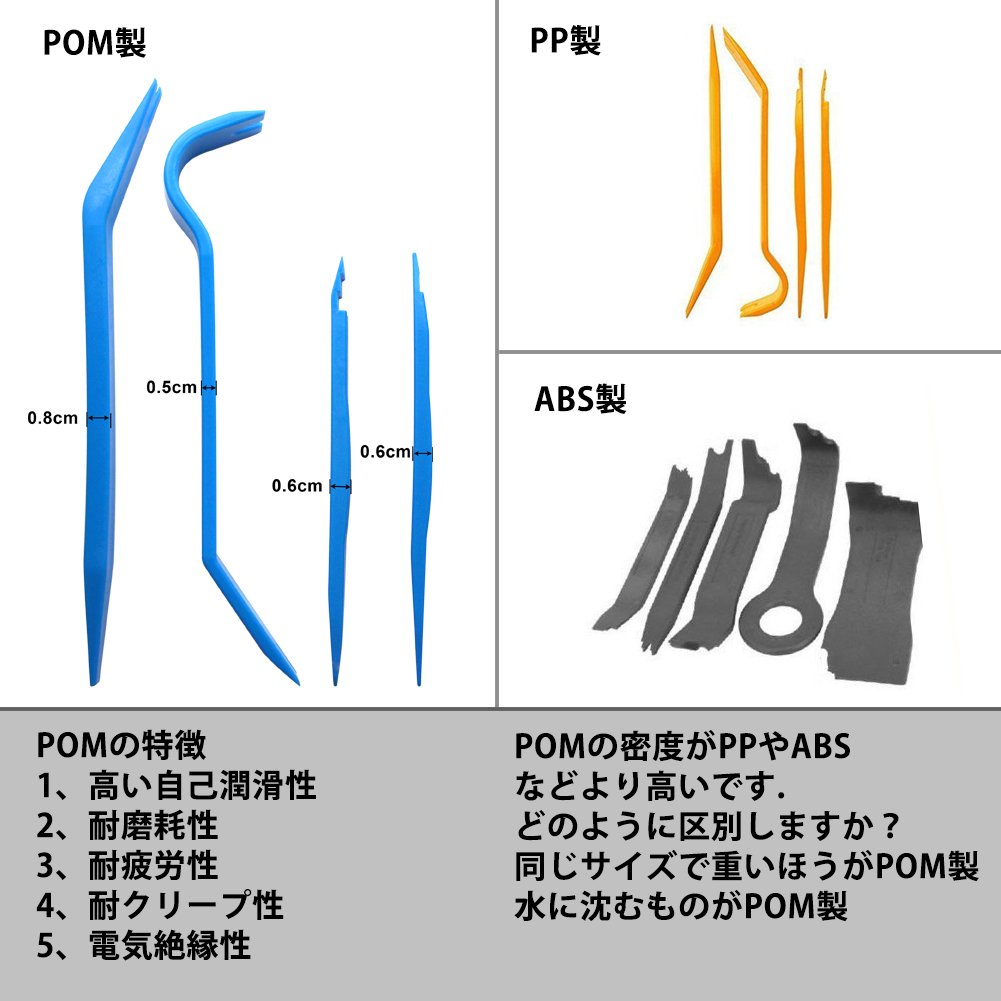

Material of lining peeling: polyacetal (POM)

It has excellent function as 5 large engineering plastics.

Although there are several properties, the most representative function among them will be abrasion resistance and high strength.

Polyacetal (POM) has excellent abrasion resistance because of its high self lubricity and at the same time has fatigue resistance and creep resistance to withstand use even at high temperatures.

It also has excellent electrical properties and high electrical insulating properties, making it ideal for use in parts related to electronic equipment, covers, etc.

Abrasion Resistance: High self lubricity and the highest abrasion resistance among plastics.

Mechanical strength: It has high tensile strength and it can withstand use under high temperature.

Impact resistance: High in toughness and high impact resistance.

Creep Resistance: It has characteristics that can withstand long-term use even under high temperature environments.

Modulus of elasticity: It has high elasticity and elastic recovery rate.

Material also used for spring.

Water absorption property: Water absorption is small and there is no shape change due to water.

Dimensional stability: High dimensional stability, ideal for small parts and others.

Electrical insulating property: High electrical insulating property.

Temperature: Withstands use in a wide temperature environment from high temperature to cold.

Chemical resistance: Excellent in chemical resistance and solvent resistance.

Post processing: It is suitable for laser processing and cutting.

"Inner peeling" is a tool that is not familiar to the general public, but in the world of car dressing up and customizing, it is a super standard tool necessary for doing anything.

Basically it is recommended to peel off the inner lining made of resin when doing lid inner lining or prying panels etc.

It is because it is hard to scratch the inner lining with soft material.

Metal lining is recommended for removing clips and clamps.

In case

Handy remover set is easy to handle, light product and can be used even by women.

In case

You can save extra labor and expenses if you do it by yourself, such as removing the bumper of the exterior as well as the interior, replacing the battery, wiper, lights and so on.

It is convenient when you remove car interior, panel around dashboard and door lining etc.

In case

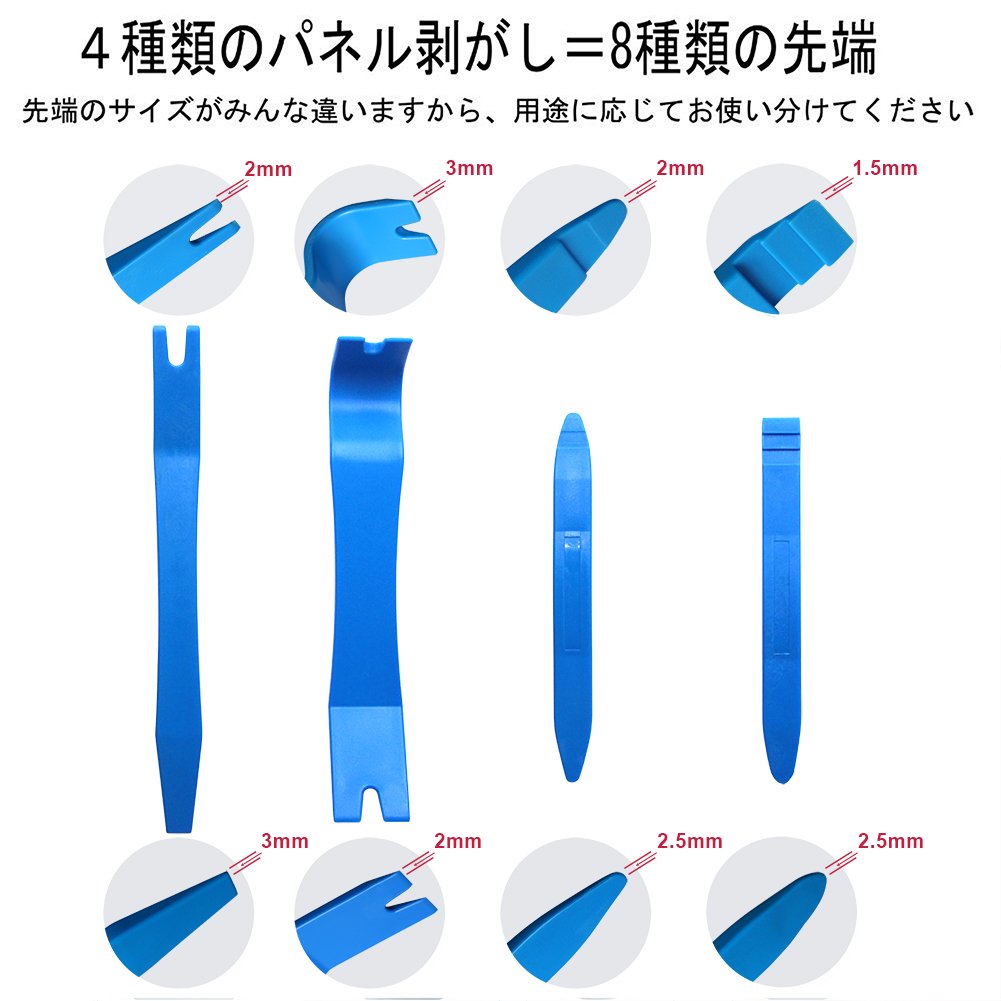

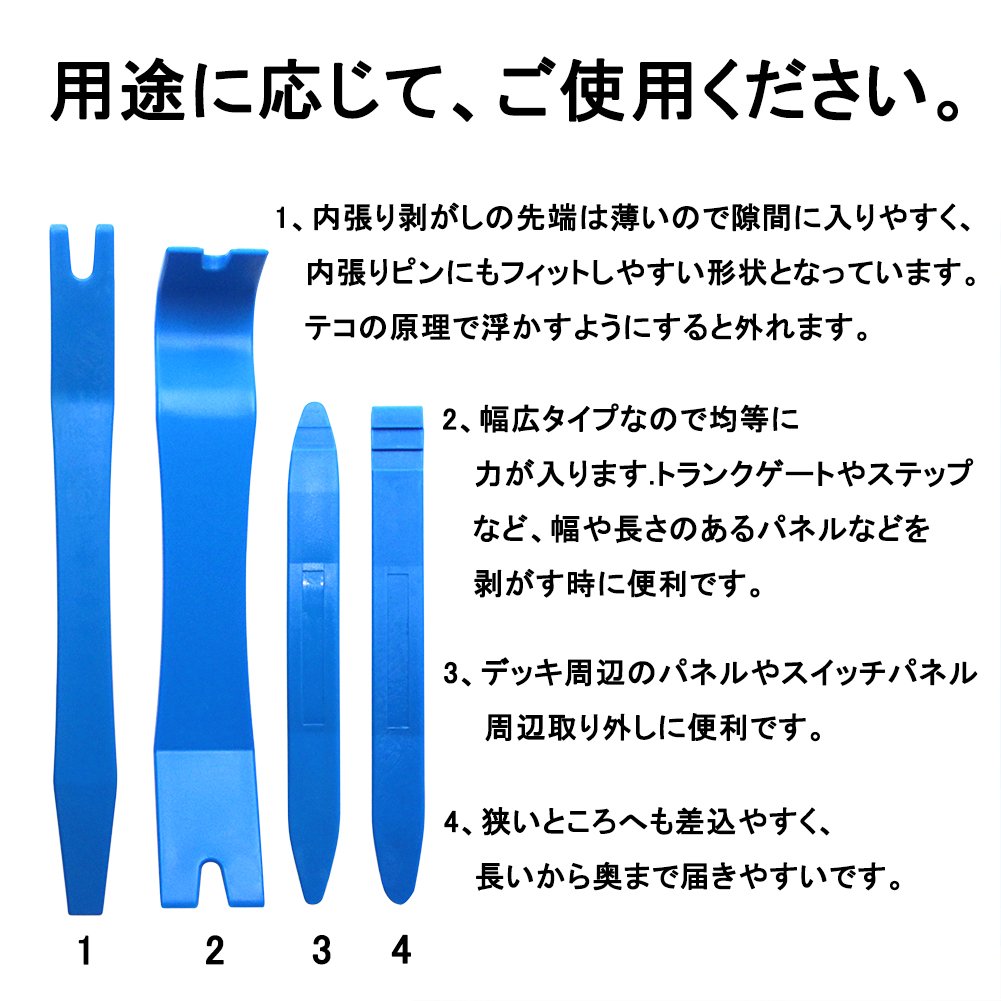

There are variations that you can choose according to the location, shape and material of the panel you want to remove.

How to remove the door lining:

1, Remove the lining panel.

Take by hand pulling.

All it takes to bother with lining peel off because it will cause scratching.

2, Remove the screws.

Next, remove all parts fixed with screws.

Triangle panels occasionally have cars fixed with screws.

If screw fixation is left, it will not come off even if you twist how much the lining.

Looking into the pocket of the armrest from above, there is a screw.

This position is a standard.

The position of the hidden screw is various according to the car model.

3, Remove the frame of the door handle.

Insert the liner peel from the outside and twist it.

Or from the outside (There is a nail in the back, it has a nail in the direction from the inside to the outside.

You can understand it if you see it off the front.

As we are doing this kind of hooking, we need to apply a force that expands from the inside toward the outside, the claws of the claws can not come off.

Rather than prying, it will do well if you do it with spreading feeling.

Nissan car door lining is a pattern that is more common.

4, If you remove other claws in the same way, you can take it.

It is possible to use it in such a scene that the tip is thin.

A classic model often used for desorption of lining.

5, Remove the panel of the power window switch.

For each car model, you may also remove the panel around the power window switch before removing the lining.

If you can pull it up by hand and remove it, take off the liner without using it.

Many vehicles pull out the lines of the power window on the inner lining after the lining is entirely removed.

6, Remove the entire door lining.

When going to remove the door lining, it is a good idea to first insert a liner and slide it slightly.

Sliding and exploring, I can understand that it is a place that is strongly sticking to the iron plate on the body side.

Since such a place is near the pin being fixed, if you twist the liner peeled from it, you can remove the pinning fixation.

7, I pry around the strongly fixed neighborhood.

It is a trick to pry near the fixed place.

If it sits at the midpoint between the fixing pin and the fixing pin, even if it is peeled off by the lining, the lining itself will change and the force escapes.

8, The lining is fixed with countless pins.

Although I do not know the pin position at the stage before removing it, I will search it by touch.

When the bottom of the liner comes off, grasp the entire lining by hand and pull it.

9, The fixing of the lower part of the lining is released.

When the bottom becomes free, slide the door upward to unlock the door lining.

Use of liner peeling is necessary.

10, when removing steps etc.

When removing steps etc, it is good to use a heavy liner peel.

If you pry it with a thin type, the force concentrates on one point.

It is easy to hurt.

In this case as well, after inserting the liner peel, if you slide it slightly, you can find out the pin position with the feeling of hitting it.

It is good to twist linings.

That's the trick to using liners.

please note:

1, Metal made it easy to damage the lining side.

So when you tie in the liner, we recommend peeling lining made of resin.

2, It is basic to remove things that can be removed by hand with hands.

All it takes to bother with lining peel off because it will cause scratching.

3, There are many patterns with hidden screws on the door handle.

In that case let's also remove screws.

If screw fixation is left, it will not come off even if you twist how much the lining.

If you try to forcibly remove it, there is a possibility of cracking.

Let's watch out.

5, It is recommended that the tip of the clip clamping tool is made of metal and prevent scratches by curing tape and so on.

6. Excessive use may cause damage.

In case

7, When pulling out the interior panels, if pulling with force, the liner pin will crack or in the worst case the panel body may be damaged.

Features:

• This product is ideal for installation of remodeled cars, dress up / tune parts, daily maintenance etc.
• It is convenient for detaching parts of automobile interior and exterior parts and center console · audio / car navigation · glove box · F / R bumper · clip · clamp, side molding etc.
• Lubricant peeling made from polyacetal (POM), one of engineering plastics excellent in mechanical properties, has excellent wear resistance because of its high self-lubricity and at the same time withstands fatigue resistance even at high temperatures
• It has creep resistance.
• It also has excellent electrical properties and high electrical insulating properties, making it ideal for use in parts related to electronic equipment, covers, etc.
• Handy remover is easy to grasp when working.
• Although it is made of resin hard to scratch, we recommend that the tip of the clip clamping tool is made of metal and prevent scratches by curing tape and so on.
• It can also be used for removing resin parts such as air conditioners, lighting equipment panels, room lamp covers etc. other than automobiles.

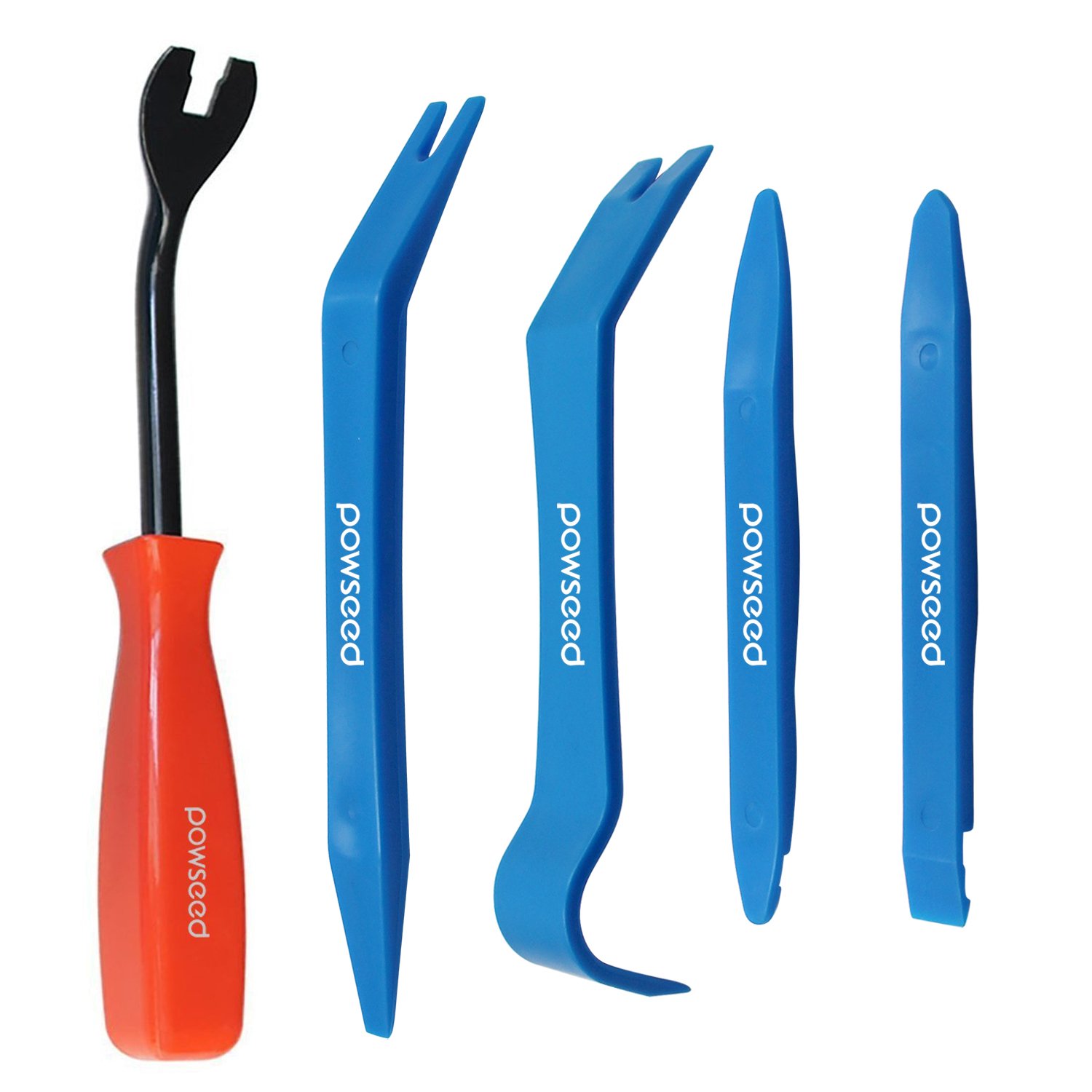

• Package Contents: Remove panel * 2, liner * 2, clip clamp tool * 1

Product information:

Shipping Weight: 249 g

Package Dimensions: 9.09 x 12.29 x 24.31 cm
