Item Descriptions:
size:
8 CH
| Color:
4 * 720P camera
Caution:
Hard drive (HDD) is not included.
3.5 inch size, SATA port, 500 G - 3 TB capacity is required.
We recommend Seagate or WD brand.
Characteristic:
* Megapixel CMOS sensor, HD 720P video recording and playback.
* Android / iOS APP supports remote control.
* AHD + analogue + TVI + CVI + XVI + IPC.
* Supports P2P, Onvif, waterproof, IR-CUT night view.
* Support motion detection record and APP alarm notification.
DVR specification:
Main processor: Hi 3520 D
Operating system: Linux OS
Signal system: PAL / NTSC
Menu display: 1/4/8/9 screen
Record resolution: Full 1080 N / 720 P / 960 H
Maximum synchronized playback: 8 channels
Analog input: 8 * 1080 N, 4 * 1080 P
Network input: 16 * 1080P / 960P, 4 * 5MP
Hybrid input: 2 * 1080 P (analog) + 2 * 1080 P (IPC), 4 * 1080 N (analog) + 4 * 960 P (IPC)

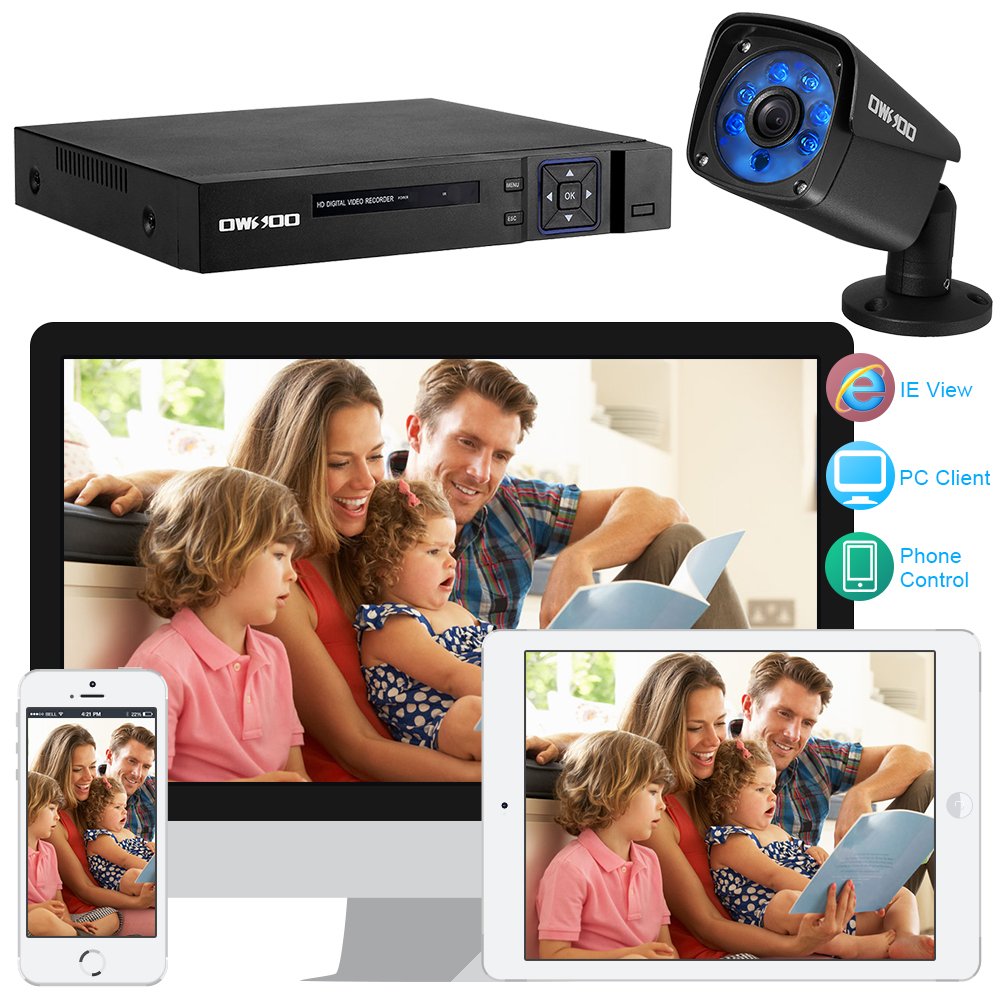

Phone / pad OS: Android / iOS support
APP name: XMEye (available for download on the APP Store or Google Play)
Prerecorded: 0 - 30 seconds; Contribution record: 10 - 300
Region cover: Yes.
Dual stream: yes
Digital Zoom: Yes.
Remote playback: yes
Alarm type: Motion detection, Video loss
Alarm linkage: buzzer, recording, snapshot, APP message
IE view: It is necessary to encourage "download unsigned ActiveX control" at security level
PC system: Windows XP, win 7, win 8, win 10, etc.
System resolution: 1920 * 1080, 1280 * 1024, 1024 * 768
System language: Japanese,
English, German, French, Spanish, Italian, Russian etc.
Battery: 1 * 3 V CR 2032 (included)

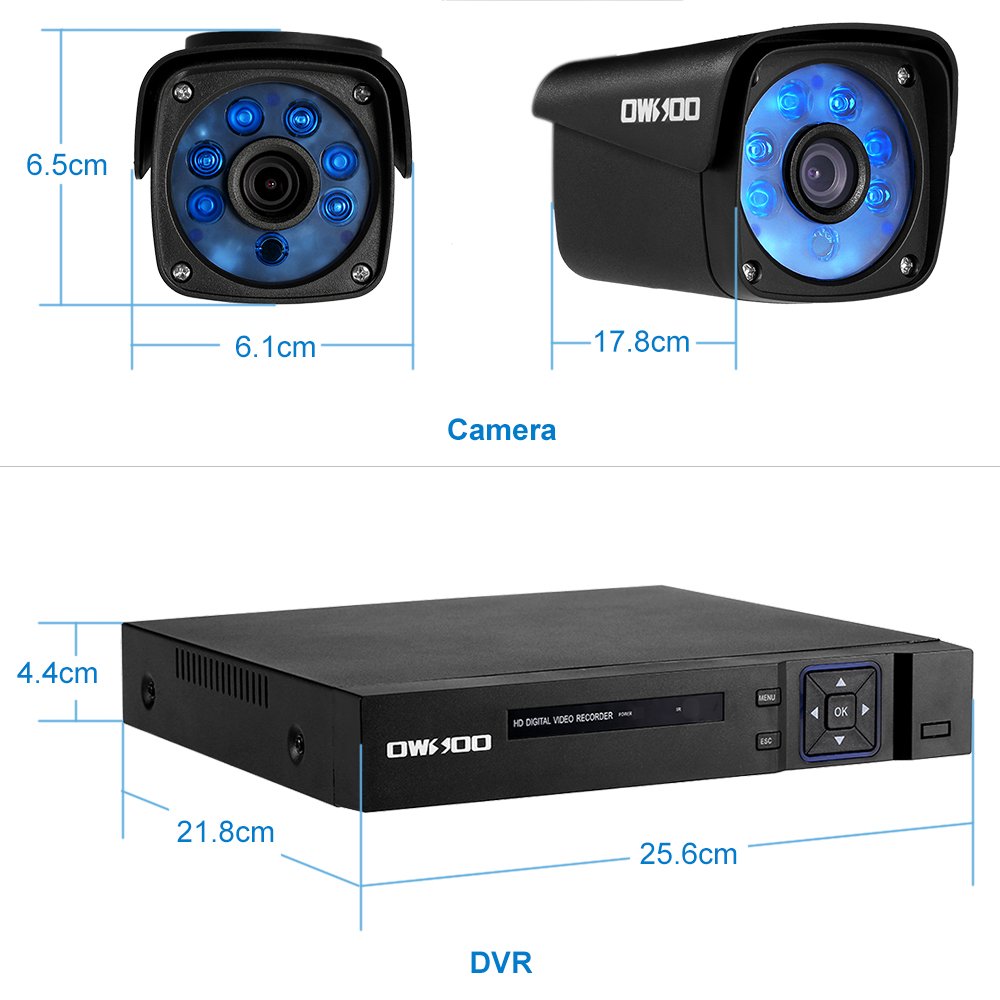

DVR size: 25.6 * 21.8 * 4.4 cm
DVR weight: 773 g

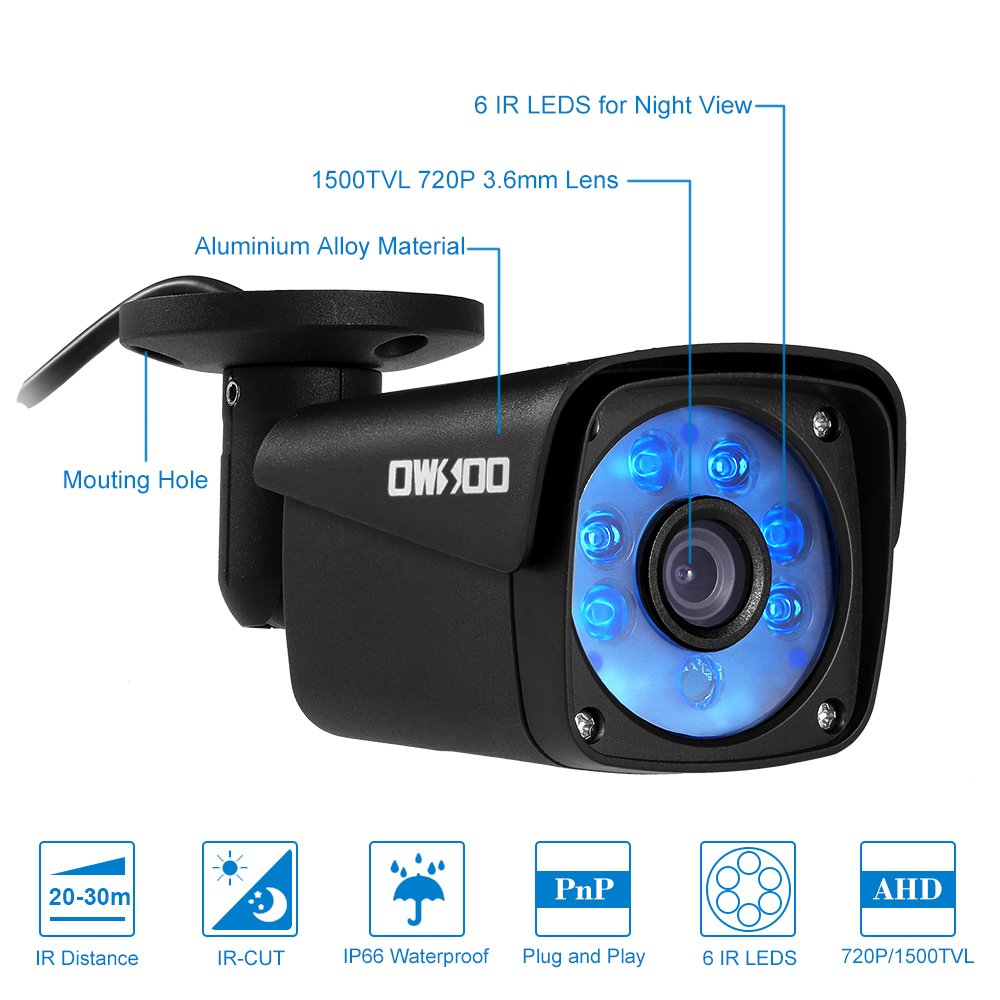

Camera specification:
Image sensor: 1/3 inch CMOS
Horizontal resolution: 1500 TVL
Pixel: 1.0 MP, 1280 * 720
Lens: 3.6 mm fixed lens
Infrared LED: 6 PCS; auto switch
LED color: looks red at night
Image: color / day, black and white / night
Low illuminance: 0 lux (IR on)
IR distance: 20 - 30 m
Day / night: Yes.
Indoor / Outdoor: Yes
Waterproof grade: IP66
Material: Aluminum alloy
Camera size: 17.8 * 6.1 * 6.5 cm
Camera weight: 244 g

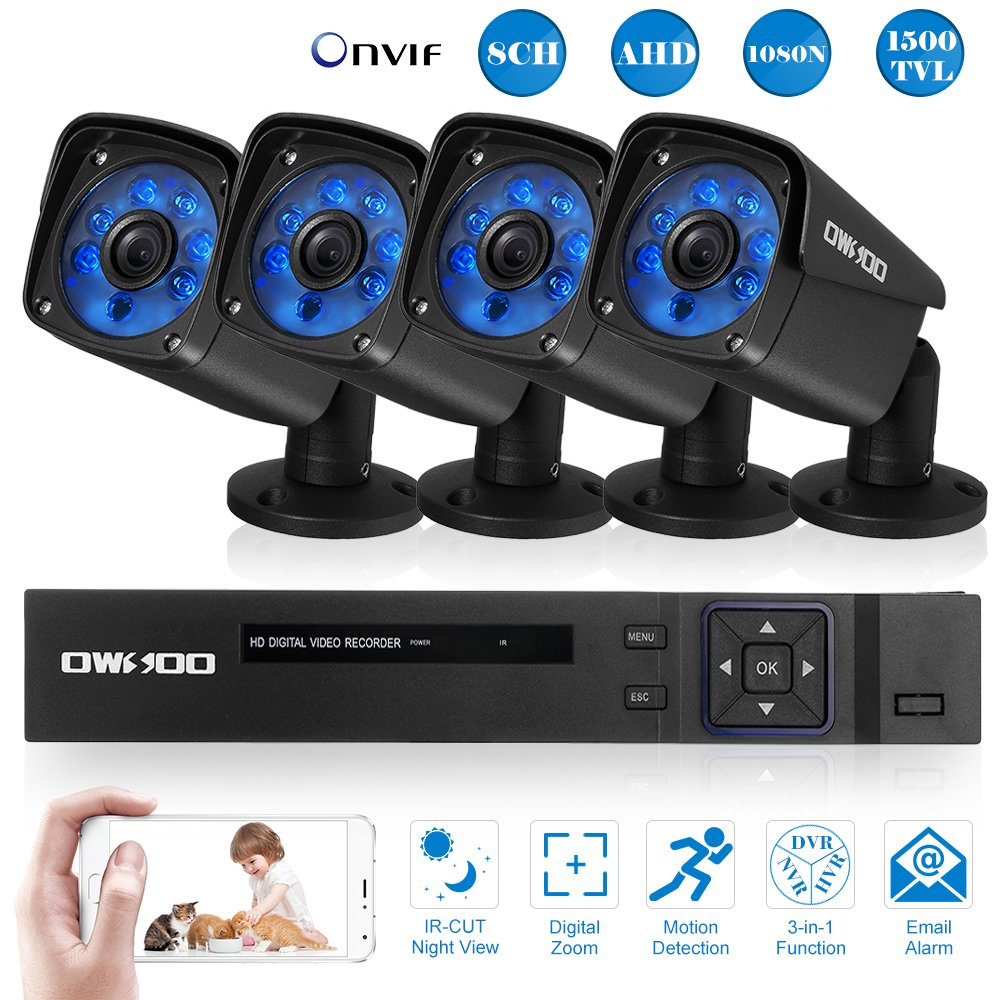

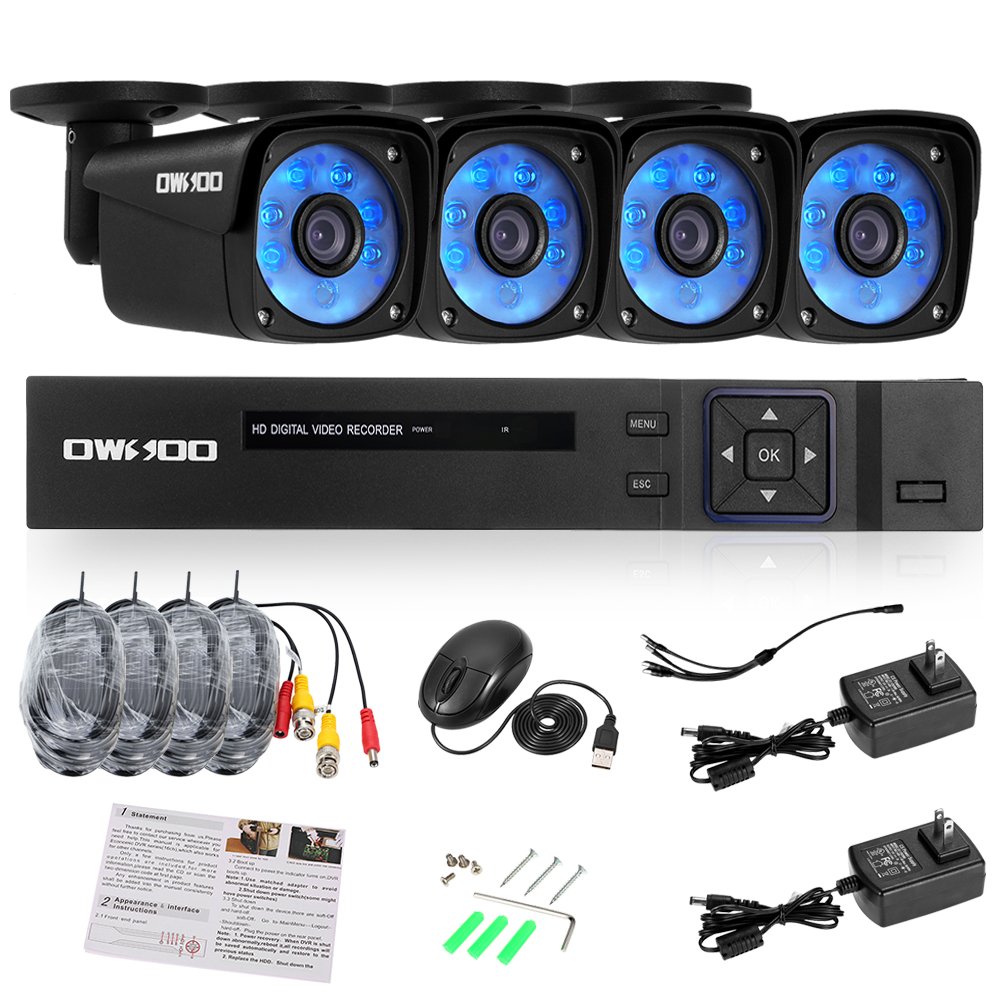

Package list:
1 * 8 CH 1080 N DVR
4 * 1500 TVL 720P camera
4 * 60 feet CCTV cable
2 * US power supply
1 * 1 to 4 divided cable
1 * USB mouse
4 * Camera screw bag
1 * HDD screw bag
1 * CD disc
1 * User manual (English)
Features:
- * 1 million pixel CMOS sensor, HD 720P video recording and playback.
- * Android / iOS APP support.
- * 6-in-1 function: AHD + analog + TVI + CVI + XVI + IPC.
- * P2P, Onvif, waterproof, IR-CUT night view support.
- * Motion detection record · Supports APP alarm notification.
Product information:
Shipping Weight: 3610 g
Package Dimensions: 19.71 x 27.99 x 35.99 cm
