Item Descriptions:

size:

SDI to HDMI

"Important: BLUPOW regular product sale is BLUPOW exhibitor only" Please pay attention to the seller often when purchasing!

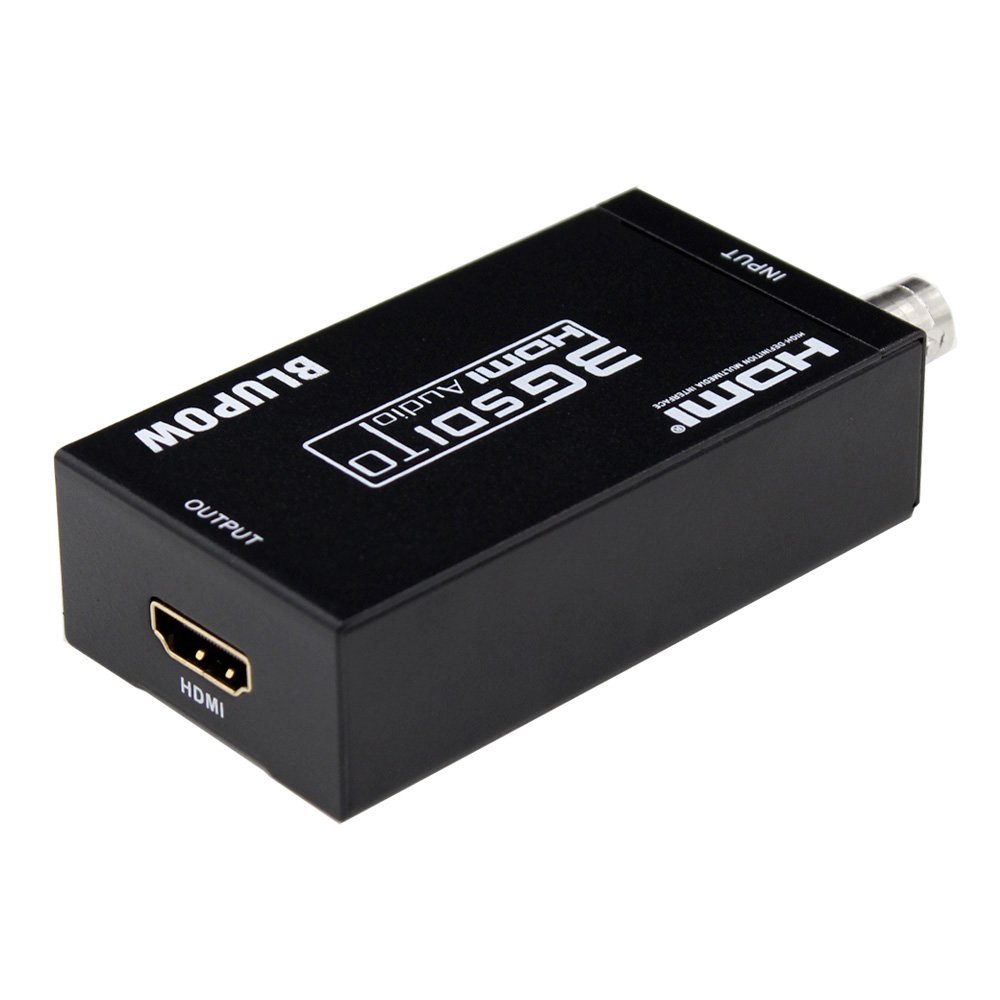

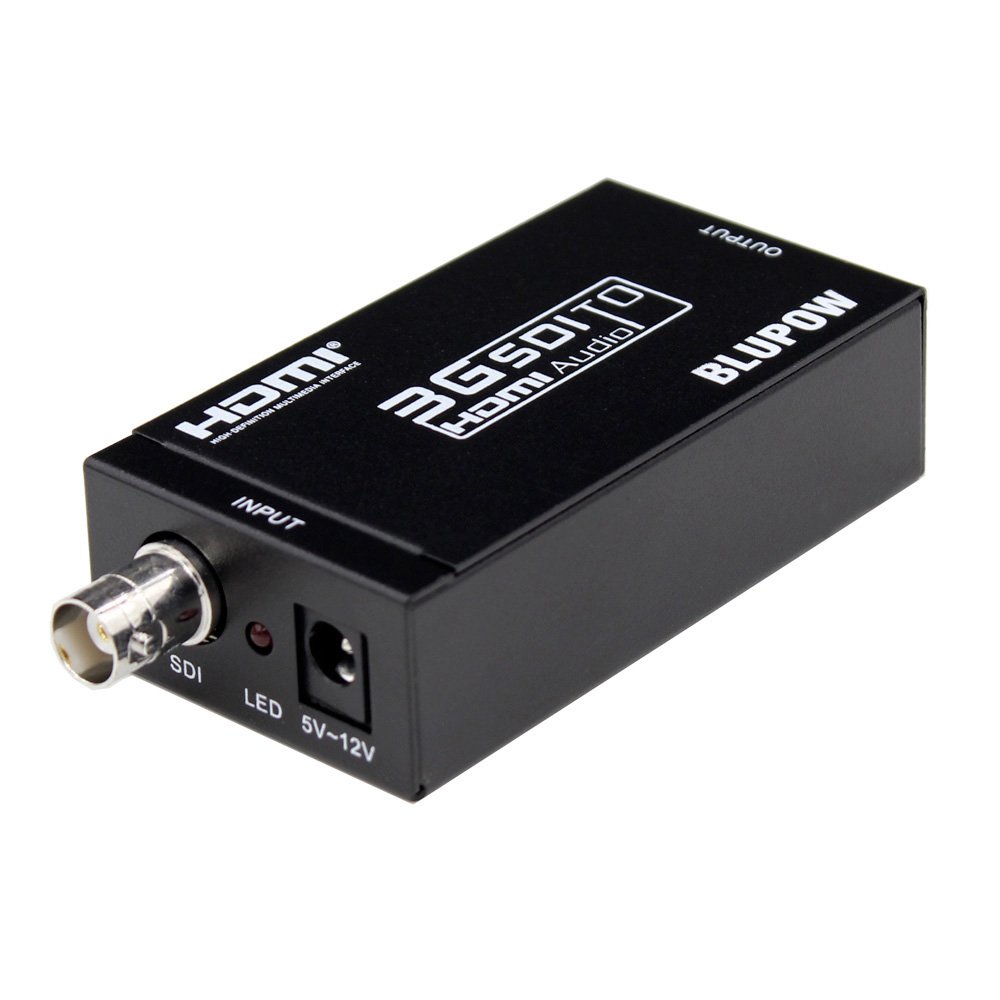

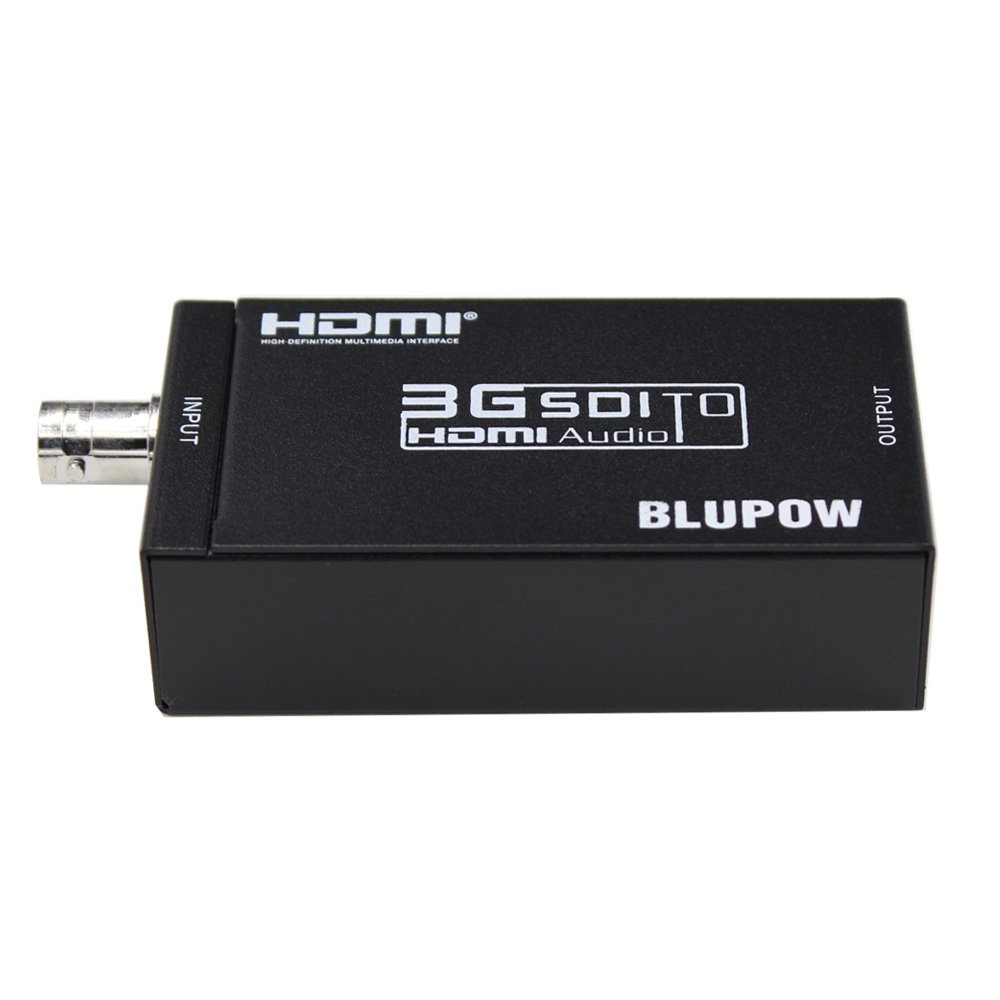

BLUPOW SDI → HDMI converter

◆ Mini SDI to HDMI Converter is a professional trader product that converts SDI signal to HDMI signal.

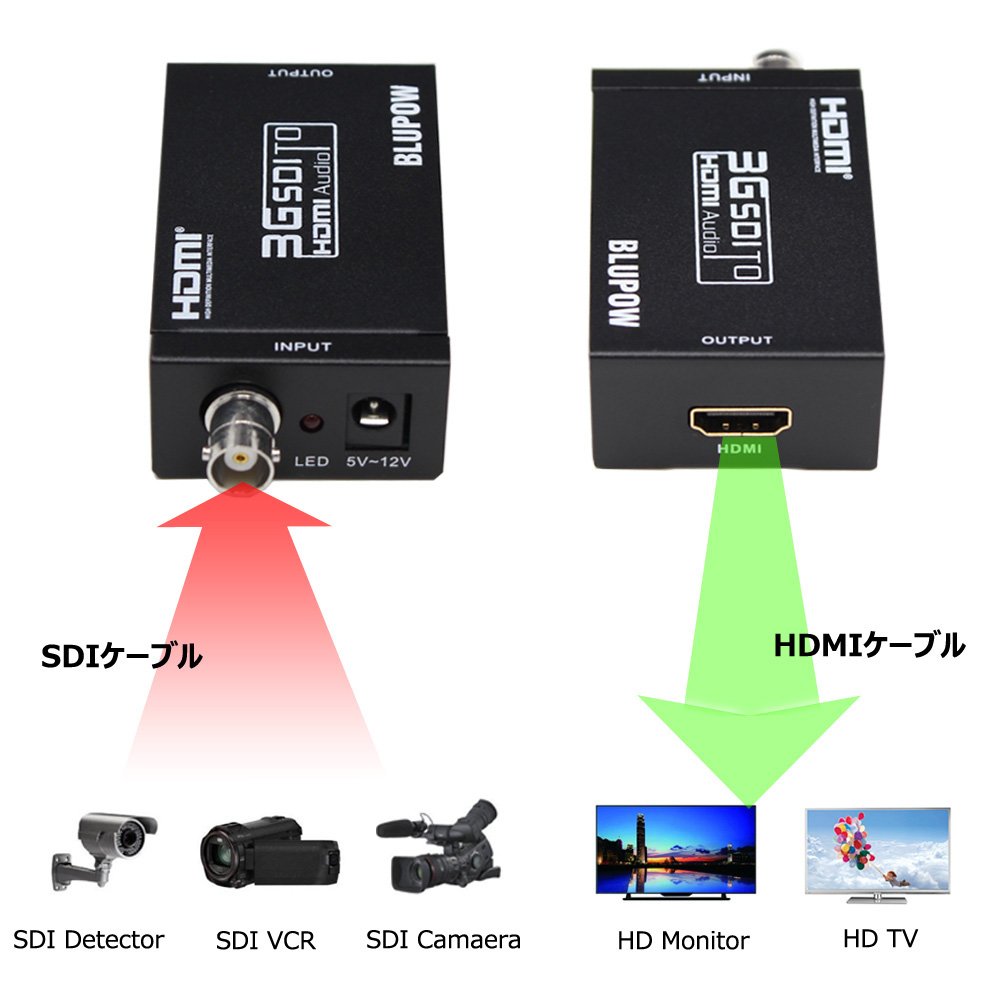

◆ You can convert an SDI signal output from one device with one SDI output terminal (such as a camera with SDI terminal) to an HDMI signal and display it on a device with HDMI input terminal (HDTV, PC monitor, projector, etc.)

◆ SMPTE standard supports 425 M Level A & B, 424 M, 292 M, 259 M - C.

◆ Signal transmission with very low data loss with 2.970 Gbit / s high bit rate converts SD - SDI, HD - SDI and 3G - SDI signals to HDMI signals and displays them on HDMI / SDI monitor display.

◆ Driver unnecessary, it is a product that can be used only with a simple connection.

Product Specifications

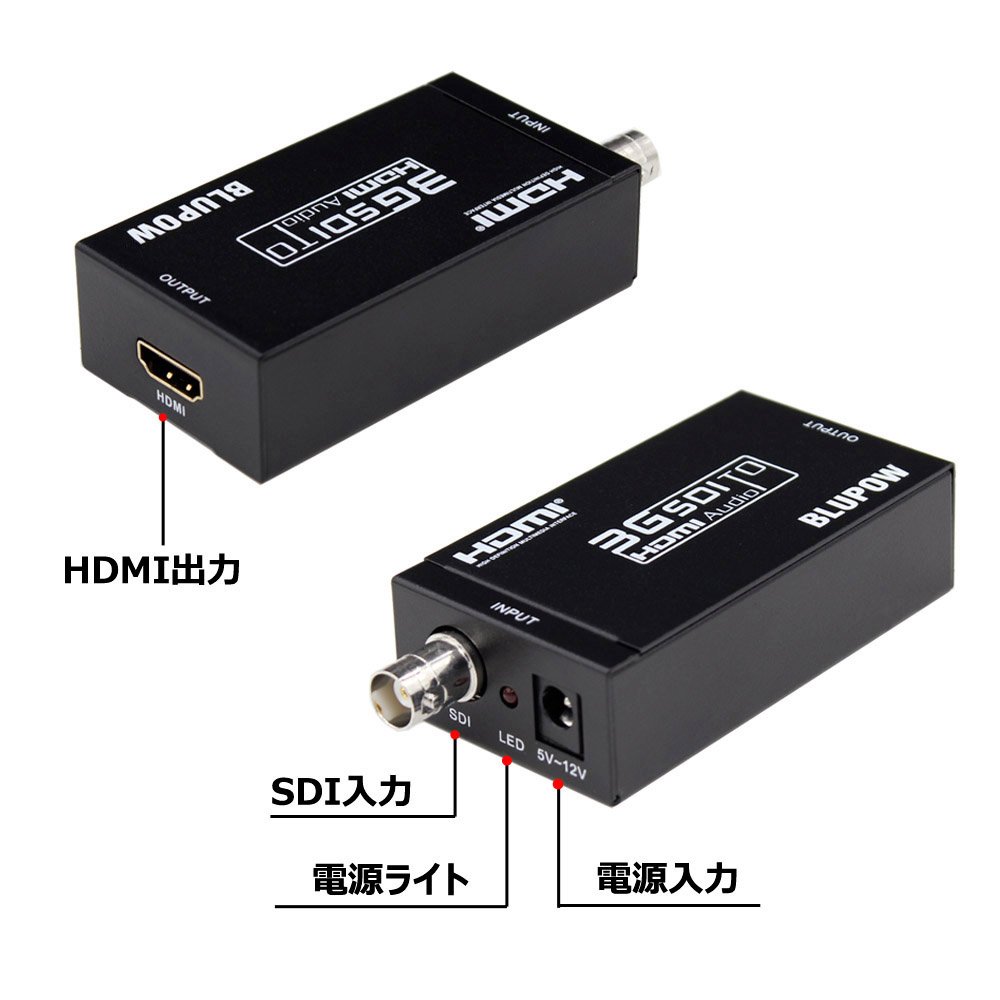

Input terminal:

1 × BNC (SDI / HD-SDI / 3 G-SDI)

Output terminal:

1 x HDMI

SDI transmission rate:

2.970 Gbit / s 2.970 / 1.001 Gbit / s

resolution:

480i, 576i, 720p @ 50 / 59.94, 60, 1080i @ 50 / 59.94 / 60 1080 p @ 23.97 / 24/25 / 29.97 / 30/50 / 59.94 / 60

ESD protection:

± 8 kV (air gap discharge), ± 4 kV (contact discharge)

Power supply:

Input AC (50/60 Hz) 100 V to 240 V, Output DC 5 V / 1A

Power consumption (maximum):

5 W

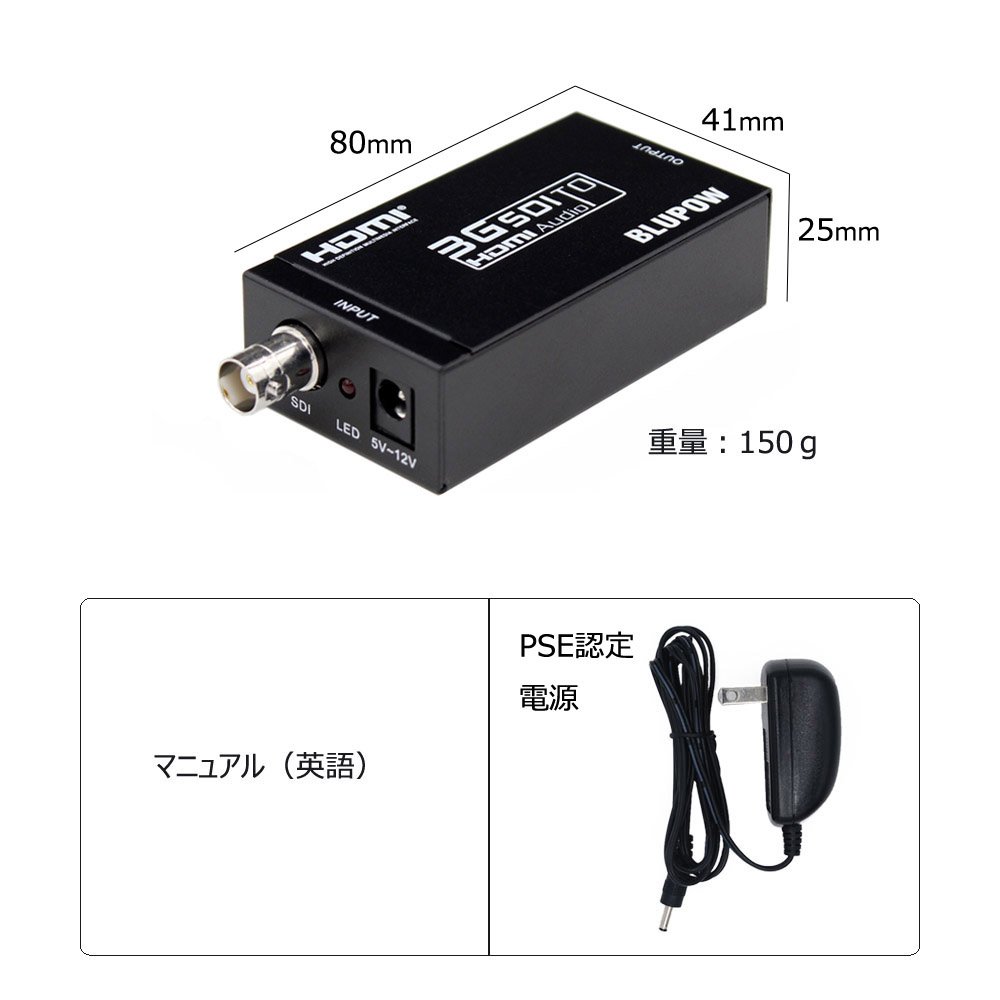

body size:

80 mm x 41 mm x 25 mm

Body weight:

Approximately 150 g

Operating temperature:

0 ° C to 40 ° C

storage temperature:

-20 ° C to 60 ° C

Relative humidity:

20 to 90% RH (noncondensing)

Material:

metal

Enclosed list

Main body × 1

DC5V 1A adapter × 1

Instruction manual (English) × 1

Features:

• Please enter model number Confirm this is compatible:
• "Important: Sales of BLUPOW genuine products are for BLUPOW exhibitors only" This product is a professional and professional converter for SDI to HDMI.
• It converts the SD - SDI, HD - SDI and 3G - SDI signals to HDMI signals and displays them on the HDMI / SDI monitor display by signal transfer with a very low data loss of 2.970 Gbit / s.
• Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C.
• The SDI signal output from one device with SDI output terminal (camera with SDI terminal etc) can be converted to HDMI signal and displayed on the device with HDMI input terminal (HDTV, PC monitor, projector etc.).
• Since the SDI loop out terminal is installed, it is possible to output the same SDI signal to other SDI devices.
• HDMI cable and coaxial cable are sold separately.
• You can connect to other units and extend the signal up to 120 m above the long distance.
• It can be installed easily when extending HDMI equipment, and HDTV full high vision signal of resolution 1080P can be extended up to 120M.
• Multiple (layer) connection is possible, and the extension distance can be freely adjusted.
• It converts from SMPTE 425 M level B to 1080 p 50 / 59.94 / 60 4: 2: 2 10 bit level.

Product information:

Shipping Weight: 231 g

Package Dimensions: 9.19 x 9.30 x 12.80 cm
