Product Description

Features:
Input Interface : 1 x HDMI Port
Output Interface: 1 x HDMI Port
1 x SPDIF Port
1 x R /L Audio Port
Supports Full HD 1080P and 3D, up to 1080P/720P/480P
Supports up to 5.1CH Dolby Digital, DTS Audio
Supports 2CH PCM stereo audio
Support video color format: 24bit/deep color 30bit , 36bit
Three audio EDID settings: PASS/2.0CH/5.1CH.
Max. bandwidth: 225MHz
Max. Baud rate 6.75Gbps
Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal: 5Volts p-p (TTL)
Input cable distance: ≤15m AWG26 HDMI standard cable
Output cable distance: ≤20m AWG26 HDMI standard cable
Max working current: 500mA
Power adapter format Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: -15 to 55℃
Operating Humidity range: 5 to 90%RH (No Condensation)
No loss of signals quality,Plug and play.
Size :85*62*21mm

Package Includes:

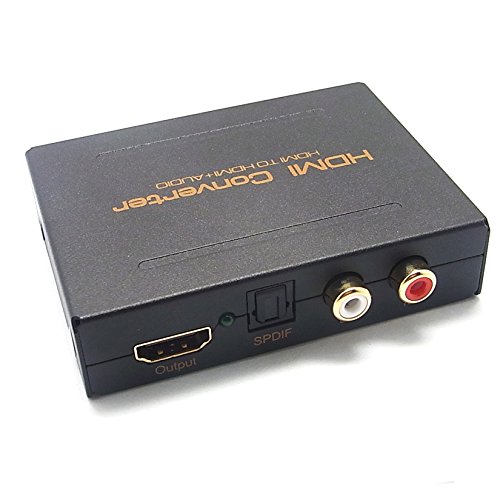

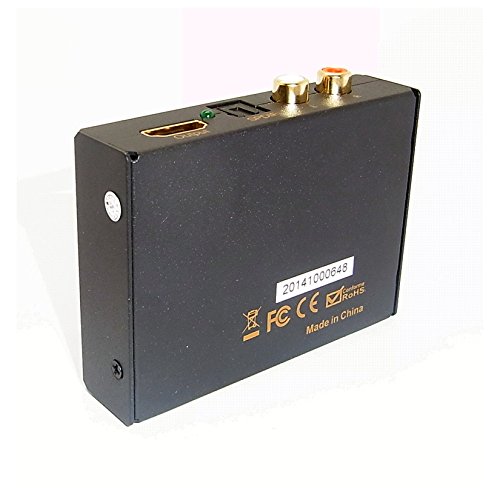

1x HDMI Audio Extractor
1x 5V Power Adapter
1x User Manual
