Item Descriptions:

Real-time monitoring, Individual tire data shows

Battery type: 2 * CR 1632

Default warning value:

High pressure value: 3.0 bar

Low pressure value: 2.0 Bar

High temperature value: 65 ℃

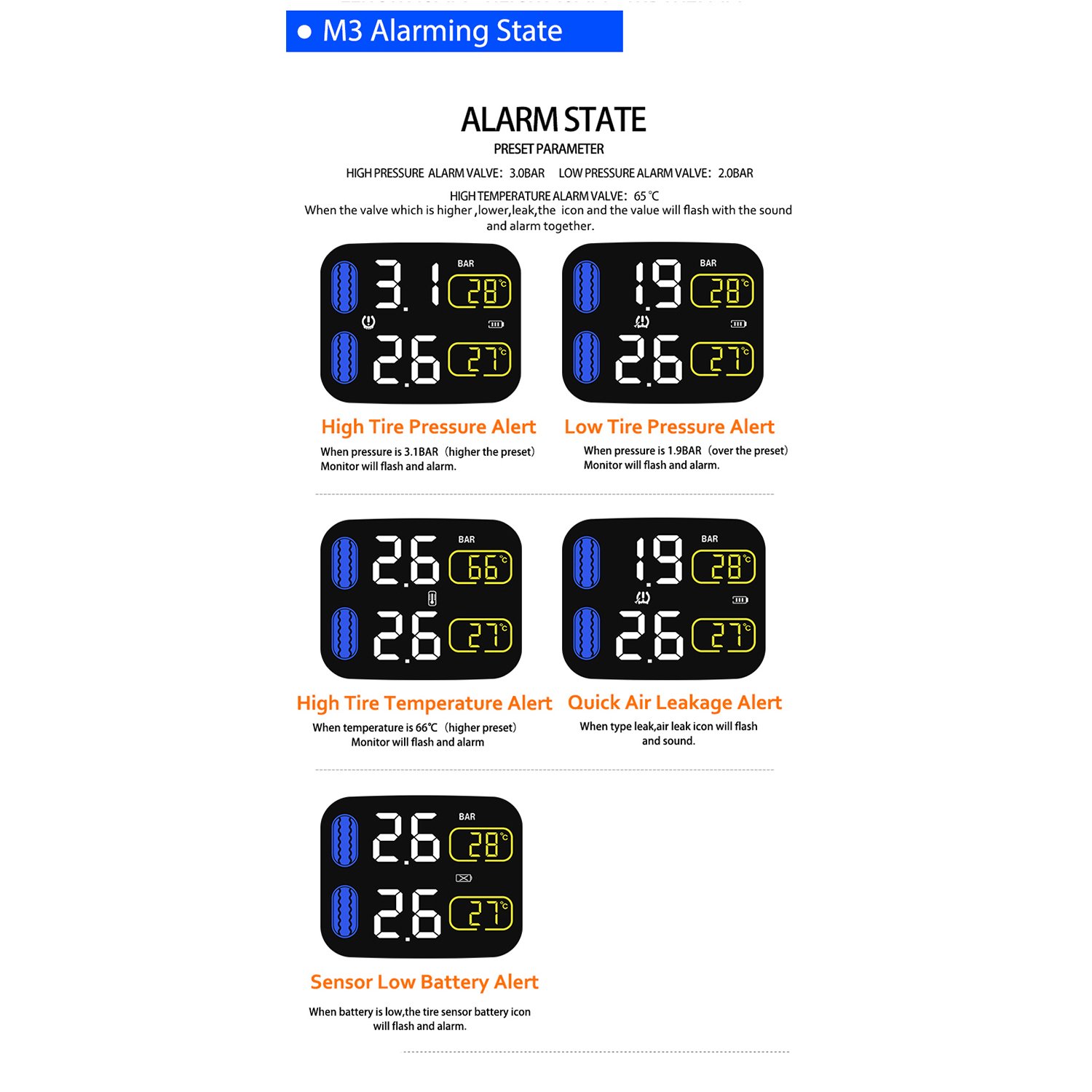

Figure 1: High Pressure Warning

When the air pressure of the tire reaches 3.1 BAR, the monitor flashes and warns you.

Figure 2: Low pressure warning

When the air pressure of the tire is lowered to 1.9 BAR, the monitor flashes and warns.

Figure 3: High temperature warning

When the temperature of the tire reaches 66 ° C, the monitor flashes and warns you.

Figure 4: Air Leakage Warning

When the air leaks, the air leak icon flashes and warns you.

Figure 5: Sensor power shortage warning

When the power of the external sensor is insufficient, the power display icon flashes and warns you.

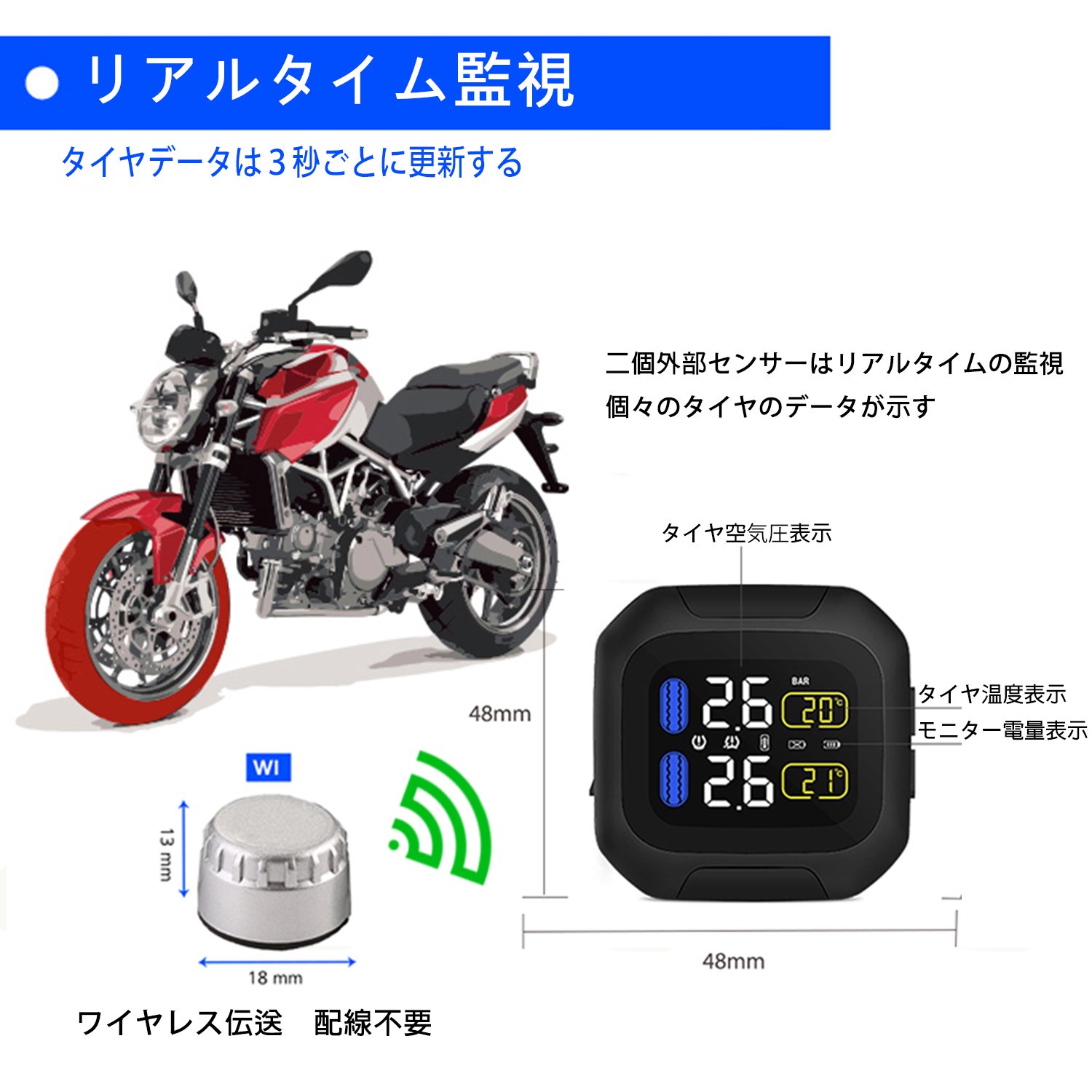

Size:

Monitor body: 48 mm (L) * 48 mm (W) * 27 mm (H)

External sensor: 18 mm * 13 mm

Note: TPMS setting value is memorized so no resetting is required

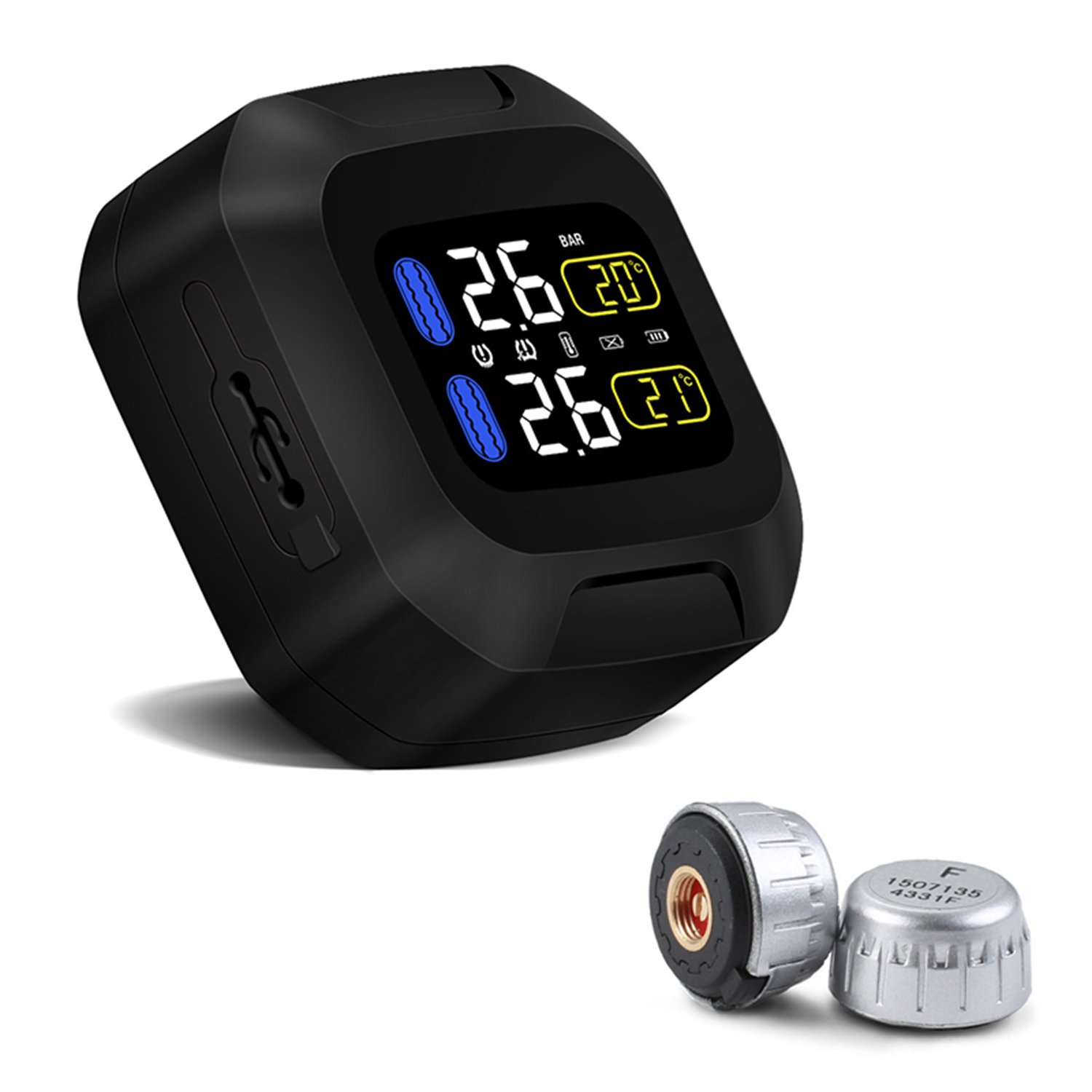

OBEST tire pressure monitoring system (TPMS)

Safety measure

Because it monitors the tire pressure and temperature during running, it copes with any troubles

· Improved operability (In case air pressure is not even, low straight line can not be run due to low air pressure)

Early detection of punk

· Trouble prevention of air pressure drop

· Early detection of troubles related to brake

Cost reduction

Reduce fuel costs, tire replacement costs, maintenance costs

· Fuel cost: If you run while the tire pressure is low, fuel efficiency is bad, CO2 emissions increase, leading to environmental destruction.

· Tire replacement: If the tire is running at low air pressure, the tire will become unevenly worn out (partly reduced) and its life will be shortened.

· Maintenance cost reduction

Environmental measures

Make the tire inherent fuel efficiency and performance demonstrate, leading to CO2 reduction and resource saving.

· Prevent fuel economy from lowering due to lower air pressure

· Energy saving resources by improving tire life

· Proper use of recycled tires

Features:

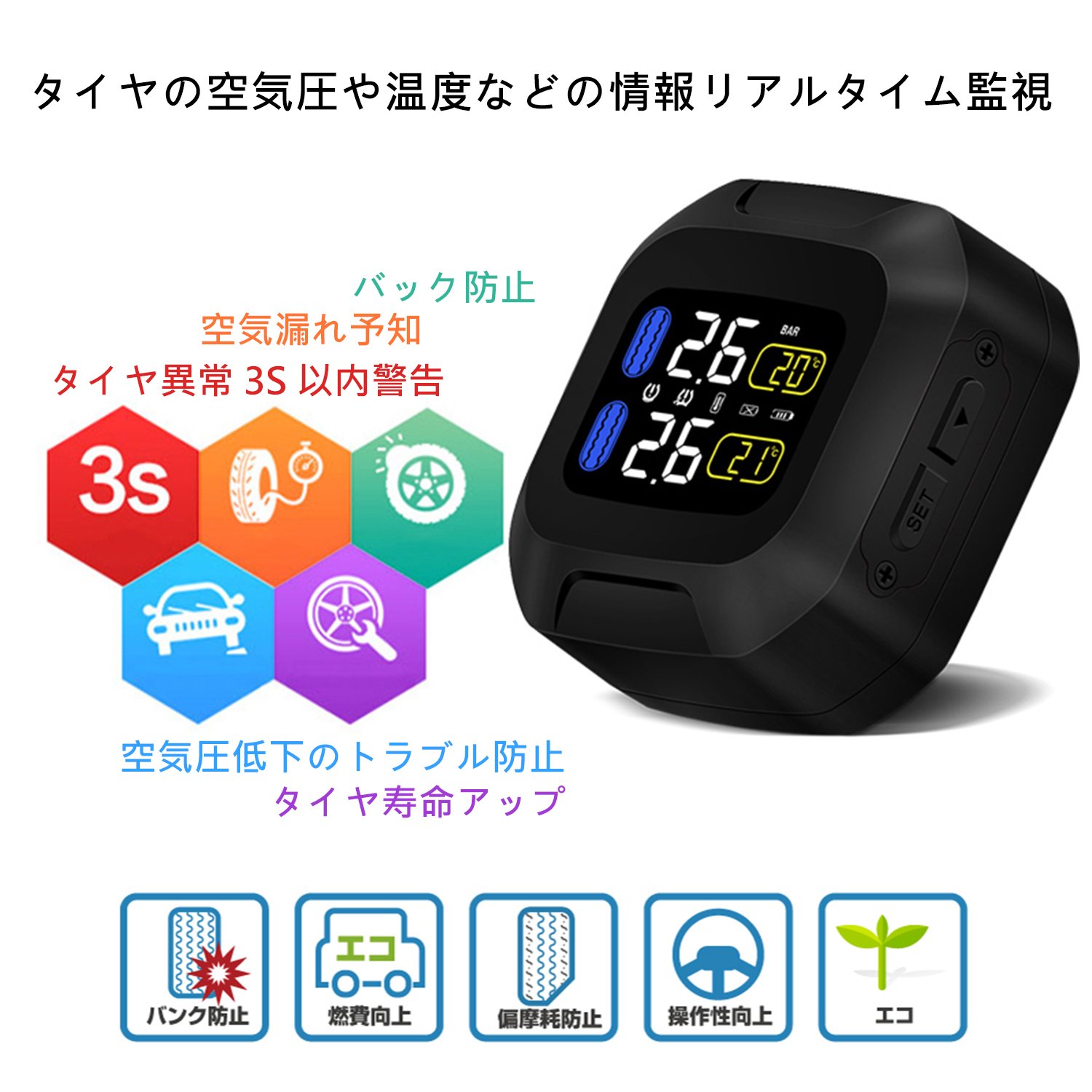

• It is an excellent thing that you can get various kinds of information such as air pressure, temperature, battery capacity of each tire 2 wheels while running a motorcycle, data on the monitor can be updated every 3 seconds.
• 2 Pressure type PSI, BAR and 2 temperature units ℃,  can be selected.
• If you set the air pressure and temperature, it informs the driver with a warning sound and blinking on the screen to inform the driver of the abnormality of the tire.
• · Early discovery of punk · Trouble prevention of air pressure drop · Early detection of brake related problems
• It is possible to reduce fuel cost, tire replacement cost, maintenance cost due to a decrease in air pressure.
• Make the tire inherent fuel efficiency and performance demonstrate, leading to CO2 reduction and resource saving.
• The LCD monitor main body and sensor have dustproof and drip-proof function, and it is more durable and reliable than other sensors.

Product information:

Shipping Weight: 349 g

Package Dimensions: 6.20 x 14.20 x 22.71 cm
