Product Description

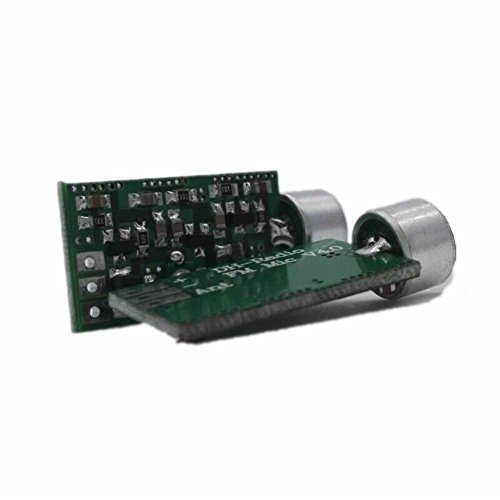

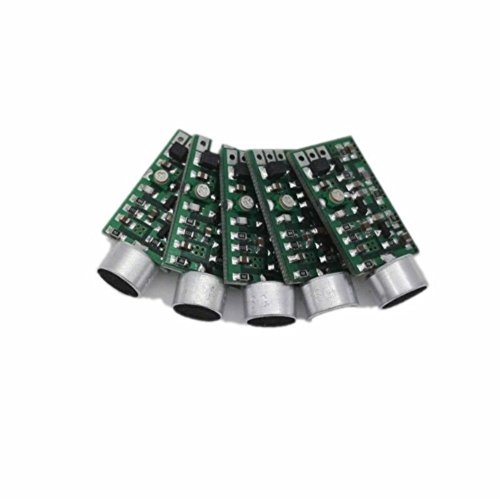

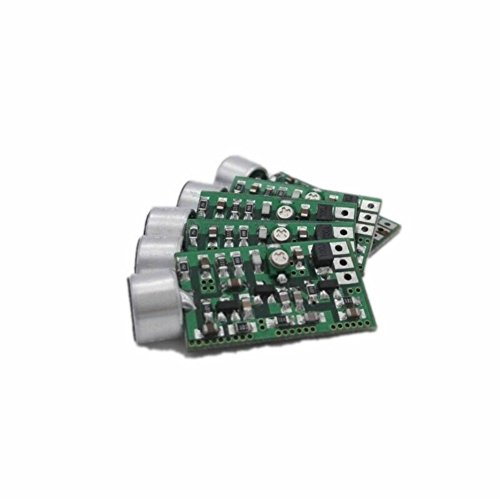

Mini FM Transmitter Module 100MHz Mini Bug Wiretap Dictagraph Interceptor MIC V4.0 Core Board

Operating voltage: wide 0.7V to 9V
Frequency adjustment range: wider than 88-108MHz
Transmission distance: the operating voltage of 9V, the use of 70 cm wire antenna, open place to launch a distance of 50-100 meters, the actual look at the environment

Wiring method:

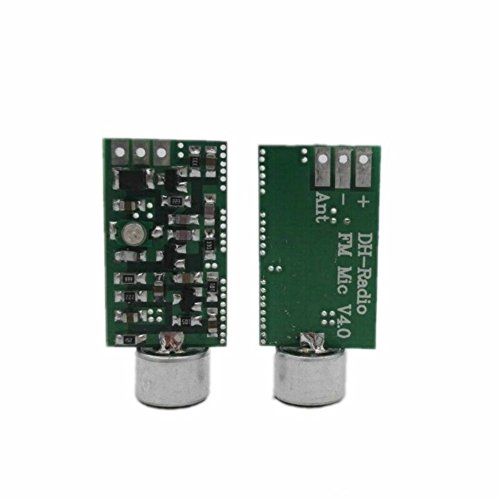

The back of the core board marked with , -, and ANT, respectively, on behalf of the power positive, negative and antenna side, the antenna is generally welded a 0.7 m long short wire OK, very easy!
note:
This product is shipped in the actual items in the picture.
The core board does not contain power leads and antenna, please soldering (Connect the battery or transmit antenna, " " To connect the battery positive, "-" Connect the battery negative, "ANT" Connect the antenna lead, Antenna generally use 70 cm wire! )
Products shipped default frequency of about 100MHz, thank you!

Package included:
1 pc x Mini FM Transmitter Module 100MHz Mini Bug Wiretap Dictagraph Interceptor MIC V4.0 Core Board
