Product Description

Features:
The CC3D provides a crisp feel when flying tricopters， quads， hexas， octocopters， and even fixed wing planes.

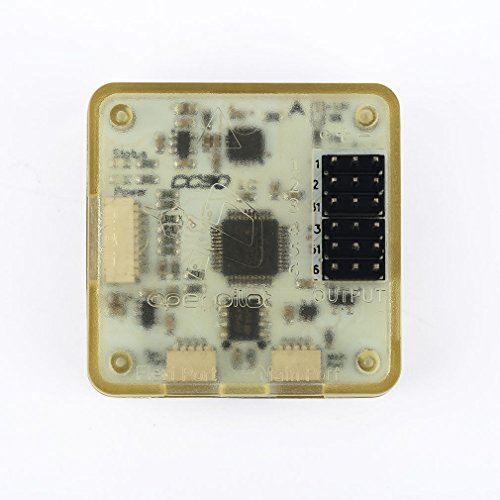

Tiny 36mm x 36mm PCB for superior electrical noise reduction and flight performance.
Software support for Windows， Mac and Linux.
Spektrum satellite receiver support.
Futaba S-BUS hardware support.
Innovative Flexi-port technology for superior port flexibility.
4Mbits on-board EEPROM for configuration storage.

Sensors and Components:
3-axis Gyroscope array and 3-axis Accelerometer: MPU-6000
Supports several common RC inputs: 6 PWM channels， combined PPM， Spektrum/JR DSM2， DSMJ， DSMX satellites， and Futaba S.Bus receivers.
Simultaneous support for multiple receivers.
ReceiverPort functions (configurable): 6 PWM input channels or combined PPM stream， 4 PWM output channels
MainPort functions (configurable): serial telemetry (default)， GPS， S.Bus， Spektrum/JR satellites FlexiPort (configurable): serial telemetry， GPS， Spektrum/JR satellites， or I2C peripherals (under development)
10 PWM outputs to servos or ESC¡¯s， or for camera stabilization
Camera stabilization: supports up to 3-axis camera mounts with stabilization and manual control from any of configured receivers.
Onboard USB connectivity for easy configuration.
USB and serial telemetry and configuration
Supported by powerful OpenPilot GCS
4 Mbit onboard memory
3C Quaternion based complementary filter running at 500Hz

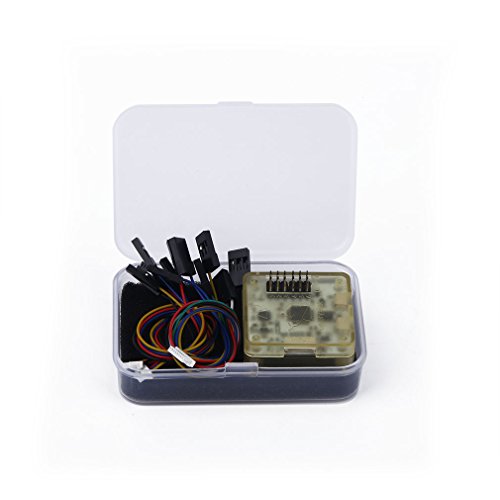

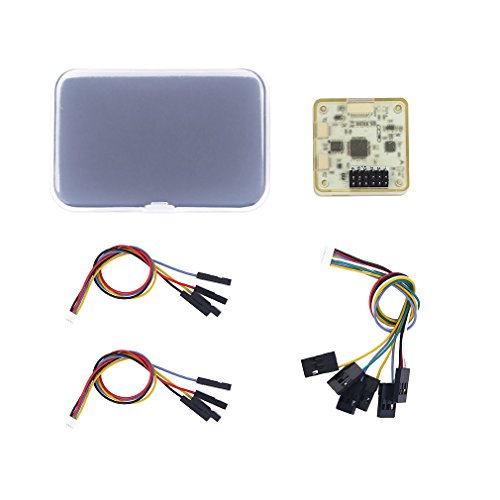

Package Includes:

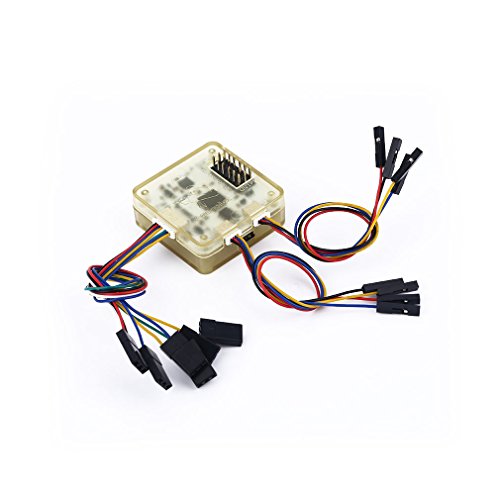

1 x CC3D Flight Controller with case

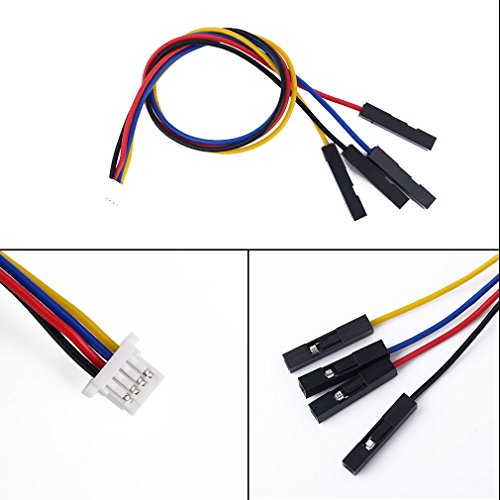

1 x 8p wire rod
2 x 4p expansion path

Feature

YKS Openpilot 32 Bits CC3D Open Source all-in-one stabilization Flight Controller for QAV250 F330 380 450 550 FPV Quadcopter. Supported by powerful OpenPilot GCS.
Powerful STM32 32-bit microcontroller running at 90MIPs with 128KB Flash and 20KB RAM.
3-axis high-performance MEMs gyros and 3-axis high-performance MEMs accelerometer.
Supports several common RC inputs: 6 PWM channels， combined PPM， Spektrum/JR DSM2， DSMJ， DSMX satellites， and Futaba S.Bus receivers.
Direct high speed USB support with no drivers required， a truly plug and play device.
Brand : YKS
MPN(PartNumber) : YKSAM28437
EAN : 0710882616854
Product Dimensions(LxWxH) :
