AUDIOTRAK Prodigy HD2 ADVANCE DE Sound Card

• ㆍProduct Highlights

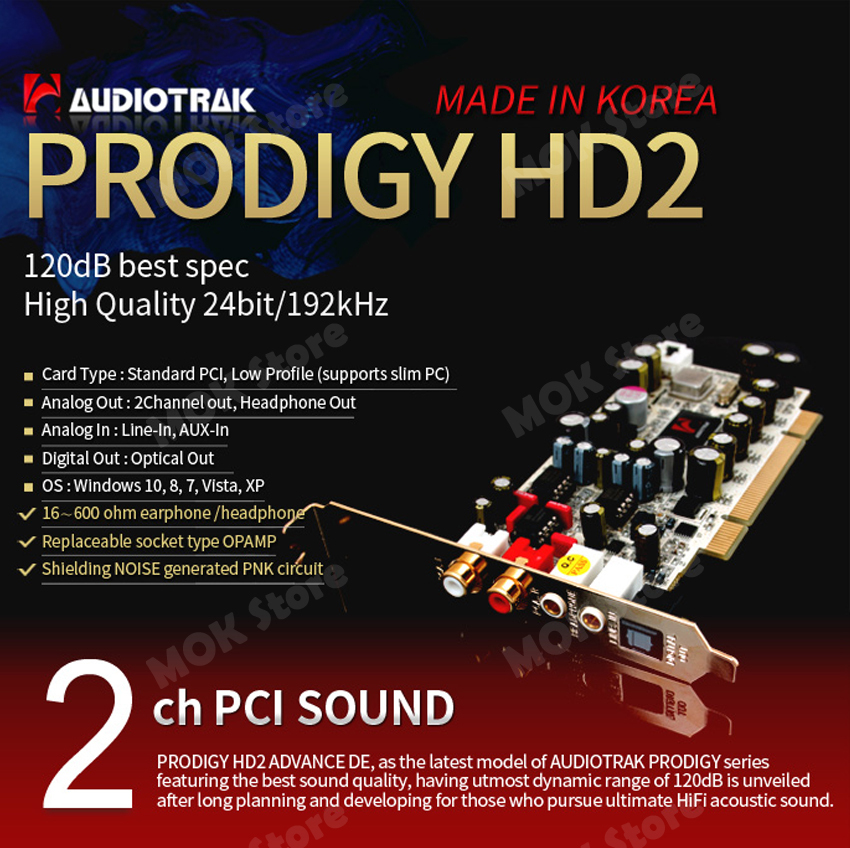

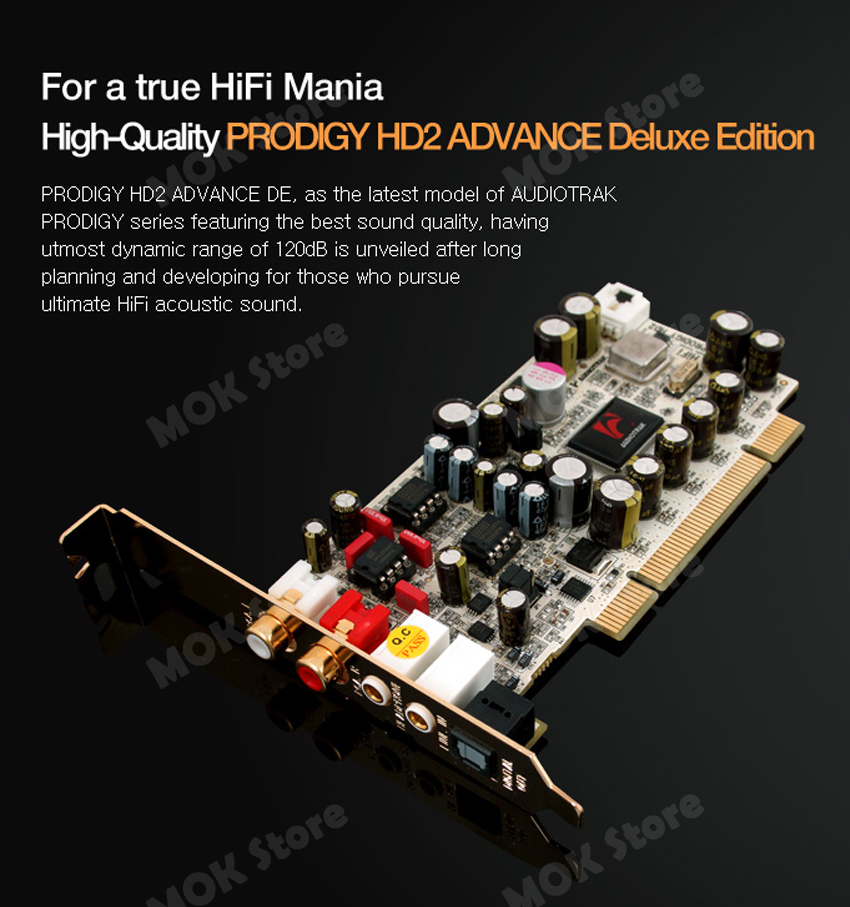

  - PRODIGY HD2 ADVANCE DE, as the latest model of AUDIOTRAK PRODIGY series featuring the best sound quality, having utmost dynamic range of 120dB is unveiled after long planning and developing for those who pursue ultimate HiFi acoustic sound.

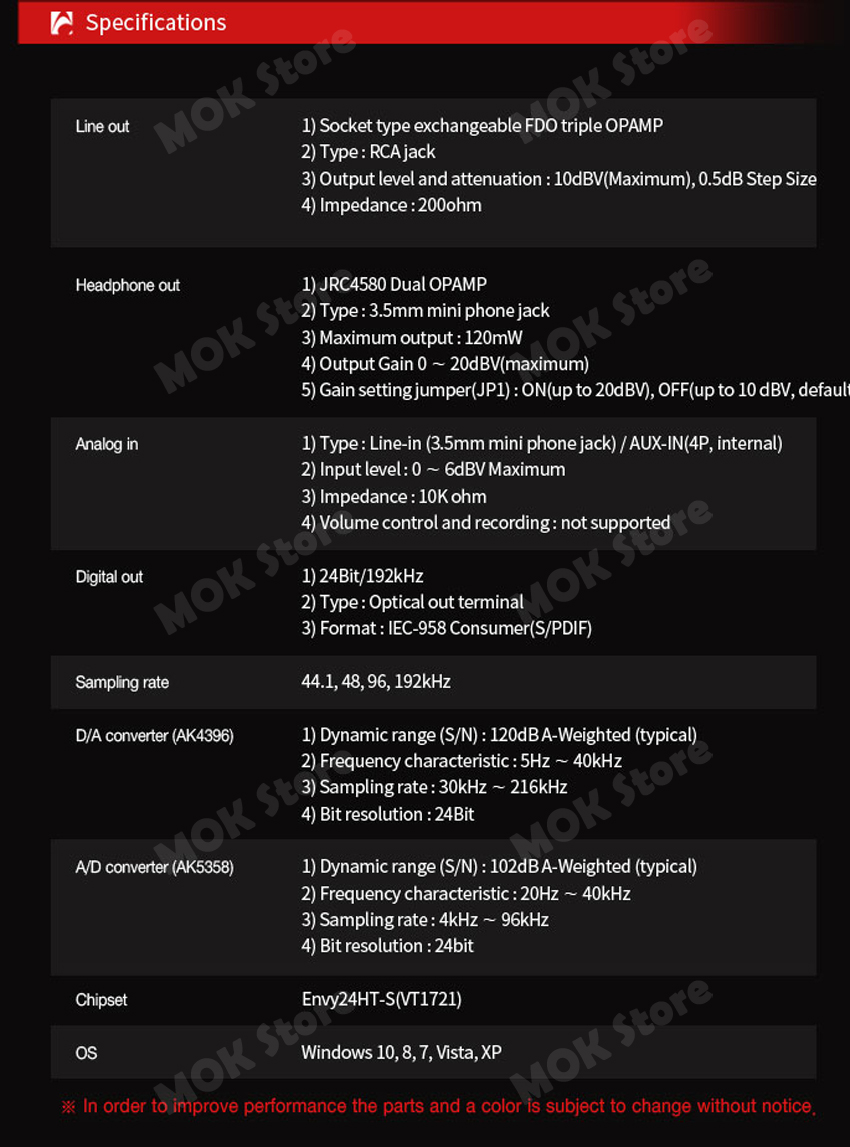

• ㆍSpecification

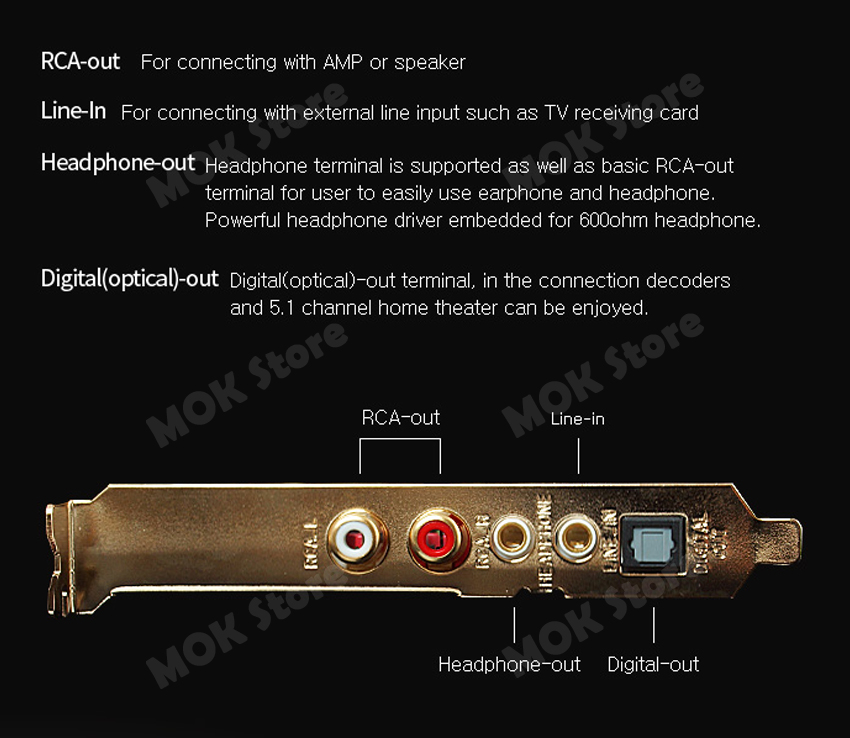

  Line-Out	1) Socket Type Exchangeable FDO Triple OPAMP  2) Type : RCA Jack  3) Output Level and Attenuation : 10dBV(Maximum), 0.5dB Step Size  4) Impedance : 200Ohm

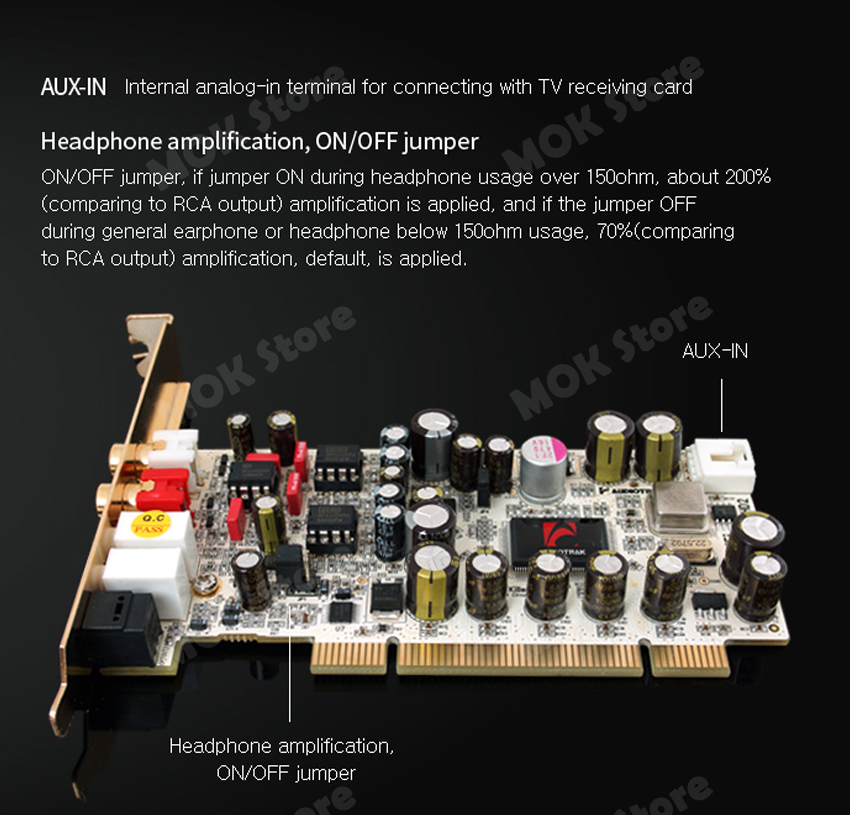

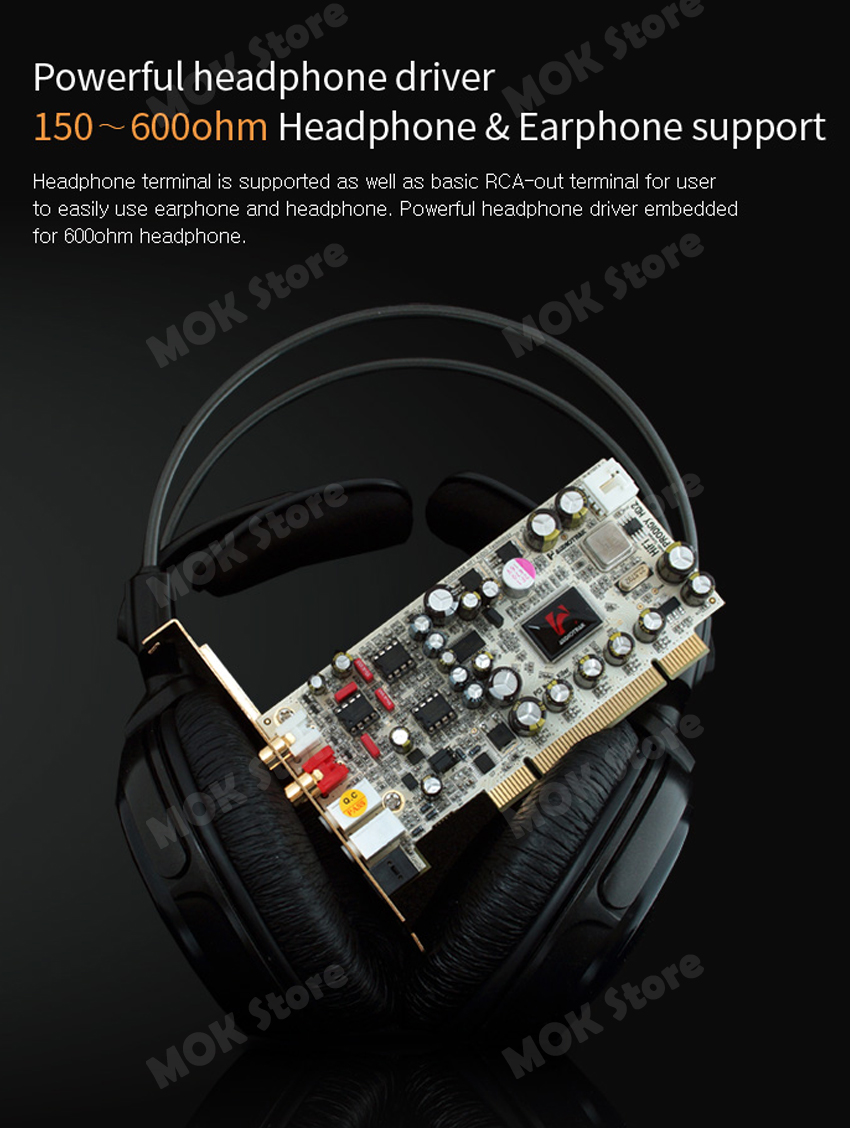

  Headphone Output	1) JRC4580 Dual OPAMP  2) Type : 3.5mm Mini Phone Jack  3) Maximum Output : 120mW  4) Output Gain 0 ~ 20dBV(maximum)  5) Gain Setting Jumper(JP1) : ON(up to 20dBV), OFF(up to 10dBV, default)
  Analog Input	1) Type : Line-In (3.5mm Mini Phone Jack) / AUX-IN(4P, Internal)  2) Input Level : 0 ~ 6dBV Max  3) Impedance : 10K Ohm  4) Volume Control and Recoding : Not Supported
  Digital Output	1) 24Bit/192KHz  2) Type : Optical-Out Terminal  3) Format : IEC-958Consumer(S/PDIF)
  Sampling Rate	44.1, 48, 96, 192KHz
  D/A Converter (AK4396)	1) Dynamic Range (S/N): 120dB A-Weighted (Typical)  2) Frequency Characteristic : 5Hz ~ 40KHz  3) Sampling Rate : 30KHz ~ 216KHz  4) Bit Resolution : 24Bit
  A/D Converter (AK5357)	1) Dynamic Range (S/N): 102 dB A-Weighted (Typical)  2) Frequency Characteristic : 20Hz ~ 40KHz  3) Sampling Rate : 4KHz ~ 96KHz  4) Bit Resolution : 24Bit

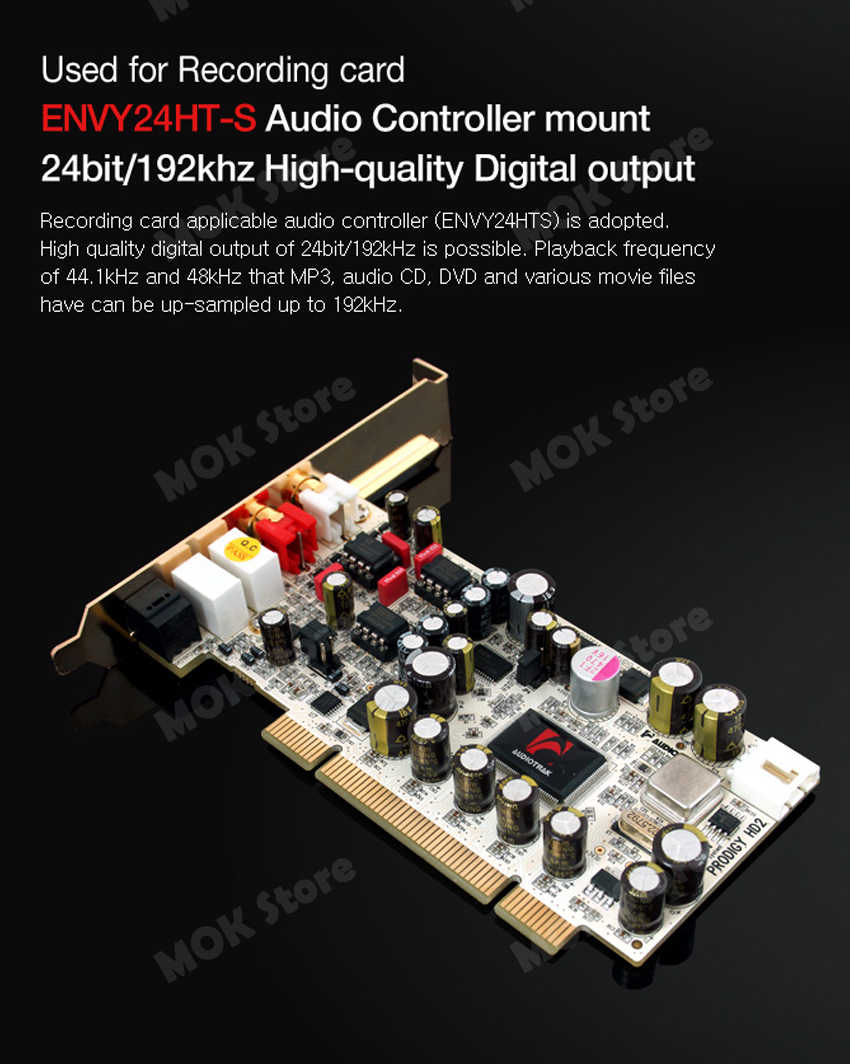

  Chipset	Envy24HT-S(VT1721)
  OS	Support Windows XP, Vista and Windows 7

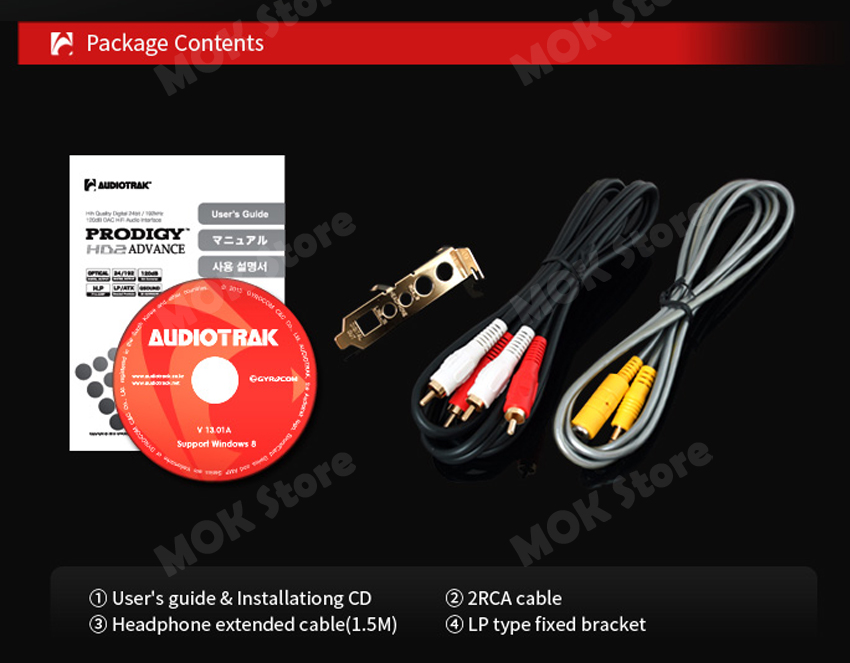

• ㆍWhat is in the box ?

  - AUDIOTRAK PRODIGY HD2 ADVANCE DE

  - User's guide & Installationg CD

  - 2RCA cable

  - Headphone extanded cable (1.5M)

  - LP type fixed bracket
