INTRODUCTION

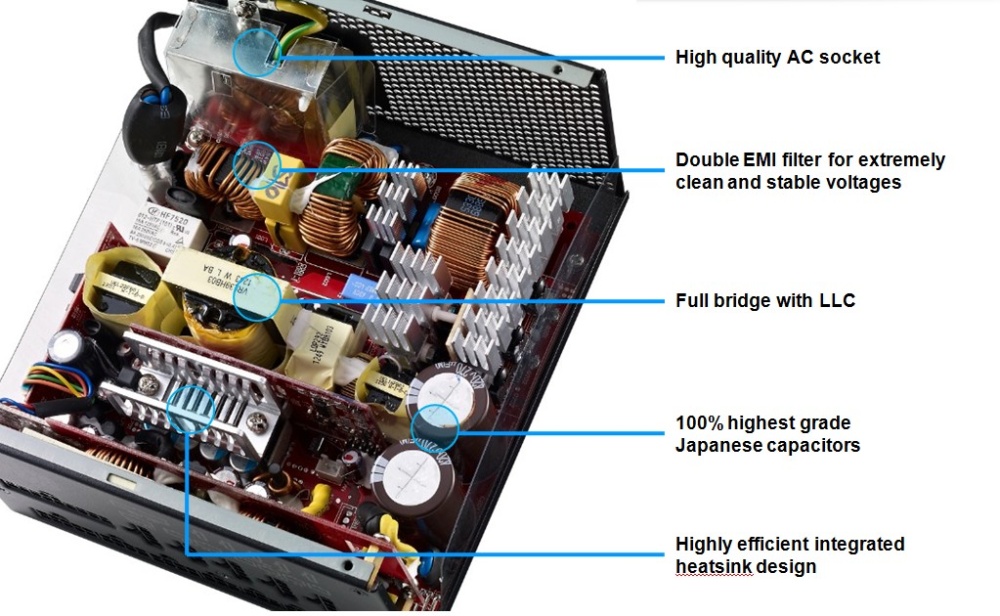

Cooler Master developed the V-Series to re-ascertain its position as the worlds top power supply brand. Based on a brand new platform, it features outstanding efficiency, especially at typical low idle loads, excellent hold up times, voltage stability and ripple suppression. It only uses highest grade Japanese capacitors, most of them solid capacitors, as well as a massive high quality 42mm transformer. And thanks to high quality FDB fans V-series PSUs are extremely cool and quiet. The V-series uses a fully modular cable system with beautiful all black, extra slim flat-ribbon cables.  This makes cable management a breeze and results in nice looking clean builds with the best possible airflow.

OVERVIEW

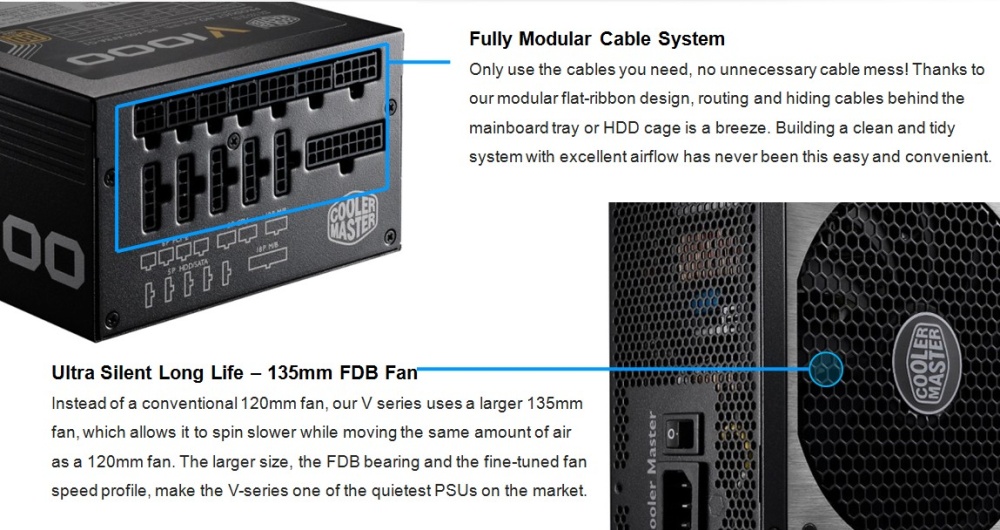

• Fully modular cable design incorporates a single 1000W +12V output that delivers up to 70A.
• 80 PLUS Gold certified: up to 93% efficiency @ 50% load
• Silent 135 mm FDB fan for lower noise and longer lifespan
• Six PCI-E 6+2 pin connectors to support high-end GPUs
• 100% high quality Japanese capacitor ensures performance and reliability.

•



  ​








  SPECIFICATION
  GENERAL
  1) MODEL
  RS850-AFBAG1-UK

  2) TYPE
  Intel Form Factor ATX 12V V2.31

  3) DIMENSION (W x L x H)
  150 x 170 x 86 mm / 5.9 x 6.7 x 3.4 inch

  4) INPUT VOLTAGE
  90 - 264 Vac (Auto Range)

  5) INPUT CURRENT
  10 - 5A

  6) INPUT FREQUENCY RANGE
  60 - 50 Hz

  7) PFC
  Active PFC (>0.9)

  8) POWER GOOD SIGNAL
  100 - 500 ms

  9) HOLD UP TIME
  > 17ms

  10) EFFICIENCY
  90% Typically

  11) MTBF
  > 100,000 Hours

  12) PROTECTION
  OVP/UVP/OPP/OTP/SCP

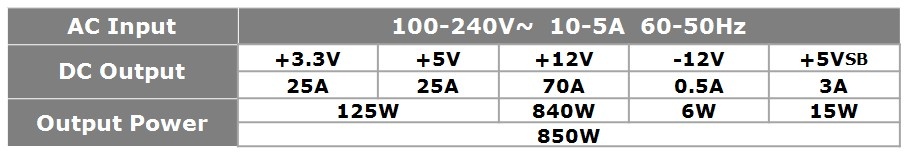

  13) OUTPUT CAPACITY
  850W

  14) OPERATION TEMPERATURE
  0~40°C

  15) REGULATORY
  CE/TUV/TUV-SUDNRTL/FCC/GOST/CCC/BSMI/C-tick/KCC

  16) FAN
  Silent FDB 135mm

  17) CERTIFICATIONS
  80 Plus Gold

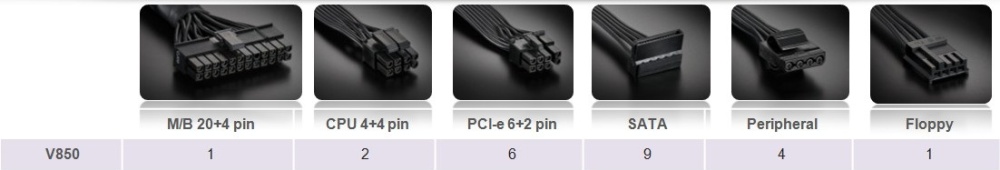

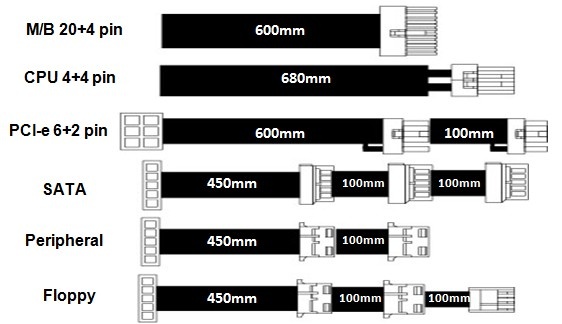

  18) CONNECTOR
  M/B 20+4 Pin Connector x 1
  CPU 4+4 Pin x 2
  PCI-e 6+2 Pin x 6
  SATA x 9
  4 Pin Peripheral x 4
  4 Pin Floppy x 1
