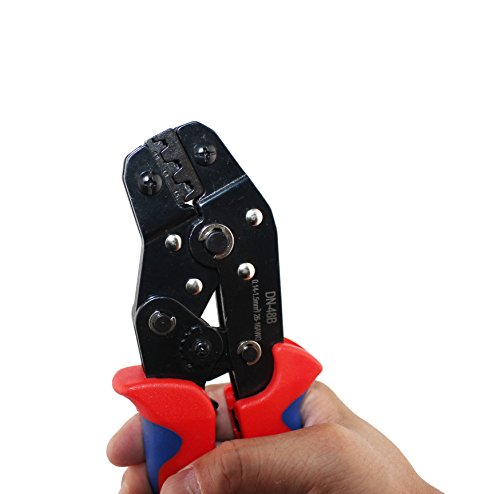

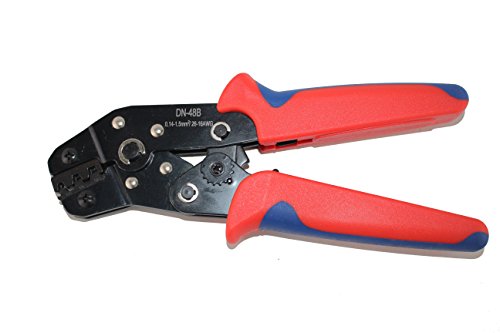

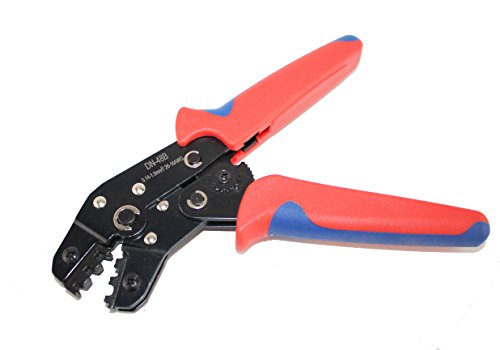

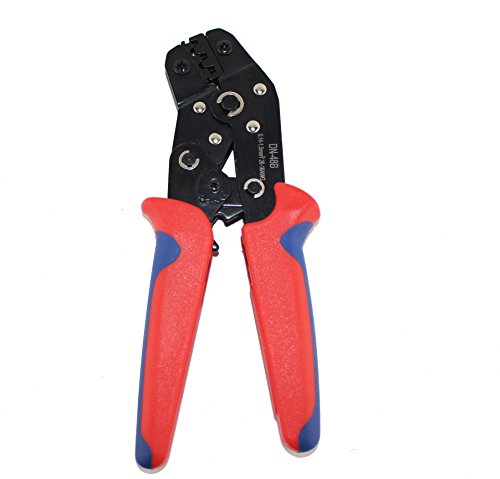

KINEE PIN CRIMPING TOOLS 3.96/4.8/5.08/6.3 MM 26-16AWG CRIMPER FOR DUPONT ,JST-SM MOLEX CONNECTORS AND TERMINALS

FEATURES

  • Material: high-carbon steel
  • For 2. 8/3. 96/4. 8/5. 08/6. 3 mm grounding terminal connector.
  • The components of the crimping tool are made of special steel.
  • Used for DuPont & jst-sm Molex connectors and pins
  • Crimping capacity: 0.14-1.5M?

SPECIFICATION

Model No.JY111
Item Dimension5.00 x 2.01 x 22.00 Cm
Package Dimension7.90 x 2.31 x 24.79 Cm
Package Weight0.43 ~ 0.52 Kg
Product GroupHome Improvement
AvailabilityAvailable (Usually ships in 1-4 business days)

DESCRIPTION

Specifications
Crimping capacity: 0. 5-1. 5 mm2
AWG: 26-16, Length : 190 mm,Weight : 0. 35kg
For 2. 8/3. 96/4. 8/5. 08/6. 3 mm grounding terminal connector.
This crimping tool can be used to crimp both male and female crimp pins onto 16-26 AWG wires to make custom cables. The tool offers ratcheting action for increased consistency and ease of use.
Using the Crimping Tool.

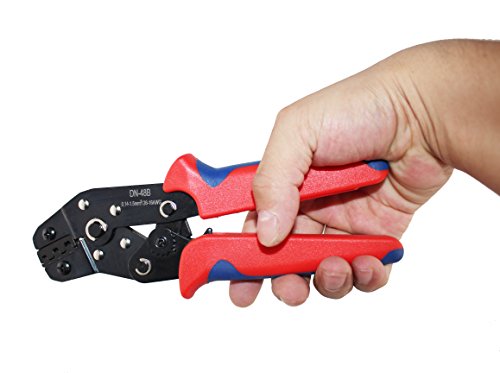

(1). Grasping the tool in your left hand with the lettering visible and facing toward you, but upside down.
(2). Position the connector in one of the three slots, and the "wings" are facing down.
(3). Close the tool slightly until the ratchet just engages and grasps the connector.
(4). Squeeze the ratchet and it will open after this step. Connector should have successfully crimped on to the wire.

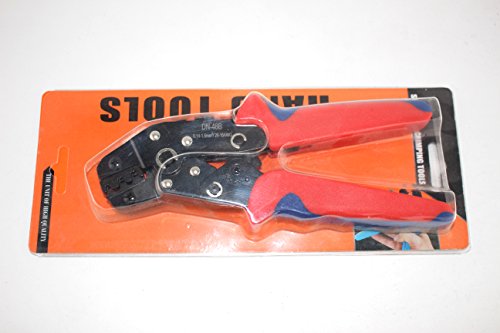

Package Included:
1 set crimping tool
