Product Description

Enerlites HMOS Passive Infrared Motion Sensor is the perfect cost and energy efficiency solution for both residential and commercial users, while featuring 2 in 1 Occupancy / Vacancy Sensor Mode, SMART LED Night Light and stand-alone Interchangeable face cover design. In VAC mode, push the button to manually turn on the load and HMOS will turn OFF the load automatically; In OCC mode, HMOS turns ON light/fan/motor/load when detects motion and turn OFF load when no motion is detected for the pre-set delay time (Adjustable delay time: 15 seconds for testing, 15 minutes / 30minutes). With AUTO OFF function, users will never worry about leaving on the lights in closets, bedroom, bathroom, hallway or kitchen; Easy installation, without drilling, use existing wiring, HMOS wall sensor is the ideal replacement of standard switch; SMART LED NIGHT LIGHT functions as a switch button locator in the dark (very usefull when the VAC Mannual ON / Auto OFF mode is chosen); It is on when motion is detected by the HMOS sensor, and the LED light turns off when no motion is detected. This function makes user's energy saving more thorough. HMOS becomes an ideal sensor switch for all areas including bed room, as LED Night Light turns off while you are sleeping and will not interrupt your resting. The Interchangeable face cover design with the total of 3 face covers make it so easy for color match to your room. The replacement can't be easier. 180 Degree, maximum 700 sq ft coverage (works best within 180 sq ft). The sensor has a 180° Field of View. Voltage: 120VAC, 60Hz. Resistive: 5A. Incandescent: 500W at 120VAC. Ballast: 500VA @ 120VAC. Motor: 1/8HP. Time Delay: 15 seconds (Test Mode), 15 minutes, 30 minutes. Embient Light Level is subject to Default setting and not adjustable. Operational Temperature: 32° - 131°F. Installation as illustrated in the pictures here and the instruction. NEUTRAL WIRE REQUIRED. If there is no NEUTRAL WIRE, HMOS-JD will be the right choice.

Feature

Replaces standard switch, Turns ON light/motor/load automatcially when detects motion, turns OFF when no motion is sensed for the set delay time
SMART LED Night Light featuring easy locating in the dark; LED Light turns on when motion detected and turns off when you are sleeping so don't interrupt resting

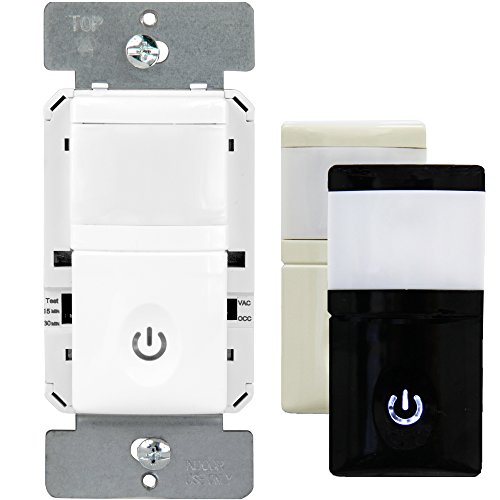

INTERCHANGEABLE FACE PLATE design with total 3 face cover (white, black & light almond) for color match;
NEUTRAL WIRING REQUIRED; 2 Modes: AUTO/MANUAL ON, AUTO OFF; delay time:15 seconds, 15 minutes, 30 minutes; Single pole not for three-way wiring
180 DEGREE 700 sq. ft. COVERAGE; 120VAC, 60Hz,500W Incandescent, 500VA Fluorescent, 1/8HP Motor; 2 Year Manufacturer's Warranty
Brand : Enerlites
Item model num : HMOS
MPN(PartNumber) : HMOS
EAN : 0883951415228
