Item Descriptions:

Color:

Silver

Product introduction

- Manufacturer model number: H - H014A

From Amazon

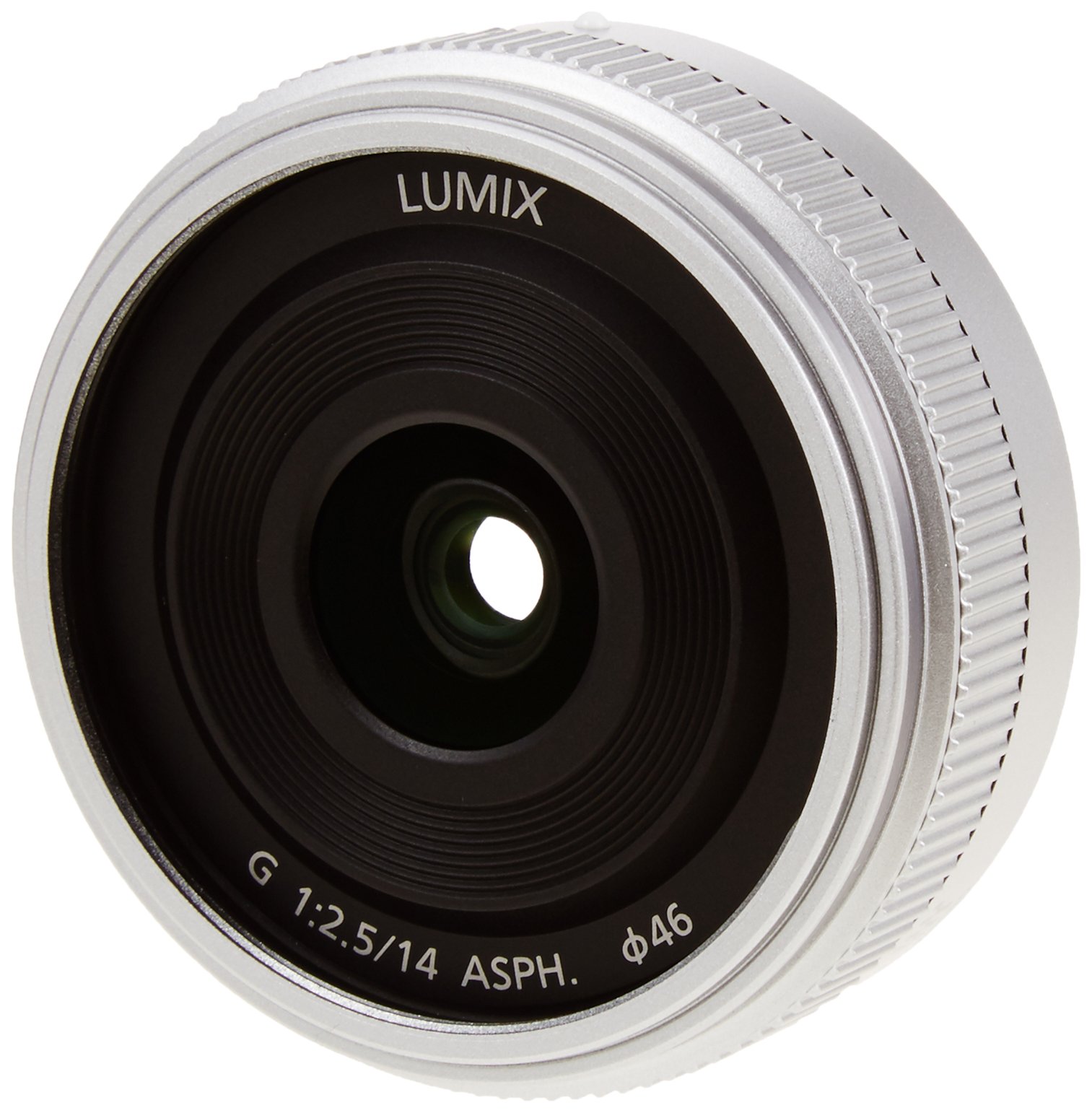

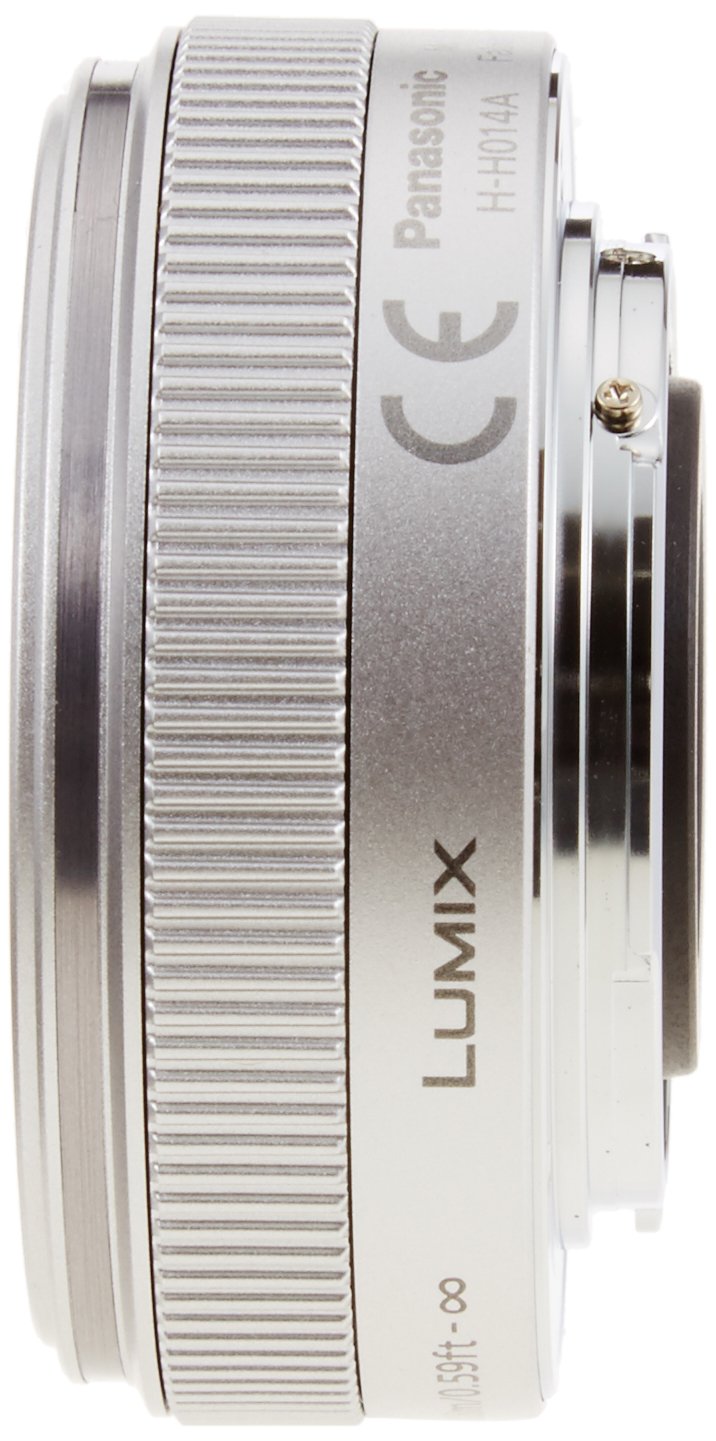

Interchangeable lens for micro Four Thirds system H - H014A

Compact and lightweight pancake lenses that you can easily carry around

It is compact as it is a wide angle 14 mm (converted to 35 mm format 28 mm), so it can be easily carried, and it can be used from narrow indoor shooting to vast landscape shooting.

Furthermore, the range of expression expands in combination with an optional conversion lens (wide / macro / fish eye) sold separately.

Two colors to choose according to the body of GM series

Ultra-compact, lightweight wide-angle, single-focal pancake lens that makes the best use of the unique features of the micro Four Thirds system standard.

By effectively arranging three aspherical lenses out of the 5 groups and 6 pieces, high performance and compactness are realized.

The appearance is renewed from the conventional machine, and it can choose from two colors of black and silver according to the body color.

Highly accurate contrast AF with reduced operating noise during shooting

By adopting quietly designed stepping motor, AF speeding up and quietization are realized.

Even during movie shooting, you can shoot without worrying about lens operation sound.

【Specifications】

Part number

H-H014A

Lens name

LUMIX G 14 mm / F 2.5 - II ASPH.

Focal length

14 mm (converted to 35 mm format 28 mm)

Aperture type

7 blades circular iris diaphragm

Open aperture

F 2.5

Minimum aperture

F22

Shooting distance range

0.18 m to ∞ (from imaging surface)

Filter diameter

46 mm

Maximum shooting magnification

0.1 times (converted to 35 mm format 0.2 times)

Maximum diameter × length

φ55.5 mm × about 20.5 mm (from the lens tip to the lens mount reference surface)

mass

Approximately 55 g

Show all product descriptions

Features:

• Please enter model number Confirm this is compatible:
• Maximum diameter × length: φ 55.5 mm × about 20.5 mm (from the lens tip to the lens mount reference surface)
• Mass: Approximately 55 g
• · Lens construction: 5 groups 6 pieces (aspherical lens: 3 sheets)
• · Mount: Micro Four Thirds Mount / Metal Mount
• · Focal length: 14 mm (converted to 35 mm format 28 mm)
• · Open aperture: F 2.5
• · Minimum aperture: F22
• · Aperture type: 7 blades circular iris diaphragm
• - Shooting distance range: 0.18 m to ∞ (from the imaging surface)
• Maximum photographing magnification: 0.1 times (converted to 35 mm format 0.2 times)

Product information:

Shipping Weight: 122 g

Package Dimensions: 8.30 x 8.41 x 11.30 cm
