Item Descriptions:
Color:
black
Cast-mounted mast function
Adjustable four stages according to easy to see.
Angle adjustment of 4 stages from 0 ° to 20 ° is possible, it is possible to fix the angle according to distance and height.
In the case of use at a store it is also the angle that is aligned with the customer's eyes.
Compatible with all directions
Great advantage of ceiling mount brackets!
When installing it is possible to support horizontal 360 °!
Satisfying ceiling hang because it can respond to slight positional misalignment!
In case
※ When turning, please be careful not to twist the wiring.
※ Free rotation after installation can not be done.

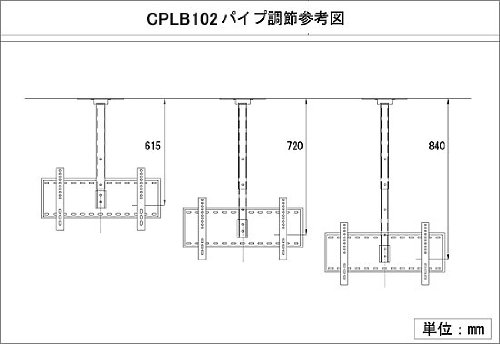

Three-step height adjustment
The height of the television is determined in stages.
The appearance also changes if the position changes.
Adjustment is possible in 3 stages of 56.5 cm, 68.0 cm, 79.5 cm from the installation part of the ceiling back to the center of the television.
Adjustment is tightly fixed to the adjustment hole that is open in the pipe.
You can freely select the distance from the ceiling according to the space.
There is also an optional long pipe / short pipe.
Installable condition
● Monitor permissible size: 37 to 65 inches
● Allowable Weight: 35 kg
● The rear of the TV is flat

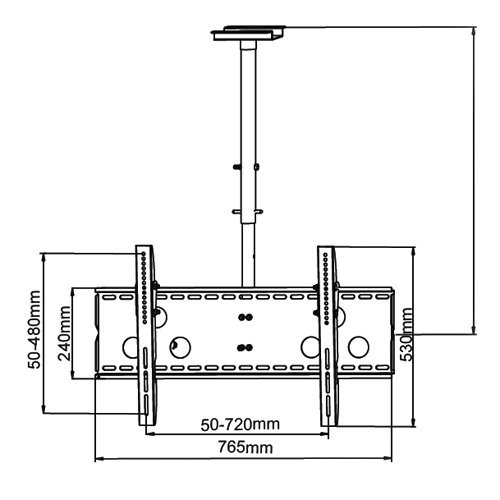

● Monitor permissible screw pitch [※ The vertical and horizontal width of the screw hole (usually 4 points) open on the back of the TV]
It corresponds to the television with the thread hole of the back with the following screw pitch (screw width)
TV with 4 screw holes in length: 75 mm to 480 mm, width: 75 mm to 720 mm TV
In case
About mounting installation
In case
Installation on the ceiling is extremely dangerous for individuals.
In case
Be sure to ask a special contractor (interior, electric store).
In case
● Assembly · Estimated installation time: 1 ~ 2 hours
● Installation tool required: Driver
* For hitting to the ceiling surface, it depends on the building condition of the building.
Features:
- Please enter model number Confirm this is compatible:
- Size (external dimensions): width 76.5 × height 24.0 cm
- Body weight: 7.2 kg
- Load capacity: 35 kg
- Corresponding size: 37 to 65 inches correspondence
- Precautions: Please be sure to ask the contractor when installing and installing.
Product information:
Shipping Weight: 7339 g
Package Dimensions: 5.99 x 25.50 x 80.01 cm
