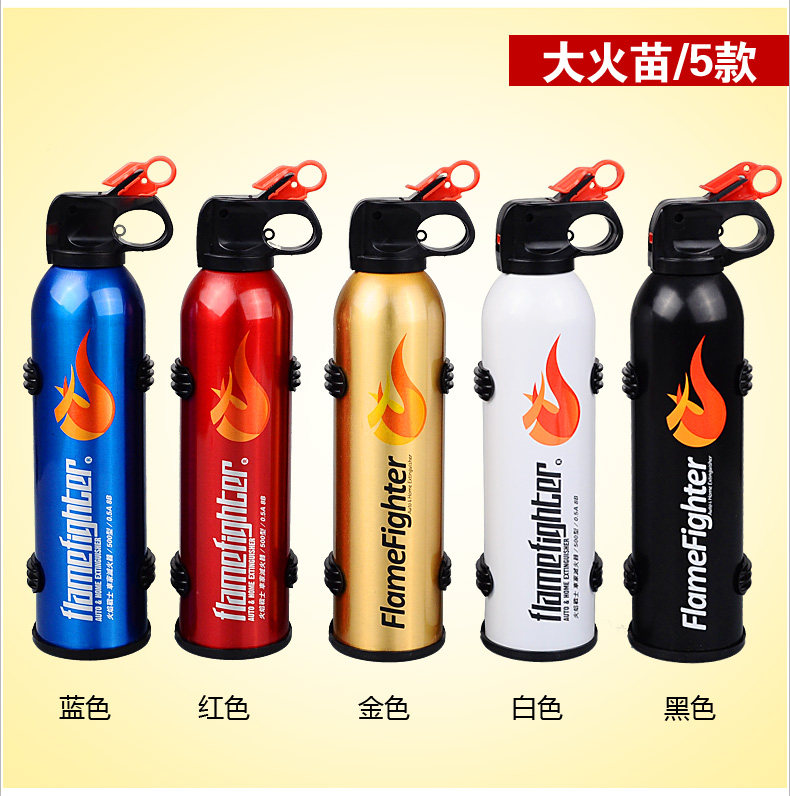

color 1 ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?color2

color3 ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? color4

color 5 ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?color6

color7 ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? color8

color 9 ? ? ? ? ? ? ? ? ? ? ? ? ? ?

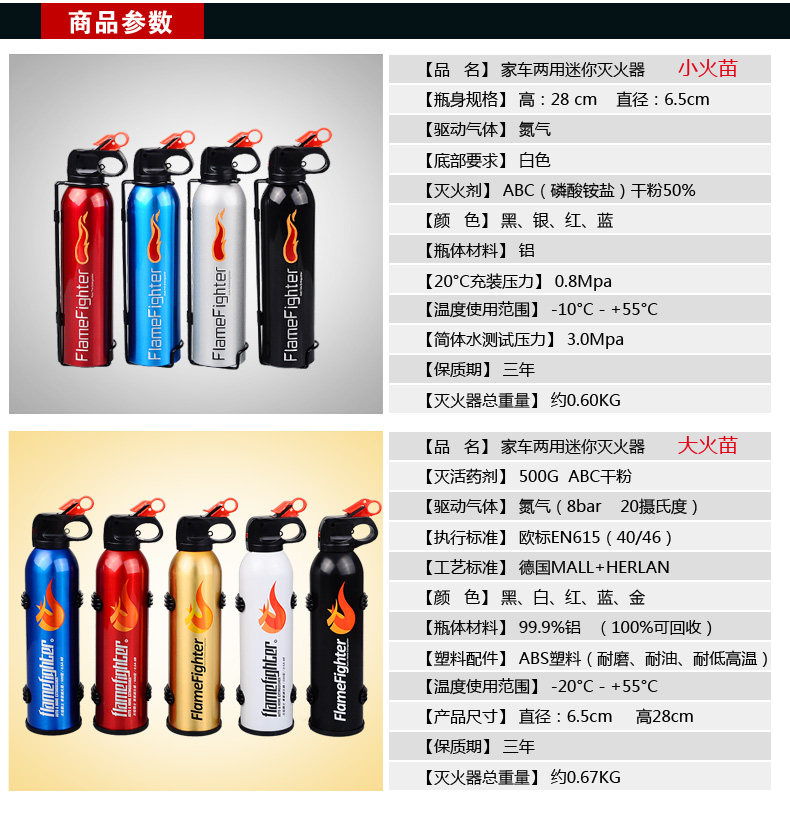

产品规格:

1、瓶身规格:高:280mm 直径:65mm
2、灭火剂:abc(磷酸铵盐)干粉 50%
3、驱动气体:氮气
4、瓶体材料:铝(无压力表)
5、20℃时充装压力:0.8mpa
6、灭火器总重量:0.6kg
7、使用温度范围:-10℃ - +55℃
8、灭火器重量:600±22.5g
9、简体水压试验压力:3.0mpa
10、保质期:三年

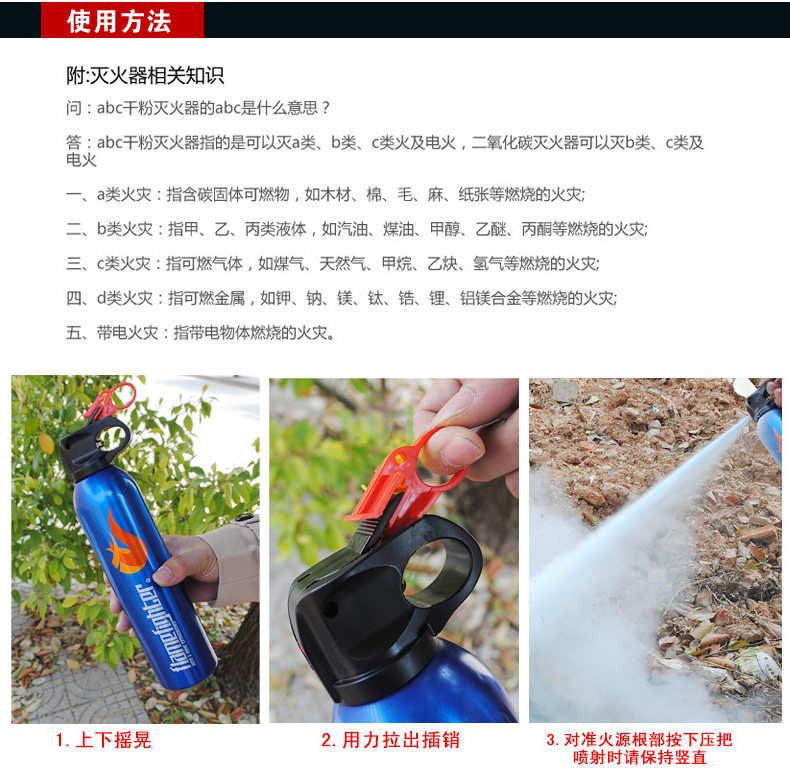

使用方法:

使用前,首先要上下颠倒数次,使干粉预先松动,离火源3-4米时,拔出保险销,一手握住喷咀,对准火源,另一只手的大拇指按下压把,干粉即刻喷出。

有喷射软管的灭火器或储压式灭火器在使用时,一手应始终压下压把,不能放开,否则会中断喷射。干粉灭火器扑救可燃、易燃液体火灾时,应对准火焰要部扫射,如果被扑救的液体火灾呈流淌燃烧时,应对准火焰根部由近而远,要平射,并左右扫射,快速推进,直至把火焰全部扑灭。

如果可燃液体在容器内燃烧,使用者应对准火焰根部左右晃动扫射,使喷射出的干粉流覆盖整个容器开口表面;当火焰被赶出容器时,使用者仍应继续喷射,直至将火焰全部扑灭。在扑救容器内可燃液体火灾时,应注意不能将喷嘴直接对准液面喷射,防止喷流的冲击力使可燃液体溅出而扩大火势,造成灭火困难。

附:灭火器相关知识

问:abc干粉灭火器的abc是什么意思?

答:abc干粉灭火器指的是可以灭a类、b类、c类火及电火,二氧化碳灭火器可以灭b类c类及电火

一、a类火灾:指含碳固体可燃物,如木材、棉、毛、麻、纸张等燃烧的火灾;

二、b类火灾:指甲、乙、丙类液体,如汽油、煤油、甲醇、乙醚、丙酮等燃烧的火灾;

三、c类火灾:指可燃气体,如煤气、天然气、甲烷、乙炔、氢气等燃烧的火灾;

四、d类火灾:指可燃金属,如钾、钠、镁、钛、锆、锂、铝镁合金等燃烧的火灾;

五、带电火灾:指带电物体燃烧的火灾。

1 bottle Specifications: High: 280mm Diameter: 65mm
2, extinguishing agents: abc (ammonium salt) powder 50%
3, drive gas: nitrogen
4, bottle material: Aluminum (no pressure gauge)
5,20 ℃ when filling pressure: 0.8mpa
6, fire extinguisher total weight: 0.6kg
7, temperature range: -10 ℃ - + 55 ℃
8, fire extinguisher Weight: 600 ± 22.5g
9, Simplified hydrostatic test pressure: 3.0mpa
10, shelf life: three years
Instructions:

Before use, the first upside down several times, so pre-loose powder, 3-4 meters away from the fire, pulled the pin, one hand holding the nozzle, align the source of fire, the other hand thumb pressing pressure the, dry immediately ejected.

There spray hose or reservoir pressure type fire extinguishers in the use of fire extinguishers, one hand should always put pressure reduction, can not let go, otherwise it will break the ejection. When dry powder fire extinguisher combustible, flammable liquid fire, the flame should be aligned to the Ministry of fire, if the fire is fighting showed a liquid flowing combustion, the flame should be aligned with the roots from near and far, to flat trajectory, and strafe left and right, fast forward, until the flame extinguished.

If burning flammable liquid in the container, the user should be aligned with the flame around the roots of rock bursts, so that the ejected powder flow covering the entire surface of the container opening; when the flame is expelled from the container, the user should continue to spray until the flame extinguished . When a container of flammable liquid fire fighting, should be careful not to spray nozzle directly at the surface, preventing the impact of the jet combustible liquid spills and expand the fire, causing fire fighting difficult.

Report: Fire extinguishers knowledge

Q: abc dry powder fire extinguishers abc What does it mean?

Answer: abc dry powder fire extinguisher means that can destroy a class, b class, c class thermal and electrical fire, carbon dioxide fire extinguisher can extinguish class b and class c electrical fire

A, a type of fire: that fire burning carbonaceous solid fuel, such as wood, cotton, wool, linen, paper and the like;

Burning fire nails, B, C liquid, such as gasoline, kerosene, methanol, ether, acetone, etc.;: two, b type of fire

Three, c type of fire: that fire burning combustible gas, such as coal, natural gas, methane, acetylene, hydrogen, etc;

Four, d type of fire: that fire burning combustible metals, such as potassium, sodium, magnesium, titanium, zirconium, lithium, aluminum-magnesium alloy;

Five charged fire: that charged objects burning fire.
