Product Description

The OBD2 Scanner can read the trouble codes and diagnose vehicles located in the USA that are model year 1996 or newer! It enables you to view live data from your vehicle's engine on emissions， performance， temperature， battery status， boost， etc.
Note:If your system is iOS ，The Wifi OBD scan only support iOS 5.1.1 or later.
Support iOS(iPhone iPhone 6 6 plus 5s 5c iPad Air Mini 4) & Android (Samsung S5 S4 Note 3 Note 2.LG 2 Google Nexus)&Windows ，

Multi-Protocol Support:
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)
ISO9141-2(5 baud init，10.4Kbaud)
ISO14230-4 KWP(5 baud init，10.4 Kbaud)
ISO14230-4 KWP(fast init，10.4 Kbaud)
ISO15765-4 CAN(11bit ID，500 Kbaud)
ISO15765-4 CAN(29bit ID，500 Kbaud)
ISO15765-4 CAN(11bit ID，250 Kbaud)
ISO15765-4 CAN(29bit ID，250 Kbaud)
SAE J1939 CAN(29bit ID，250*Kbaud)
USER1 CAN(11*bit ID，125*Kbaud)
USER2 CAN(11*bit ID，50*kbaud)

Functions:
1.Read diagnostic trouble codes， both generic and manufacturer-specific， and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ('Check Engine' light)
3.Display current sensor data
4.Engine RPM
5.Coolant Temperature
6.Calculated Load Value
7.Vehicle Speed
8.Fuel System Status
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure

Feature

EXCELLENT COMPATIBILITY - Compatible with model year 1996 and newer cars and light trucks sold in the United States， including all American， European， and Asian vehicles. Supports OBD-II protocols: CAN， KWP2000， ISO9141-2， J1850 VPW and J1850 PWM (May not support Hybrid or electric vehicles).
TROUBLE CODE READER - Mini OBD Wifi Auto Car Diagnostic Interface Scanner， read diagnostic trouble codes (both generic and manufacturer specific DTCs)， and display their meaning (over 3000 generic code definitions in the database). Clear trouble codes and turn off the MIL ("Check Engine" light).
REAL-TIME EEGINE SENSOR DATA AVAILABLE - Foseal OBD2 Scanner allows you to READ REAL-TIME engine sensor data: Engine RPM， Calculated Load Value， Coolant Temperature， Fuel System Status， Vehicle Speed， Short Term Fuel Trim， Long Term Fuel Trim， Intake Manifold Pressure， Timing Advance， Intake Air Temperature， Air Flow Rate， Absolute Throttle Position， Oxygen sensor voltages/associated short term fuel trims， Fuel System status， Fuel Pressure.

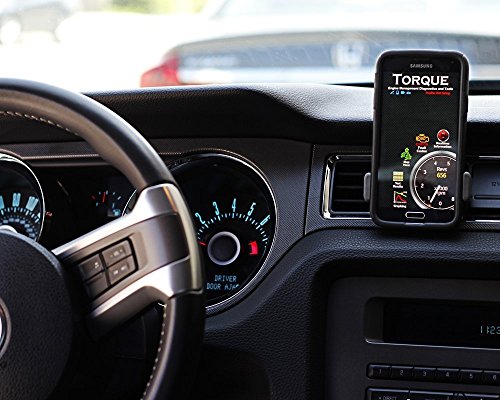

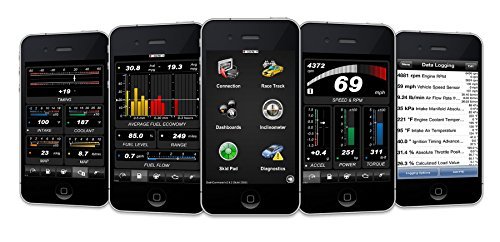

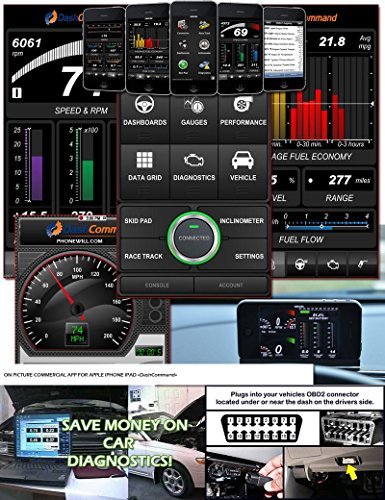

VARIOUS APPS AVAILABLE - Work with iOS (iPhone， iPad ) as well as Android/Windows smartphones or tablets from Samsung， HTC， Motorola， Sony， LG， etc. Recommend Apps include DashCommand， OBD Car Doctor， OBD Fusion， Torque Pro， Torque Lite， etc. on Google Play.

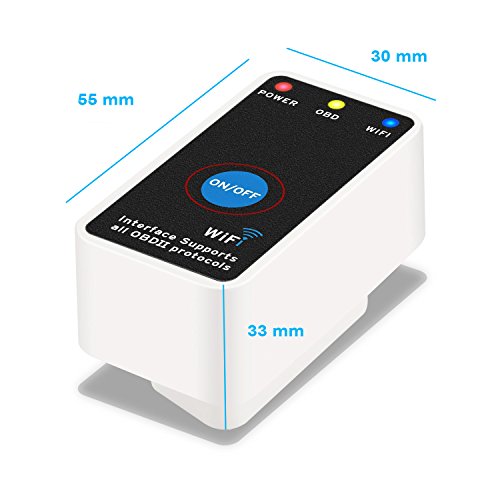

EASY TO USE - Plug in the device， turn the ignition key to "ON" (or start your vehicle)， connect your phone to the OBD2 WiFi signal， connect with App and you are ready to go. Comes with on/off switch and three LED indicators: turn it off when not in use to save vehicle battery power. LED indicators give you direct working status of the scanner.
Brand : Foseal
Item model num : fo-wifi-obd2
MPN(PartNumber) : Foseal
EAN : 0709112842989
Product Dimensions(LxWxH) :
