Item Descriptions:
specification:
Model: F7
Panel: 7.0 "IPS LCD
Resolution: 1920 * 1200 pixels
Backlight: LED
Dot pitch: 0.07875 * 0.07875 mm (H * W)
Aspect ratio: 16: 10
Brightness: 450 cd / m 2
Contrast: 1200: 1
Viewing angle: 80 ° / 80 ° (L / R).
80 ° / 80 ° (U / D)

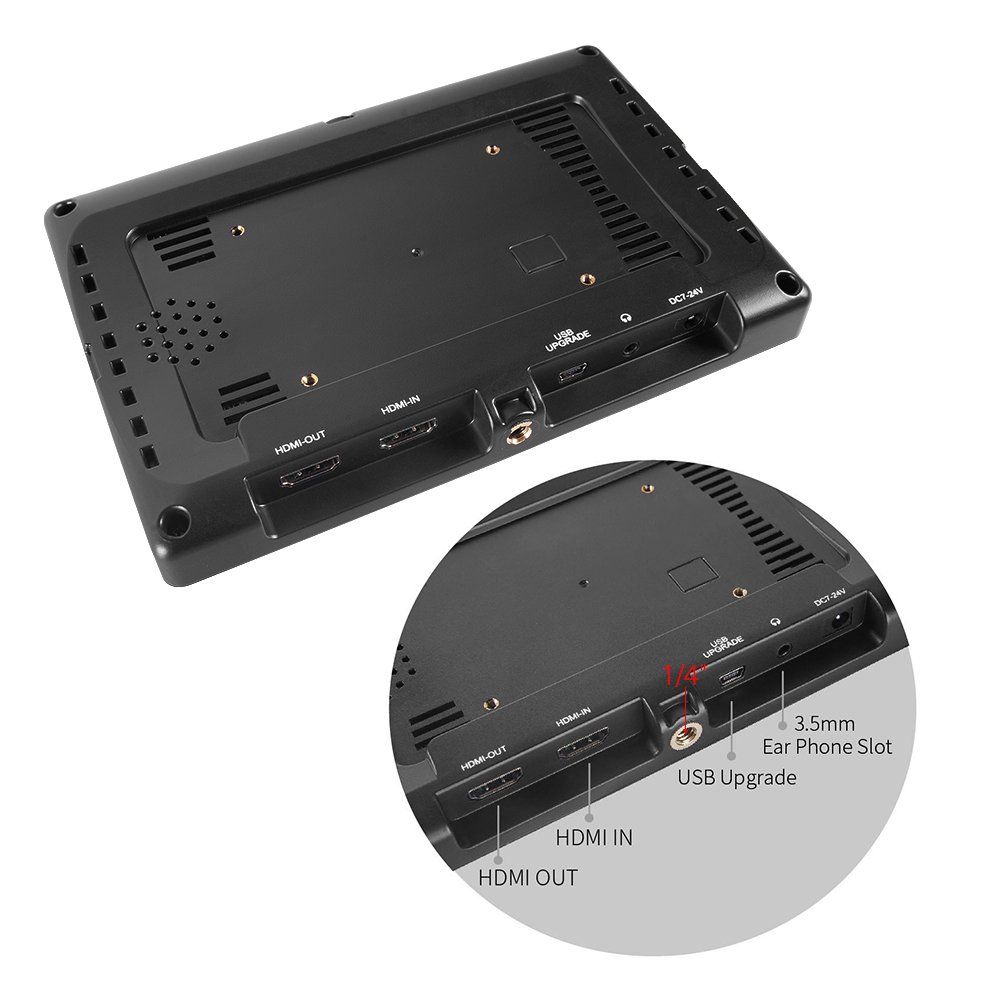

Signal input / output: HDMI
Video color system: PAL-4.43 / NTSC-3.58
HDMI input / output support format:
- 4K UHD 3840 * 2160 P (30 / 29.97 / 25/24 / 23.98)
- 1080 P (60 / 59.94 / 50/30 / 29.97 / 25/24/24 sF / 23.98 / 23.98 s F)
- 720 P (60 / 59.94 / 50/30/29/25/24 / 23.98)
Aux Function: Field / False Color / Zebra Switch / Zebra Exposure (0-100 IRE) / Focus Assist / Peaking Color
Marker indication: center marker / marker type / self frame / marker color / nine grid
Range: Histogram / Audio meter
Image setting: Scan mode / Camera mode / Flip / Freeze / P2P / Zoom / Anamorphic
Color setting: Backlight (0-100) / Brightness (0-100) / Contrast (0-100) / Saturation (0-100) / Hue (0-100) / Sharpness (0-100) / Color temperature
Shortcut: F1 / F2 / F3
OSD setting: language / OSD transparency / OSD duration / volume / mute / power mode / reset / software update
Check field: red / blue / green / gray / off
Peaking Color: Red / White / Blue / Yellow
Marker type: 16: 9/4: 3 / 2.35: 1 / 1.85: 1 / OFF
Safe frame: 96% / 93% / 90% / 85% / 80% / OFF
Marker color: white / black / blue / green / cyan / red / purple / yellow
Scan Mode: Auto / Full Screen / Over Scan
Camera mode: OFF / 1080/480
Flip: Horizontal / Vertical / Horizontal / Vertical / Off
Zoom: Auto / 16X / 9X / 4X
Anamorphic: 1.3 X / 2.0 X / 2.0 X MAG / OFF
Color temperature: 6500K / 9300K / user
Headphone output: stereo 3.5 mm
Input voltage: DC 7 - 24 V
Power consumption: <= 8 W

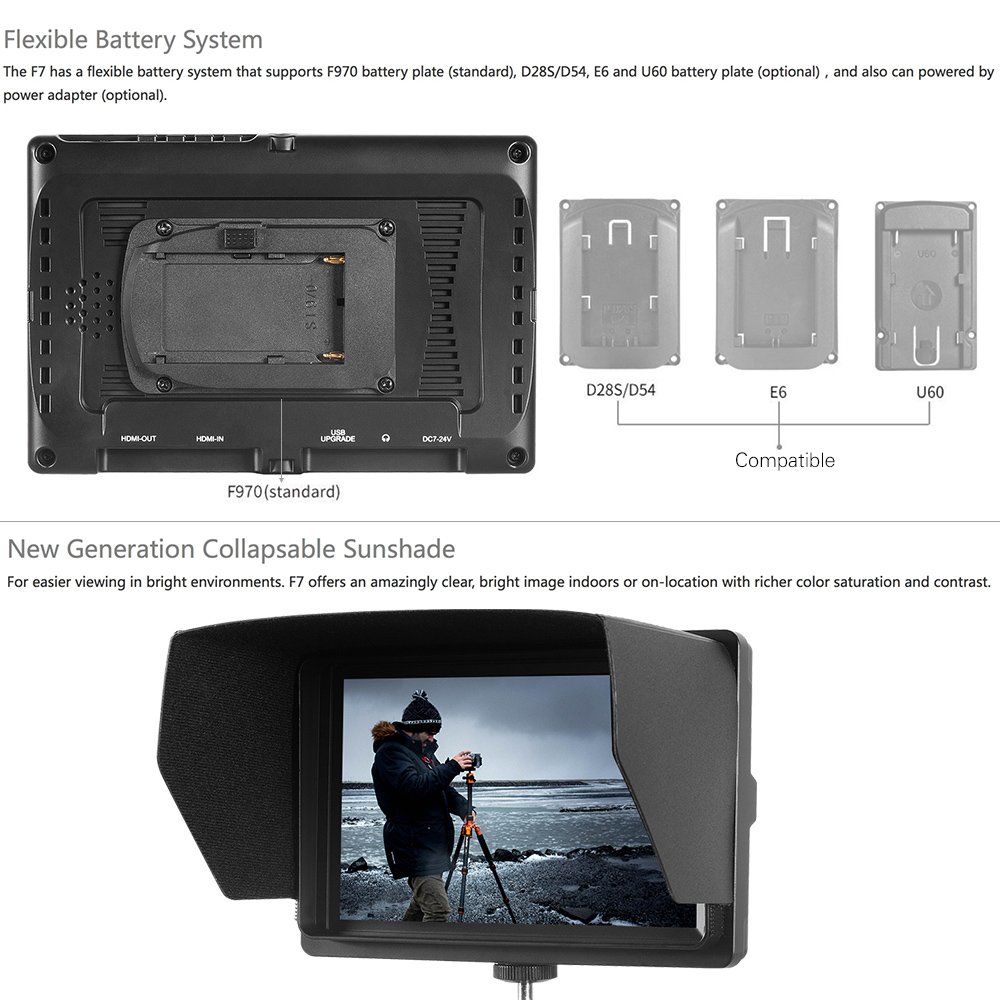

Battery plate type: F970 (battery is sold separately)
Language: English / Japanese / Chinese
Item size: 18 * 12 * 2.2 cm / 7.1 * 4.7 * 0.9 "
Product weight: 290 g / 10.2 oz
Package size: 22.3 * 17 * 10 cm / 8.8 * 6.7 * 3.9 "
Package weight: 883.5 g / 31.2 oz

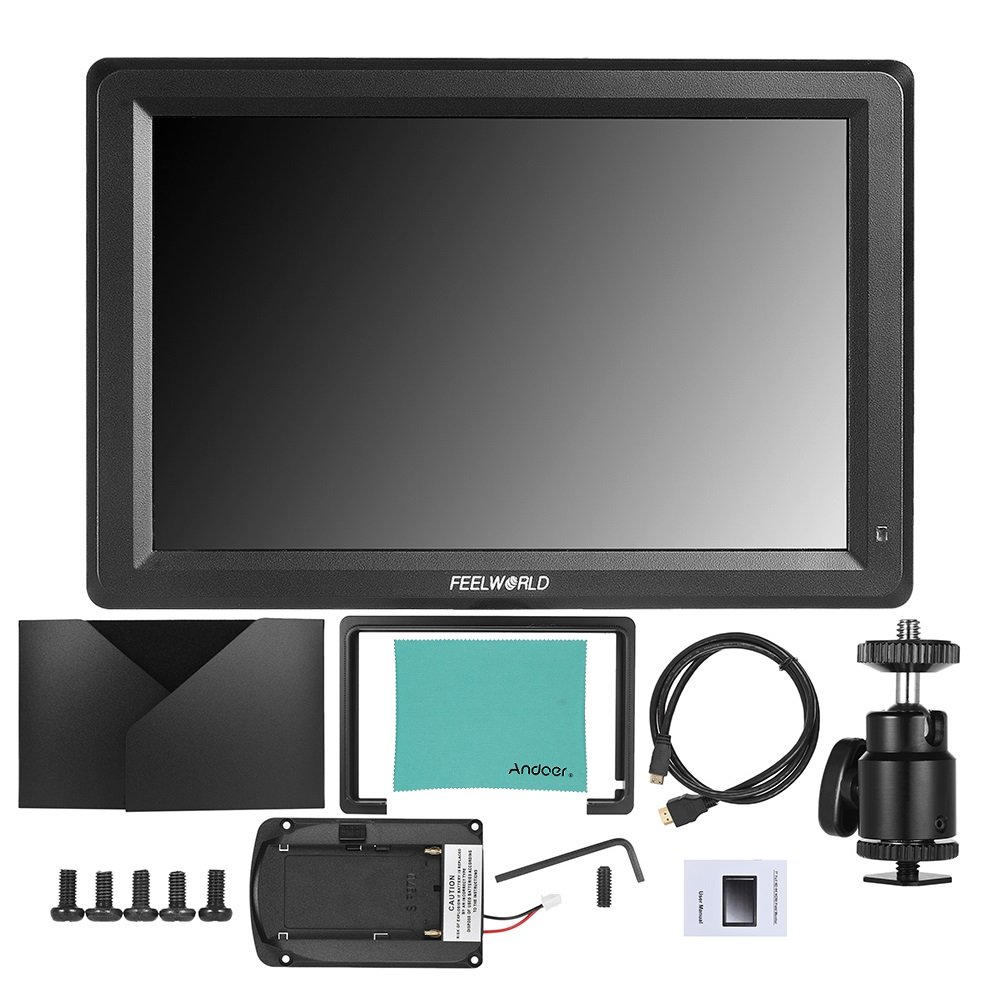

Package list:
1 * Monitor
1 * Sunshade
1 * sunshade frame
1 * Adapter
1 * Battery plate
1 * HDMI cable
1 * Andoer Cleaning Cloth
5 * Screw
1 * wrench
1 * Long screw
1 * User manual (English)
Caution:
Only the monitor is included.
Features:
- Please enter model number Confirm this is compatible:
- The Feelworld F7 7 "full HD LCD monitor supports 1920 * 1200 high resolution 4K / 1080P HDMI input power.
- A clear contrast of 1200: 1, high brightness of 450 cd / m 2, large aspect ratio of 16: 10, excellent viewing angle of 160 °.
- Professional grade features and settings including check field / fake color / zebra switch / zebra exposure / focus assist / peaking color; center marker / marker type / self frame / marker color / nine grid; histogram / audio meter; scan mode / camera
- Mode / Flip / Freeze / P2P / Zoom / Anamorphic etc.
- Supports shortcut setting for convenient operation.

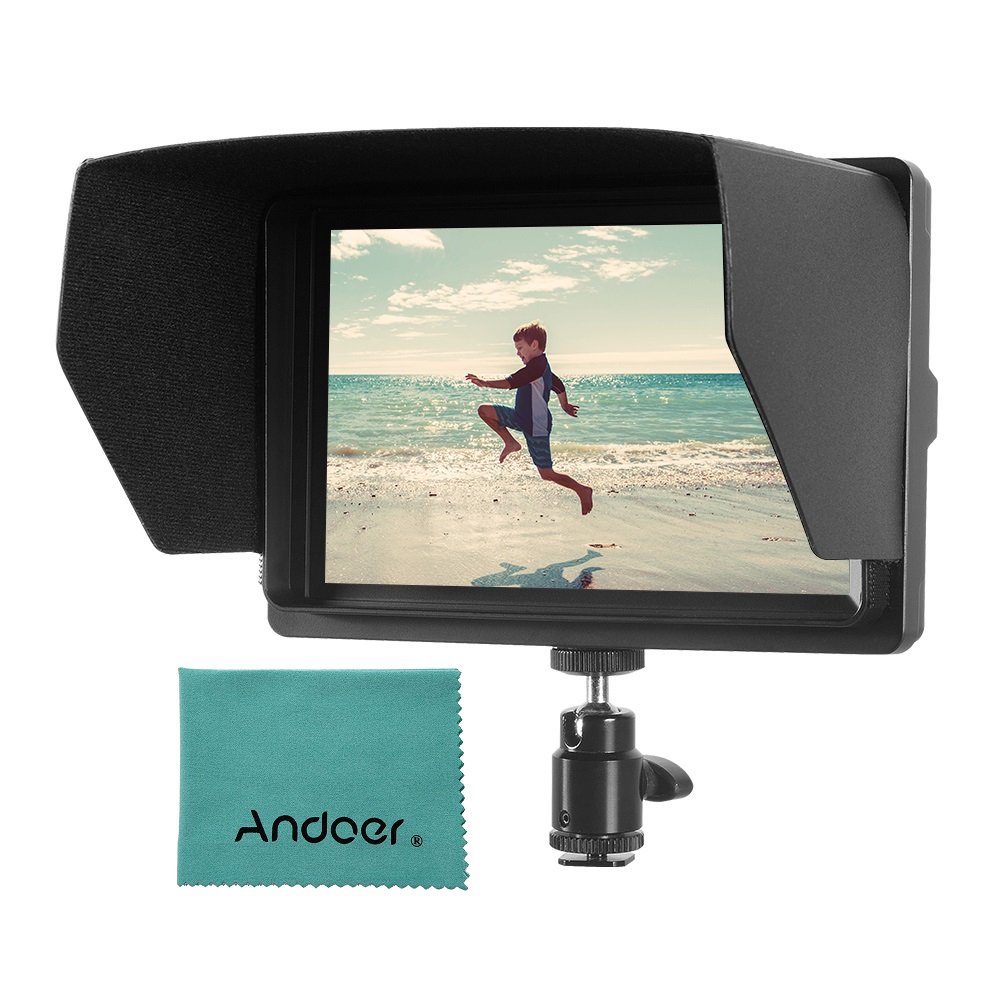

- Removable plastic sunshade is included.

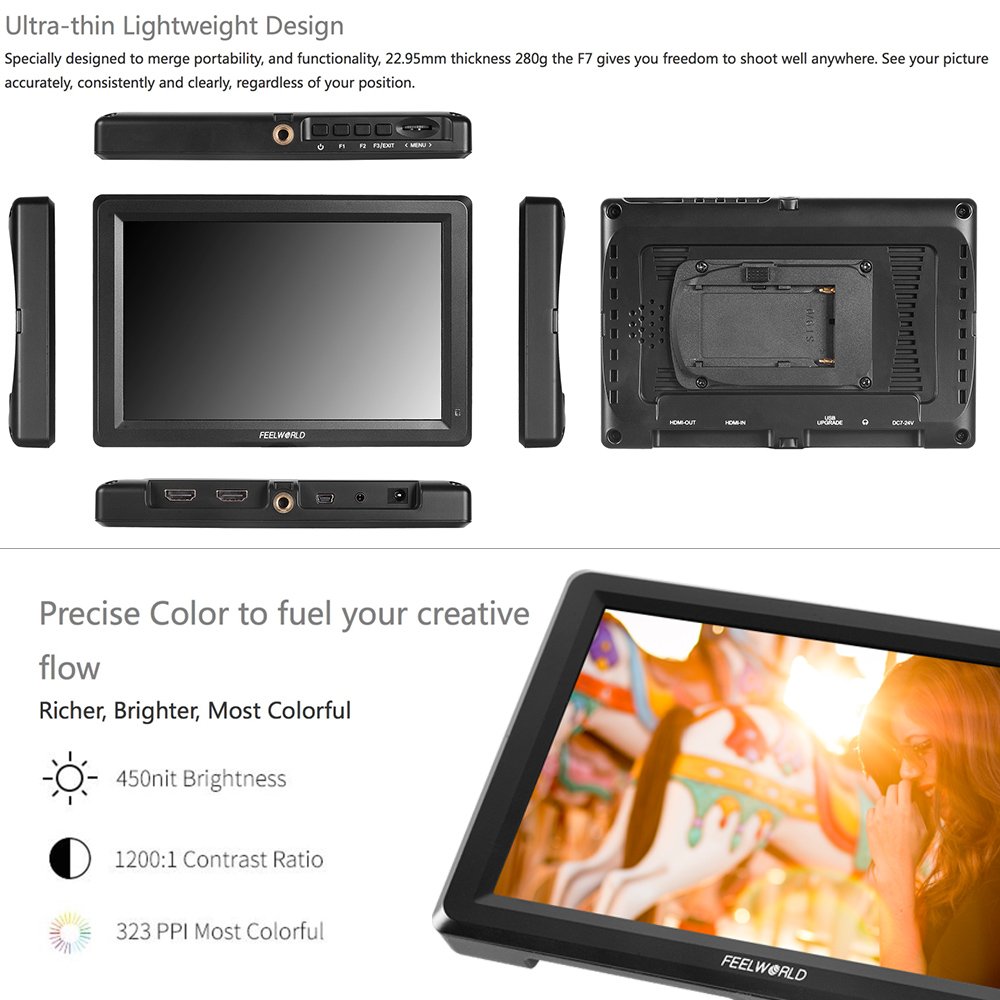

- The angle / direction of the monitor can be adjusted with 1/4 "adapter F970 Battery plate is included (Batteries sold separately) Compact size, thin and lightweight.
Product information:
Shipping Weight: 911 g
Package Dimensions: 8.51 x 21.69 x 26.01 cm
