Product Name

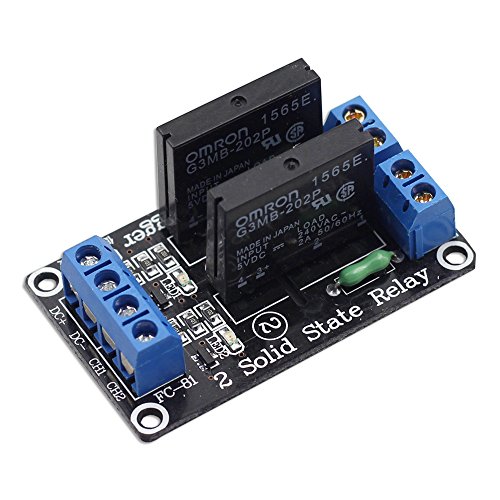

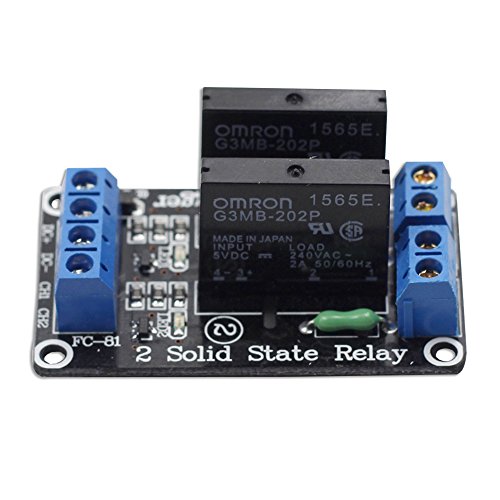

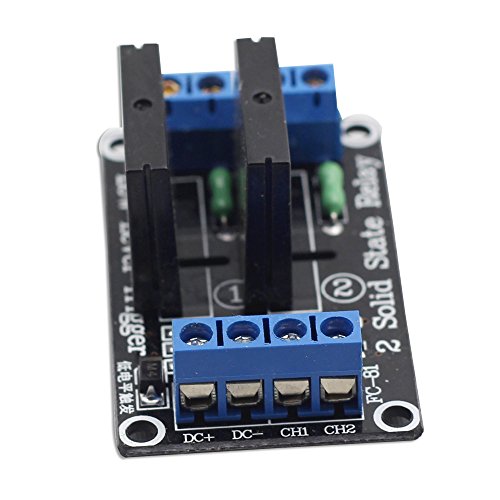

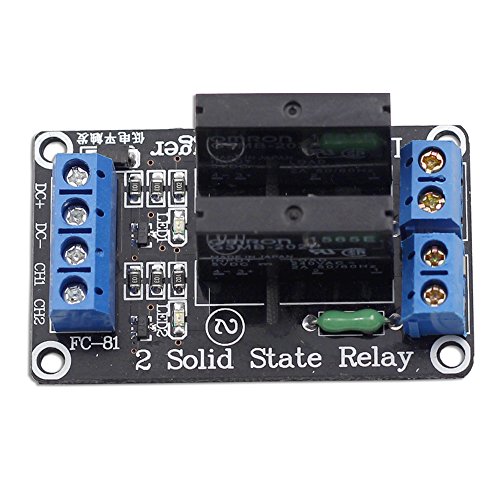

SunFounder 5V 2 Channel Solid State Relay Board for Arduino Uno Duemilanove MEGA2560 MEGA1280 ARM DSP PIC

Product Code: PROD240351743

Product Information

1.Omron 5V solid state relay (240V, 2A), output port with resistance-type fuse (240V, 2A)
2.Size: 55 x 33 x 25mm
3.Input power source: 5V DC (160MA)
4.Input control signal voltage: 0-2.5V state low level when the relay is OFF, 3.3-5V state high level when the relay is ON.
5.With 2.54 CM pin header and blue KF301 terminal, more convenient for control line.


Technical Details


Product Details

Package Dimensions
Width : 2.7 inch
Height : 0.8 inch
Length : 4.2 inch

Shipping Weight: 2.4 ounce (View shipping rates and policies)

ASIN : B00SYEDG7I
