Item Descriptions:

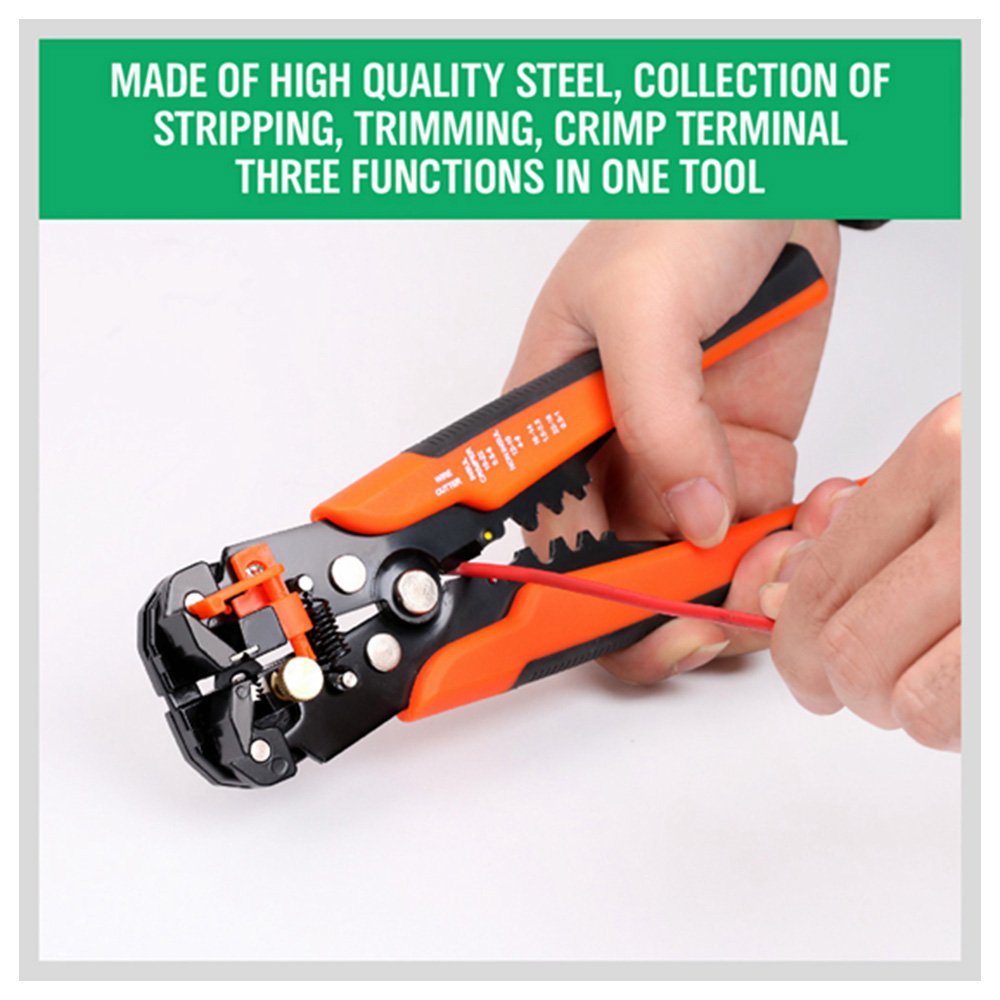

It is a wire stripper which peels cable coating while leaving copper wire just by setting cable and holding.
The body has a wire cutter and terminal crimping function.
Wire stripper features convenience, efficiency and harmlessness of cable core.
Just hold the handle and manipulate it once to remove the wire sheath successfully.
[Product specifications]

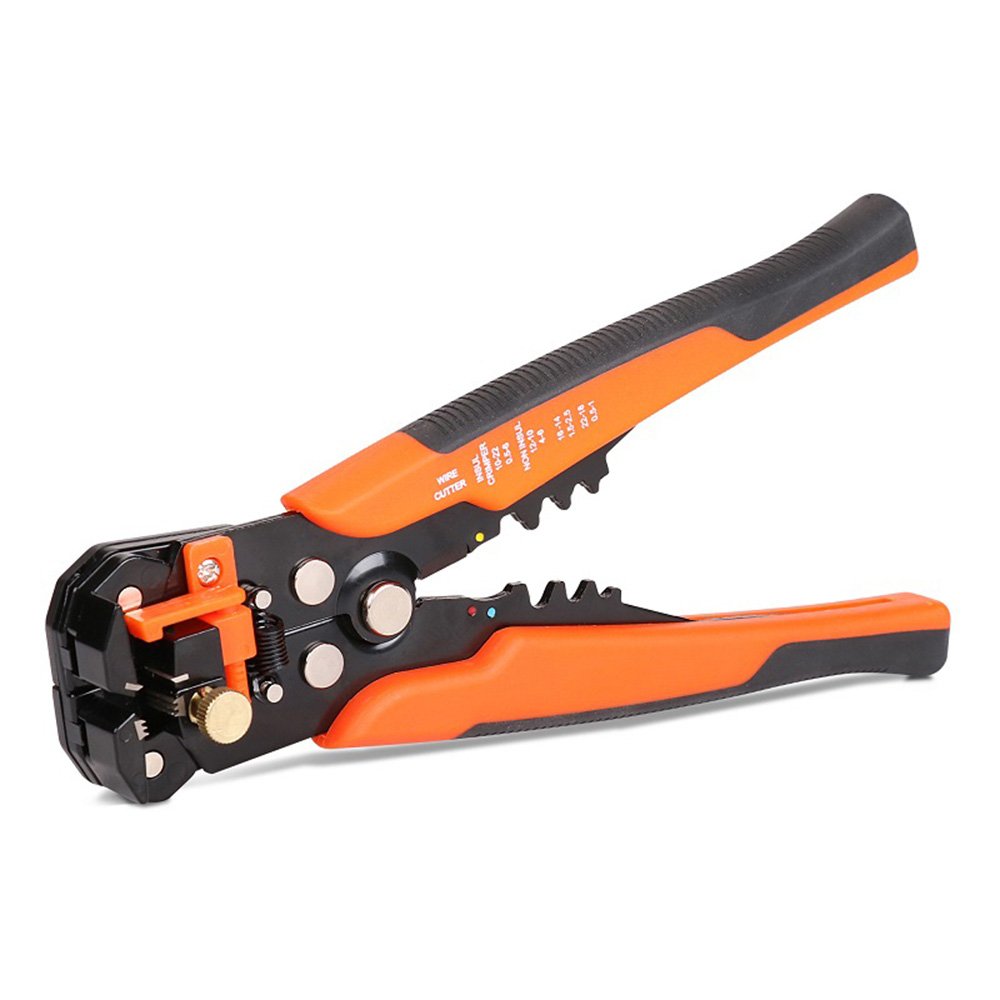

Product Name: Automatic Wire Stripper

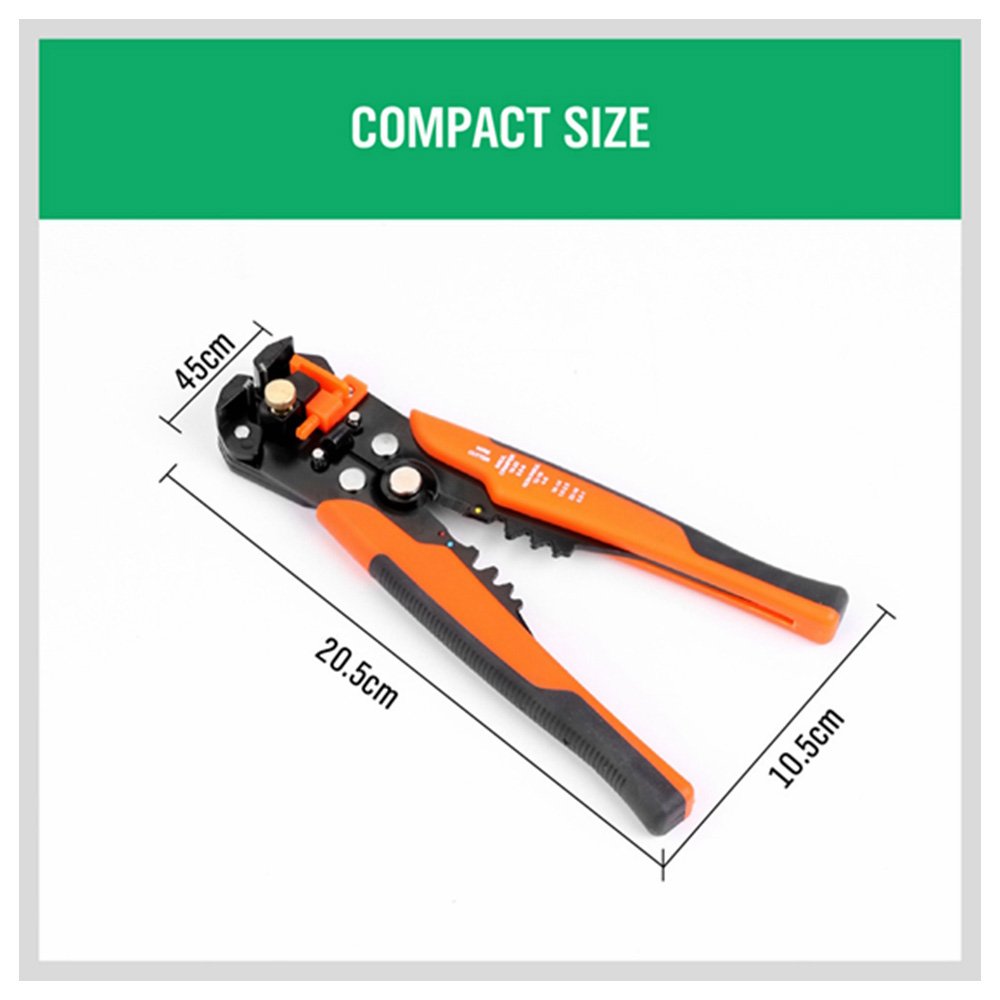

Product size (approx): vertical 20.5 cm side 10.5 cm
Weight (approx): 349 g
Material: Chrome vanadium steel
Description of item
[Crimp terminal]
Alloy steel jaw:
Hardness [HRC 36-42]; Applicable wire size: 10-24 awg (0.2 - 6.0 mm²)
Adjust peel force through nut:
Please fine adjust the nut at the time of damage or sliding the wire.

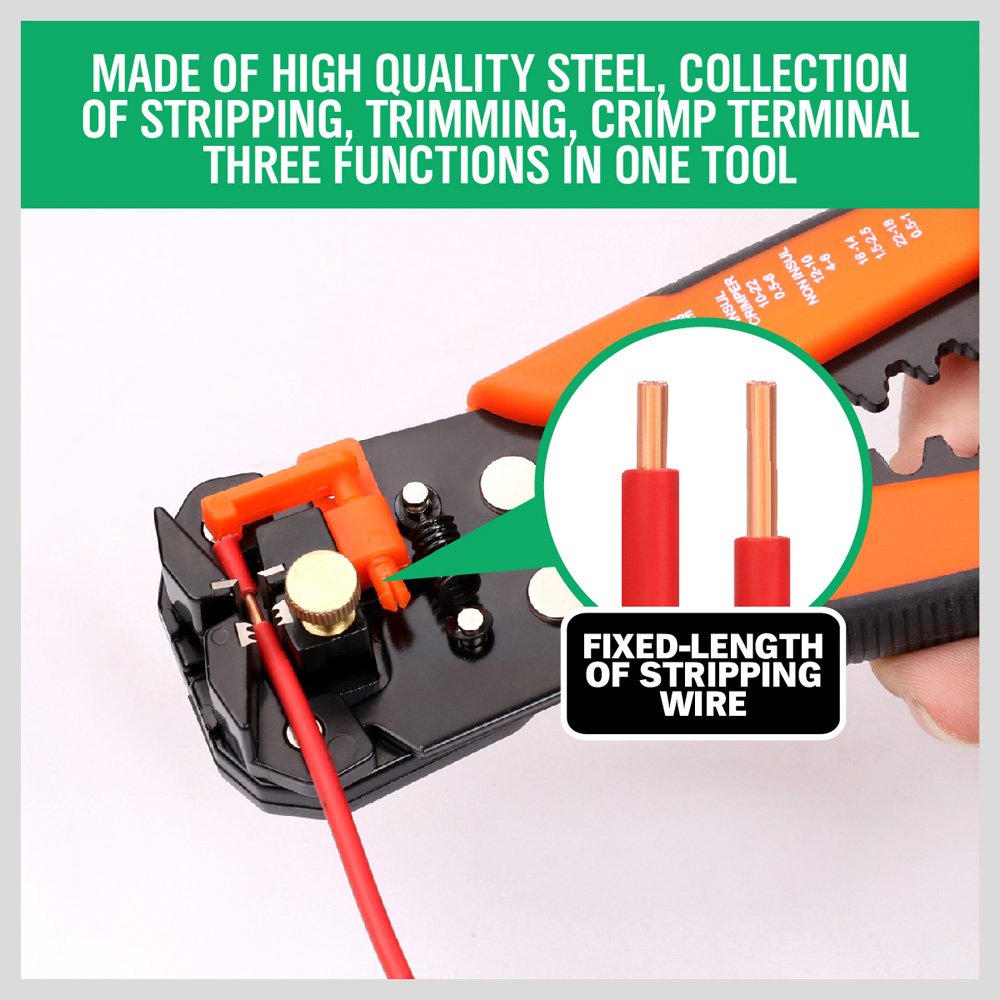

Fixed peeling length:
It can be adjusted according to the desired length.
cutter:
Hardness [HRC 48-52]; It can cut copper wire or aluminum wire.

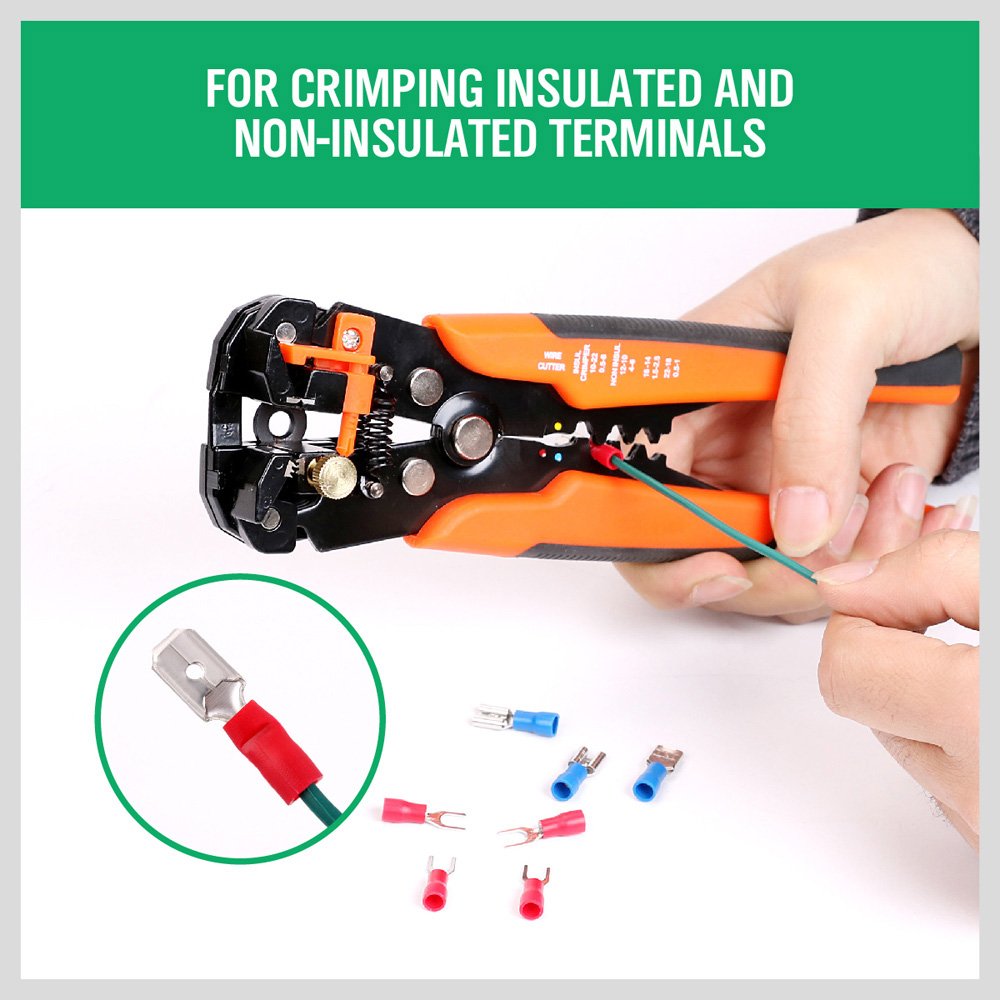

For insulated terminals:
10-22 awg (0.5 - 6.0 mm)
For non-isolated terminals:
4 - 22awg (4.0 - 6.0 mm) For automatic ignition terminal: (7 - 8 mm)
【Notes】
Be careful not to get your hands and fingers caught in the wire stripper part and crimping pliers part.
When stripping a thin wire coating, please reduce the strength.
If you peel off the coating in a strong state, the wire may break.
Can not be used for crimping Giboshi terminals.
Features:
- Wire stripper features convenience, efficiency and harmlessness of cable core.
- Safety design: It is a safety design that prevents scratches on the insulation coating because the blade opens naturally with a strip assist spring.
- Prevent serious defects in the test beforehand.
- Elastomer grip: Adopting elastomer grip on the handle part, in addition to silky feel, it is gentle to the hand, reducing the burden of continuous work.
- Easy crimping: With wire cutting function, caulking function for insulated terminal, caulking function of bare terminal, it saves more effort than traditional wire stripper and improves work efficiency because it does not destroy the line.

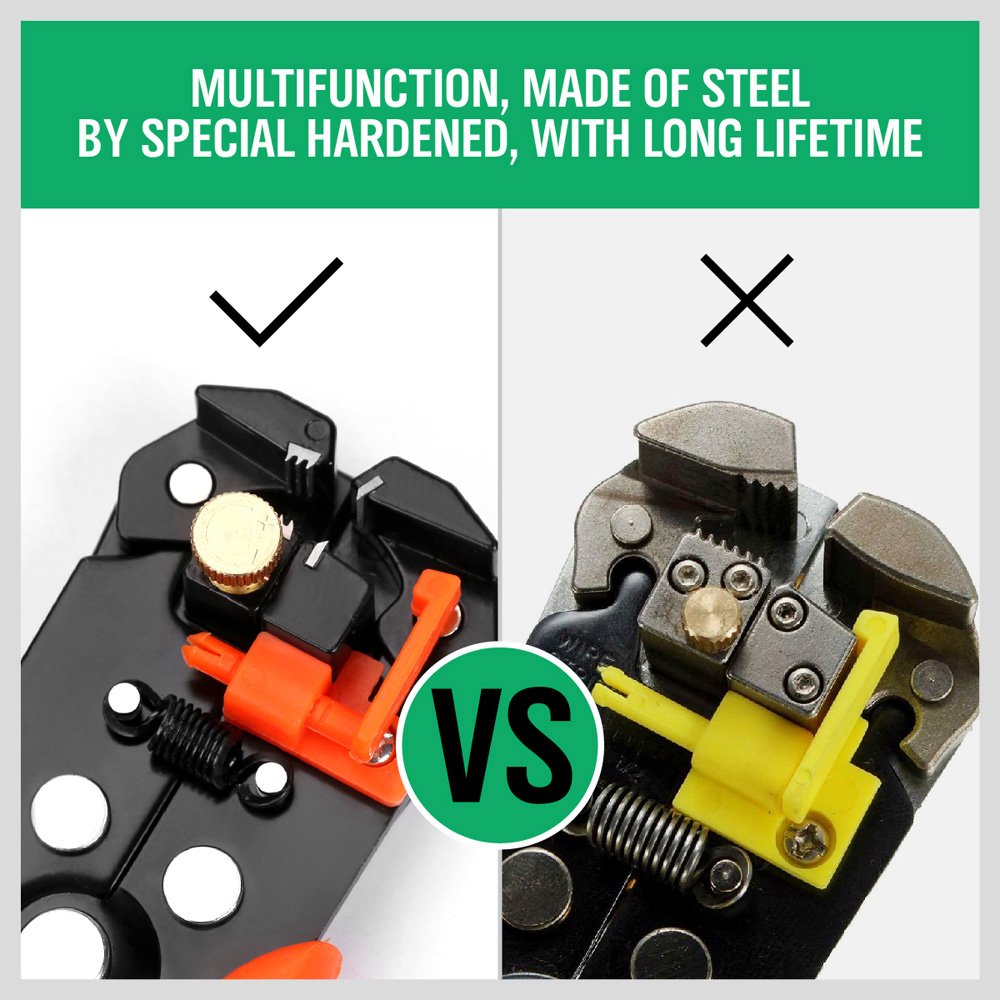

- Auto multi-stripper: Special curing steel made, multi-function, long life, just grasping and grasping, you can strip without worrying about wire thickness (0.2 - 6.0 mm?), Can be peeled easily without adjustment.
Product information:
Shipping Weight: 349 g
Package Dimensions: 3.61 x 12.80 x 26.70 cm
