Product Description

Note:The monitor can not be acted as a mirror.
Specifications:
Cable length about 19 feet(6m)

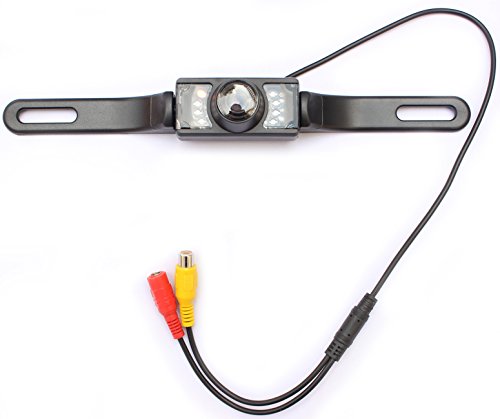

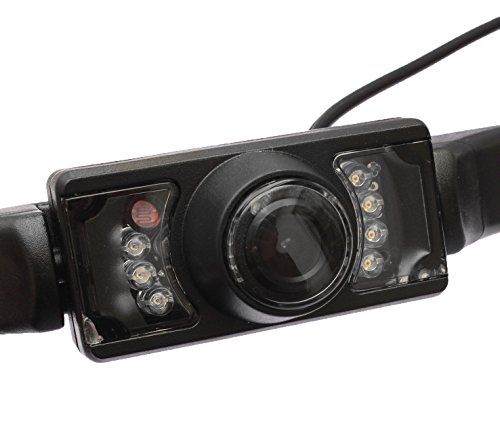

Camera:

- Image Sensor: Color CMOS
- Lens Angle: 135 Degree
- Sensing area: NTSC 4.08 x 3.10mm
- Effective Pixels: NTSC 510*496 pixels
- Horizontal Resolutions: 420 TV lines
- Minimum Illumination: 0.1 - 0.5Lux/F=1.2
- Video output: RCA connector, 1.0V p-p, 75ohm
- Power Consumption: 60mA
- Power Supply: DC12V
- Operating Temperature: -20 - 60 (Celsius Degree) RH95%MAX
- Dimensions: 9.8" x 1.2" x 1.6"

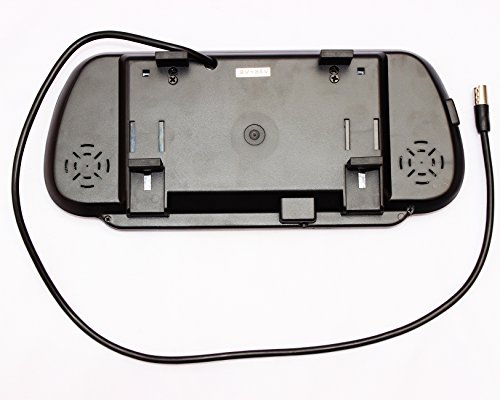

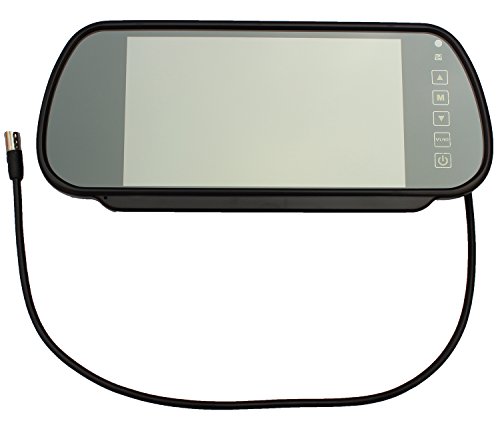

Monitor:

- Screen Size: 7" Colour TFT LCD
- Aspect Ratio:16 : 9
- Resolution: 480W * RGB * 234H
- Video System: PAL/NTSC
- Video Inputs: 2-channel ( AV1 & AV2)
- Power Supply: DC 12V
- Power consumption: Around 7W
- Operation Temperature: -20 ~ 65 Celsius Degree
- Product Dimensions: 250x118x45mm
- Product weight: 425g
- Package dimensions: 293x180x69mm
- Package weight: 695g

Notes:

- This camera has a MORROR image.
- This camera only supports NTSC video system!
- You can install the camera on your license plate. During installation, please connect
the power cable of the backup camera to the harness wires that connect to the backup light
on the tail light assembly (Please note that the red wire end is positive, while the black
one is negative). And connect the RCA output end to the car monitor.
- The camera switch is controlled by the reverse gear shift.
Package include

- 1 x Car Rear View Camera
- 1 x 7" Mirror Monitor
- 1 x Remote Controller
- 1 x Power Cable
- 1 x RCA Video Cable
- 1 x Convert Cable
- 1 x User Manual

Feature

7" LED Backlight Color TFT LCD monitor. Works perfectly with car rearview cameras, supports car DVD, serveillance camera.
7 inch 16:9 TFT LCD Widescreen Rearview Mirror Monitor With 480(W) x RGB x 234(H)=336960 Pixels, and High Quality PAL/NTSC TV System.
The Item Is Mainly Used For Car surveillance, Car Rearview. Brightness, contrast, color adjustable.
Operate Mode: Touch Keys, Remote Control.
The camera is Waterproof and Night Vision. It can support NTSC Video System only. For the monitor, blue and red wires to reverse light power wire in cab. Black wire to ground.For the camera part, attach red and black to reverse light wires.
Brand : LotFancy
MPN(PartNumber) : 12R-2681-C
EAN : 6931561844212
