Product Description

Esky® - Sky of Electronics

Esky backup camera is designed to give additional convenience when backing your vehicle. Metal frame with chrome finish, perfect fit for any car and it's almost invisible once mounted. This camera has been developed and produced from the highest quality materials available to ensure the best performance for years to come. Thanks to the IP67-compliant weatherproofing and night vision infrared LEDs, the camera works in a variety of (even extreme) weather condition and at night. The camera equipped with a 170¡ãlens which is up and down tiltable,it provides you large viewing fields and eliminates blind spots behind you.

Consult an experienced technician if you are not familiar with installing the Backup Camera.

Specifications
- Sensing area: NTSC 4.08 x 3.10mm
- Effective Pixels: NTSC 510*496 pixels
- Horizontal Resolutions: 420 TV lines
- Minimum Illumination: 0lux with IR on

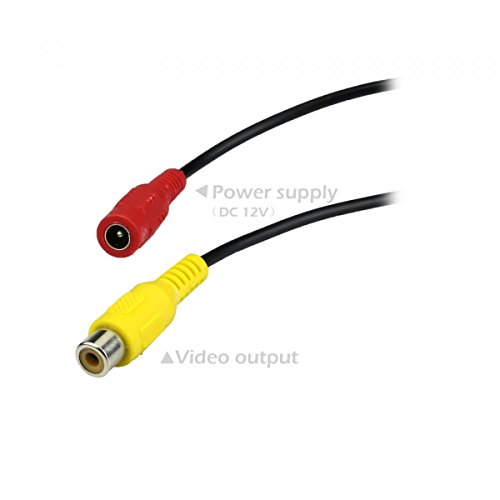

- Video output: RCA connector, 1.0V p-p, 75ohm
- Power Consumption: 60mA
- Power Supply: DC12V

Notes
- This camera has a mirror image.
- This camera only supports NTSC video system, so please make sure your monitor supports NTSC video system.
- During installation, please connect the power cable of the backup camera to the harness wires that connect to the backup light on the tail light assembly
- (Please note that the red wire end is positive, while the black one is negative). And connect the RCA output end to the car monitor.
- The camera switch is controlled by the reverse gear shift.
- Please take care of the sealing to prevent water leakage when installation.

Package includes
- 1 x Rear View Camera
- 1 x 3.5ft Power Cable
- 1 x 20ft RCA Video Cable
- 1 x User Manual

You can check Asin B00JDFVBVK for 4.3 Inch Car Rear View Monitor Sreen

Feature

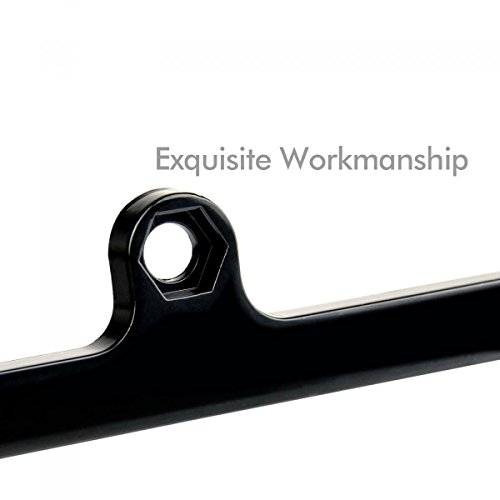

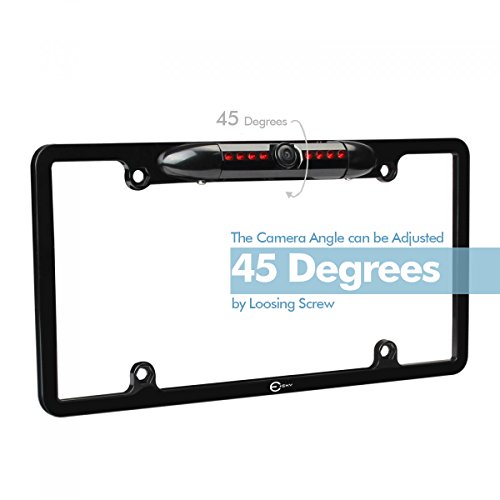

Stylish heavy-duty chrome plated frame;Lens angle physically adjustable on the camera

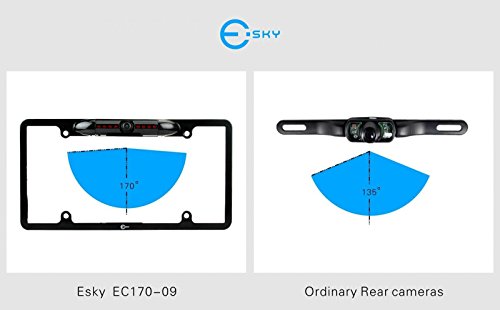

170 degree viewing angle macro lens with 'mirror' image; IP67 waterproof, high sensitive color CMOS (PC1030) image sensor

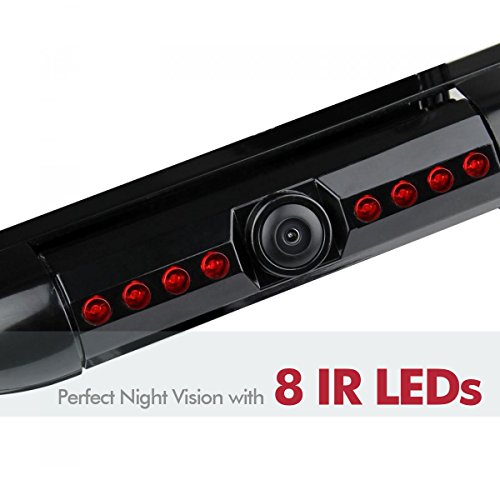

8 IR red LEDs night vision and excellent performance of 0lux at F2.0
Built-in distance scale lines with trapezoid electronic ruler function;
License mount, ideal for all vehicles that use a standard U.S. license plate.
Brand : Esky
Item model num : EC170-09
MPN(PartNumber) : EC170-09
EAN : 6952848678801
