For this pump， we believe that two points must be emphasized:

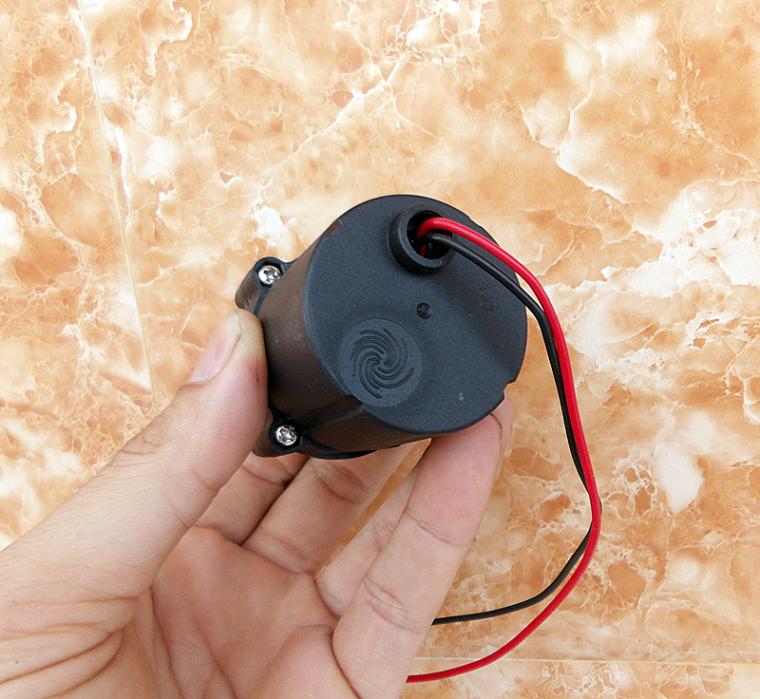

       1. It is a DC brushless motor， polarity is not reversed， the red line then positive， black to negative， if reversed， it will damage the brushless motor.

       2. The pump itself is not self-priming and must be installed in a horizontal direction at work， or carry out irrigation discharge air.

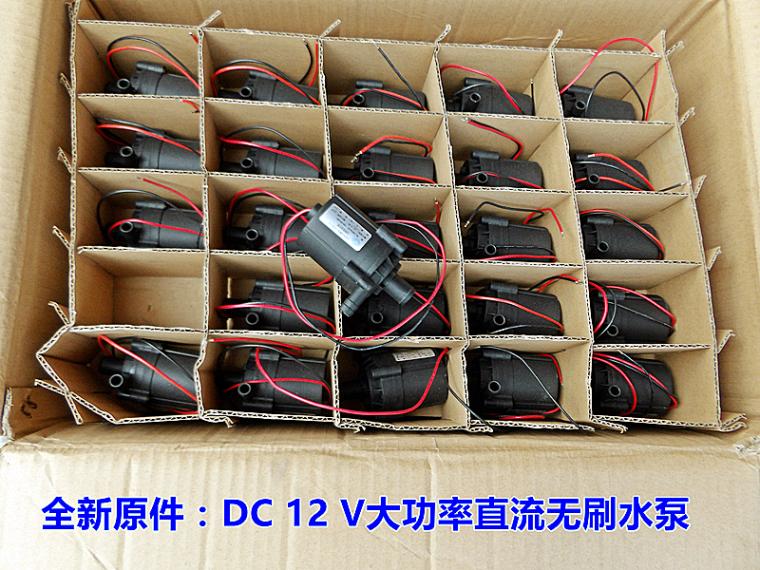

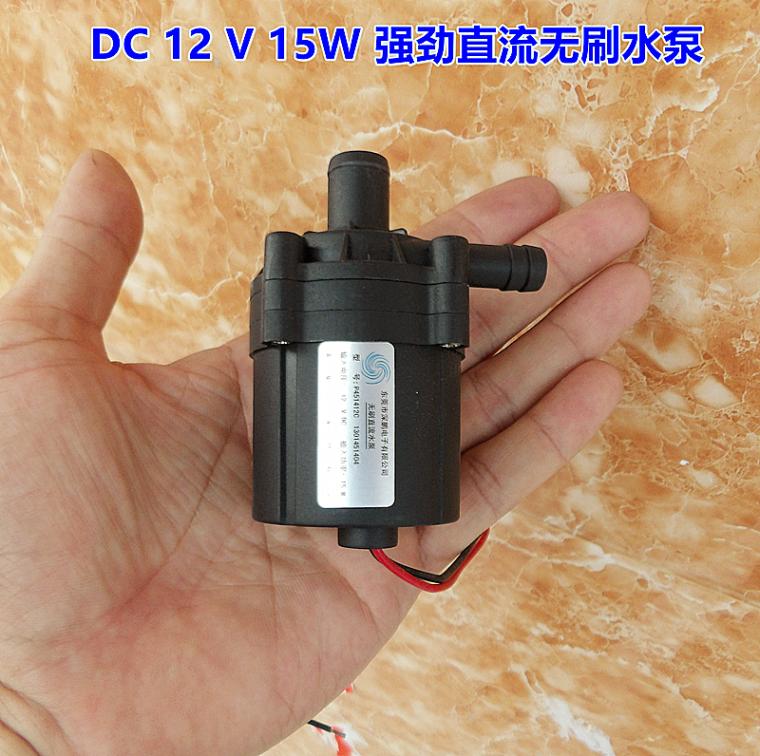

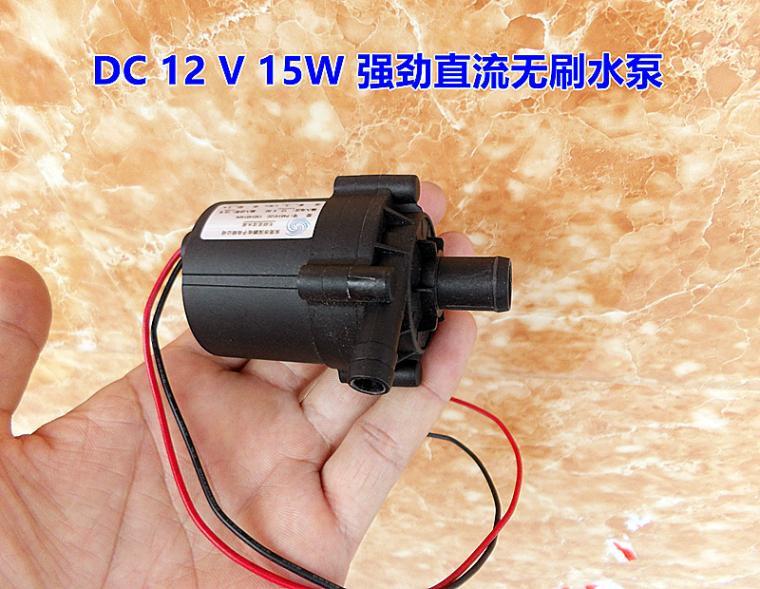

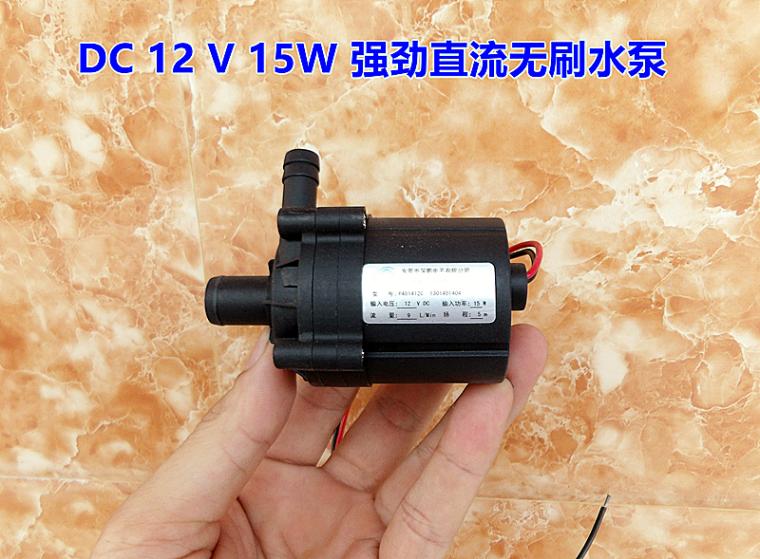

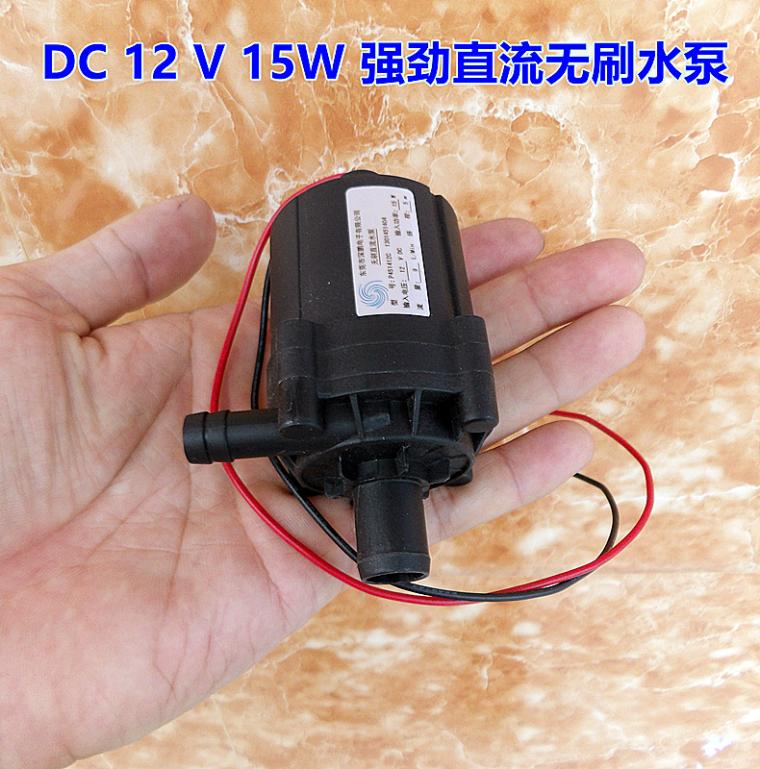

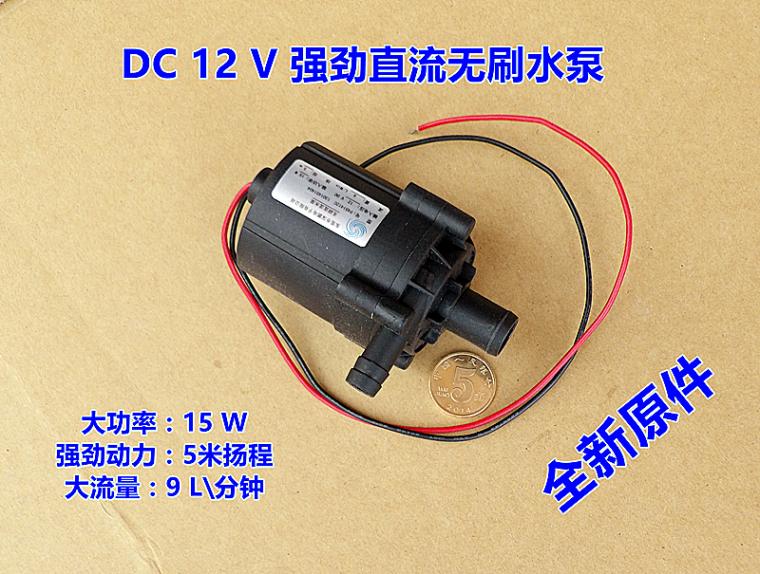

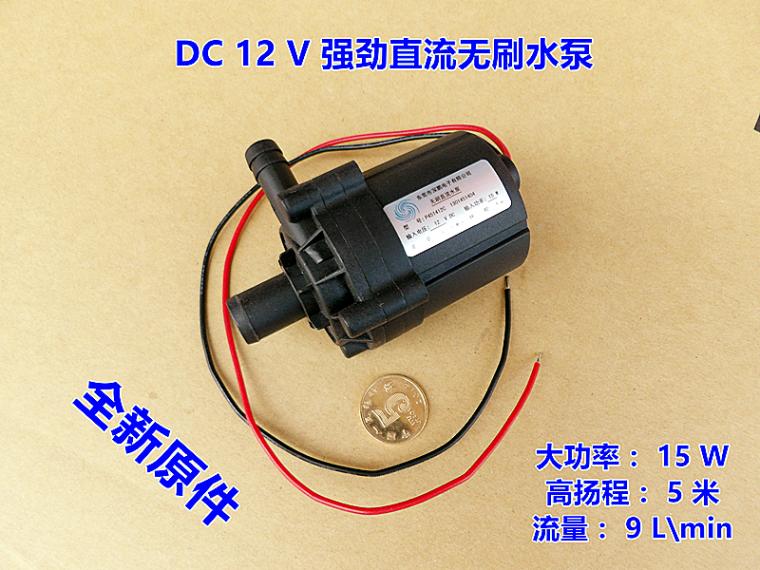

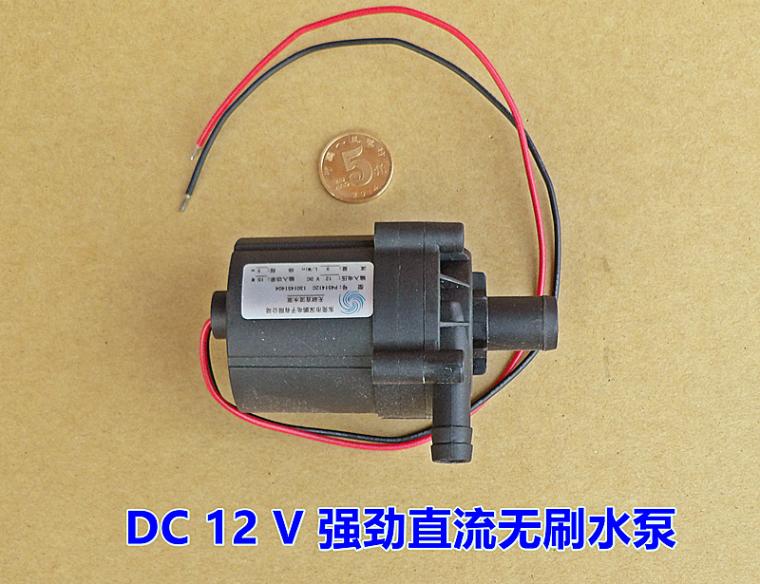

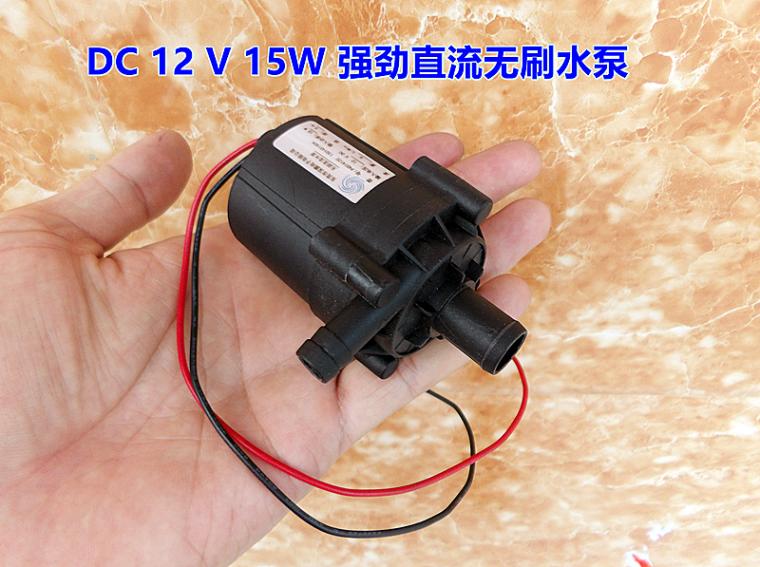

The new original brushless DC pumps， exquisite workmanship.

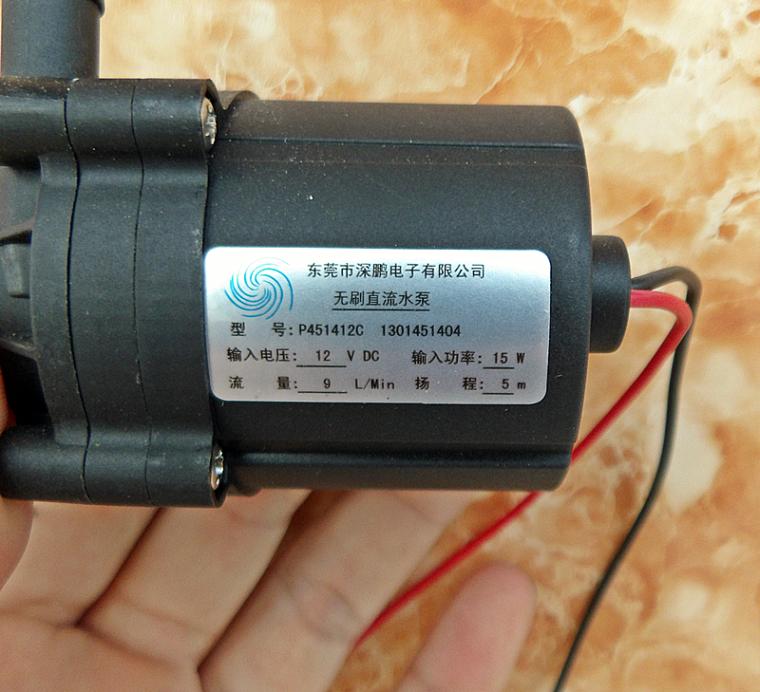

Power: 15W，

High-lift: 5 m，

High flow: 540 L hours.

         Our power test pumping， powerful， water hit the wall reflected back the power to the jet wet.

Remarks:
1. The pump is not self-absorption capacity， the installation location should be lower than the horizontal plane.
2. The temperature can not pump continuously for long hours
3. The best filter is installed on the pump pipe imports
4. lift the level of imports is the vertical distance to the discharge port

(According to my observation， only the pump itself is not waterproof， submersible pumps are not suitable for use)



Applications: pressurized water heater， plumbing mattresses， hot water circulation pumps， foot surf jacuzzi， humidifiers， air conditioners， washing machines， small-scale irrigation， medical equipment， cooling and heating systems， process fountain pump， the food sector， solar water heaters， pumps， appliances and equipment water circulating pump， circulation pump washing machine， soilless cultivation， sanitary pumps， etc.

Pump Weight: 181 g

  Advantages: long life， low noise up to 35dB or less， and can be used for hot water circulation pump axis high-performance precision steel shaft， high precision， good shock resistance.
