Universal X5 3 Inch Car OBD2 II HUD Head Up Display Overspeed Warning System Projector Windshield Auto Electronic Alarm Voltage

Warm Note: This item is not compatible with European / American cars manufactured before 2003 or Asian cars manufactured before 2007.

The Item is also not suitable for All Jeep and SUV Cars including those who has OBD2 Interface.
Please notice it. Like following pictures show.

Note:

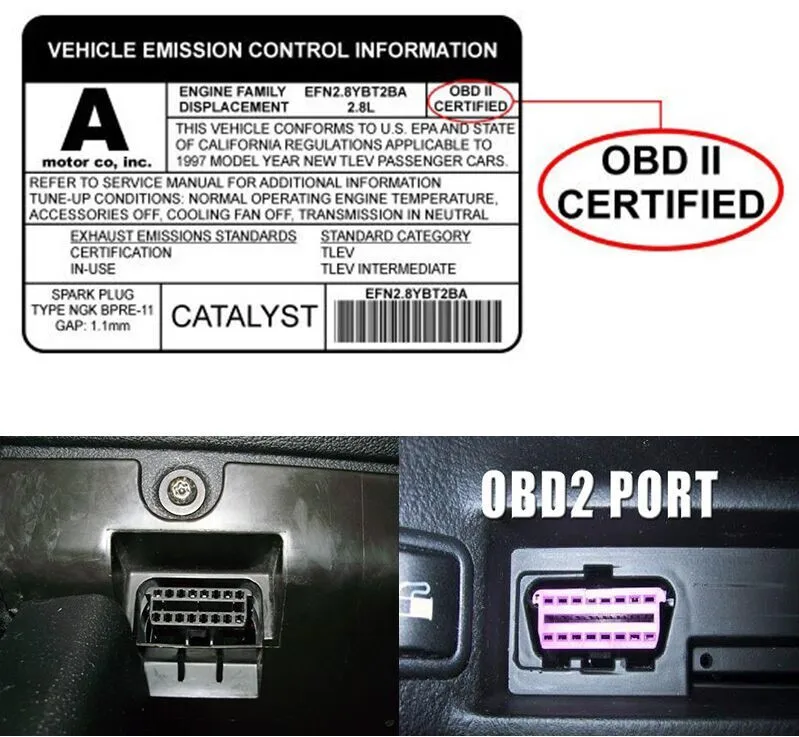

- Automatically adapt to the automobile models with OBD II ( Bus Automatic Diagnostic System ) interface. Check if it has the automobile diagnostic socket under the steering wheel.
- Identify the car\'s 16-pin diagnostic socket, connecting the OBD II cable to the 16-pin diagnostic socket if it has this socket.
- Put the non-slip pad onto the instrument pane, then put HUD on the non-slip pad, you can adjust the angle an position.
- The reflective film may be affixed to the forward position of HUD and stick to the front windshield, ensuring that the information, such as car speed can be projected to the reflective film.




- Plug and play, HUD can auto adapt to vehicle type which in line with OBDII or EU OBD ( On-Board Diagnostic System ).

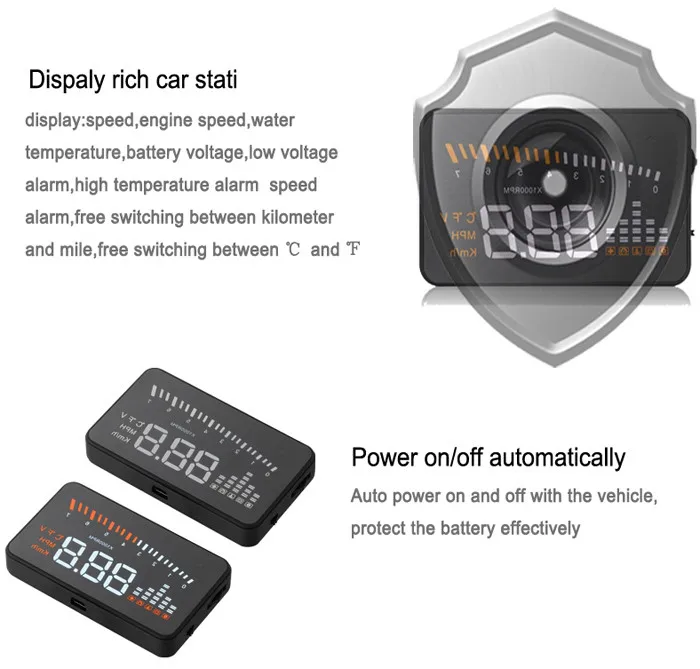

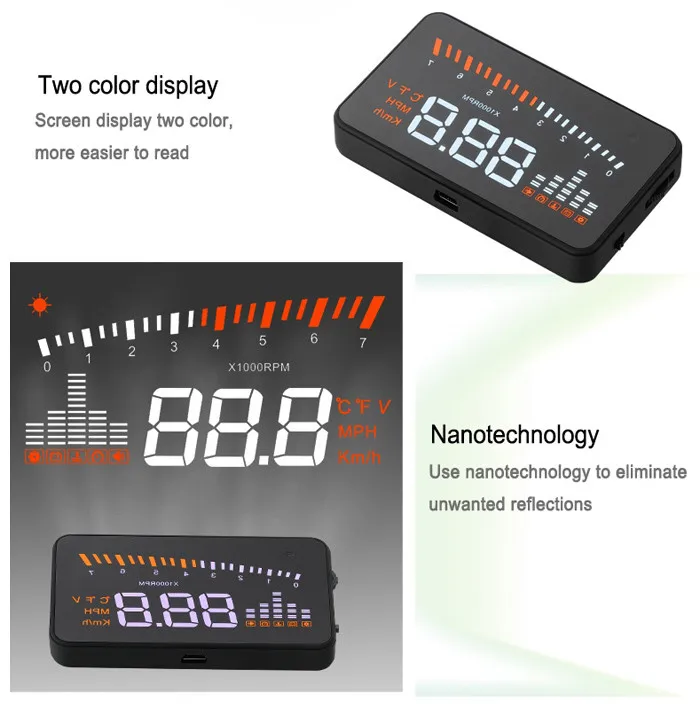

- Comprehensive display, HUD can display many parameters at the same time as follows, vehicle speed, engine speed, low voltage alarm, high temperature alarm, speed alarm, free switching between kilometer and mile, free switching between centigrade and fahrenheit.

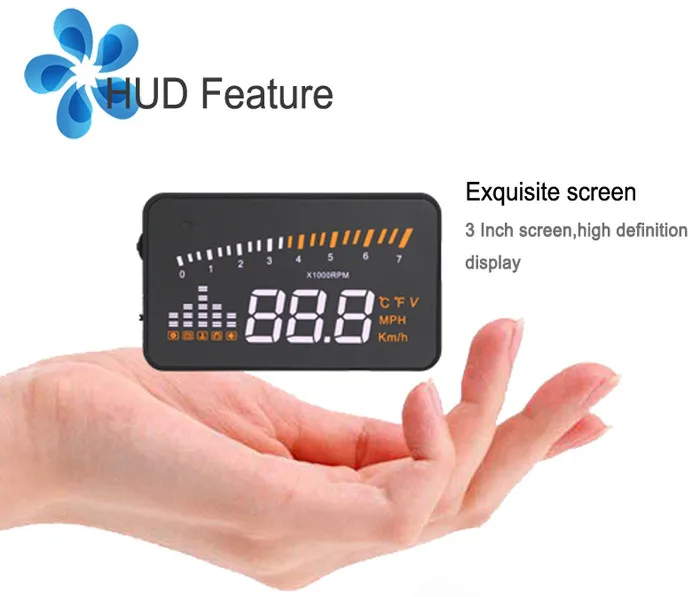

- Suitable size, the display area is 3 inches which is very clear for driver to read data.
- Flexible brightness adjustment, the brightness can be adjusted automatically or manually to reach the best state which is in harmony with the environment.

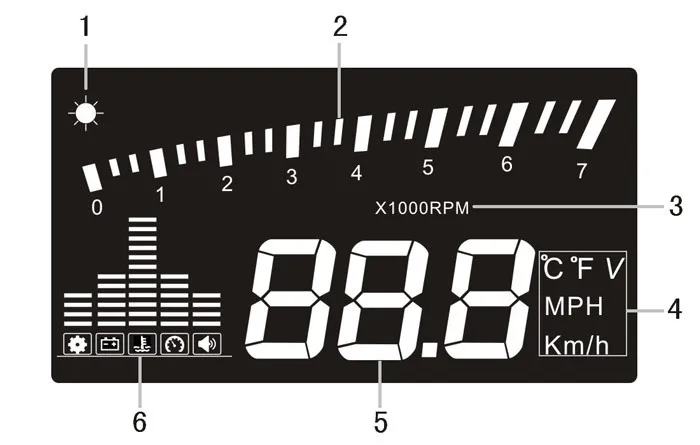

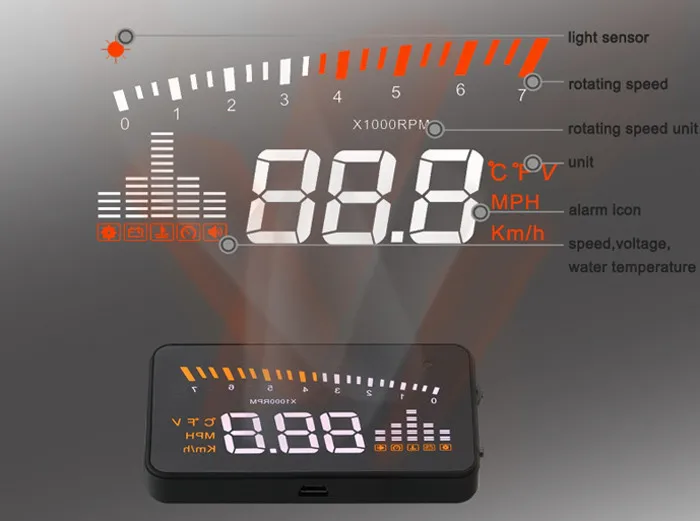

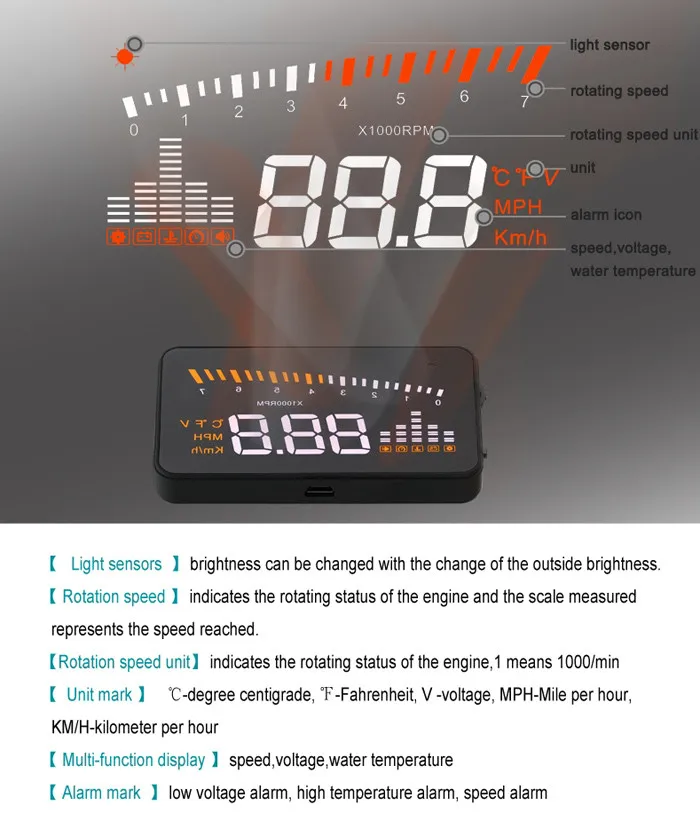

1. Light sensors: Brightness can be changed with the change of the outside brightness.
2. Rotation speed: Indicates the rotating status of the engine and the scale measured represents the speed reached.
3. Rotation speed unit: Indicates the rotating status of the engine,1 means 1000 / min
4. Unit mark: C - degree centigrade, F - Fahrenheit, V - Voltage, MPH - Mile per hour, KM / H - kilometer per hour.
5. Multi-function display: Speed,voltage,water temperature.
6. Alarm mark: Low voltage alarm, high temperature alarm, speed alarm.

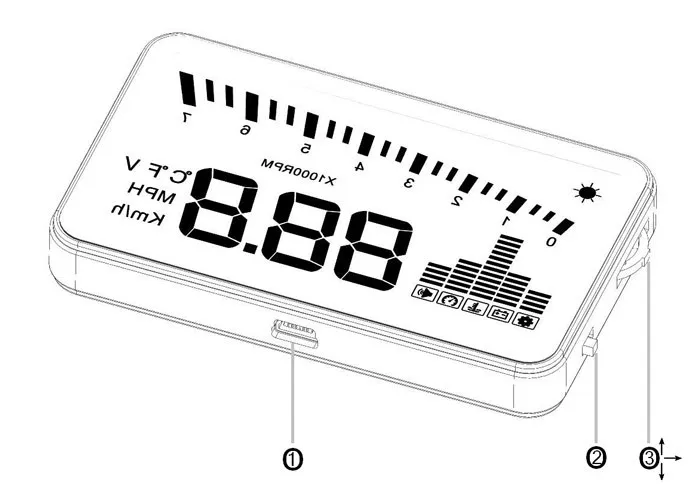

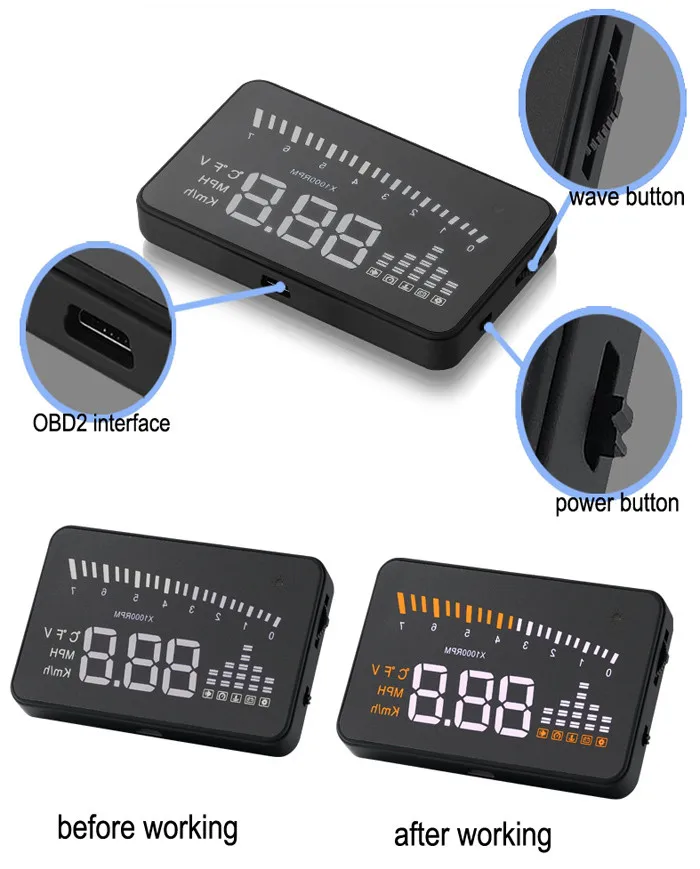

1. OBDII interface, to contact the vehicle OBD interface.
2. Button for power on and off.
3. Wave button: Up button ( turning the button to upside ), OK button ( pressing the button vertically ), Down button ( turning the button to downside ).

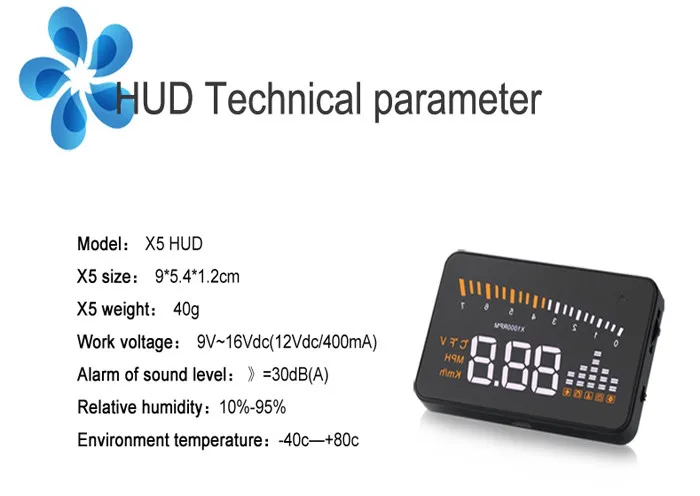

Specification

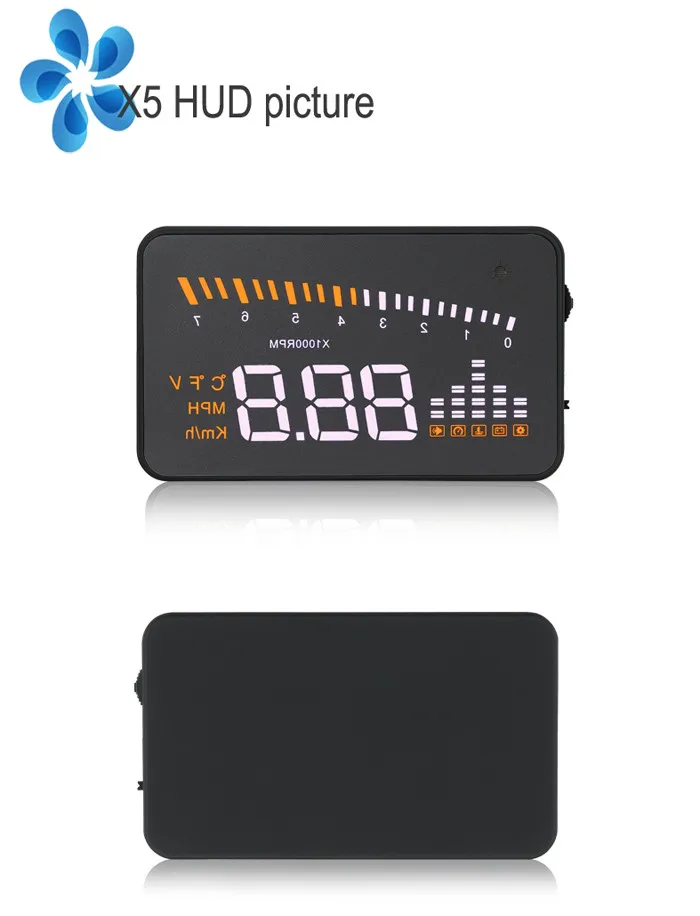

Model: X5
Color: Black

Screen: 3 inch
Data measurements: live data,Vehicle speed

Package weight: 0.223 kg

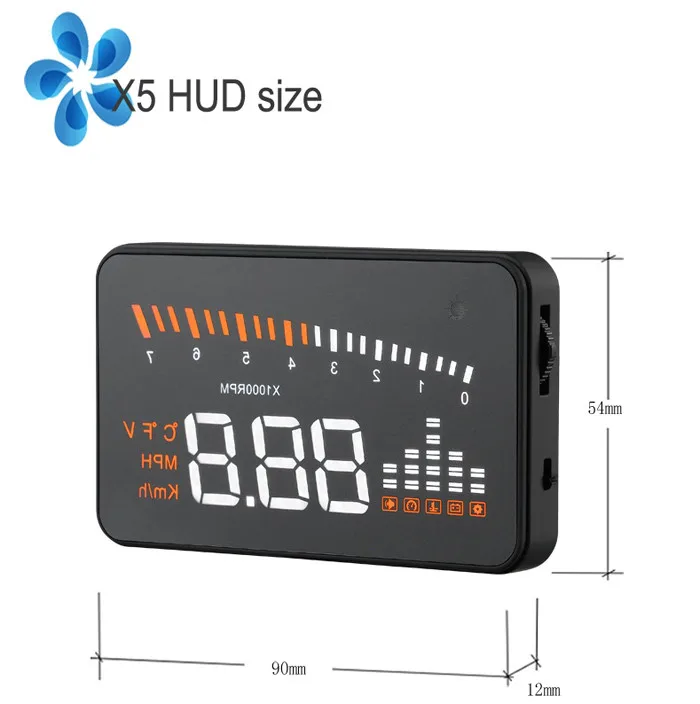

Product size (L x W x H): 9.00 x 5.40 x 1.20 cm / 3.54 x 2.13 x 0.47 inches
Package size (L x W x H): 16.50 x 13.00 x 4.50 cm / 6.5 x 5.12 x 1.77 inches

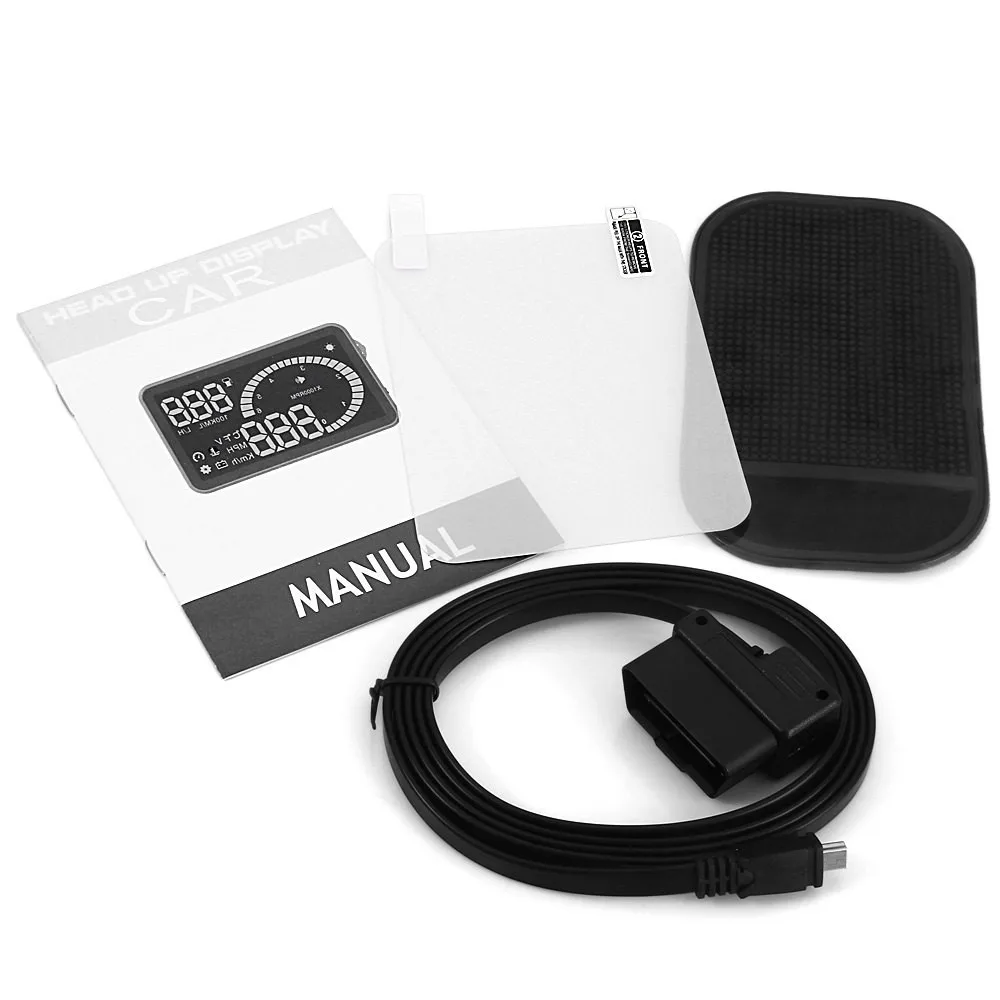

Package Contents: 1 x X5 Head Up Display, 1 x English Manual, 1 x OBD II Cable, 1 x Anti-skid Mat, 1 x Reflective Film
