Item Descriptions:

Vital Audio (Vitalar Audio), which was established as a guitar shield brand in 1991, boasts a quarter century history as a domestic original brand.

For many years professionals and amateurs have been favorite for many guitarists / bassists, and among the domestic cable brands it is recognized as a well-established store.

The VA - 08 that appeared as the second model of the POWER CARRIER series which was introduced as a series of new power supply for effect pedals from July 2016 is a specification that isolates the power supply outputs of three lines (group), respectively,

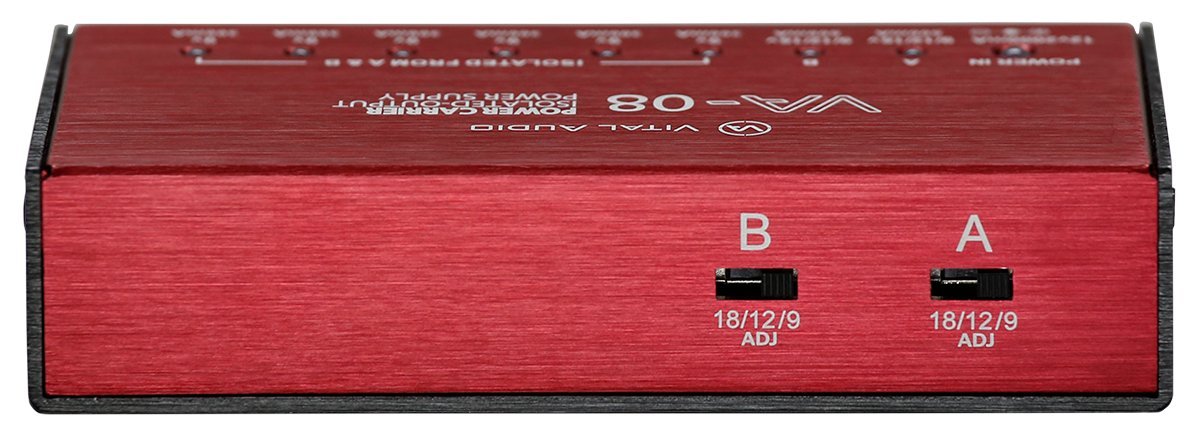

In addition to the 9 V / 300 mA output system (6 out), it was a very easy to use model equipped with 2 series (2 out) 500 mA output variable with 9 V / 12 V / 18 V.

Incorporating requests from customers, this time the 9 V output system is also isolated, each has been renewed to full isolate specification.

Furthermore, the capacity of 9 V output is up to 500 mA, and the variable output of 9 V / 12 V / 18 V is upgraded to 800 mA at maximum (total current capacity: 2000 mA).

A distribution Y cable was bundled that can be used by branching one port along with power up.

With two margin power capacity and variable voltage specifications, you can also use a high voltage drive type pedal with plenty of time.

* By using the attached step-up Y cable, even higher voltage supply is possible.

For example, [A port + B port] can boost up to 36 V, [A or B port + 9 V port] up to 27 V.

* By using the Y-cable for distribution included, it can be distributed to two at the same voltage.

However, the total current can not exceed the original capacity of the output port in total.

VA-08 MkII design

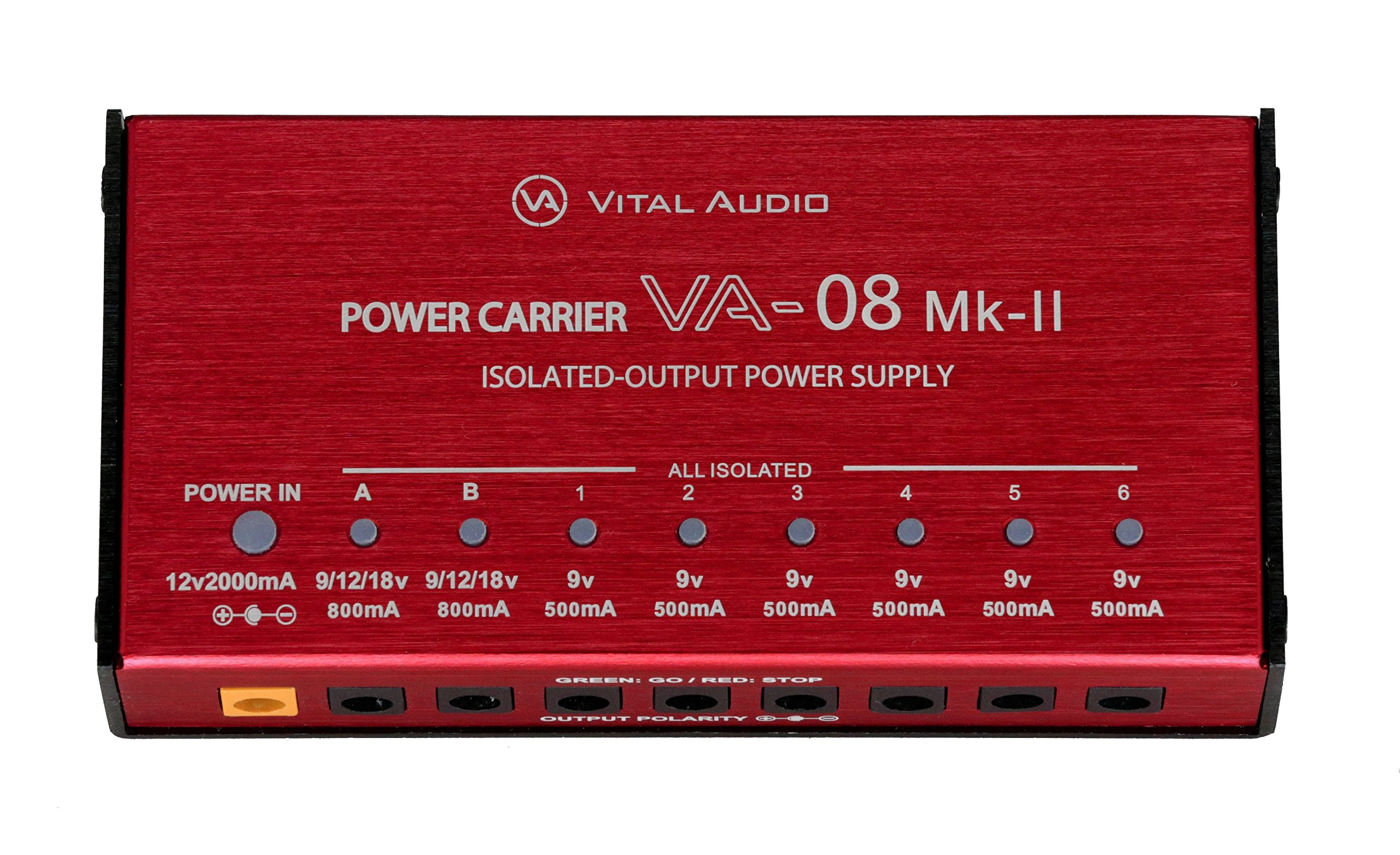

VITAL AUDIO 's POWER CARRIER VA - 08 Mk - II has a red color scheme that is also an image color of VITAL AUDIO in an enclosure full of luxurious aluminum scraping.

Also, the bottom of the enclosure places an accent blank, it also draws attention to the fact that it is two tone color of red × black.

The internal circuit is a safe design designed by a professional manufacturer in Germany.

Features:

• Please enter model number Confirm this is compatible:
• Power supply for full isolate type effect pedal
• 9 V 500 mA (maximum) port x 6
• 9V / 12V / 18V voltage variable 800mA (maximum) port x2
• Short protection circuit ensures stable operating environment
• Protection against power shortage and overload by FCLS (Foldback Current Limiting Circuit)

Product information:

Shipping Weight: 798 g

Package Dimensions: 10.11 x 13.21 x 19.81 cm
