3 Port HDMI/MHL Audio Extractor



（4K ARC Audio EDID setting 5.1CH/PASS/2CH）







FEATURES

l   One MHL/HDMI double input and two HDMI input switch freely to one HDMI output.

lAny input HD Source can do audio extract by the SPDIF ort LR audio output port.

lSupport  Full HD 1080P， Full 3D，4K*2K

lSupport ARC Function: Without adding one extra HDMI Cable， it can reverse the audio to the AV Amplifier by HDMI Cable connection with HD TV while the HD TV receives the audio and video content.

lMHL/ HDMIworking in dual mode， can reduce the number of ports

lHDMI to achieve the synchronization of audio signal separation. There are PASS /

2.0CH / 5.1CH three kinds of audio mode options

l  LED indication: when source or sink is working， LED related will go bright.

lSupport input up to 10metres using AWG26 HDMI standard cable length， output up to 15metres using  AWG26 cable length

lIR Remote can do switch to the Input sources， and also you can press the switch button at device to do switch of the Input Sources.

lLed Status Light allows the user to know the working status easily.

lNo loss of quality

lInstalls in minutes

lNeed DC5V/1A power supply

l

The accessories with the machines list as picture：



1、5V power adapter     1pcs

2、User manual         1pcs

3、Remote             1pcs

4、MHL-HDMI cable     1pcs （Optional）









Physical Connection Showing Picture：

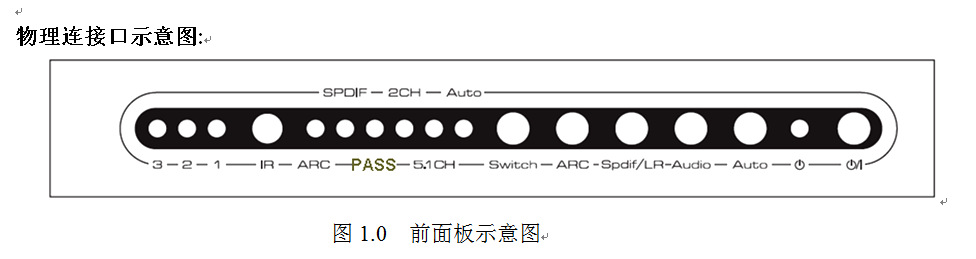

Figure 1.0Front Panel Showing Picture



1-3：HDMI input led status light

IR:IR Receiver

ARC：ARC Led Status Light

SPDIF：SPDIFPortLed Status Light

PASS：Advance Audio Led Status Light

2CH：2CH Audio Led Status Light

5.1CH：5CH Audio Led Status Light

  Auto: The Auto Detect Led Light for Input Sources

Switcher: Input Sources Switch Button

ARC：ARC Function On/Off Key

SPDIF/ LR：On/Off Button for SPDIF and LR audio

Audio：Switch button for Audio output mode， it can choose 5.1CH， 2.0CH， PASS three kinds of audio output mode by circulate switching (When switch to 5.1CH audio mode output， the Digital audio signal receiving terminal must can support DTS/DOLBY-AC3 decode， or the output audio signal receiving terminal will have no sound output; If pls switch to 2CH audio mode. the audio signal receiving terminal can output the audio. When audio output switch to the PASS mode， the audio output format will be decided by the audio signal receiving machine audio decode ability. The splitter will output 7.1 channel audio signal while the output end connects the AV receiver with HDMI port that support 7.1 channel audio decode. (The HD Source signal itself is 7.1 channels)

Auto: Auto Detect Button for the Input Signal

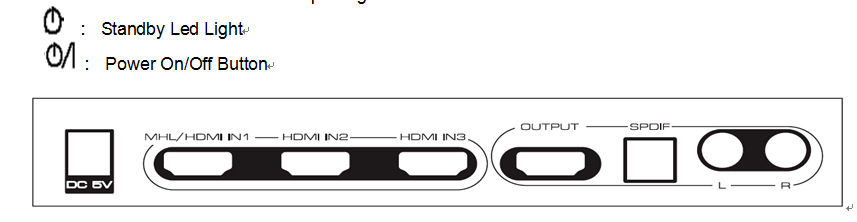

Figure1.1rear panel showing picture



DC5V: 5V DC-DC Power Interface

MHL/ HDMI IN1:MHL/HDMIDual Modeinput ports

HDMI IN2-HDMI IN3：HDMI input interface

OUTPUT:HDMI output interface

SPDIF:SPDIF optical output interface

L/R：LR audio output channel

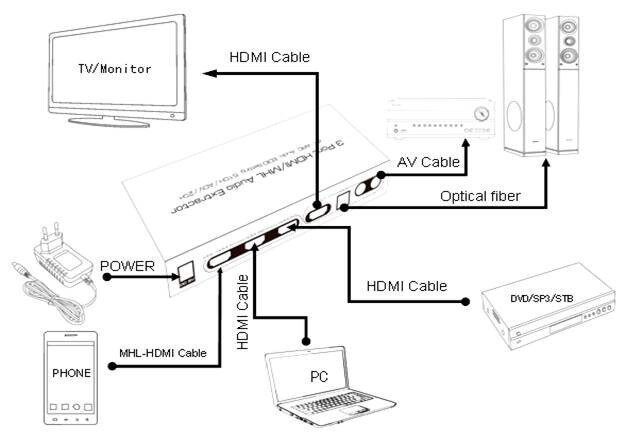

Operating and Connecting:

1. 1.    To use the HDMI cable to connect the input port of 3Port HDMI Audio Extractor with the HDMI sources or to use one MHL-HDMI cable to connect the MHL smart device to connect with the HDMI double mode input port.
2. 2.    To use one HDMI cable to connect the HDMI output port of the Switcher with the HD Display.
3. 3.   To use one optical cable to connect the SPDIF port of the Switcher with the AV receiver.
4. 4.   To use RCA audio cable to connect the LR audio port of Switcher with the Analog Audio Input port.
5. 5.   ，To use the IR remote or the switch button to do control and switch to the Input sources and the ARC/SPDIF function.
6. 6.   To connect the 5V adaptor with the device.































SPECIFICATIONS:                           HDSW0003M1

HDMI resolution ……………………………..4KX2K/1080p/1080i/720p/576p/576i/480p/480i

Support video color format …………………………..…………….24bit/deep color 30bit，36bit

Audio output………………………………………………...……………………….. L/R+SPDIF

Maxtransmission bandwidth…….………………….………………………………….. 300MHz

Max baud rate…………………………………………………………………………….9.0Gbps

Input/Output TMDS signal ………….…………………………..……………… 0.5~1.5Volts p-p

Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)

Input cable distance..…... ……………………….………..≤10m AWG26 HDMI standard cable

Output cable distance……………………………….…….....≤15 AWG26 HDMI standard cable

Max working current…………………………………………………………………………500mA

Power adapter format………………..Input: AC (50HZ， 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-10 to +55℃)

Storage Temperature range…………………………………………………………… -20 to +60℃

Operating Humidity range………………………….….……….10 to 90%RH (No Condensation)

Storage Humidity range………………………….….……….…5 to 95%RH (No Condensation)

Dimension (L x W x H)     ……………………………….……………………..…179X67X28(mm)

Weight…..………………………………………………………..…….……..…………………365g







IR Remote Operating Instruction



1．Firstly take off the plastic film that inserted in the rear of remote board

2．You can press the number 1， 2， 3 button directly to choose the input channel that you want. For example， if you want switch the input two sources to the output; you can press the number 2 button directly.

3．2CH：2 channel stereo mode.

4．5.1CH：5.1 channel mode.

5．PASS：Advance Audio model

6．SPDIF/ L R：ON/OFF Key for SPDIF and LR audio out

7．ARC：ARC Function On/Off Key

8．Auto: Auto Detect Button for Input Sources.

9．The plastic film is strongly advised to insert the rear of the remote board when the remote is not used for long time.
