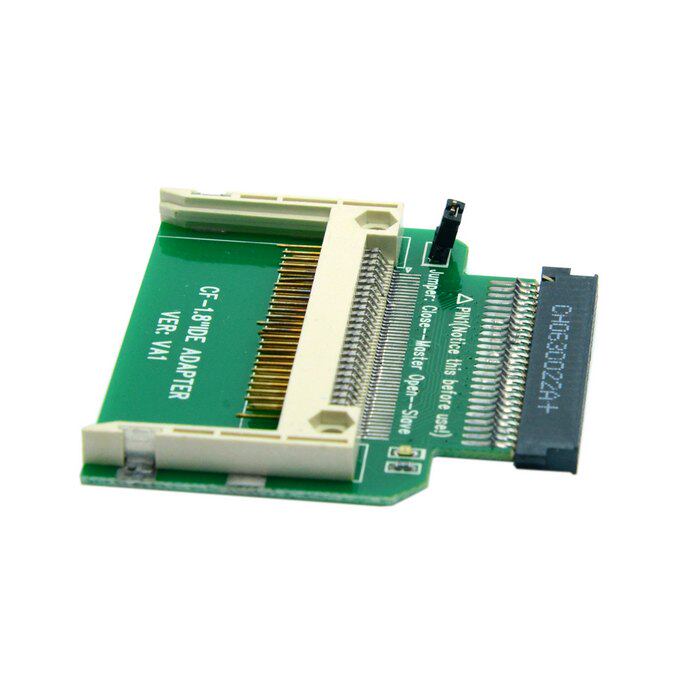

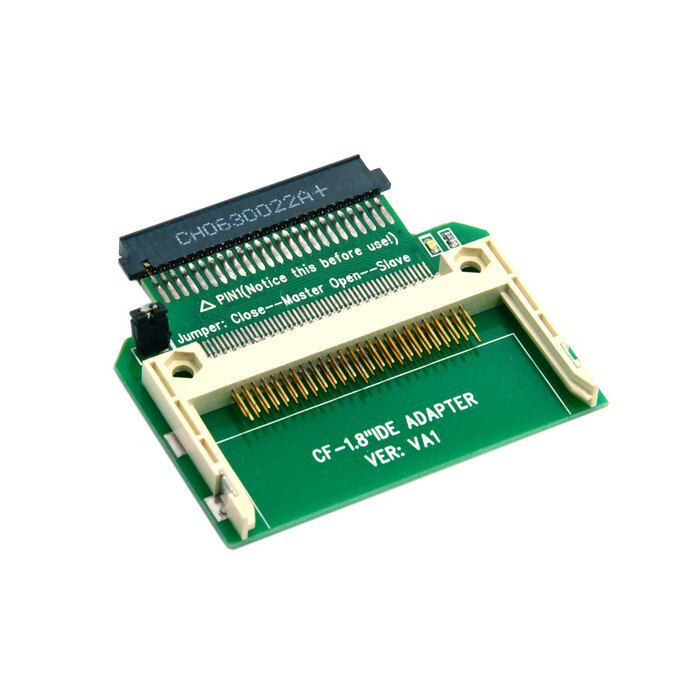

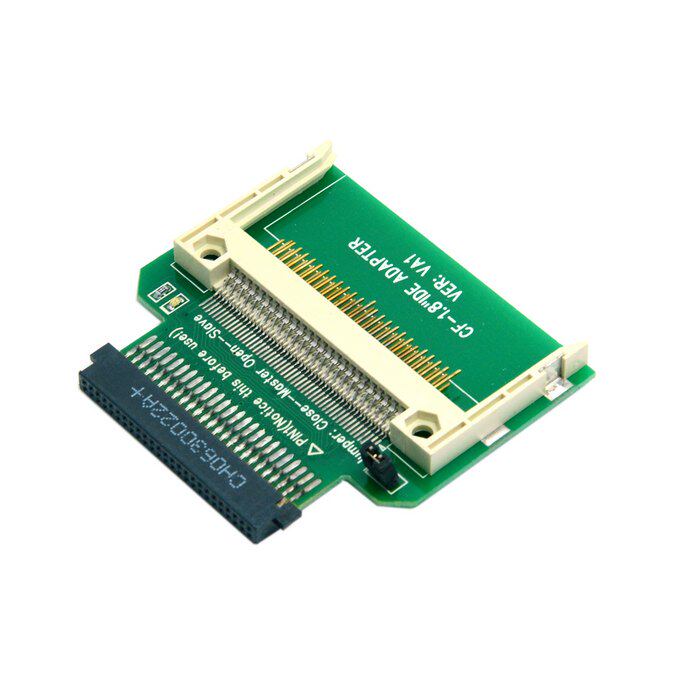

宝贝名称：CF转1.8寸 东芝硬盘 针50pin IDE界面 1.8转CF EP-035
产品介绍：
将CF卡转为东芝 1.8寸硬盘接口，用CF卡来替代东芝1.8的硬盘。有主从跳线设置。
功能介绍：
IDE转CF卡是转换CF卡接口为1.8 IDE接口的接口卡，将CF卡作为IDE硬盘使用的嵌入式设备,,直接插入主板上的IDE接口无须IDE连接线. 支持CF卡当IDE硬盘启动,用于嵌入式工业PC，以存储嵌入式LINUX, WINCE等操作系统和应用程序 ,主板、板卡生产厂用此电子硬盘取代硬盘作测试以提高效率与节约成本, 把您的CF卡变成标准的IDE电子硬盘，在电子硬盘里面可以安装linux,Win98,DOS等操作系统体验电子硬盘的高速快感, 可为CF卡提供+3.3V、+5V的电压, 主从盘跳线装置, 兼容CFI、CFII、Micro-drive , 44手机电脑硬盘接口
符合标准：CF规范Ver2.0,IDE/ATA-33规范；
标准IDE接口界面：true-IDE模式；
支持CF-I和CF-II两种类型卡；
主/从跳线设置：可以配置成主盘或从盘；
把CF卡当DOM来用：从外部软驱电源座供电；
主要用途：
计算机周边设备生产厂用CF转IDE卡配合CF卡来测试主板，声卡，显卡等产品。在这些场合需要频繁打开/关闭电源，传统机械式硬盘很容易损坏。CF卡是一种电子式硬盘，原理上与机械式硬盘截然不同，在这些场合不容易损坏。
便携式仪器使用嵌入式X86或RISC内核通常都有IDE接口界面，如果CF卡不能直接连到这些仪器设备上，您就可以使用本适配器来完成转接。
个人电脑（PC机）：这些电脑通常都是X86内核，这是该卡主要使用平台。一些数码相机具有CF卡接口界面，你可以在台式机上通过本卡存取您的图片数据。
工业PC机使用本卡和CF卡配合使用，用来存放嵌入式操作系统例如嵌入式LINUX或WIN CE。您也可以把CF当作一个移动的硬盘，这样数据就可以随意移动了。
產品規格:
1、一个标准的东芝1.8寸硬盘接口
2、一个标准的CF接口
3、卡尺寸约为50mm x 48 mm
Baby Name: CF 1.8-inch Toshiba hard drive pin 50pin IDE interface 1.8 turn CF EP-035
product description:
The CF card to Toshiba 1.8-inch hard drive interface, with a CF card to replace the Toshiba 1.8 hard drive. There are master-slave jumper settings.
Features:
IDE to CF card is converted CF card interface to 1.8 IDE interface card, the CF card as an IDE hard disk using embedded devices, directly into the IDE interface on the motherboard without IDE cable. Support CF card When the IDE hard disk starts, For embedded industrial PC, to store embedded LINUX, WINCE and other operating systems and applications, motherboards, board manufacturers use this electronic hard drive to replace hard disk for testing to improve efficiency and cost savings, your CF card into a standard IDE hard disk drive can be installed in the electronic hard disk drive such as linux, Win98, DOS and other operating systems to experience the high-speed pleasure of electronic hard disk, which can provide + 3.3V and + 5V voltage for CF card. The master and slave jumper devices are compatible with CFI, CFII, Micro-drive, 44 mobile computer hard disk interface
Standards compliance: CF specification Ver2.0, IDE / ATA-33 specification;
Standard IDE interface: true-IDE mode;
Support CF-I and CF-II two types of cards;
Master / slave jumper settings: can be configured as master or slave;
The CF card as the DOM to use: power supply from the external floppy drive power supply;
The main purpose:
Computer peripherals CF CF card with IDE card with CF card to test the motherboard, sound card, video card and other products. In these situations require frequent power on / off, the traditional mechanical hard disk is very easy to damage. CF card is an electronic hard drive, in principle, and mechanical hard drive completely different, in these occasions is not easy to damage.
Portable instruments usually have an IDE interface using an embedded X86 or RISC core. If the CF card can not be connected directly to these instruments, you can use this adapter to complete the transition.
Personal Computer (PC): These computers are usually the X86 core, which is the main use of the card platform. Some digital cameras have a CF card interface, you can access your picture data on the desktop through this card.
Industrial PCs use this card in conjunction with a CF card to store embedded operating systems such as embedded LINUX or WIN CE. You can also think of CF as a removable hard drive so data is free to move.
Product Specifications:
1, a standard Toshiba 1.8 inch hard drive interface
2, a standard CF interface
3, the card size is about 50mm x 48mm
