Item Descriptions:

Product introduction

【The top model of the PCIe Sound Blaster Z series!】 A sound card of studio grade audio quality.

Flagship model PCIe Sound Blaster ZxR is a studio grade audio quality sound card.

Very high quality DA converter · Adopt high quality audio components sticking to sound quality such as AD converter and capacitor, replaceable operational amplifier etc.

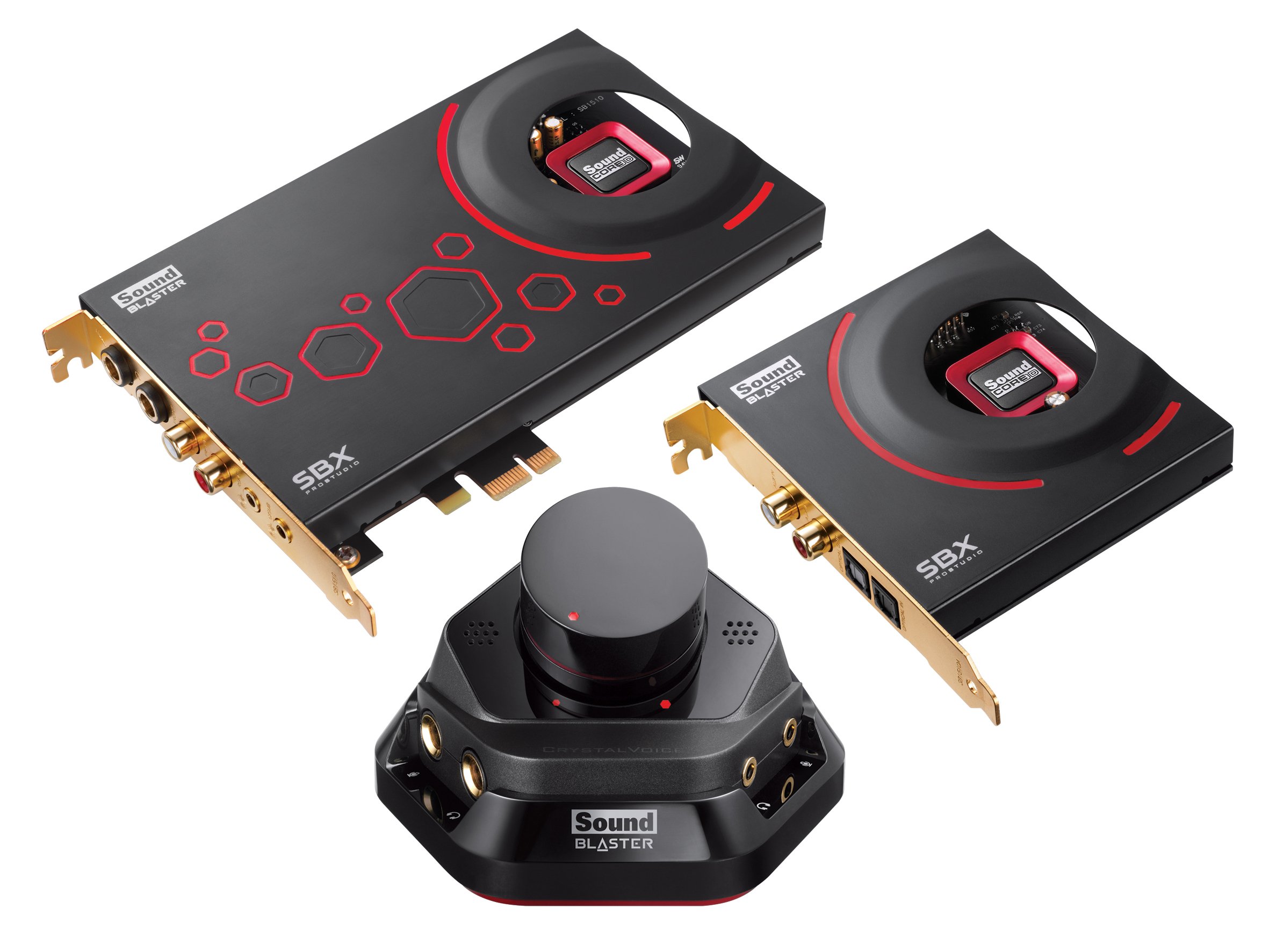

In addition to the main card which mainly includes audio output such as 5.1 ch output including gold-plated front output (RCA) and headphone output, it consists of two DBPro daughter cards equipped with line input and optical digital input / output.

Also comes with an Audio Control Module that can connect headphones and headset at hand.

Adopting sticking audio components such as studio grade DA converter and various capacitors, with superior circuit design with very low noise of S / N ratio of 124 dB with measured card value, clear clear reproduction environment

Realization.

· SBX Pro Studio technology provides more powerful and realistic feeling for listening to music and watching movies on PCs and games.

· Equipped with a stereo direct output mode capable of high-quality stereo output of 24 bit / 192 kHz processing.

· Equipped with a headphone output terminal equipped with a headphone amplifier that can be driven even with headphone at maximum output of 600Ω impedance.

· By adopting professional grade components for analog input components, it is possible to record audio with a clear sound quality of S / N ratio of 120 dB with measured card value.

· CrystalVoice technology, Five friends' voice chat can be enjoyed more clearly and comfortably with 5 functions.

· New function "Scout mode" installed.

It is possible to feel a minute movement with sound by highlighting the environmental sound in the game such as "footsteps".

· Standard bundle of premium software "Creative Media Toolbox [Full Version]".

- Audio Control Module with built-in high quality stereo microphone array is included.

Also equipped with headphone output and microphone input, you can connect at your fingertips when using your favorite headphones or headset.

A more convenient headphone volume knob allows you to quickly adjust the volume during private listening.

[Terminal on Audio Control Module] Dual microphone array mounted, headphone output terminal (3.5 mm mini stereo, 6.3 mm stereo), microphone input terminal (3.5 mm mini, 6.3 mm), connection cable (3.5 mm stereo terminal x 2,

1.4 m) 【Package contents】: Sound Blaster DBPro daughter card, Audio control module, RCA-3.5 mm cable x 1, RCA-3.5 mm jack conversion connector x 1, 3.5 mm - 6.3 mm conversion connector x 2, optical digital cable x 1, installation CD

From Amazon

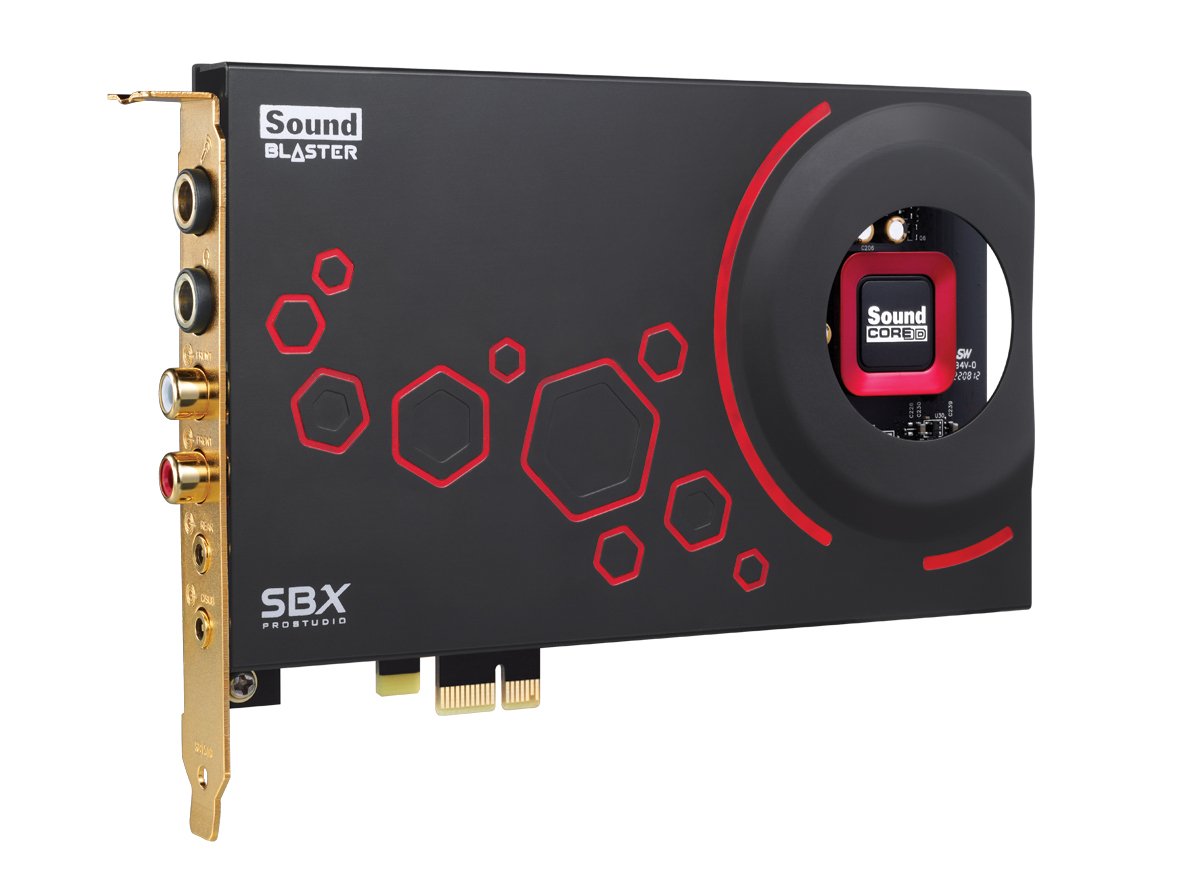

PCIe Sound Blaster ZxR

High resolution music compatible.

The top model of Sound Blaster Z series!

It adopts studio-grade components and consists of two main cards, analog output and main input, DBPro daughter card with analog input and digital input / output.

Audio Control Module included

Adopt high quality audio components sticking to sound quality such as very high quality DA converter, professional grade AD converter and capacitor, replaceable op amp etc

In addition to the main cards mainly for audio output such as front output (RCA terminal) with gold plating, 5.1 ch rear output, center & woofer output and headphone output terminal, plus the line input terminal of gold-plated RCA terminal and optical digital input / output

Two pieces of DBPro daughter card equipped with terminals.

In addition, it comes with Audio Control Module which can connect headphones and headset at hand.

Equipped with a stereo direct output mode that enables high-quality stereo output of high resolution audio 24 bit / 192 kHz processing from the front line output (RCA) on the main card.

Enjoy direct playback of high quality processing.

With the Sound Core 3D processor with SBX Pro Studio technology and CrystalVoice technology and high quality circuit design, the Sound Blaster ZxR pushes the technology and performance standard to an unprecedented level for next-generation PC entertainment.

Quad-core Audio & Voice Processor Sound Core 3 D

Creative's most advanced quad-core audio and voice processor Sound Core 3 D is an innovative Quartet DSP consisting of four independent processor cores that supports various audio effects of SBX Pro Studio technology and CrystalVoice technology in hardware.

SBX Pro Studio technology provides more powerful and realistic feeling for listening to music, watching movies, playing games on the PC.

Even for headphones and stereo speakers, realistically realize 360 ​​degree 3D audio worldview by creating virtual surround speakers.

CrystalVoice technology by Sound Core 3D hardware computation dramatically improves voice communication.

CrystalVoice Noise Reduction to reduce ambient noise and CrystalVoice Focus to block sounds outside the microphone's sound collection range, automatically adjust the sound level at a certain distance from the microphone CrystalVoice Smart Volume, robot voice etc. Chat voice

You can enjoy friends' voice chat more comfortably with 5 functions such as CrystalVoice FX which changes.

Connected to home entertainment system with a single digital cable, headphone amplifier for scout mode and 600 Ω impedance

In addition to analog 5.1 output, Dolby Digital Live Encode function and DTS Connect encode function make it possible to encode the sound inside the PC to Dolby Digital signal or DTS signal in real time.

Moreover, "Scout mode" which highlights environmental sound in game such as "footsteps" is installed.

With this unique feature you can hear its existence before the enemy character of the game finds you.

Headphone output can also be driven with headphone with impedance up to 600 Ω.

It is also ideal for private listening with headphones.

Also, by changing the headphone output and analog line output with the Sound Blaster Z-Series control panel software, you can switch the output to the headphones or the speaker system without replacing the cable.

To the new standard of high-end PC audio

Adopted sticking audio components such as studio grade DA converter and various capacitors, with an excellent circuit design with extremely low noise of S / N ratio of 124 dB with card measurement values, clear clear reproduction environment

Realization.

High resolution 24 bit / 192 kHz stereo direct output mode

Equipped with a stereo direct output mode capable of high-quality stereo output of 24 bit / 192 kHz processing from the front line output (RCA) on the main card.

Enjoy direct playback of high quality processing.

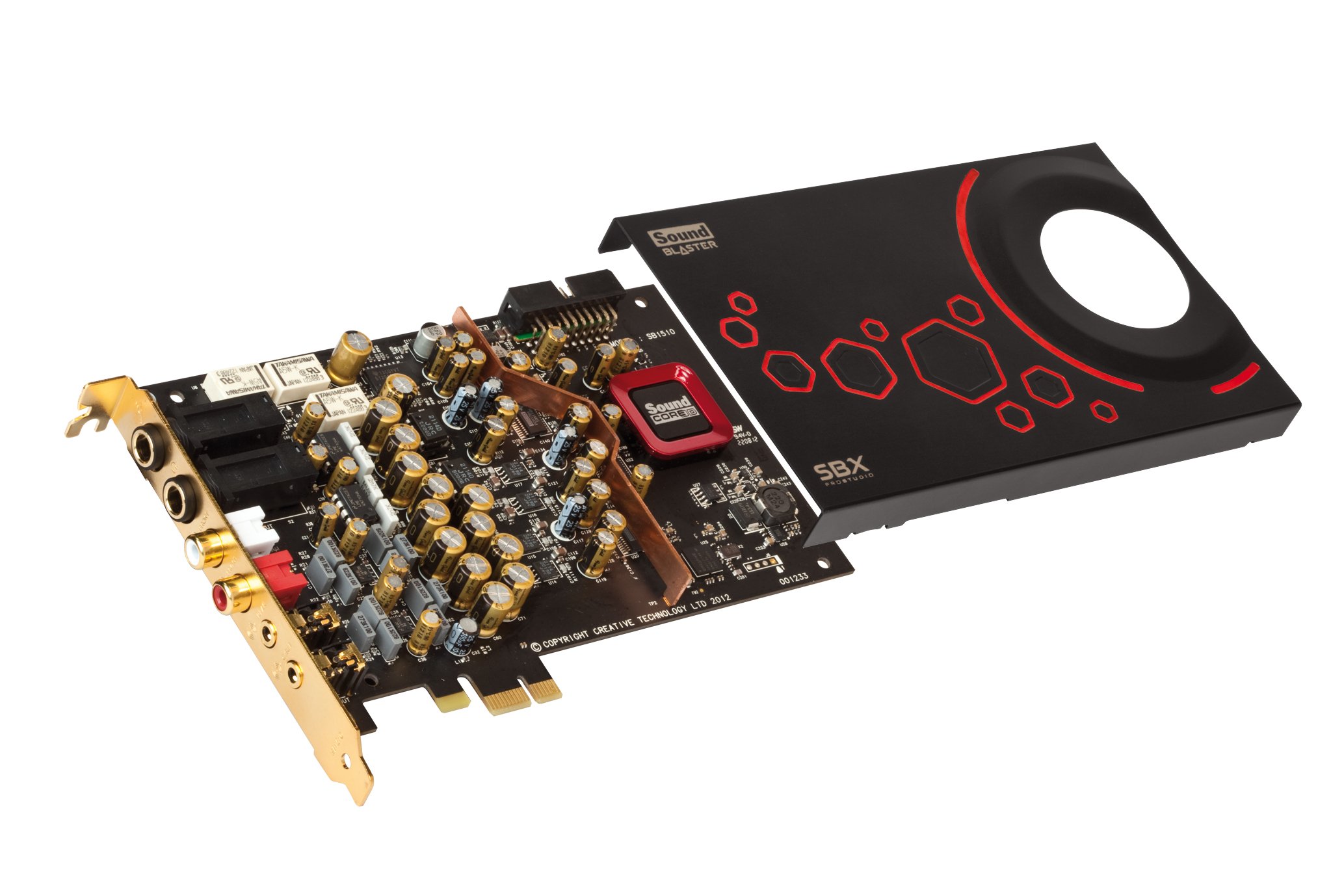

Adoption of high-grade parts and EMI shields for high-quality audio

Various high-grade parts are adopted, such as high-end D / A converter / A / D converter manufactured by Bar Brown, "Fine Gold" capacitor manufactured by Nichicon, etc. are adopted.

Also, EMI shield is adopted for noise reduction.

In addition to the shield covering the card, a shielded copper plate is mounted on the card.

These EMI shields protect the analog path on the circuit from the digital noise inside the PC case.

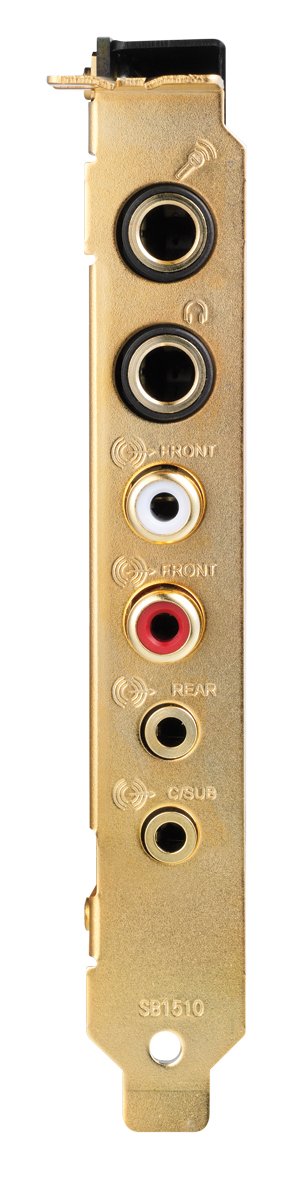

Stereo input / output with gold-plated RCA terminal

The front line output terminal (RCA) mounted on the main card and the analog input on the DBPro daughter card adopt RCA terminal with gold plating with less sound degradation.

Furthermore, the main card also features a rear channel output with 3.5 mm mini stereo gold plating and a center / subwoofer channel output, and can also be connected to a 5.1 channel speaker system.

It also features independent headphone output capable of driving headphones up to 600 Ω, making it ideal for private listening.

We also adopt a gold-plated bricket with luxurious gold color.

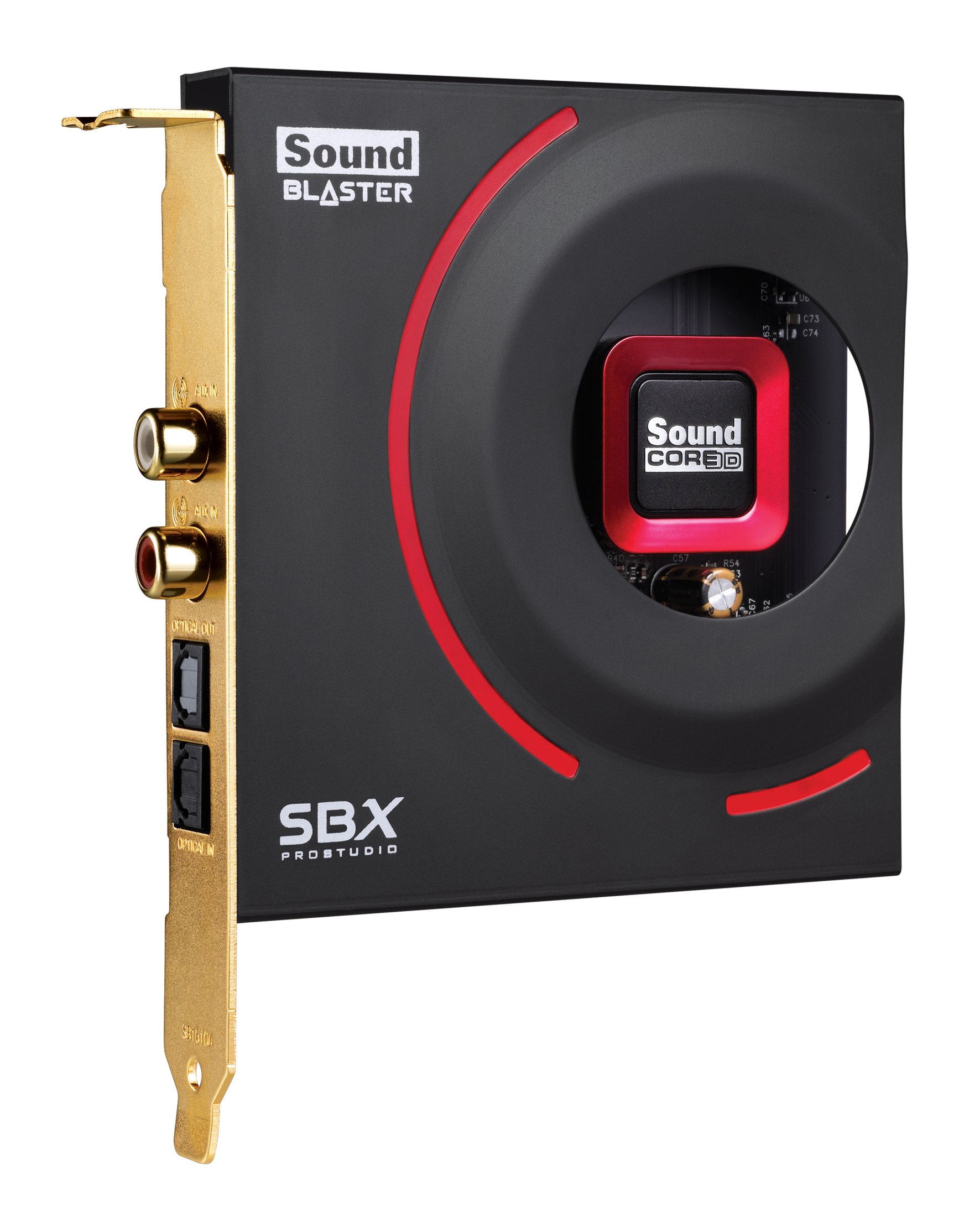

DBPro daughter card with high quality components

The analog input component also adopts the professional grade object, and audio recording with clear sound quality of S / N ratio of 120 dB is possible with card actual measurement value.

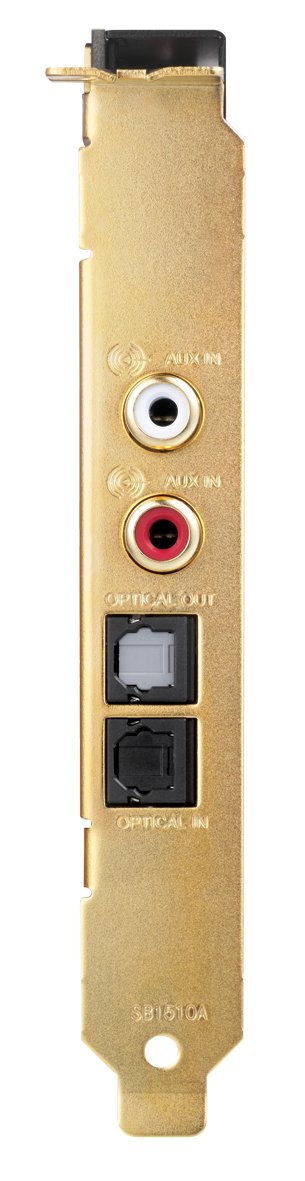

Furthermore, the daughter board is equipped with optical digital input / output.

It can perform digital transmission to the home theater system using Dolby Digital Live or DTS Connect encode function and high quality recording which is not easily affected by external noise.

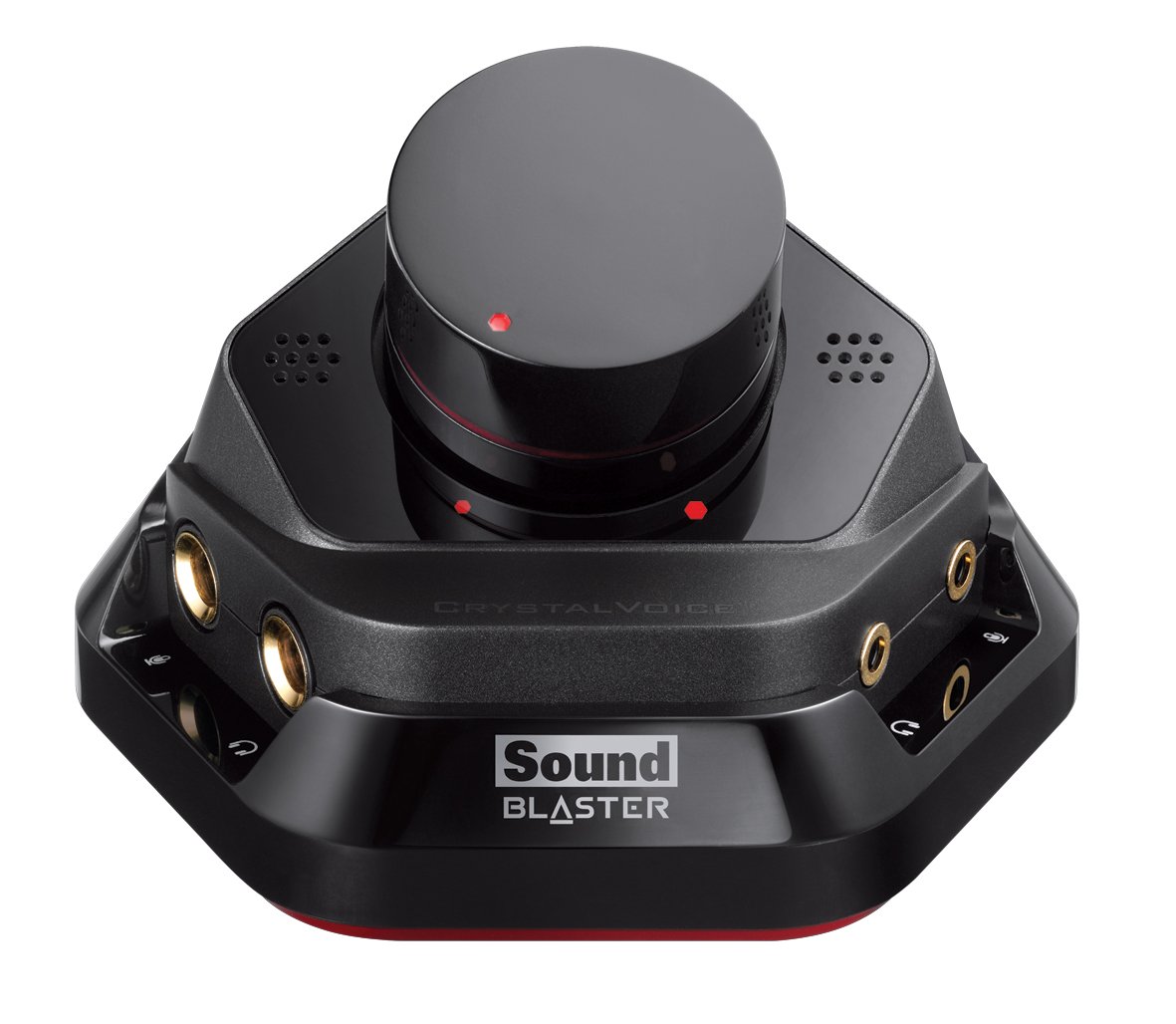

Control by hand with Audio Control Module

Audio Control Module with built-in high-quality array microphone that can fully utilize all the functions of CrystalVoice technology is included.

Also equipped with headphone output and microphone input, you can connect at your fingertips when using your favorite headphones or headset.

A more convenient headphone volume knob allows you to quickly adjust the volume during private listening.

Standard conversion plug is also included according to the standard connector of Sound Blaster ZxR.

Features:

• Please enter model number Confirm this is compatible:
• Interface: PCI Express x1
• Analog input: 24bit / 96kHz / stereo
• Analog output: 24 bit / 192 kHz / stereo or 24 bit / 96 kHz / 5.1 ch
• Digital input: 1 light system (square type)
• Digital output: 1 optical system (square type), AC-3 / DTS pass through, Dolby Digital Live / DTSConnect
• Microphone input: 24bit / 96kHz / stereo
• Headphone output: 24 bit / 96 kHz / stereo
• Supported OS: Microsoft Windows 8, Windows 7 (32-bit, or 64-bit)

Product information:

Shipping Weight: 1274 g

Package Dimensions: 10.69 x 19.99 x 36.70 cm
