Item Descriptions:
Product introduction

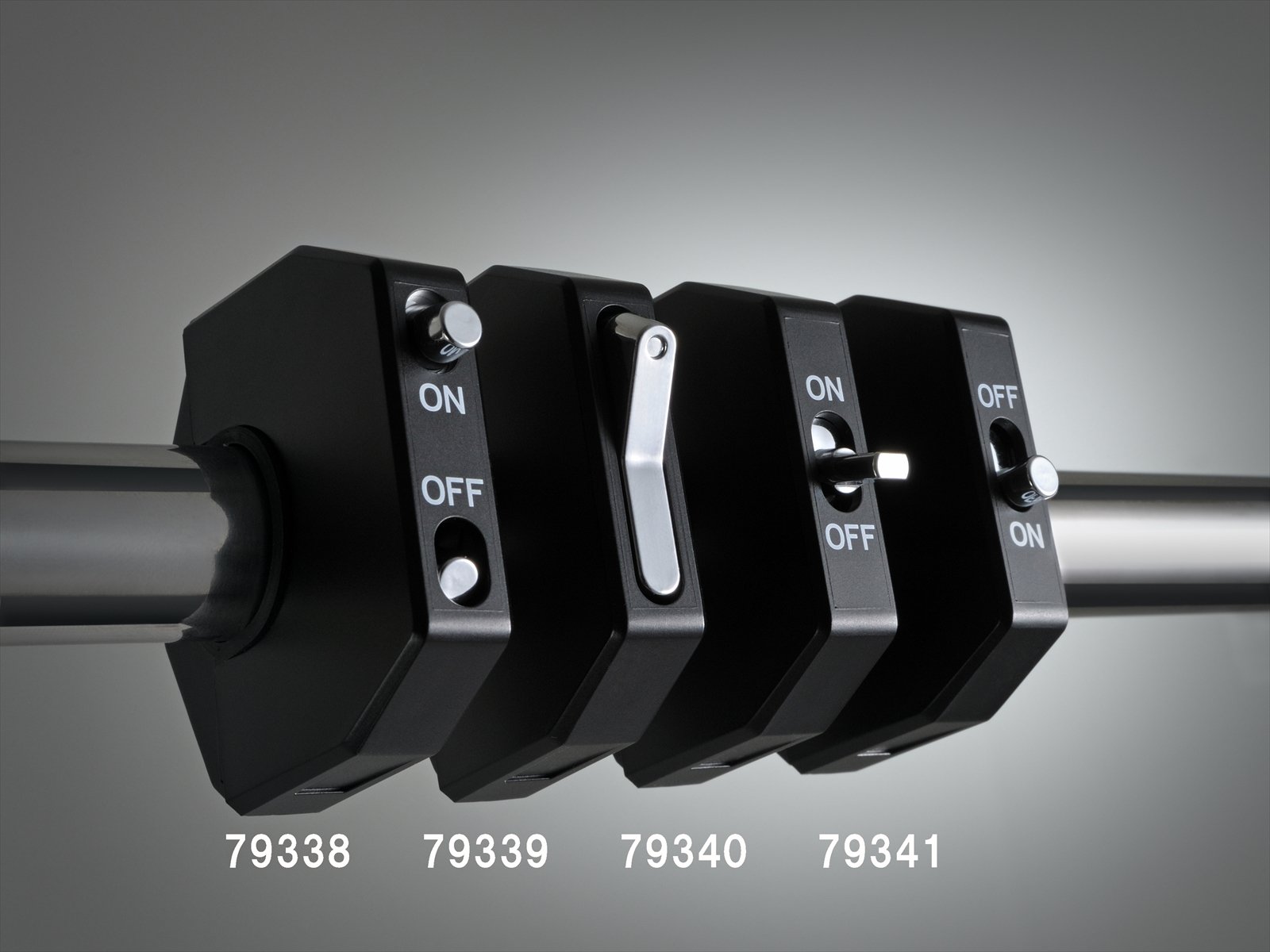

● Thin type ON / OFF switch featuring a luxurious design features four different types.
Although it is a slim body of 13.5 mm, it is compatible with high power up to rated DC 12 V / 15 A (180 W), and it can be used for various electrical components.

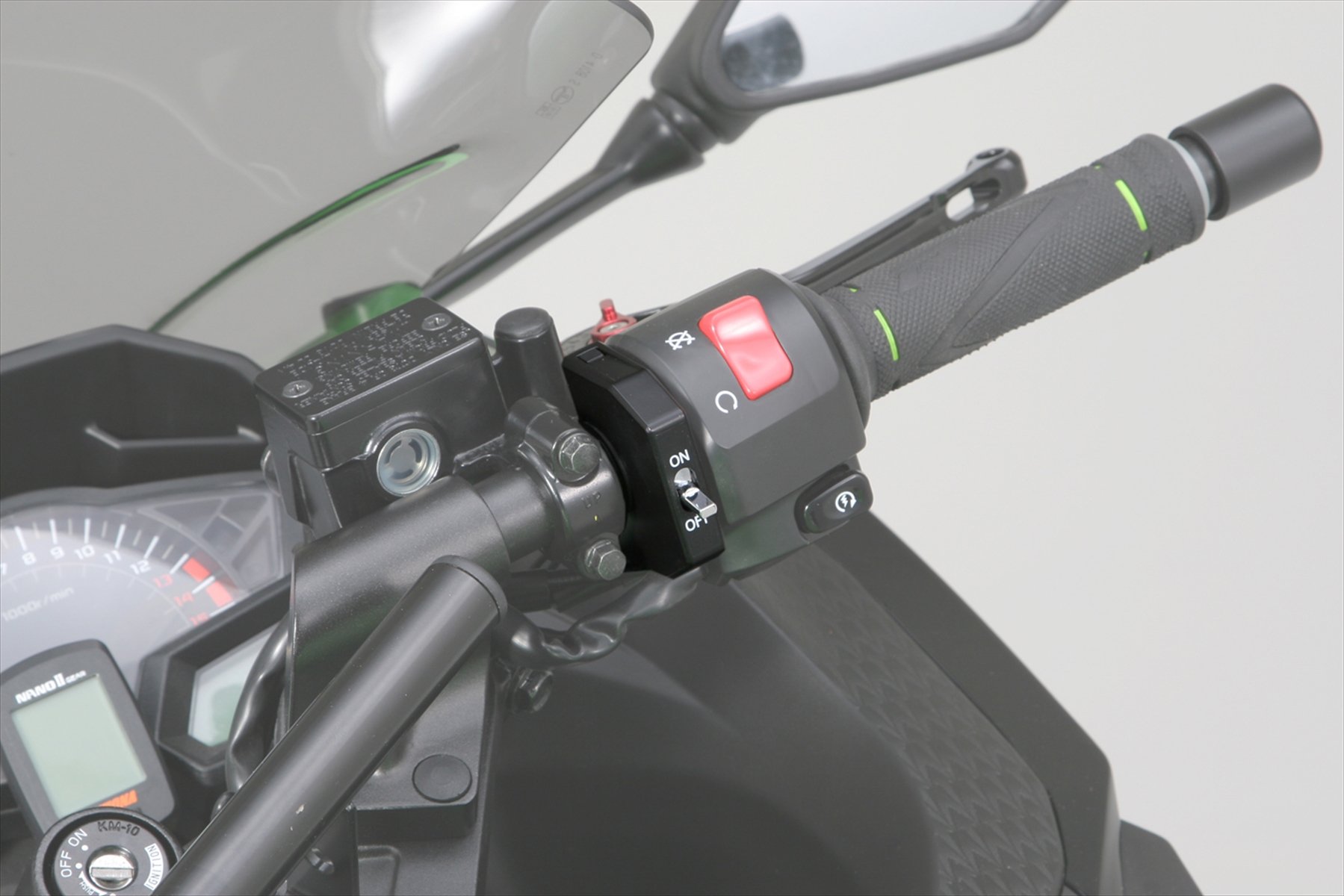

It can be fixed with a handle clamp, and it corresponds to both outer diameter φ22.2 / 25.4.
Usage notes
● For details of the product, please refer to the manufacturer's homepage or catalog.
● The image is an image.
For improvement, details may be changed without notice.
Please note.
● Depending on the temperature and temperature of the environment to be used, it may not be available up to the maximum rating.
● When used with a large current, the wiring provided becomes warm, but it is not abnormal.
● The maximum current value is 15 A.
Maximum current value does not change even when used at 6V.
● It can not be used with 24V.

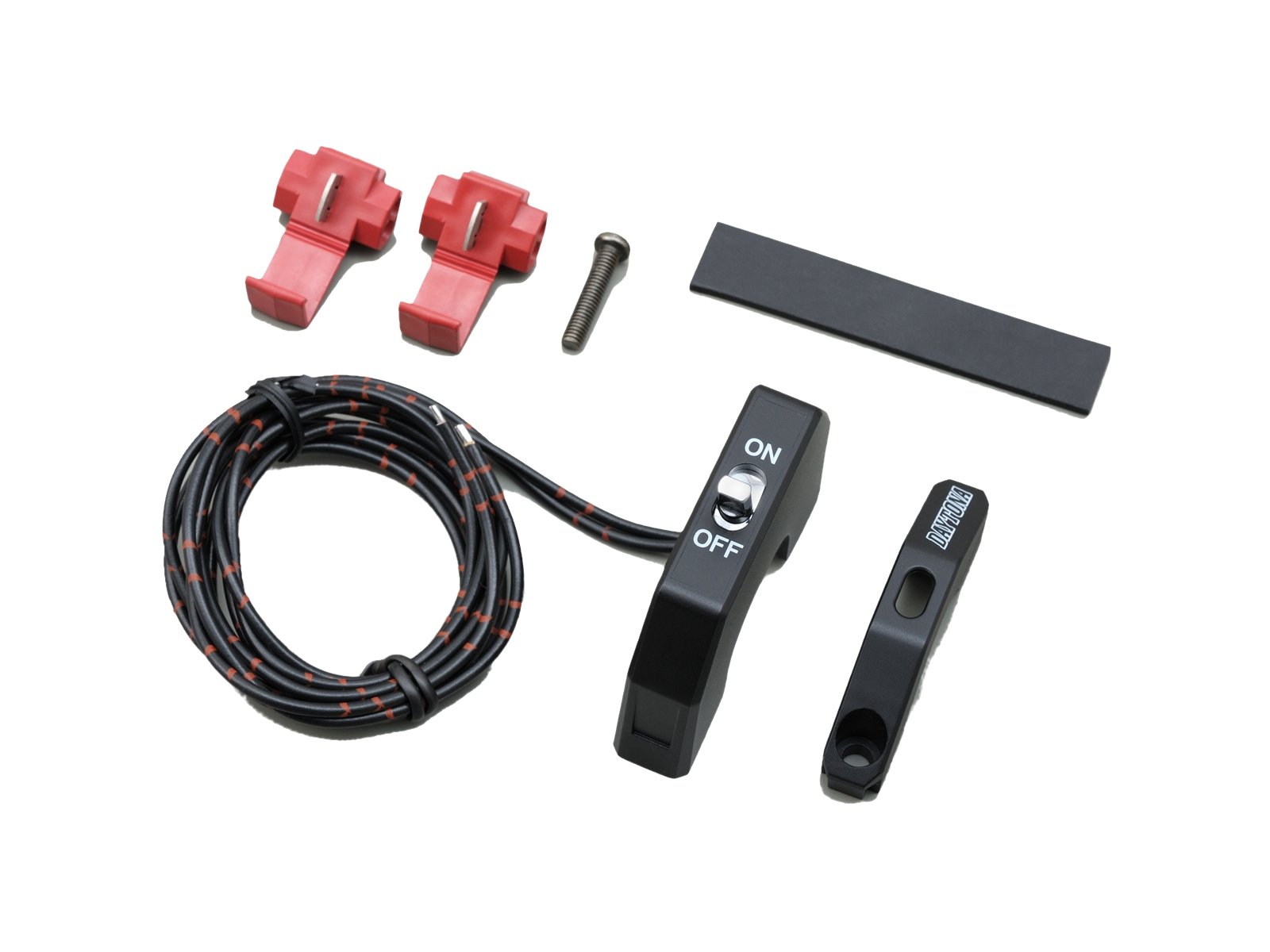

● The supplied wire connector (red) has a rated current of 7A.
When using at 80 W or more, please connect by Giboshi terminal connection or soldering etc.
※ This product does not include Giboshi terminal.
● When clamping to handle outer diameter 22.2 mm, please use the rubber spacer included.
● Be careful not to overtighten the screws.
Because it is made of resin, if the screws are over tightened more than necessary, the resin may break.
Features:
- ● Maximum current: 15 A (at 12 VDC) ● Wiring length: 800 mm
Product information:
Shipping Weight: 104 g
Package Dimensions: 4.19 x 9.60 x 21.01 cm
