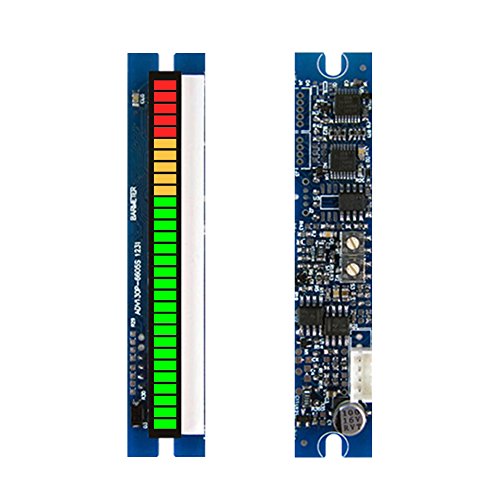

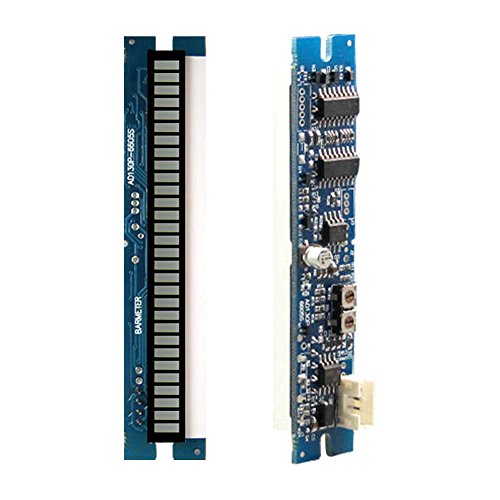

Generic 30seg 66mm LED Bargraph VU Audio Meter Module with Bar or Dot Display

Rectangle windows technics with soft tinct.

Single or customized colors can be selected.

Single module structure， easy to install.

Various measure port type can be selected.

Transmission channel sensitivity can be adjusted.

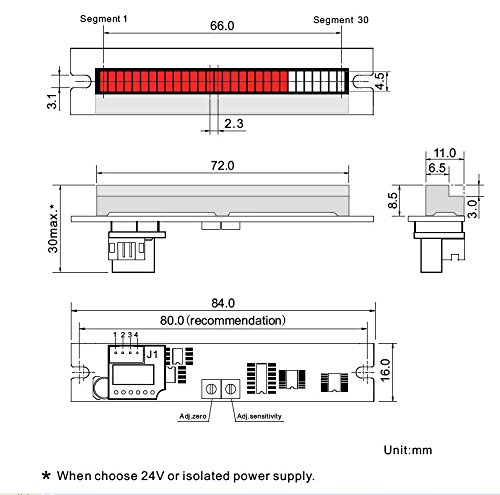

Product size :

Weight : 1.36 KG

ASIN : B00UL5LOS6

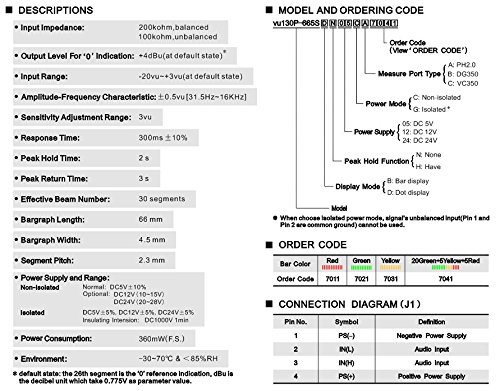

Model No : vu130P-665S BH05CA7041

Vu LED bargraph meter modules can accept and interpret audio signal and programme signal which is transmitted by lines and generate audio level for display. The module can achieve vu volume meters bar display or dot display and levels peak hold is optional. Sensitivity of transmission channel can be adjusted by the parts on module， so displays dynamic range can be adjusted easily.
