Product Description


Description:
Standards: 802.3af
CAT5 Ethernet Pin Usage: Data: 1,2,3,6
Power: +(4,5),-(7,8)
LED: Power
Voltage Input: AC 100-240 V 50/60Hz
Voltage Output: DC48V 0.5A
Dimension : 85 x 47 x 54mm
Weight: 95g
Quality warranty:All pass manufacturer QC check and for 6 months quality warranty.


Package:

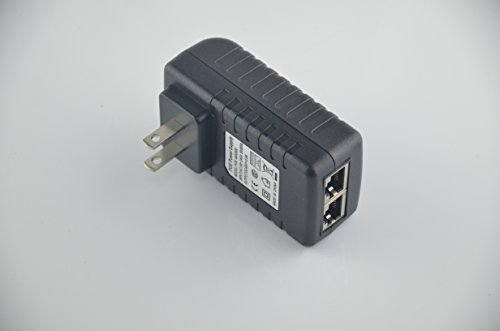

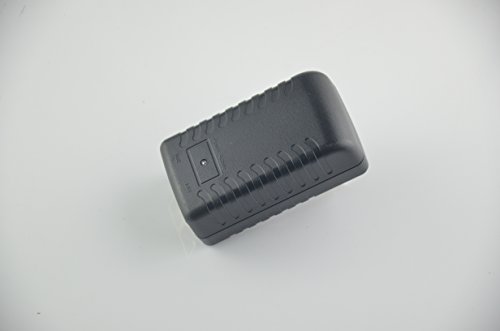

1 x PoE Injector Power Over Ethernet Adapter (Wireless Access Point not included)

This injector lets you power 802.3af compatible devices, with no additional adapter needed. Just plug the network cable(not included) into your network switch and into the "Data In" port, then plug the cable to your device into the "Data and Power Out" port with your existing network cable.

This Adapter only support 10/100M connection, do not support gigabit ethernet connection, because Data & Power Out port using 4,5,7,8 pin as power transfer, Please do not connect any gigabit ethernet device on "Out" port, this will damage your device.

This is an 802.3af compatible device, but it does NOT include the 802.3af compliant detection feature. It supplies power NO MATTER WHAT, so don't plug the "Data and Power Out" side into anything that isn't ready for it.

Compatible all 802.3af device as Wireless Access Point, IP Phone, IP camera, Gateway , Switch, or More.....

Features:
Cost Saving, No Power Cabling for WLAN AP, IP Phone and any supported IEEE802.3af Powered Device
Meeting IEEE 802.3af standards and more sufficiently is able to provide power to PD devices
Small lightweight plastic enclosure
Built-in universal 100-240V AC switching power supply
Standard RJ45 Cat.5 Ethernet data input and output
Easy, convenient, and simple to use

Feature

Brand New
6 months warranty
Brand : Eathtek
MPN(PartNumber) : 26-40000-108-FBA
EAN : 0689214001623
