Item Descriptions:

Relay G10 is a completely new wireless system that can be easily used with small rehearsal space such as home or studio.

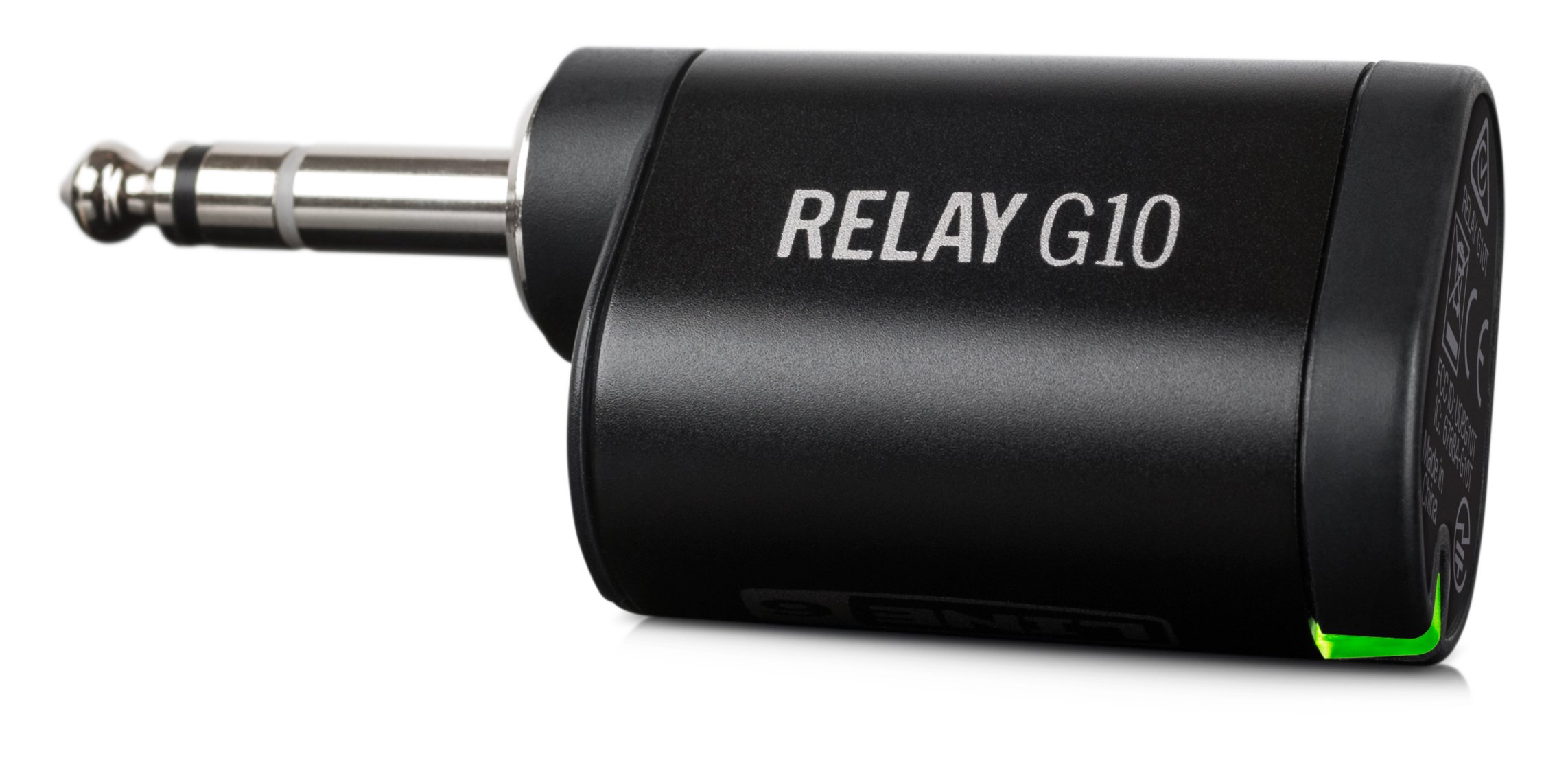

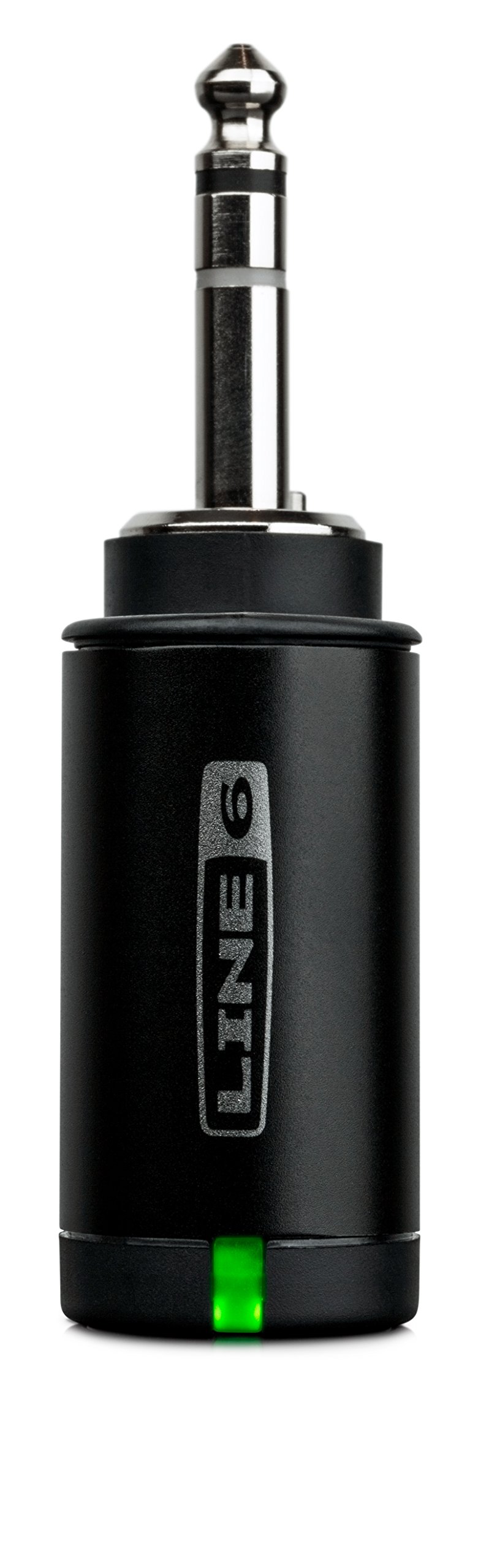

You can use it immediately by connecting a rechargeable transmitter to an instrument such as a guitar, a base, etc. All setups are done automatically, so you can enjoy the play released from the cable no matter where you are.

· Simple and intuitive design

Speaking of the wireless guitar system, its usage was complicated, but it was a long ago.

The Relay G10 is designed to be very simple and intuitive and easy to set up.

Just by plugging in the 1/4 "transmitter, the receiver automatically selects the best channel and locks.In addition, since the G10 is compatible with any type of guitar, you can also change the guitar

In addition, since the XLR 1/4 "output is provided separately, the output can be freely selected.

Complex menus and tedious setup are not necessary.

Easy charging

Wireless systems often require expensive external batteries or bulky chargers, but Relay G10 is not.

A rechargeable transmitter can ensure a battery life of up to 8 hours.

Also, G10 will enter sleep mode when not playing, keep battery life up to 200 hours.

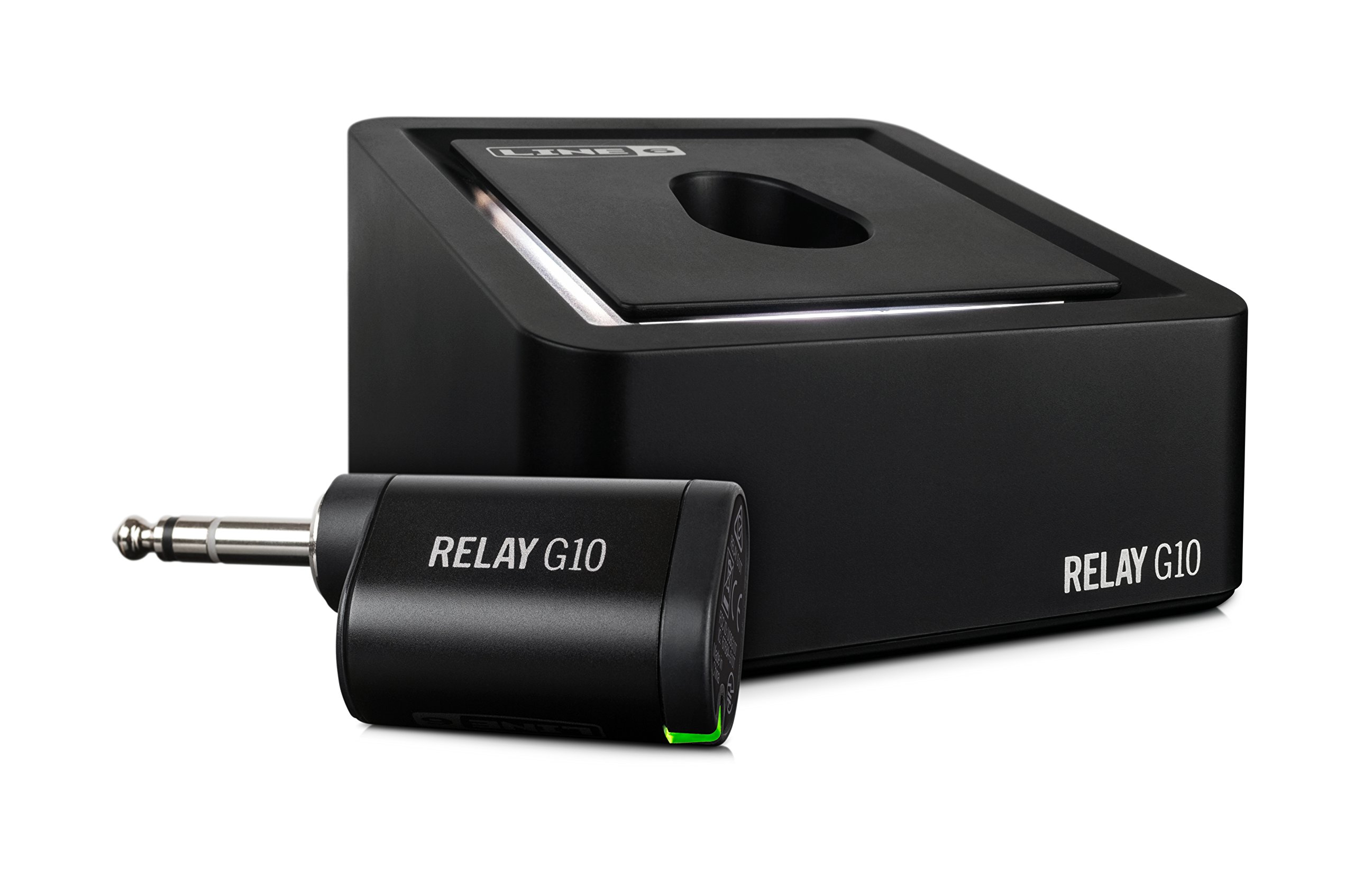

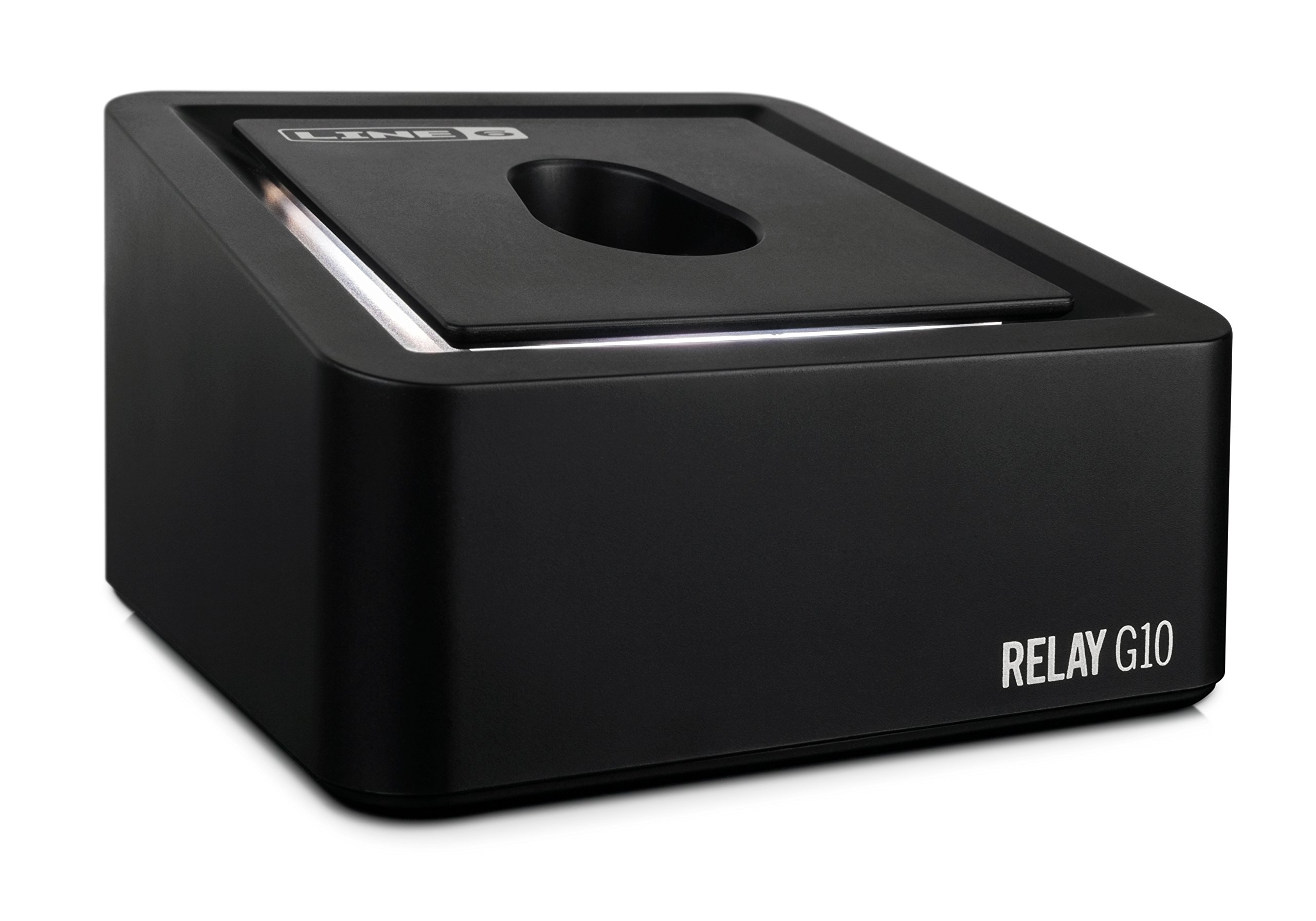

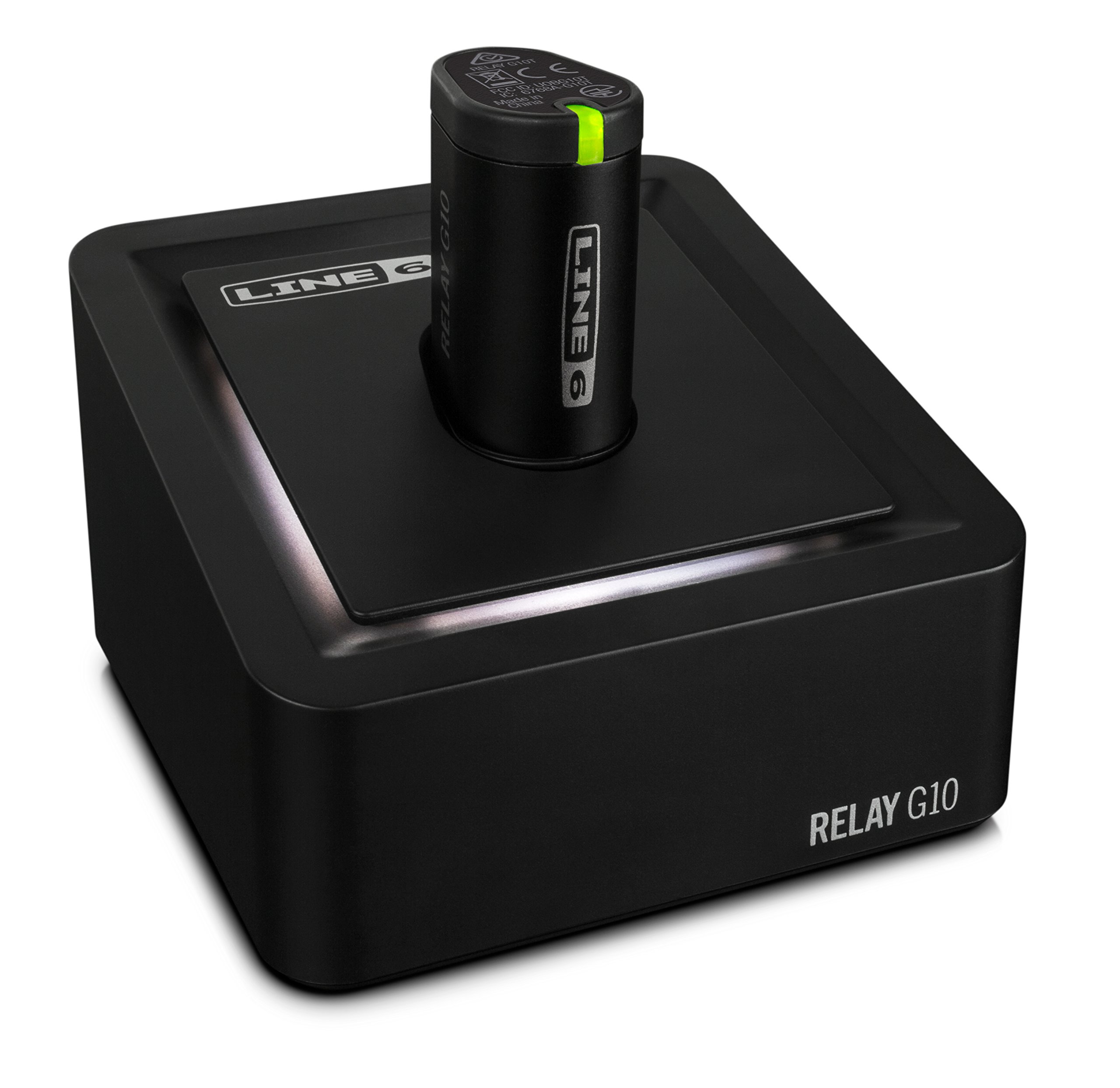

Just dock the transmitter in the receiver for charging and OK.

There is no more simplicity.

· Smart functions

Relay G10 has many smart functions to achieve the best performance.

Cable tone technology allows you to reproduce characters and feeling unique to guitar cables.

When the transmitter is fully connected the system will automatically become active, and it is unrelated to the harsh pop noise when connecting the guitar.

And the receiver turns on, you can easily check the connection with the transmitter and the state of the battery.

* The transmitter of the Relay G10 corresponds to a general 1/4 "output jack equipped with most passive and active instruments.The general specifications and 1/4

"1/4" mono / adapter may be necessary to connect the guitar equipped with the output jack.

Cause

1. Because the shape / design of the output jack is different from a general guitar

2. Since the electrical wiring specification is different from a general guitar

a) When the active circuit specification is a special guitar

b) In the case of a guitar equipped with a DSP (digital sound processor)

c) In the case of a type of guitar outputting two signals

In the applicable model example, the old Variax guitar is 2. c), and the Yamaha SRT loaded model guitar corresponds to 2. b).

For other brands of guitar etc., it is possible that there are models corresponding to 1 or 2.

In either case, you can solve with the following workaround in most cases.

■ Corrective action

As a countermeasure to all cases above, it is effective to relay the conversion plug of monophonic plug - monaural jack specification or cable as an adapter to the target guitar output.

Before connecting, be sure also that the pin plug (power supply ON / OFF pin plug) of the transmitter (G10T) (small metal protrusion beside the plug) is pressed.

Features:

• Please enter model number Confirm this is compatible:
• Automatic setup function - Start playing just by plugging in
• 24-bit digital sound quality
• Receiver with transmitter charging function
• Up to 8 hours drive time, up to 200 hours standby in sleep mode
• Transmission distance: Maximum 15 m

Product information:

Shipping Weight: 1020 g

Package Dimensions: 8.79 x 22.81 x 36.60 cm
