Product Description

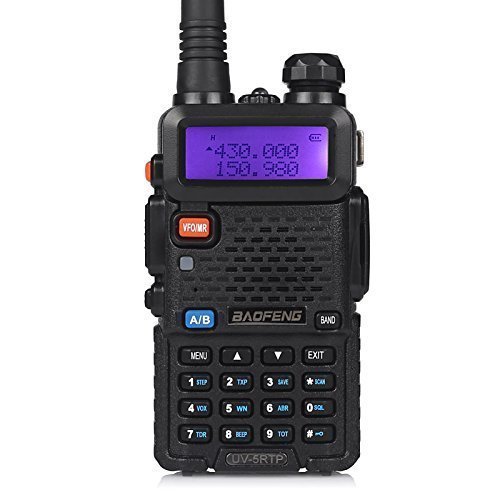

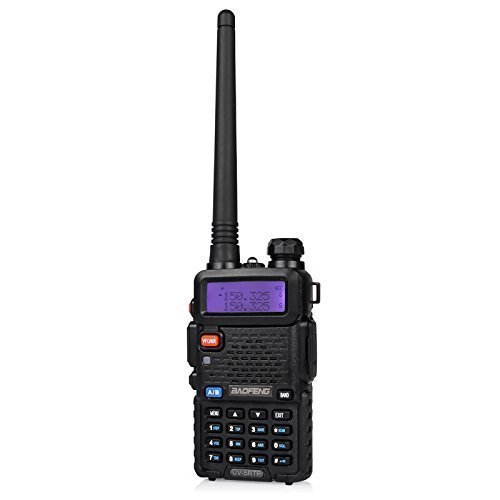

The Baofeng UV-5RTP is the upgraded version of UV-5R with Tri-Power 8/4/1W. The transcevier is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.

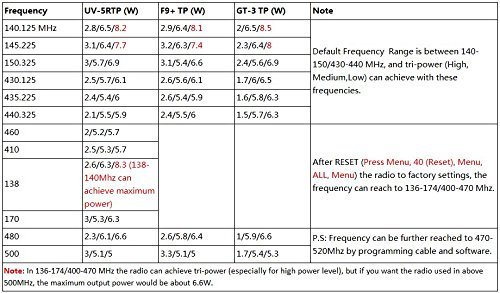

Note: 1. Factory defaults frequecy is 140-150/430-440MHz (8W Output), please reset the radio to reach 136-174/400-470MHz or program it to reach 470-520MHz.
2. In 136-174/400-470 Mhz the radio can achieve tri-power(especially for high power level), but if you want the radio used in above 500Mhz, the maximum output power would be about 6.6w.
Software Download: https://s3.amazonaws.com/sanatop/EB/EB0E09IL/UV-5RTP+Programming+Software.rar
SPECIFICATION

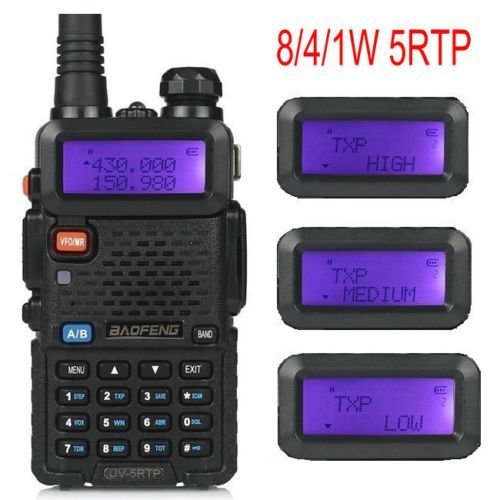

* Tri-Power: High / Med / Low Power (8W/4W/1W)
* Frequency Range: 65-108MHz (FM Receive only), 136-174MHz and 400-520MHz (TX/RX)
* Dual-Band Display, Dual Freq. Display, Dual-Standby
* Mode of operation: Simple or semi-duplex
* 128 Channels 50 CTCSS and 104 DCS
* Channel: 128
* Antenna: High gain Dual-Band Antenna
* Frequency Stability: ¡À2.5ppm
* Antenna Impedance: 50O
* Operating Voltage: DC 7.4V
* Built-in VOX Function
* 1750Hz Brust Tone
* LED Flashlight
* Large LCD Display
* Hight /Low RF Power Switchable
* 25KHz/12.5KHz Switchable
* Emergency Alert
* Low Battery Alert
* Battery Saver
* Time-out Timer
* Keypad Lock
* Monitor Channel
* Channel Step: 2.5/5/6.25/10/12.5/25KHz
* ROGER SET

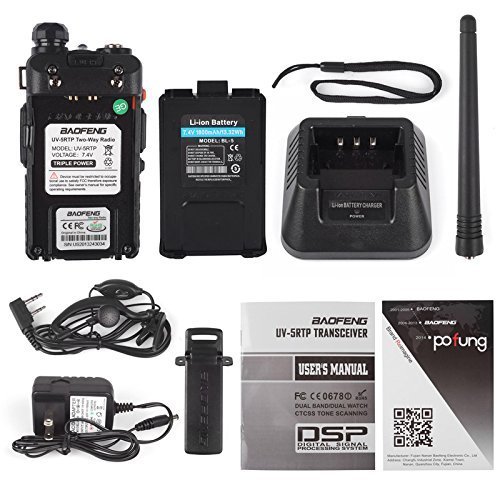

PACKAGE
1 x Baofeng UV-5RTP

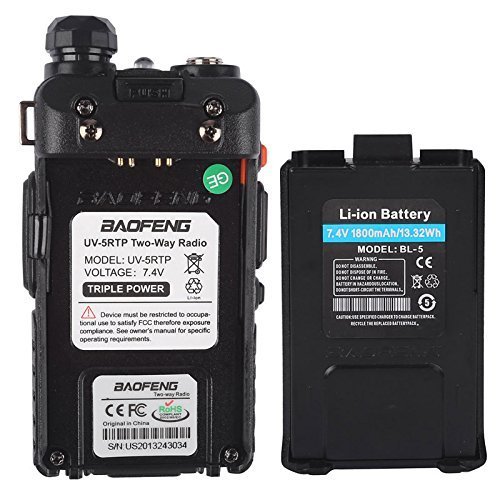

1 x 7.4V 1800mAh Li- ion Battery
1 x Booster Antenna
1 x Earphone Mic/Headset
1 x Belt Clip
1 x Hand Strap
1 x Manual
1 x Adapter
1 x Desktop Charger
Feature
UV-5RTP is Upgraded version of UV-5R with Tri-Power: High / Med / Low Power Settings (8W / 4W / 1W). Frequecy Range: 65-108 Mhz (Only commercial FM radio reception), VHF: 136-174 Mhz (Rx/Tx), UHF: 400-520 Mhz (Rx/Tx).
Optimal Modulation of TX/RX Power transistor, True 8W Output Power, Longer Effective Talking Range.Please kindly note that a LONG TIME usage of radio may make the battery get hot,and affects the battery using life!
Upgrade the frame material. Metallic, more durable and more fashionable. With full high two colors LCD definition display, the screen exquisite clarity.
3 key BFB upgrade to BFB 301. NOTE: Please get the test review video via the link: https://s3.amazonaws.com/sanatop/EB/EB0E09IL/UV-5RTP+Test+Review.txt
NOTE: The frequncy of the UV-5RTP radio has been set as 140-150/430-440MHz when it manufactured. In order to use the 136-174/400-520MHz, you need to do the factory reset. Press the Menu button, type '40', and then the radio will be reset. Then, please use the the Baofeng official software (Not CHIRP) for programming. It has the page under "other" simply checking the box that says "allow more than 480mhz transmit", and changing the frequency range from 400-520mhz, then click write to radio.
Brand : BAOFENG
Item model num : WT-0721
MPN(PartNumber) : WT-0721
EAN : 5415943853821
Product Dimensions(LxWxH) : 14x6x3cm ; 499 g
Package Dimensions(LxWxH) : 19x15x11cm ; 499 g
