Item Descriptions:

Product size: 12.3 x 1.66 x 6.8 cm

Weight: Approximately 154 g

Movie resolution: 1920 x 1080 P / 1280 x 720 P / 720 x 480 selectable

Still image resolution: 4032 x 302/2650 x 1920/2048 x 1536/1280 x 960 selectable

Recorable time (per file): 5 minutes / 10 minutes / 15 minutes selectable

Movie format: MOV

Still image format: JPG

Movie code: H.264 / AVC1

Operating voltage: DC-5V

Number of frames: ~ 30 FPS

Interface type: USB, Micro SD

Supported OS: Windows me XP / 2003 / vista, win 7

Media player: Operating system included, or mainstream audio / video media player

Memory: Not built in

(Micro SD card / TF card)

In case

Micro SD

Card / TF card

Is

128 GB

Corresponding

Battery: lithium polymer rechargeable battery

Battery capacity: 4200 mAh

Waterproof: Non-waterproof

Producing countries: China

function

Movie shooting, still image shooting, motion detection recording, repeated recording function, external power supply function, external camera function, date setting function, mobile battery function, movie / still image resolution selectable.

Baile battery function:

Charging function to iPhone or smartphone After connecting to OUT1A, OUT2A output terminal and iPhone or smartphone of machine with USB charging cable, it is charged automatically.

Two smartphones can be recharged at the same time.

Motion Detection Recording Function:

Motion Detection Recording standby mode is started and a motion detection function that automatically starts and stops recording in response to surrounding movement is installed.

For example, you can use it for crime prevention purposes, evidence of flirt or the like.

You can use it as a security camera at the time of stationary use.

Movie / still image resolution selection:

1, Movie resolution Three kinds of sizes can be selected

1920 * 1080/1280 * 720/720 * 480

2, Still picture resolution It can choose from 4 sizes

4032 * 3024 (1200 pixels) / 2650 * 1920 /

2048 * 1536/1280 * 960

Repeat recording:

Corresponds to continuous recording with a repeat recording function that overwrites old data and leaves only new data.

You can select 5 minutes / 10 minutes / 15 minutes for each file of recording!

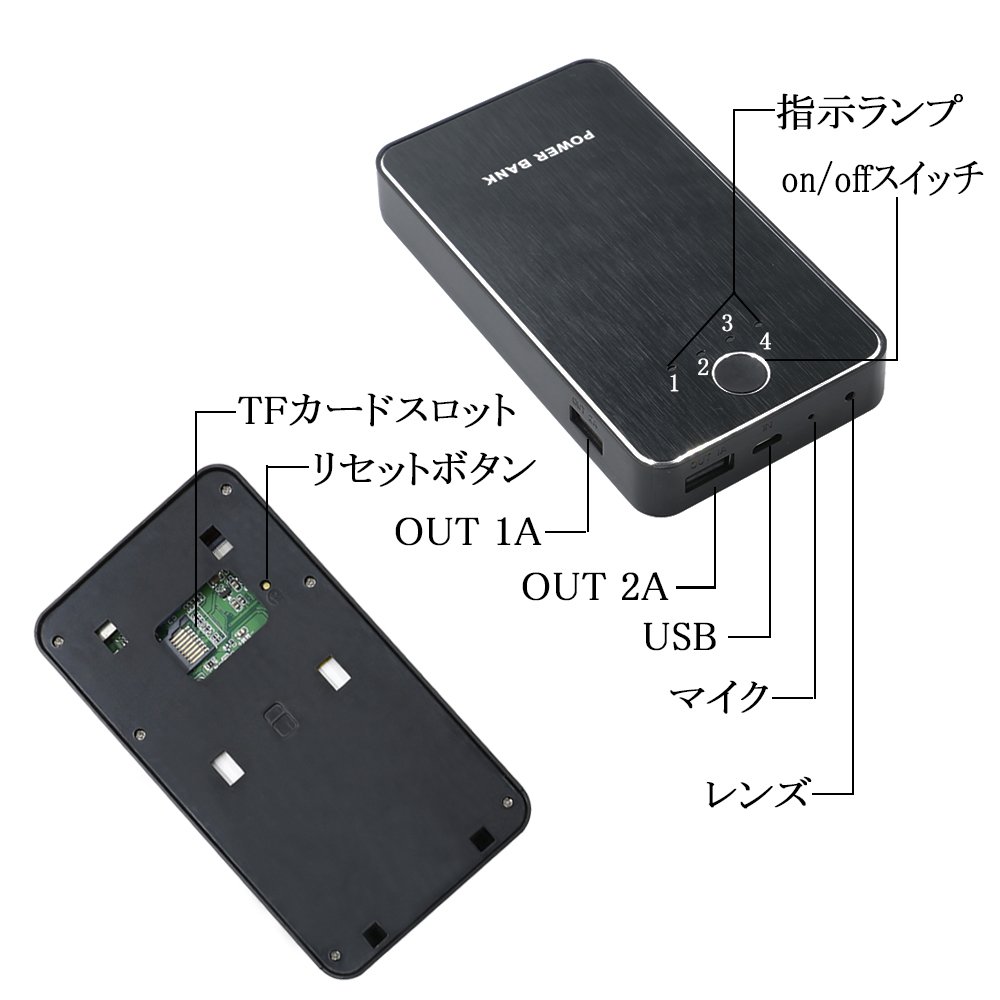

①, On:

When you press and hold the button for 3 seconds, the 3, 4 lamp lights up, the 4 lamp lights steadily and enters the standby mode.

②,

Still image shooting:

When you press the button twice in standby mode, the 3 lamp blinks once, the picture is taken and saved.

③, movie shooting:

When you press the button briefly from standby mode, the 3 lamp flashes twice and the standby mode for movie shooting is started.

When you press the button briefly, the 3 lamp flashes twice, the 4 lamp lights steadily, the recording is saved, and it returns to the standby mode at the same time.

④, Motion detection Recording:

When you press the button for 3 seconds from standby mode, the 3 lamp blinks several times and the standby mode for motion detection recording starts.

When you find a moving object, the 3 lamp flashes once and the motion detection recording starts.

4 The lamp lights steadily, the recording is saved, and it returns to the standby mode at the same time.

⑤,

OUT 1 A / OUT 2 A

so

iPhone

And smartphones and can charge.

⑥, OFF:

When you press the button for 6 seconds long from standby mode, the 4 lamp blinks several times,

It will be shut down.

set content:

Camera body

Usb cable

Japanese manual

【Notes】

* A personal computer is required for playing back, moving, deleting, setting, etc. files recorded with this product.

Any operation of this product is Micro Micro SD

card

(TF card)

Please insert after inserting.

Features:

• Please enter model number Confirm this is compatible:
• [Function]: Movie shooting, still image shooting, moving body detection recording, repeated recording function, external power supply function, external camera function, date setting function, mobile battery function, movie / still image resolution selectable.
• (It corresponds to 128GB)
• 【High Image / High Resolution】: 1080p movie shooting, 12 million pixel still image shooting, achieving overwhelming high image quality / high resolution shooting compared to conventional model.

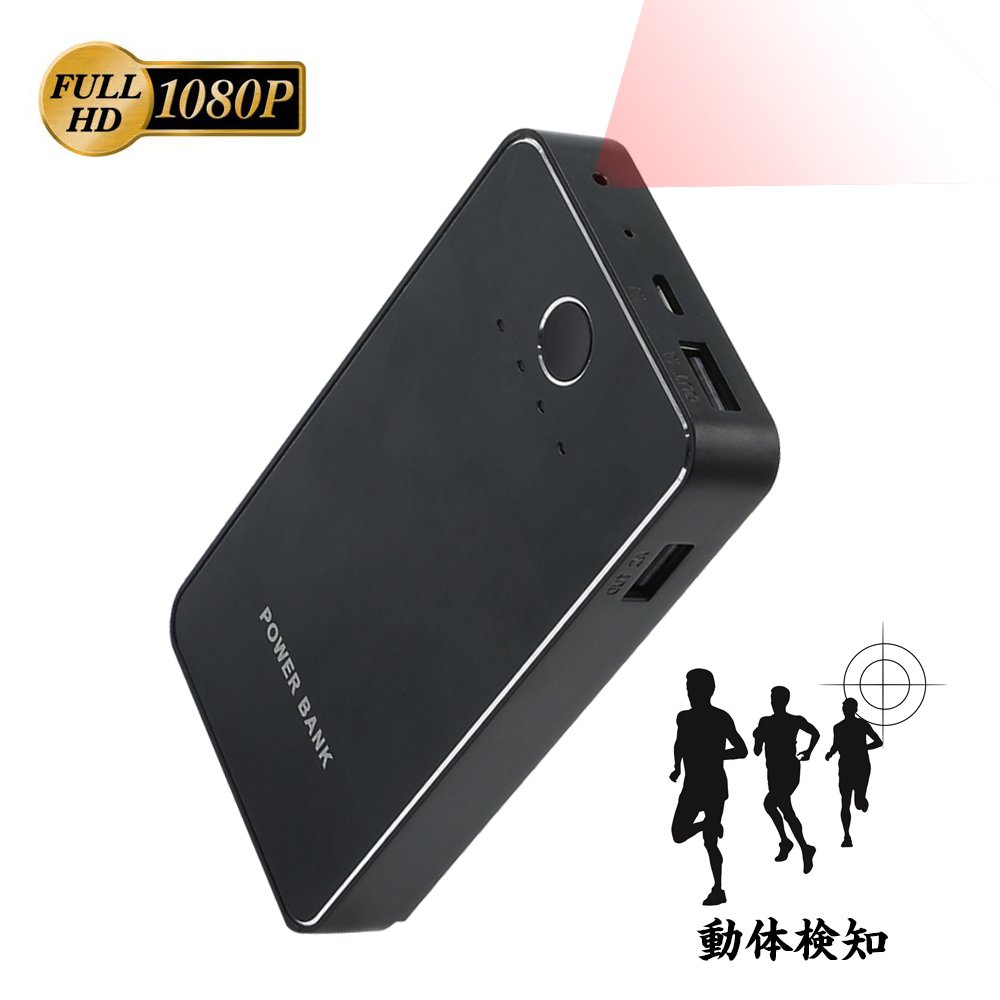

• 【Motion Detection Function】: Equipped with motion detection function that automatically starts and stops recording in response to surrounding movement.
• Monitoring and crime prevention.
• 【Mobile battery function】 You can shoot while charging to iPhone or smart phone etc, like mobile battery, it is hard for ballet, smartphone etc.
• 【Movie · still image resolution selectable】: Movie resolution Selectable from 3 different sizes, Full HD 1920 × 1080pix full high definition details can be shot, and other, 1280 x 720 pix, 720 x 480 pix, are available.
• Still image resolution There are 4 types of sizes available, 1200 pixels as high resolution of 4032 × 3024, others 2650 x 1920, 2048 x 1536, 1280 x 960.
• 【1 year warranty】 This product comes with ztcolife manufacturer's warranty.
• We will exchange new products only for natural breakdown within 1 year from purchase.

Product information:

Shipping Weight: 2499 g

Package Dimensions: 3.99 x 8.51 x 13.49 cm
